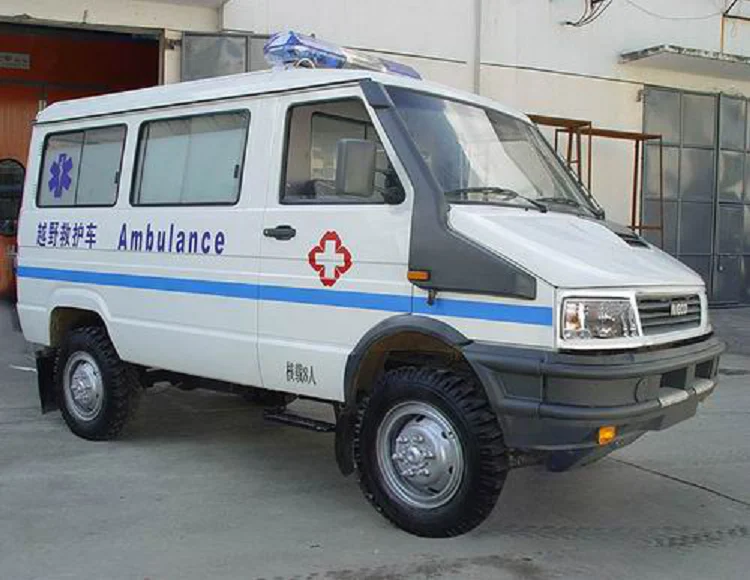

4x4 Hospital ambulance vehicle Off road ambulance

Truck

Model

NJ5049XJH5G

Gross Weight

4450kg

Overall dimensions

4855*2080*2635mm

Curb Weight

2900kg

Wheelbase

2800mm

Max speed

105km/h

Number of Tyres

4

Traction system

4*4

Tyre Model

255/85R16LT 8PR

Transmission

manual

Allowable Cab Passengers

3-8

Chassis

Brand

IVECO

Model

NJ2045GCCP

Drive type

RDH or LDH

Gearbox

5 forward gear,
1 reverse gear(manual)

Engine (Motor)

Brand

IVECO

Type

 gasoline

Model

SOFIM8140.43S5

Displacement

2798ml

Horse power

129hp

Emission standard

Euro 5

Standard Configuration

Control plate of siren and alarm lamp mounted in driver's cab

1 set

 Red flashing alarm lamps four sides of vehicle outside roof

10 pcs

 Medicine cabinet

1 set

Oxygen cylinders 10L

1 pc

Ultraviolet radiation disinfector light

1 pc

 Individual seat

3 pcs

 12V light lamp

2 pcs

 Intelligent inverted power supply system (12-220V) 500W

1 set

220V wall outlet

1 set

 Exhaust system is installed on patient's compartment roof

1 set

 Multi-functional interior roof in patient's compartment, with handrail,
 transfusion hanging bracket

1 set

Automatic loading-and-unloading stretcher

1 pc

Hand-free intercom system between driver's cab and patient's compartment

1 pc

 Oxygen reducing valve

1 set

Fire extinguisher

1 set

Emergency Configuration

ECG monitor and a defibrillator

√

Spinal board

√

Transport ventilator

√

Infusion syringe pumps

√

Suction unit

√

Cot,patient shifting rools, and ambulance chair

√

A nebulizer

√

Oxygen supply units

√

A sphygmometer

√

Rescue splints bandages

√

Unit of radio base

√
