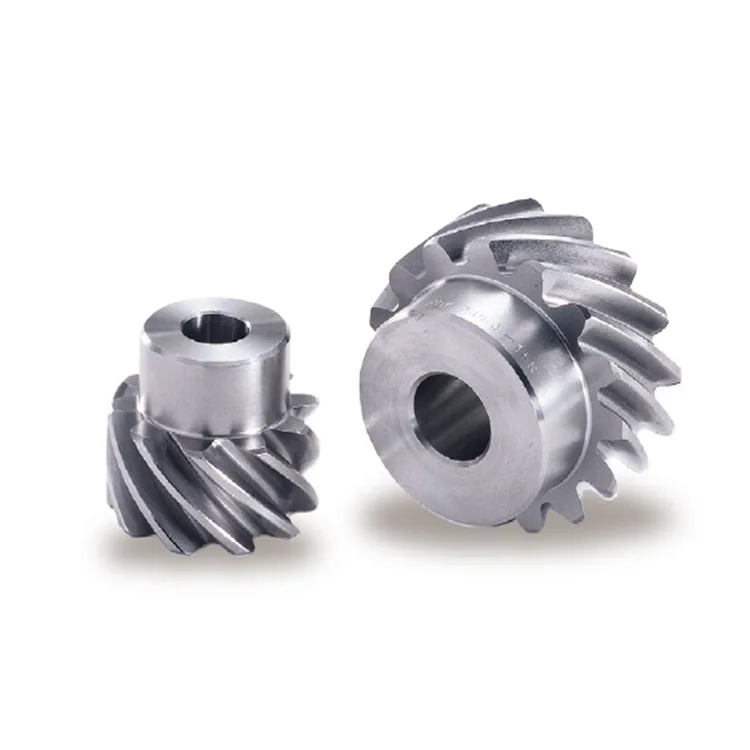

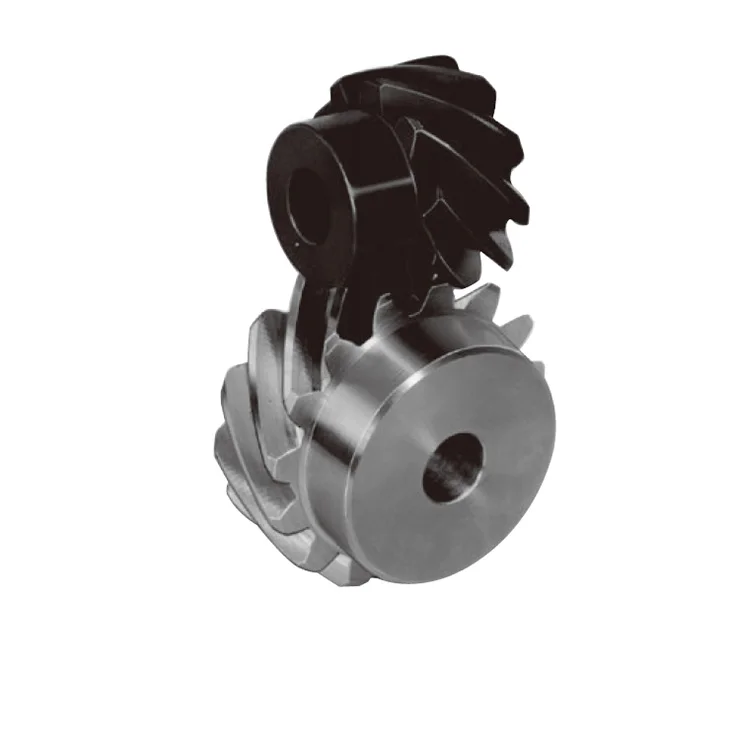

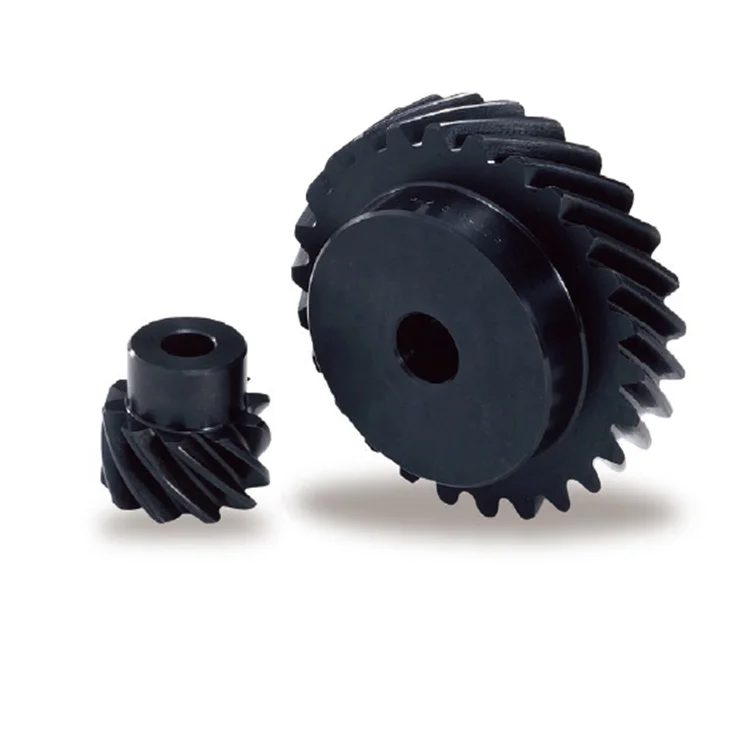

CNC Machining Spiral Gear Screw Gear
- Category: >>>
- Supplier: Shanghai Michigan Mechanical Co. Ltd.
Share on (62592336670):
Product Overview
Description
Products Description
Specification | ||
Precision grade | ISO grade 5, AGMA grade 13 | |
Reference section of gear | Normal plane | |
Gear Teeth | Standard full depth | |
Pressure angle | 20° | |
Helix angle | 45° | |
Material | SCM415, 15CrMo, 9310,8620 | |
Surface treatment | Black oxide coating | |
Module | No. of teeth | Direction of spiral | Bore (AH7) | Pitch dia. (C) | Outside Dia. (D) | Face width (J) | Total length (F) |
1 | 13 | R | 6 | 18.38 | 20.38 | 10 | 20 |
13 | L | 21.21 | 23.21 | ||||
2 | 10 | R | 12 | 28.28 | 32.28 | 20 | 35 |
10 | L | ||||||
3 | 30 | R | 20 | 127.28 | 133.28 | 25 | 43 |
L | |||||||
4 | 26 | R | 20 | 147.08 | 155.08 | 30 | 50 |
L |
Thank you for reaching out to us for your custom gear requirements. Our Engineering team will review your request and will be in contact within 24 hours. - SMM TEAM
Company Profile
Shanghai Michigan Mechanical Co. Ltd - Concentrate on OEM Transmission Parts for More Than 15 Years.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First, Integrity, Never Stop Improving.
Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.
Core Value: Customer First, Integrity, Never Stop Improving.
Related Products
Production Process
Raw Material Rough Cutting Gear Turning Quenching & Tempering
Gear Milling Heat Treatment Gear Grinding Testing
Testing
Gleason 1500GMM Inspection Center
Diameter: 1500
Max Weight:4.5t
Links CNC3906 Inspection Center
Diameter: 600
Automatic Inspection Line
How Do Our Technical And Quality Team Support Our Clients And Partners?
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.
Quality Warranty : 12 months counting from the delivery of the goods.
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.
Quality Warranty : 12 months counting from the delivery of the goods.
Product packaging
Inner Package Carton Non-solid Wood Packing Iron box packing
To be packed in new strong case(s)/carton(s), suitable for long distance ocean/air and inland transportation. In addition,we are willing to customize packaging per your request.
Certifications
ISO 9001 certification
ISO/TS 16949 certification
Successful Case
Why Choose Us
Being proactive, we constantly recognize and strive for opportunities that are beneficial to customers and self-improvement;Action speaks louder than words, we make fast decisions on the needs of customers, suppliers and employees. We are Ready to Support Your Further Success! ——SMM TEAM
