Red Rawl Plugs
US $0.061-$0.068
R32 hollow threaded bar anchor rods in soil stabilization hollow anchor bar
- Category: >>>
- Supplier: Luoyang Sinorock Engineering Material Co. Ltd.
Share on (62592348310):
Product Overview
Description
Product Description
The main feature of the Sinorock@ Self-Drilling Anchor (SDA)
system is the application of a single-use drill bit in combination with the rock bolt being used as a drill steel. Thus,
the rock bolt is connected to the hydraulic rock drill by
an adapter device and installed in the way a conventional
borehole is drilled. The Sinorock@ SDA program consists of
the following:
> Single-use drill bits, which are available either
hardened or with carbide inserts
> Hollow, steel bars, with a continuous outside thread
> Steel couplings, with a continuous inside thread
> Steel nuts
> Steel face plates
The bolts are classified according to thread
type and material:
R-type has a rope thread, and is available in sizes from
R25 to R51.
T-type is according to international standard, and is available in sizes from T30 to T200.
system is the application of a single-use drill bit in combination with the rock bolt being used as a drill steel. Thus,
the rock bolt is connected to the hydraulic rock drill by
an adapter device and installed in the way a conventional
borehole is drilled. The Sinorock@ SDA program consists of
the following:
> Single-use drill bits, which are available either
hardened or with carbide inserts
> Hollow, steel bars, with a continuous outside thread
> Steel couplings, with a continuous inside thread
> Steel nuts
> Steel face plates
The bolts are classified according to thread
type and material:
R-type has a rope thread, and is available in sizes from
R25 to R51.
T-type is according to international standard, and is available in sizes from T30 to T200.
hollow threaded rodhollow internally threaded rodhollow rodhollow threaded rod suppliershollow drill bars and rods
Specification
Size | Outer Dia.(mm) | Inner Dia. (mm) | Ultimate Load (KN) | Yield Load (KN) | Weight (Kg/m) |
SSR32/20 | 32 | 20 | 210 | 160 | 2.83 |
SSR32/17 | 32 | 17 | 280 | 230 | 3.50 |
SSR32/15 | 32 | 15 | 360 | 280 | 4.00 |
SER32/21 | 32 | 21 | 210 | 160 | 2.60 |
SER32/19 | 32 | 19 | 280 | 230 | 2.95 |
SER32/17 | 32 | 17 | 360 | 280 | 3.50 |
SER32/15 | 32 | 15 | 405 | 320 | 4.00 |
SCR32/21 | 32 | 21 | 250 | 190 | 2.60 |
SCR32/20 | 32 | 20 | 280 | 230 | 2.83 |
SCR32/17.5 | 32 | 17.5 | 360 | 280 | 3.40 |
Company Profie
Sinorock@ is an experienced manufacturing and trading company specialized in the research & development, production, and sales of self drilling anchor bolt and other anchoring products. Our products originate from the self-drilling anchor system, and focus on the self-drilling products from the beginning. Sinorock@ is a mainly export-oriented company，which products have been exported to more than 40 countries in the world.
The self-drilling anchor bolt is our core product which includes the R-thread system and T-thread system. The sizes we can produce
include R25, R32, R38, R51, R63, T30, T40, T52, T73, T76, 103, T111, T127, T130, T150, and T200. We have professional product
research and development team which makes customized service available. Moreover, Sinorock has passed ISO certification (issued by
BV company). All series of self-drilling anchor bolt has passed CE certification.
include R25, R32, R38, R51, R63, T30, T40, T52, T73, T76, 103, T111, T127, T130, T150, and T200. We have professional product
research and development team which makes customized service available. Moreover, Sinorock has passed ISO certification (issued by
BV company). All series of self-drilling anchor bolt has passed CE certification.
hollow threaded rodhollow internally threaded rodhollow rodhollow threaded rod suppliershollow drill bars and rods
OUR CERTIFICATION
ISO
CE
SGS
A PERFECT QUALITY CONTROL PROCESS
hollow threaded rodhollow threaded
Incoming inspection
baranchor rods in soil stabilizationhollow
Process quality control
anchor bar soil nailing slope stability
Finished product inspection

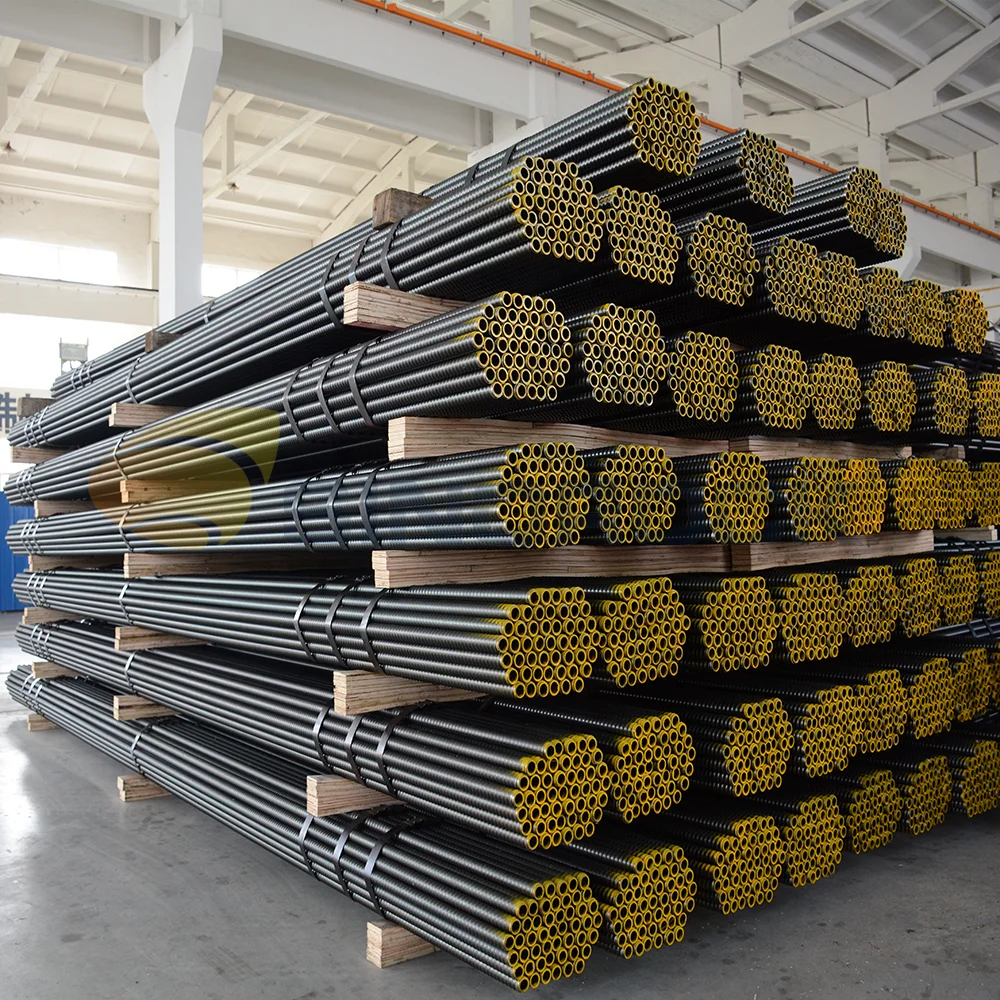

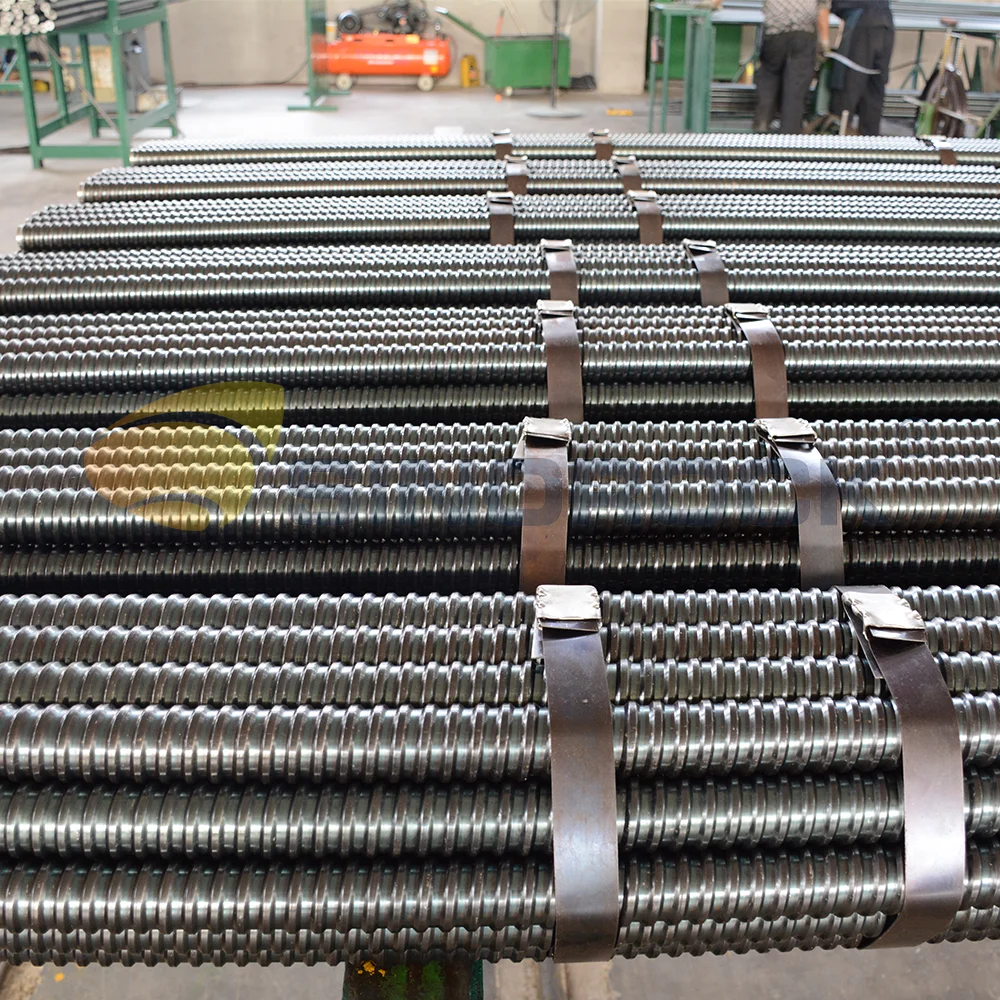

Packing & Delivery
Sinorock has a professional packaging standard and process for every product. Most suitable packaging solutions for
transportation, loading and unloading are summarized after the coorperation, communication with hundreds of customers. Each size of product has an independent and complete package standard. Packing steps are clear and requirements are definite. Sepecial packaging schemecan be customizeds according your request.
transportation, loading and unloading are summarized after the coorperation, communication with hundreds of customers. Each size of product has an independent and complete package standard. Packing steps are clear and requirements are definite. Sepecial packaging schemecan be customizeds according your request.
hollow threaded rodhollow internally threaded rodhollow rodhollow threaded rod suppliershollow drill bars and rods
