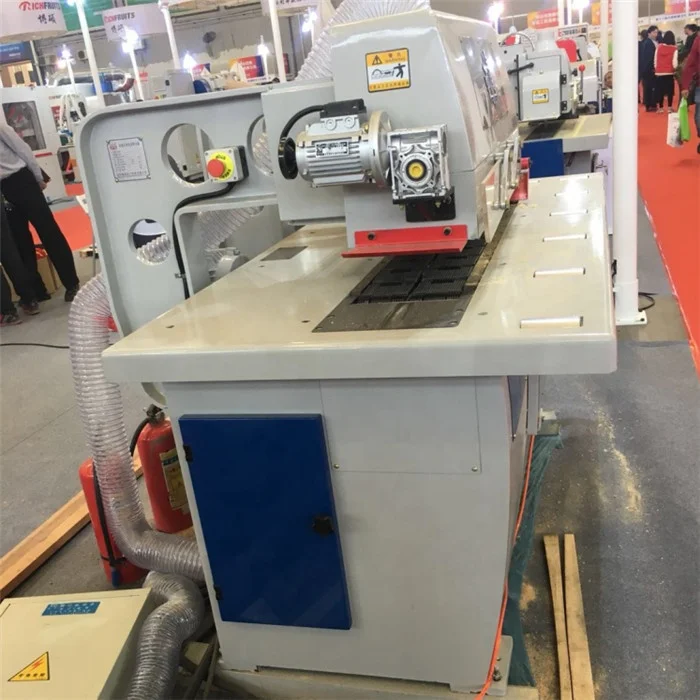

High quality straight line cutting saw wood machine
- Category: >>>
- Supplier: Jinhua Lima Machinery Co. Ltd.
Share on (62592427283):
Product Overview
Description
Product Description

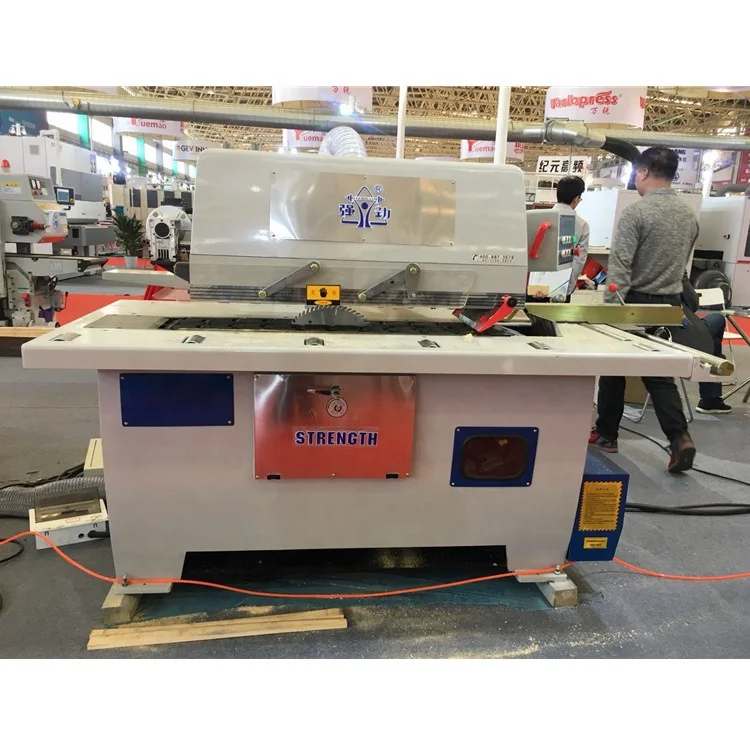

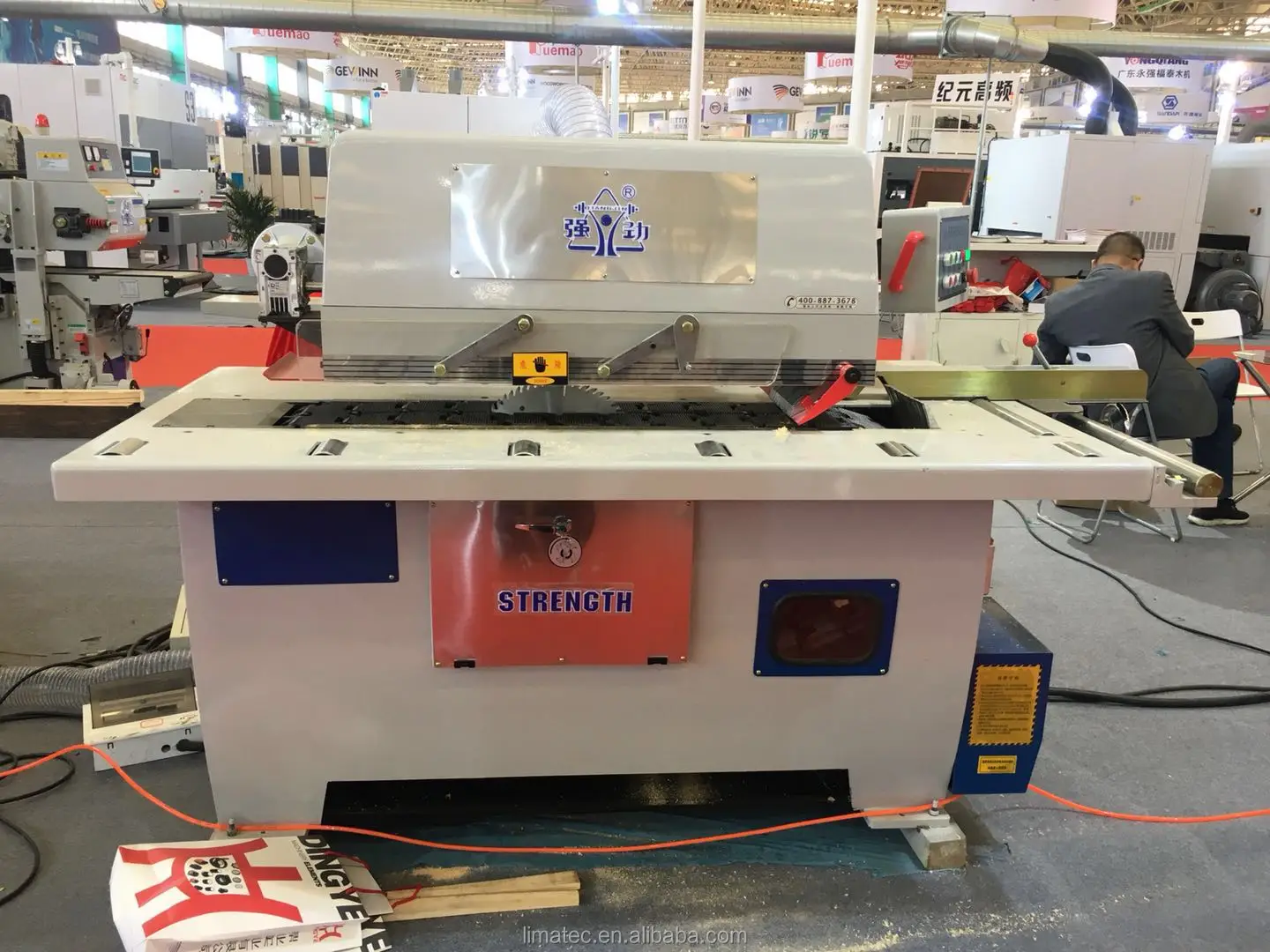

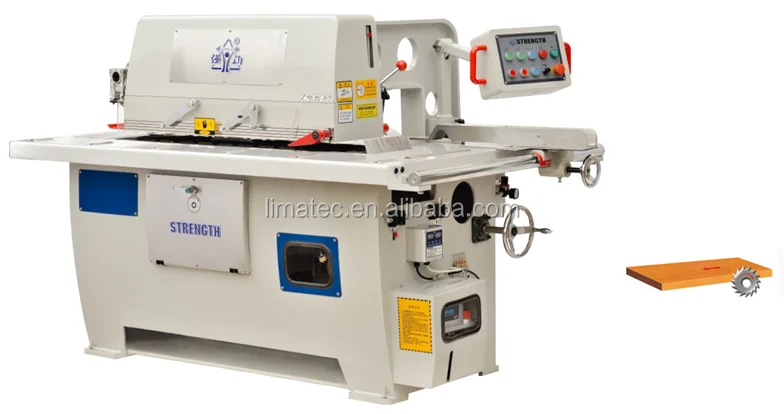

Straigh Line Rip Saw
Main technical parameter | MB163D | MB164D |
Working thickness | 10-70mm | 10-115mm |
Min. working length | 120mm | 120mm |
Throat capacity | 460mm | 660mm |
Saw spindle aperture | Φ50.8mm | Φ50.8mm |
Saw blade diameter | 250-355mm | 355-455mm |
Spindle speed | 2930r/min | 2930r/min |
Feeding speed | 0-26m/min | 0-26m/min |
Spindle motor | 7.5kw | 11kw |
Feeding motor | 1.5kw | 2.2kw |
Machine weight | 1400kg | 1850kg |
Detailed Images

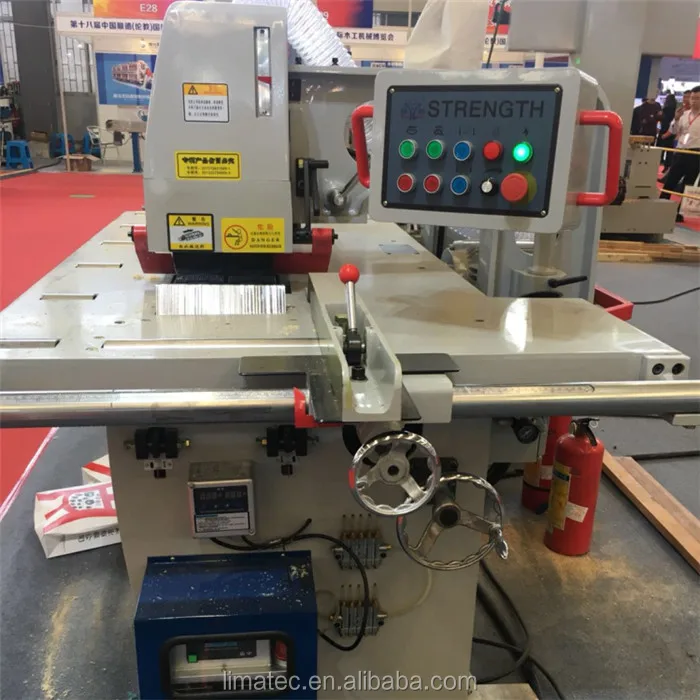

Accurate fence and lock System
The cast iron fence slide on the hard-chromium treatment round bar together with the lock system, that is providing accurate
reading and position of the fence.
reading and position of the fence.
Feeding chain / Rail system
Special designed and material of chain and rail system can ensure stable feeding and high cutting accuracy also extend its service life.

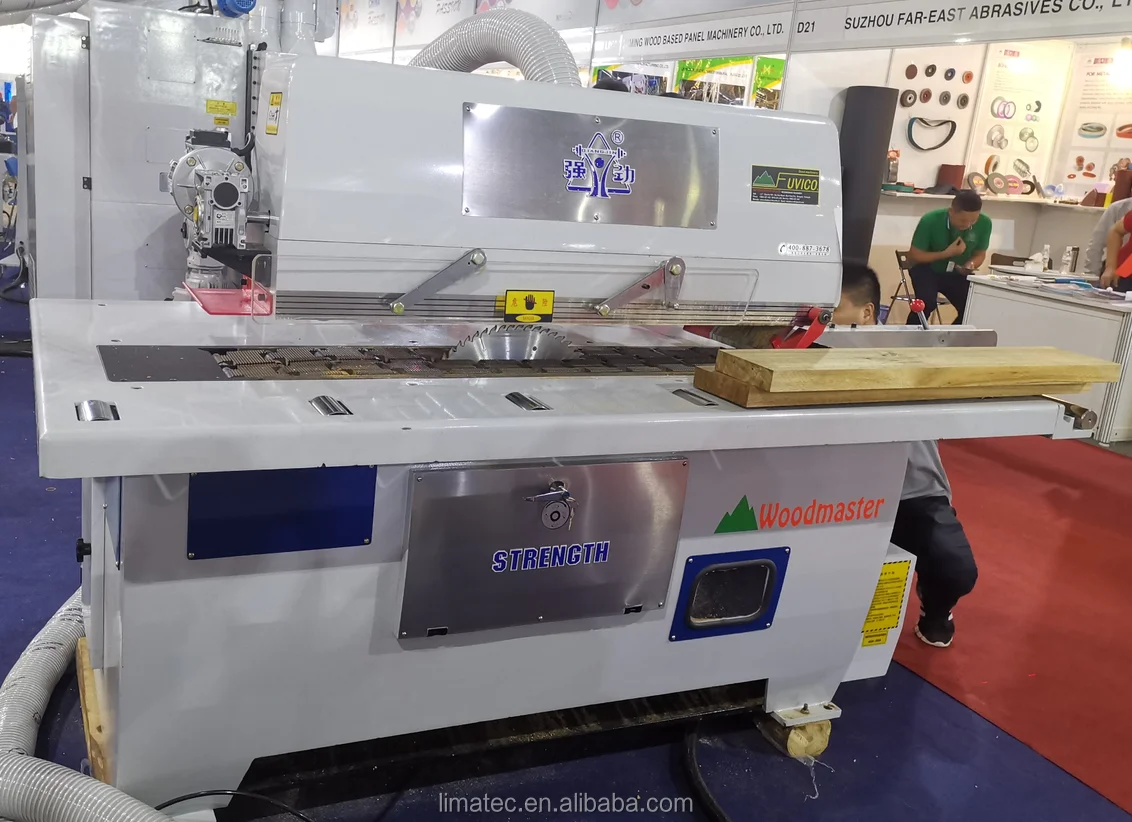

Safety guard
Sliding safety guard mounted on the machine to complete the protection, also provide smoothly feeding during operation.
Double Anti-Kickback finger Protection
Two sets upper anti-kickback finger system with high efficiency protection

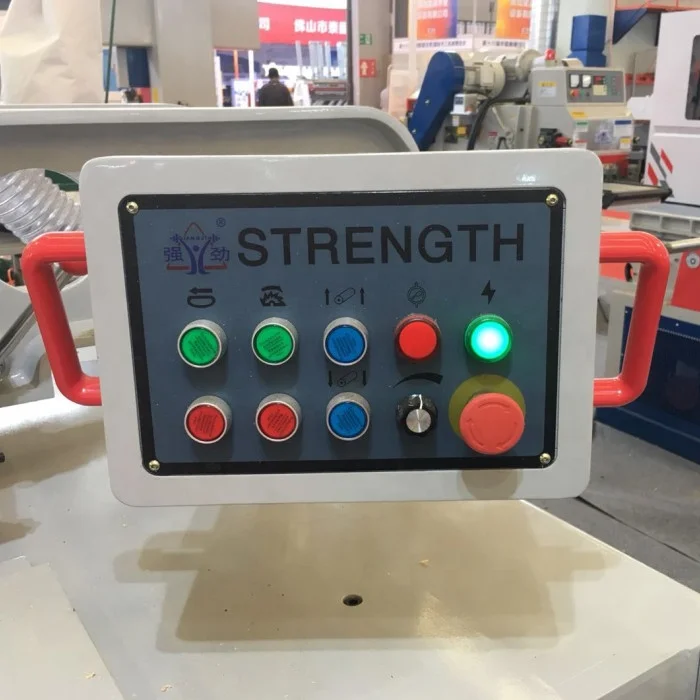

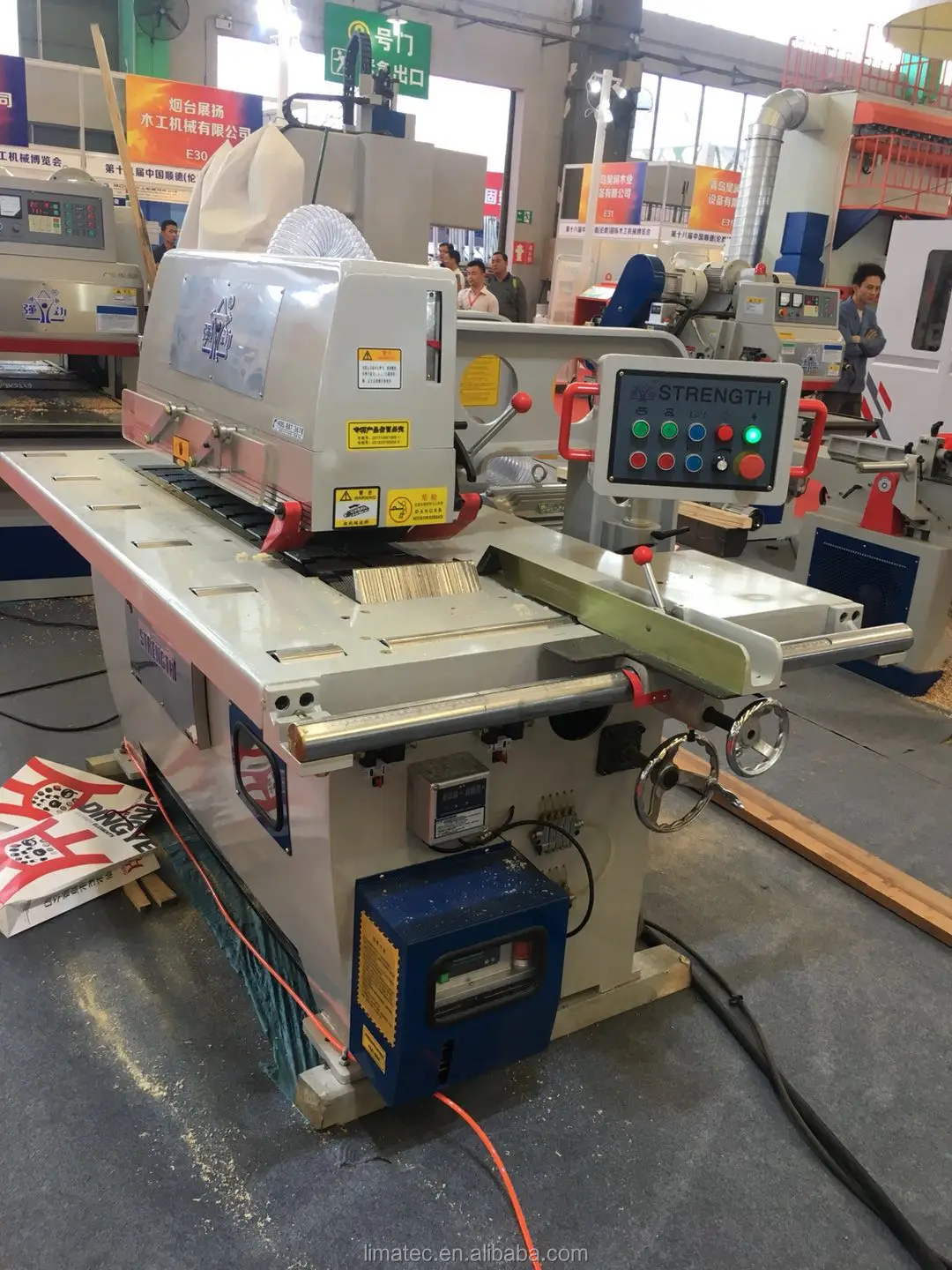

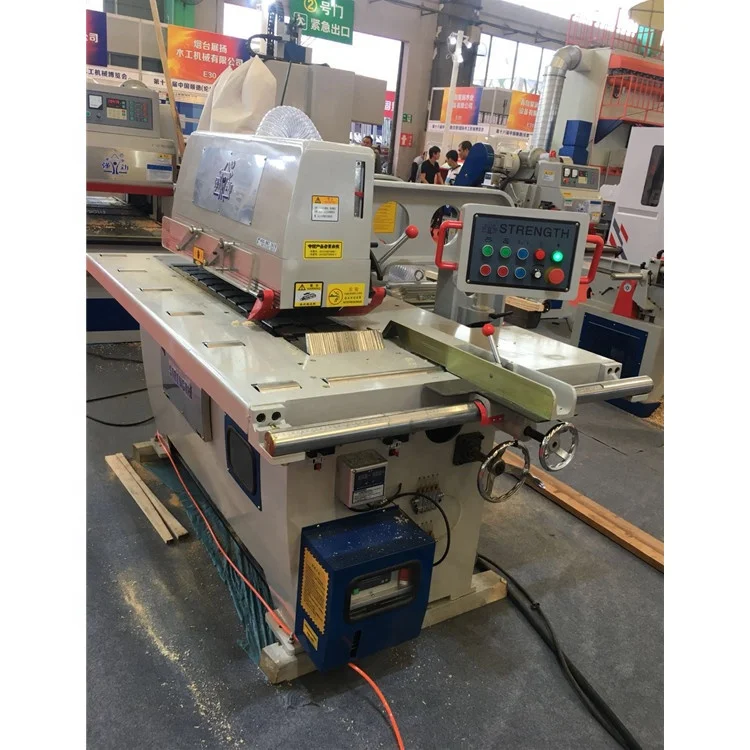

Control panel
Client-oriented control panel.
Frequency control of motor speed
Frequency feeding speed
Automatic Lubrication
Hidden lubrication system located inside machine frame to protect its service life.
Feeding auxiliary rollers
It makes feeding better

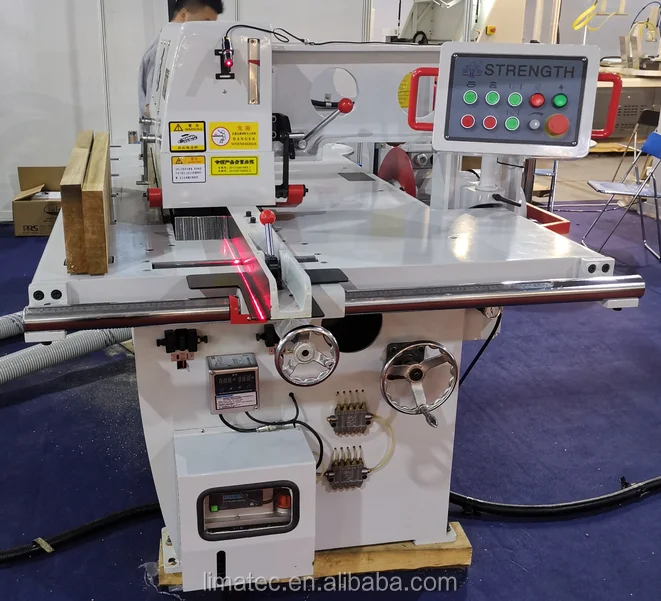

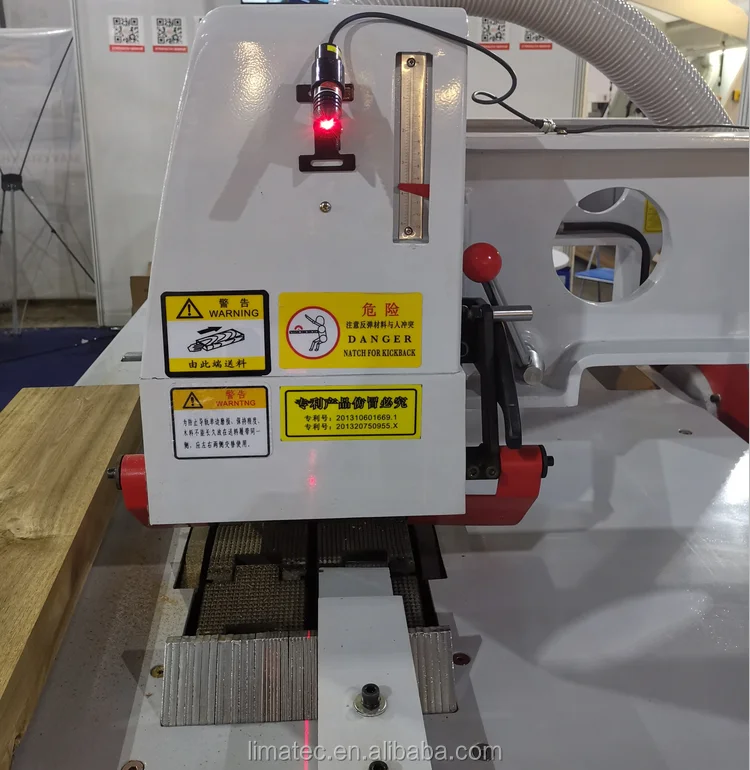

Laser (Opt.)
Available to be fitted with laser unit and can preview precision of the saw path for long length of the woodworking piece with
less material loss.
less material loss.
