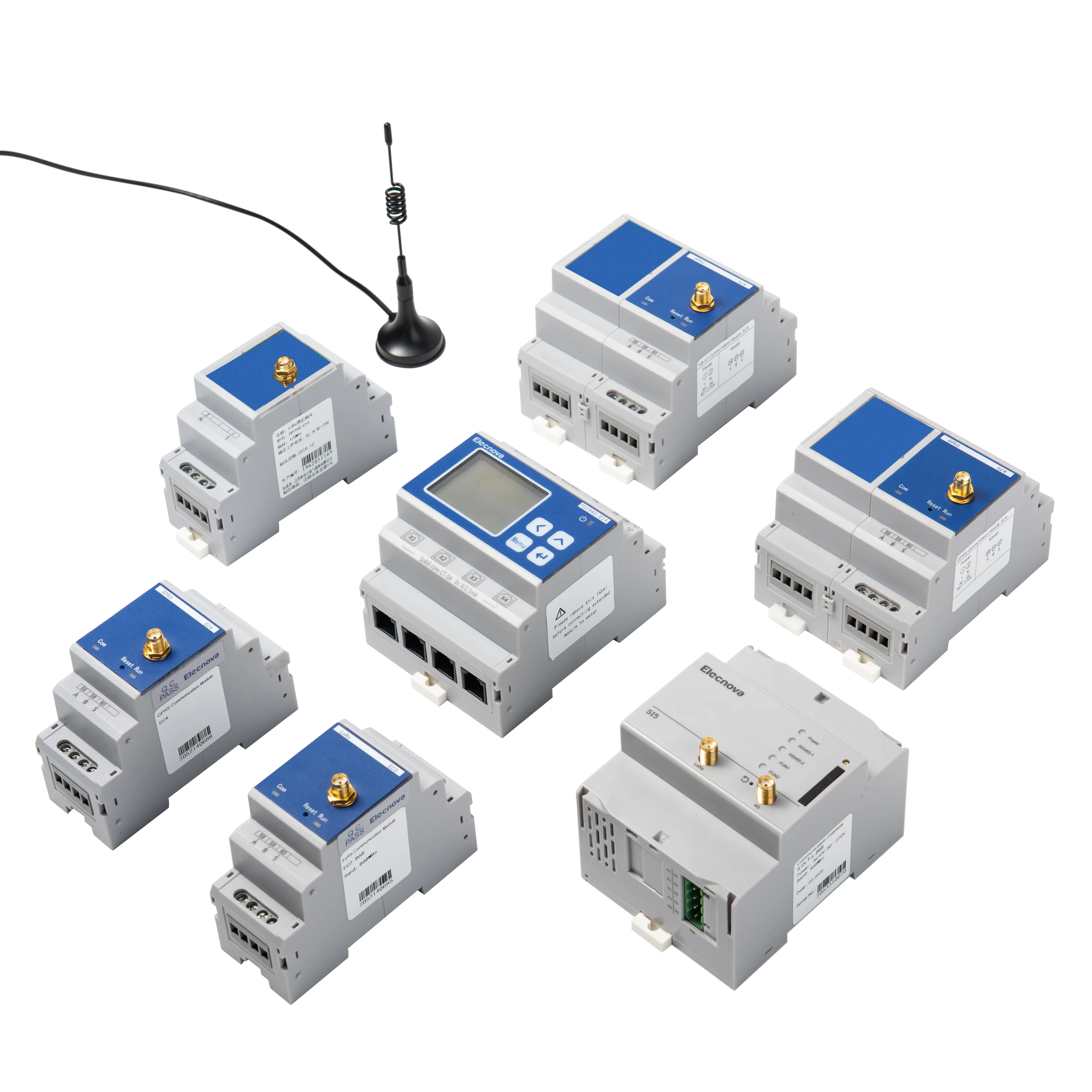

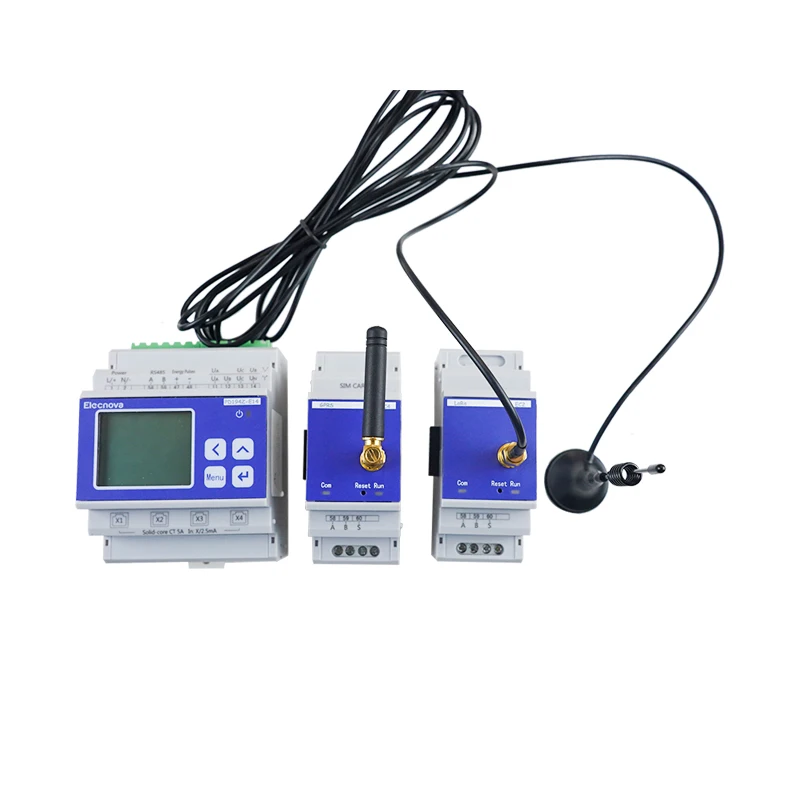

Wireless transmission rs 485 communication industrial nb iot module
- Category: >>>
- Supplier: Jiangsu Sfere Electric Co. Ltd.
Share on (62592441994):
Product Overview
Description
Product Description
Product name：Wireless transmission rs 485 communication industrial nb-iot module

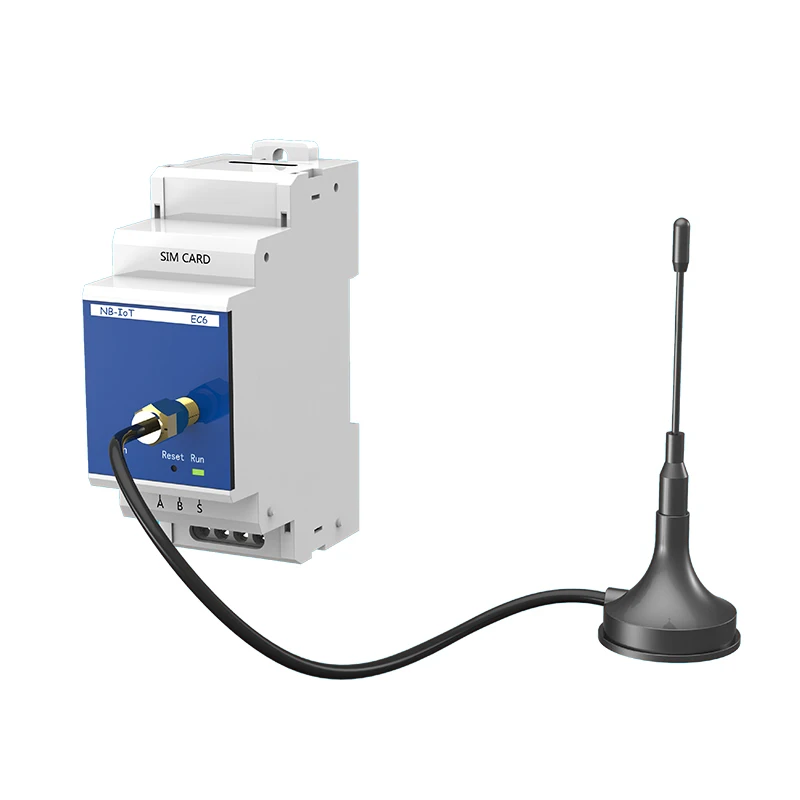

EC6 module is a wireless transmission module based on NB-IoT mode, using the existing mobile network
can easily let your device achieve wireless connection with Internet. It has many advantages, such as wide network coverage, flexible and fast networking.
can easily let your device achieve wireless connection with Internet. It has many advantages, such as wide network coverage, flexible and fast networking.
Advantage
■ power supply：by itself
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters

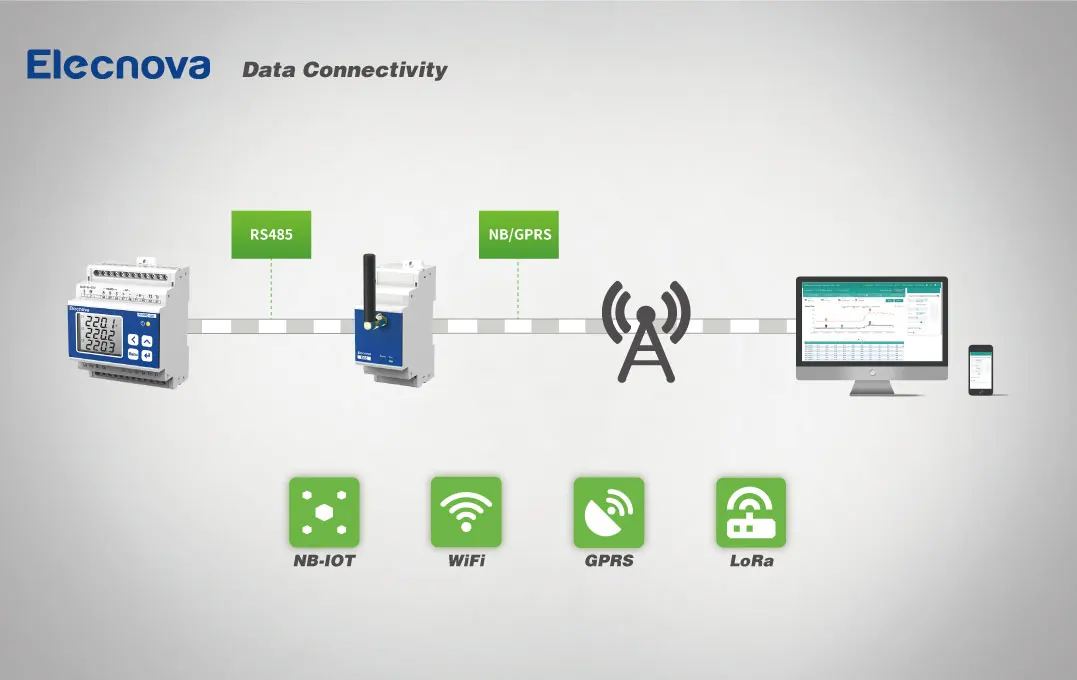

Data flow
Product Paramenters
Project | Parameters | ||
Wireless Interface | Frequency band | B3/B5/B8 | |
Network type | NB-IoT | ||
SIM card voltage | 3V、1.8V | ||
Antenna interface | 50Ω/SMA(female head) | ||
RS485 Interface | Communication | half duplex | |
Communication baud rate | 2400～19200bps,default 9600bps | ||
Data format | n81/n82/o81/e81,default n81 | ||

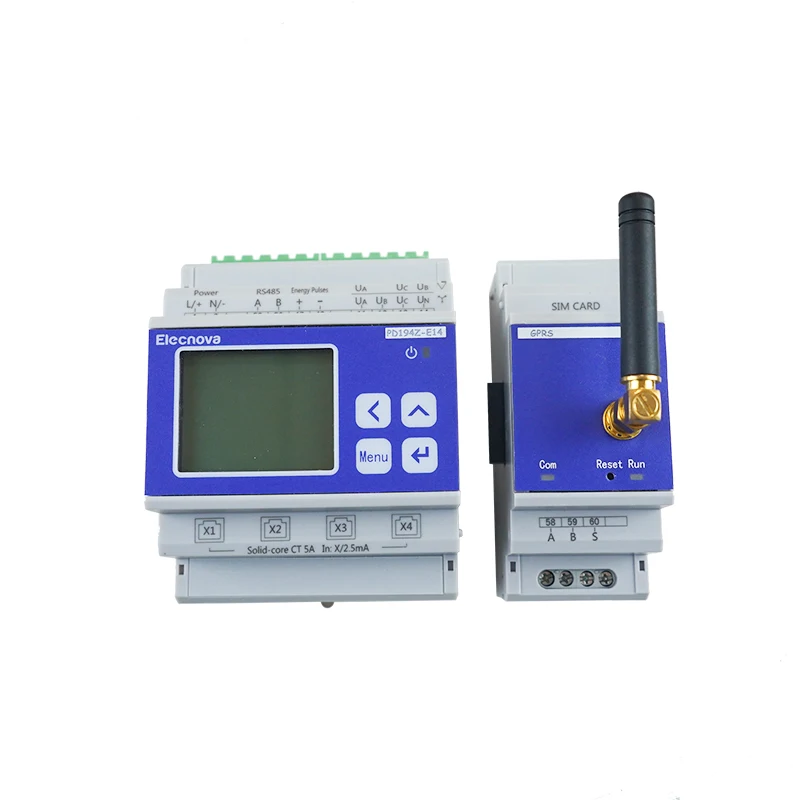

Main module | Model | PD194Z-E1X | |
Working environment | -25℃～70℃，≤93%RH | ||
Storage environment | -40℃～85℃，≤93%RH | ||

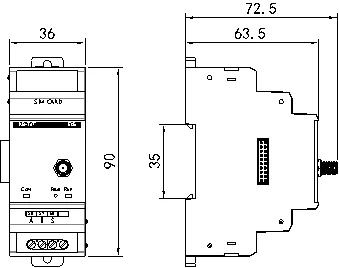

Dimensions and wiring diagrams
