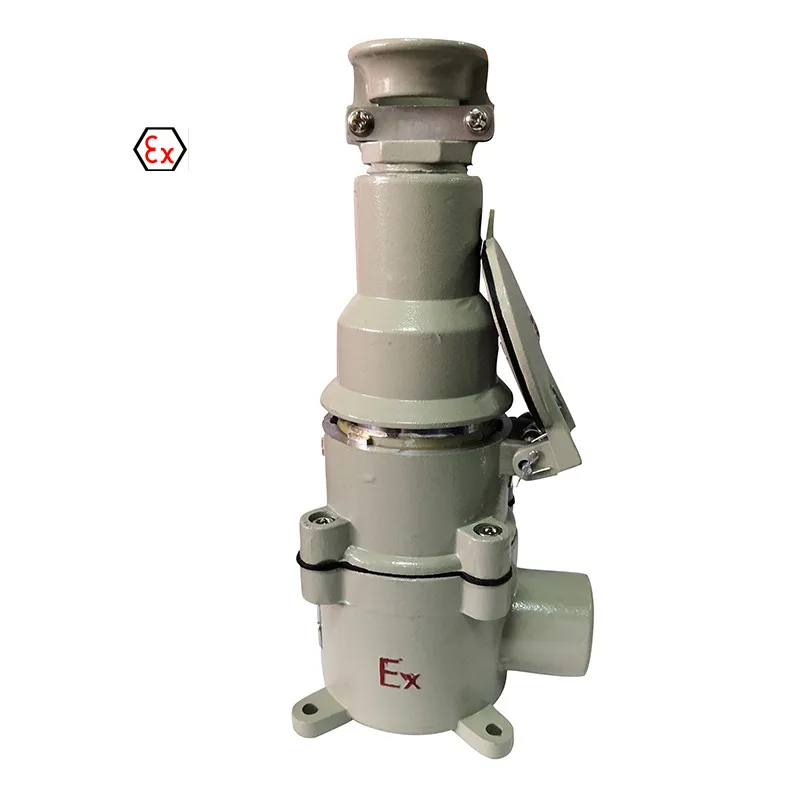

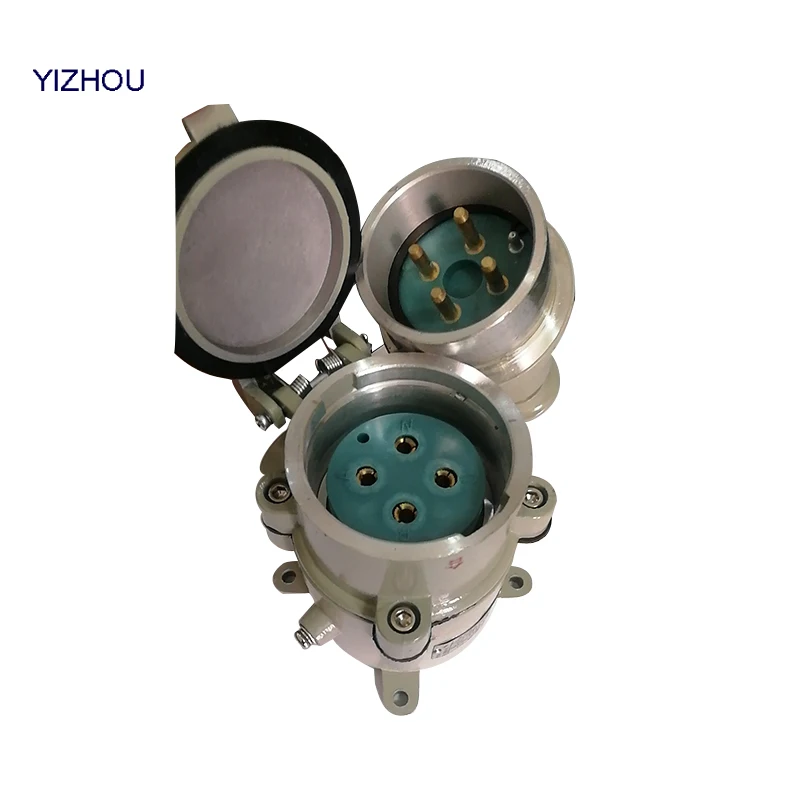

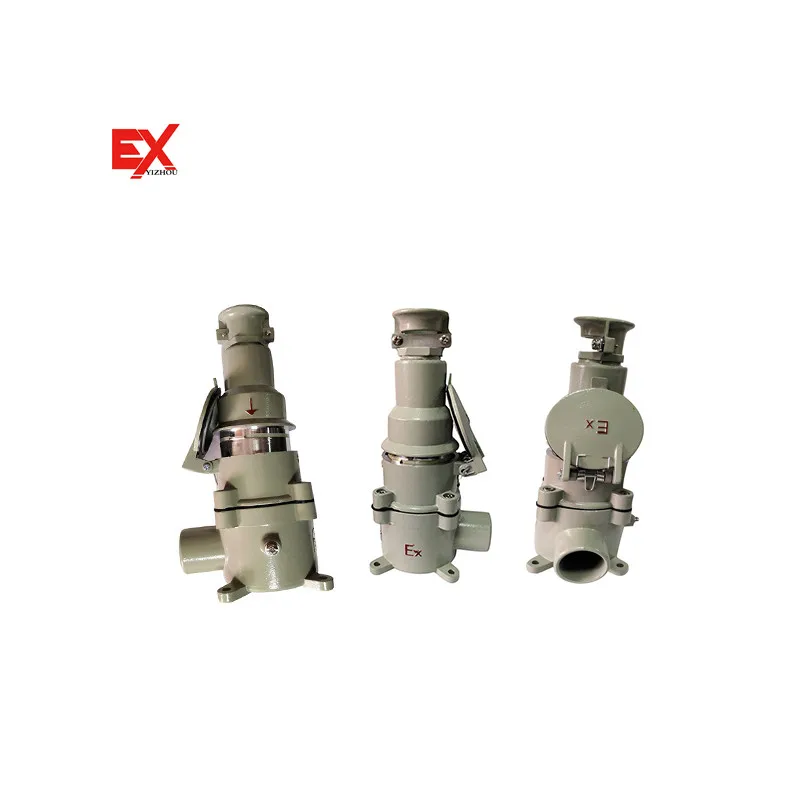

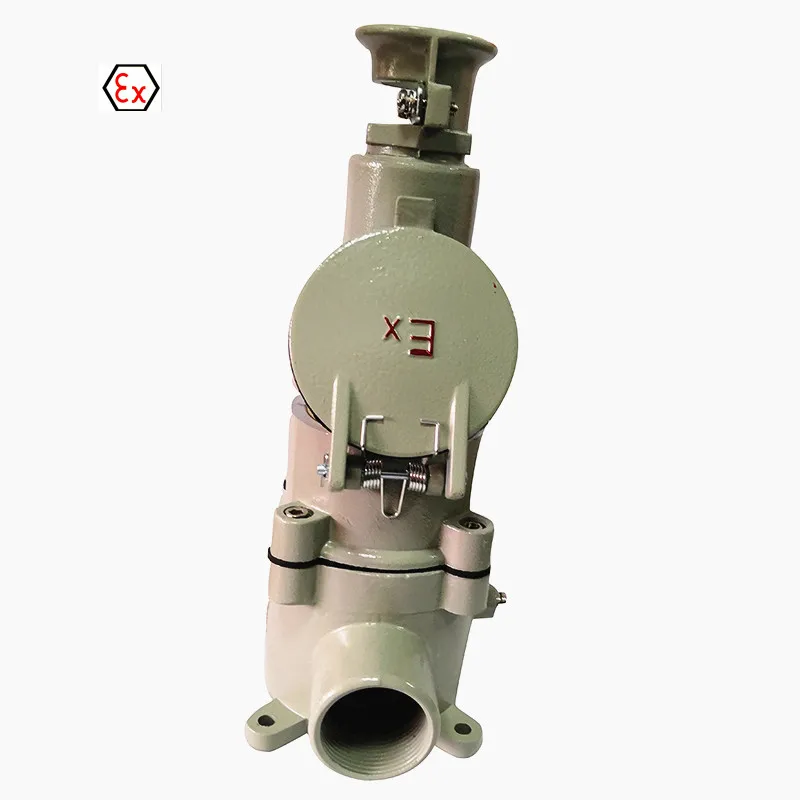

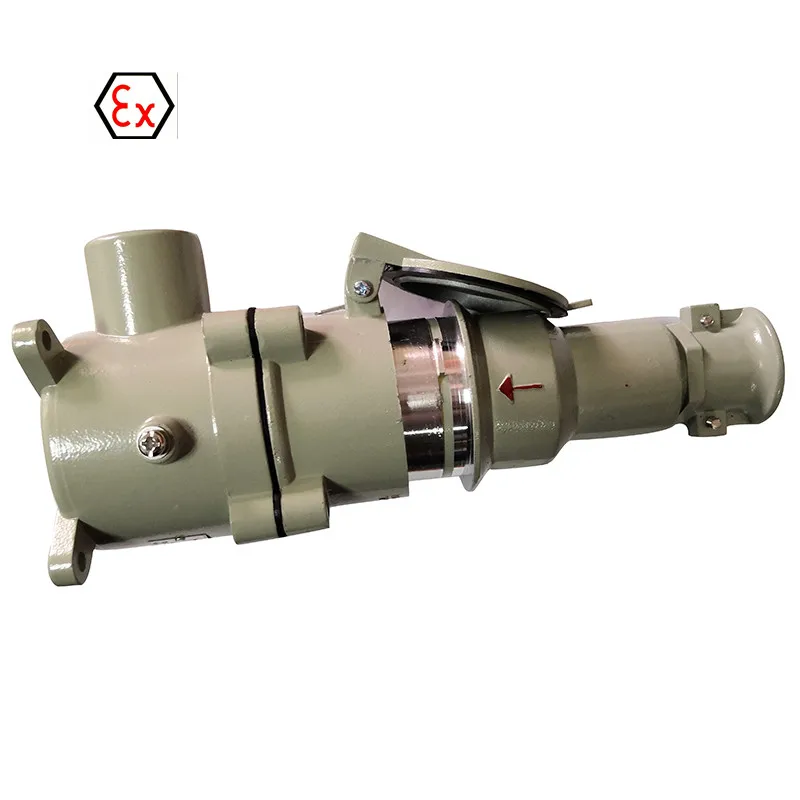

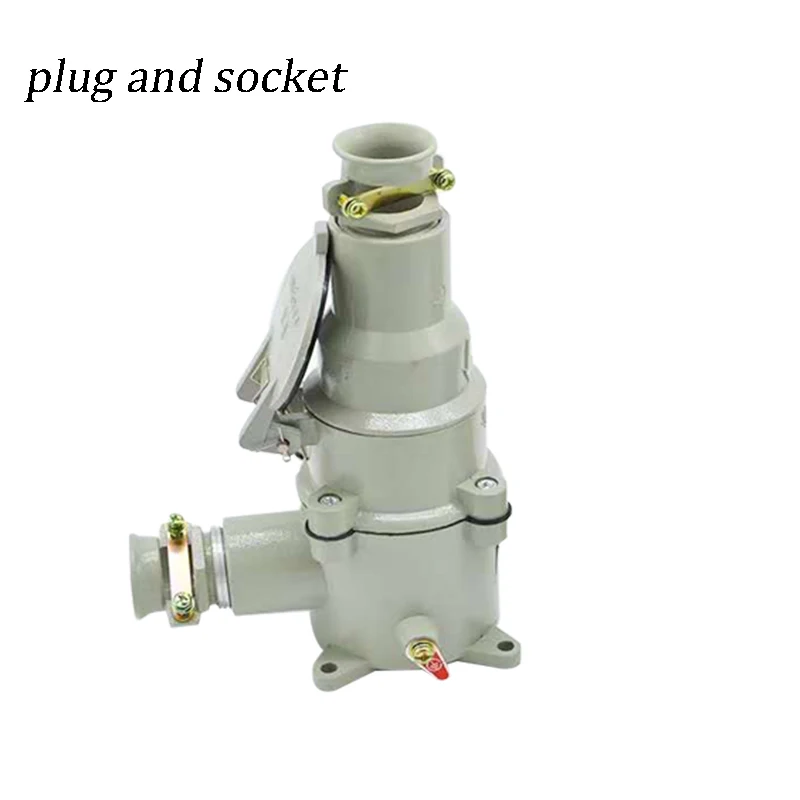

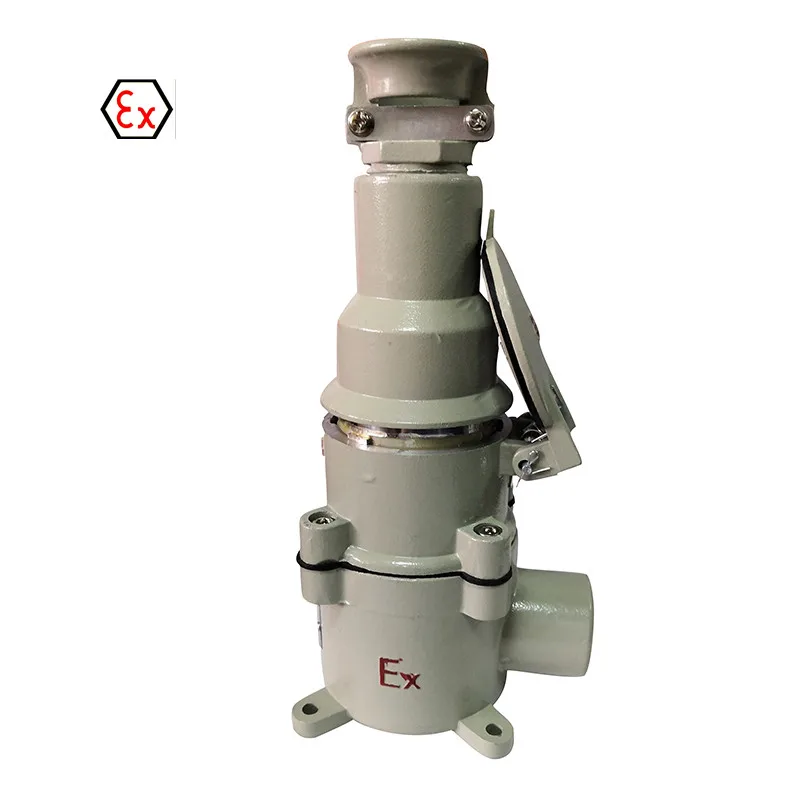

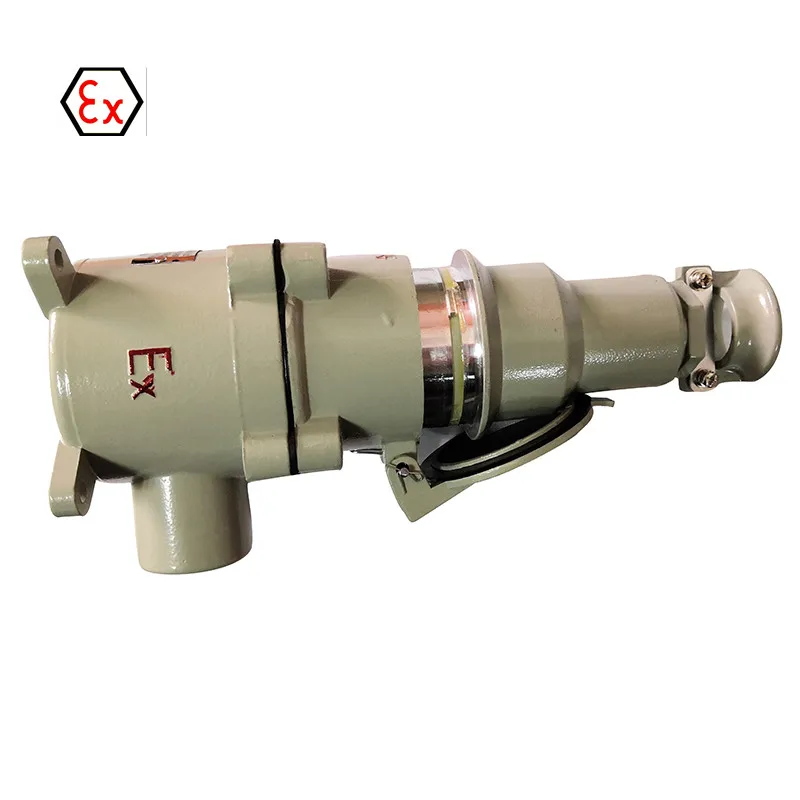

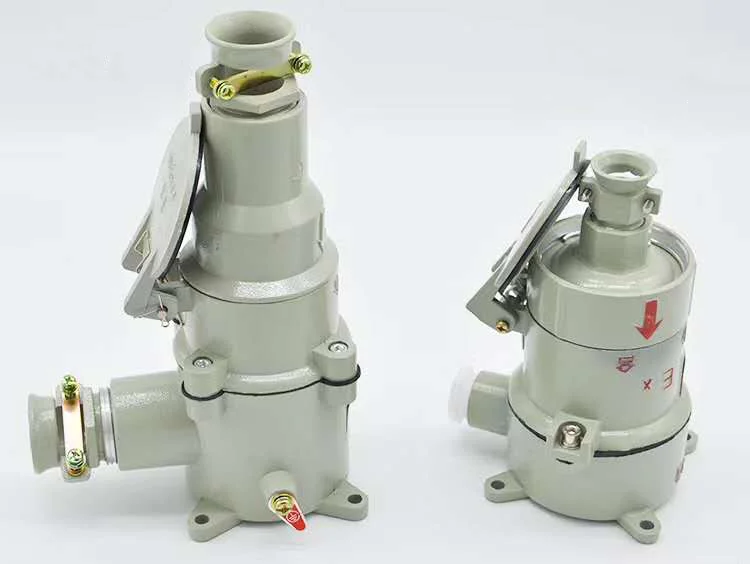

2020 IP 65 for gas oil chemical environment 32A 4pin aluminum explosion proof Plug & Socket
- Category: >>>
- Supplier: Sichuan Yizhou Technology Co. Ltd.
Share on (62592458855):
Product Overview
Description
Product Description
Product Name | Explosion proof Plug & Socket |
Material | Aluminum alloy |
Function | Connect the electric |
Explosion proof grade | IIB |
Protection garde | IP65 |
Entry cable | G1 1/4'' |
Type | 32A 4pin |
Features:
1.Shell made of high strength aluminum alloy casting off surface after blast cleaning by high voltage electrostatic spray.The surface of plastic power adhesion ability with good anti-corrosion.
2.Steel pipe,explosion-proof flexible tube,cable,wiring.
Type | AC-15 | AC-30 | |
Rated voltage(V) | 220/380 | ||
Rated current(A) | 16 | 32 | |
Pole | 1P+N | 3P+N | |
Ex-mark | Exe IIBT6 equal to II 2G Exed IICT6（European standard） Exd IICT6equal to II 2G Exd IIC T6（European standard） DIP A20 TA,T6 equal to II 1 D ExtD A20 T6（European standard） | ||
Corrosion proof class | WF1 | ||
Degree of Protection | IP54,IP65 | ||
Inlet thread(G") | 3/4 | 11/4 | |
Cable outer diameter(mm) | Φ10-φ14 | φ18-φ22 | |
Certificates
Applications
1.Hazardous:division 1&2,or 20,21,&22;
2.Explosive gas or combustible dust:class II A II B II C or inflammable dust environment.
3.Indoor or outdoor(IP54,IP65*).
4.Temperature class:T1-T4;
5.Widely using in the fields of oil,Chemical industry,spaceflight,ordnance factory and so on.
2.Explosive gas or combustible dust:class II A II B II C or inflammable dust environment.
3.Indoor or outdoor(IP54,IP65*).
4.Temperature class:T1-T4;
5.Widely using in the fields of oil,Chemical industry,spaceflight,ordnance factory and so on.
