Нанопозиционный линейный шаговый предварительно загруженный пьезоштабелирующий керамический пьезопрецизионный нанопривод гибкий пьезопривод
- Category: >>>
- Supplier: Harbin Core Tomorrow Science And Technology Co. Ltd.
Share on (62592459122):
Product Overview
Description

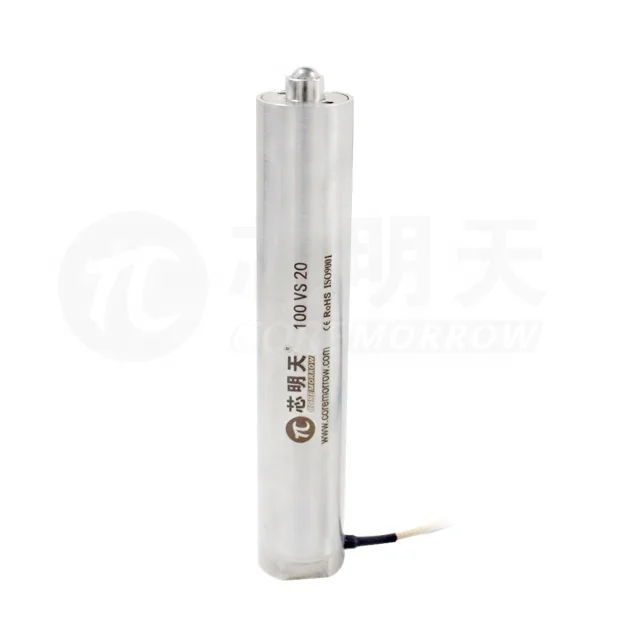

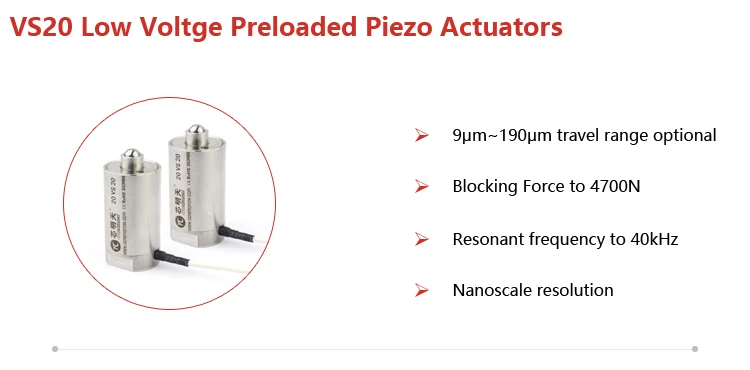

Flexible piezo actuator nanopositioning linear stepper preloaded piezo stack ceramic piezo precision nano actuator
·flexible piezo actuator
·linear stepper
·Piezo precision nano actuator
Model | Stroke [μm]±10%* | Stiffness [N/μm]±20% | Push/pull force [N] | El.capacitance [μF]±20% | Resonant frequency [kHz] | Length L [mm]±0.3 |
PSt150/14/7 VS20 | 9 | 350 | 4700/700 | 3.6 | 40 | 26 |
PSt150/14/20 VS20 | 19 | 250 | 4700/700 | 7 | 30 | 35 |
PSt150/14/40 VS20 | 38 | 120 | 4700/700 | 14 | 20 | 53 |
PSt150/14/60 VS20 | 57 | 70 | 4700/700 | 22 | 14 | 71 |
PSt150/14/80 VS20 | 76 | 50 | 4700/700 | 30 | 12 | 89 |
PSt150/14/100 VS20 | 95 | 40 | 4700/700 | 39 | 10 | 107 |
PSt150/14/120 VS20 | 114 | 35 | 4700/700 | 47 | 8 | 125 |
PSt150/14/140 VS20 | 133 | 30 | 4700/700 | 55 | 7 | 143 |
PSt150/14/160 VS20 | 152 | 25 | 4700/700 | 63 | 6 | 161 |
PSt150/14/180 VS20 | 171 | 22 | 4700/700 | 71 | 5 | 179 |
PSt150/14/200 VS20 | 190 | 20 | 4700/700 | 80 | 4 | 197 |
*Nominal Stroke corresponding drive voltage 0-150V , Recommended voltage 0~120V for long-term operation to extend
lifetime.
|
|
|
|
|
|
