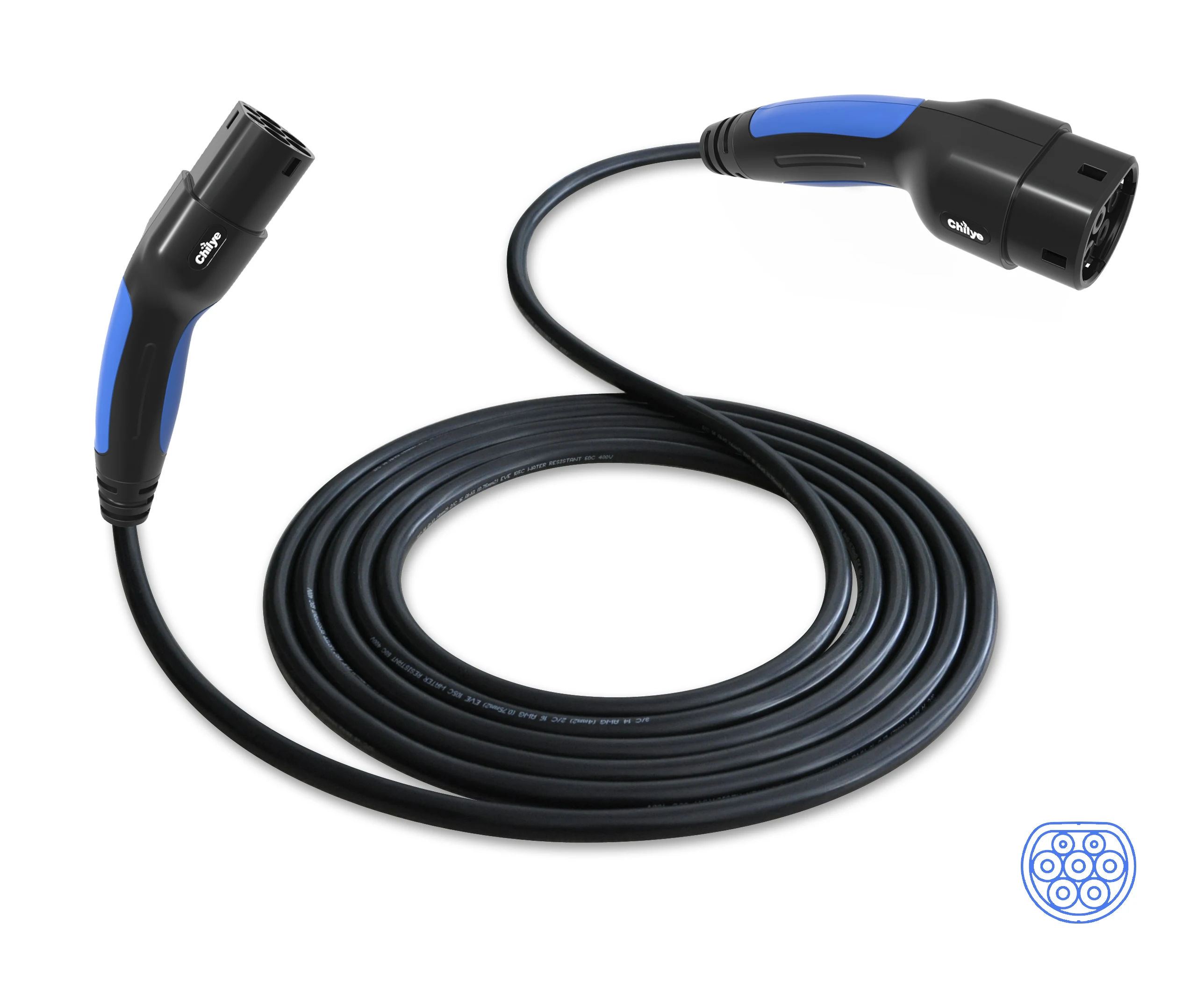

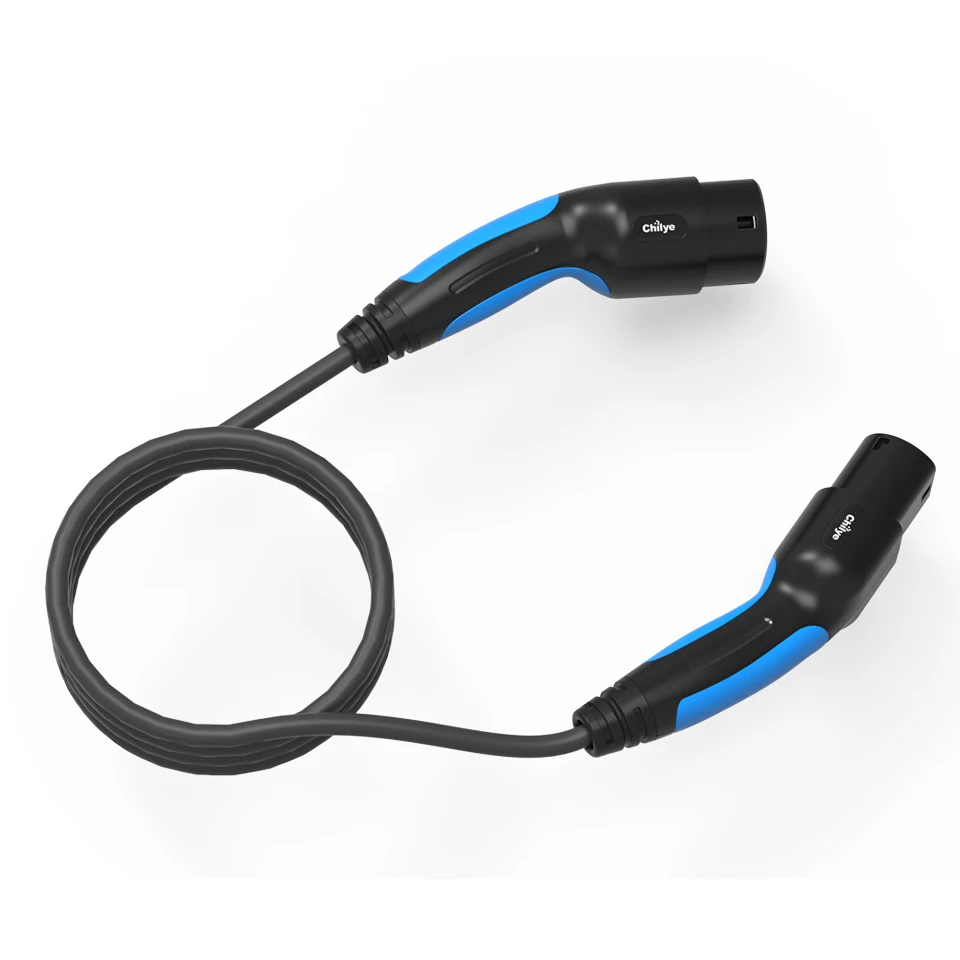

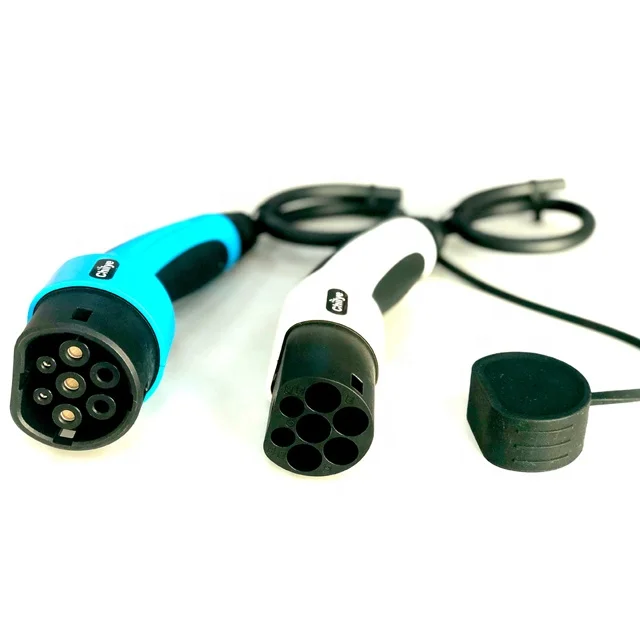

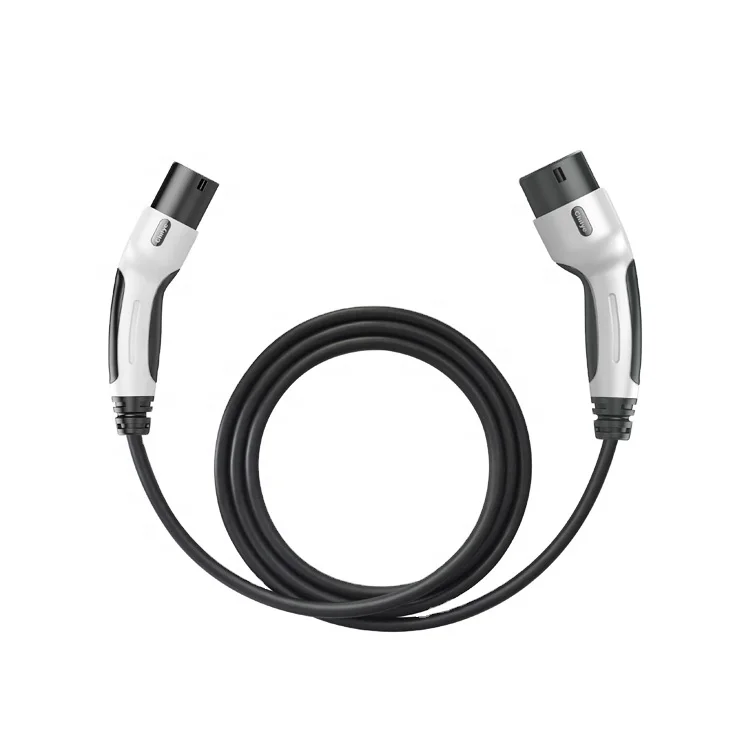

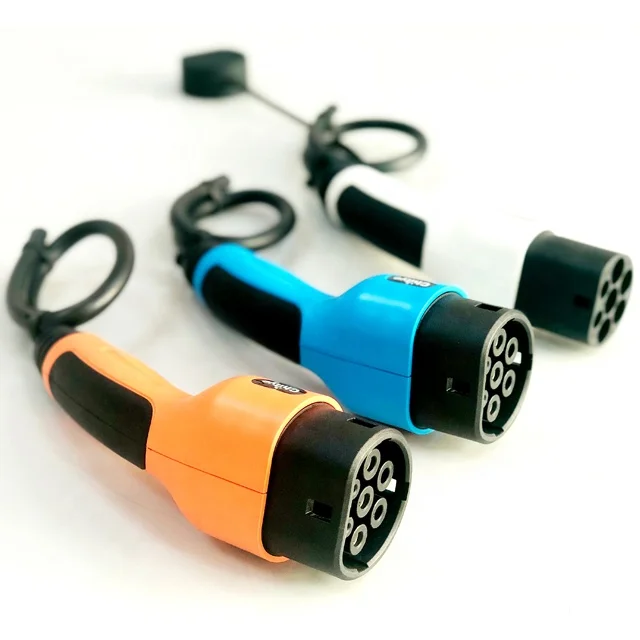

Product Name:IEC 62196-2 Type 2 Male to Female 32A Single Phase Mode 3 EV Charging Cable
Model Number
CL-C3ICPA06
Application
Electric Vehicle
Durability
≥10000 mating cycles
Rated Current
32A
Material
Plastic sealed connector
Rated voltage
250V AC
Withstand Voltage
2000 Vac
Insulation resistance
>200MΩ
Temperature range
-40℃ to +125℃
Shielding range
360 degree shield
Electric protection level
IP2XB
Connecting protection level
IP55
EV Charging Cable
HV charging series connectors integrate touch-proof design, good EMC shielding performance,
high IP rating,high safety, unique design, providing safe and reliable high voltage connection solutions to electric vehicles and hybrid electric vehicles.

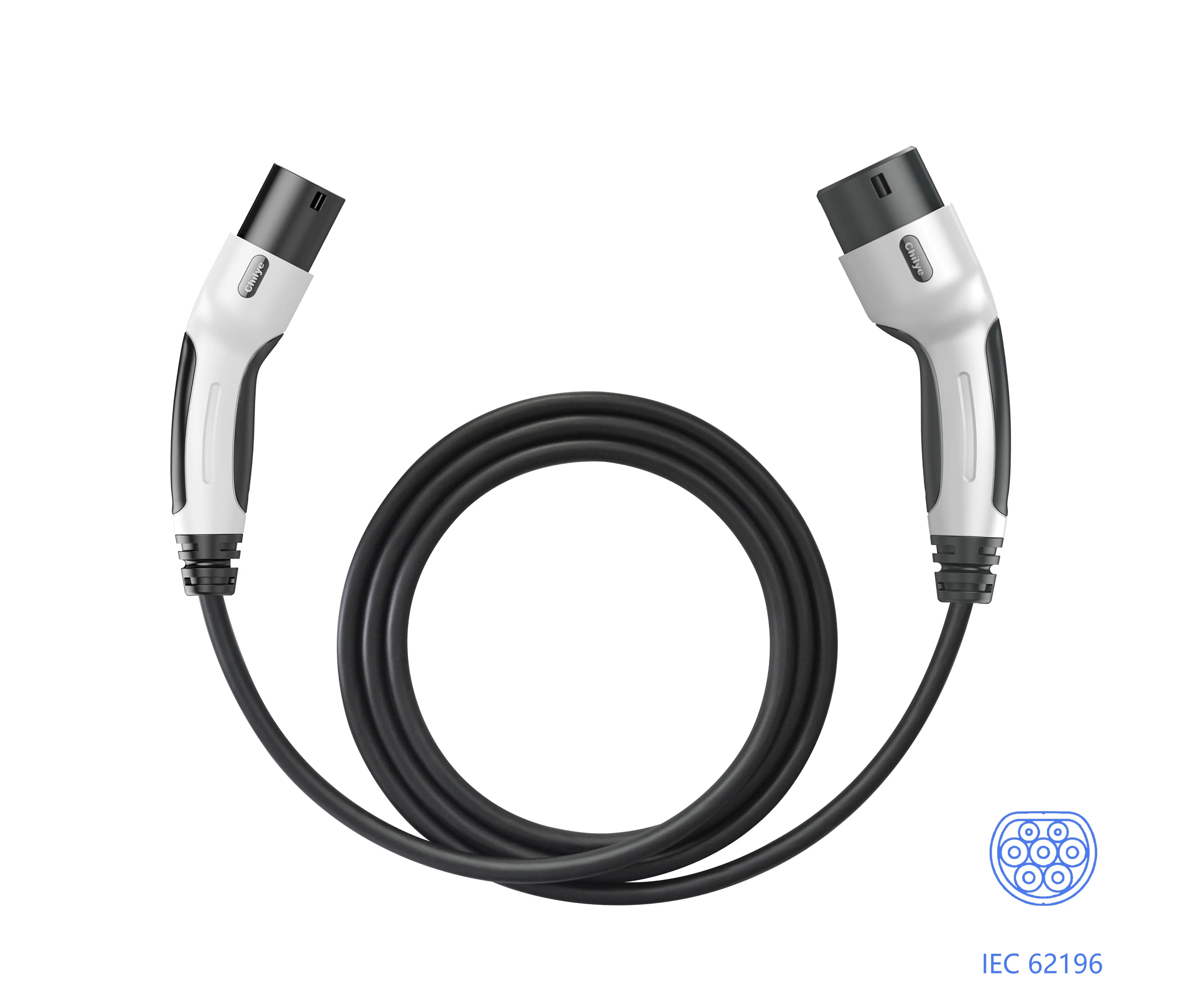

Type 2 charging cable for EV charging system
Application Electric vehicle charging system
Description • single/three phase • 5 meters long cable • IP55 protection level • Customized color • Finger proof/touch safe • Shielding range: 360° shielded from the line to the connector • Cable range: 2 mm² to 5 mm² power circuit;
Performance • Current capacity: 16A/32A • Voltage: 250V AC • Temperature range: -40°C to +125°C • Sealing protection: IP67, IP6K9K • Electrical protection: IP2XB
