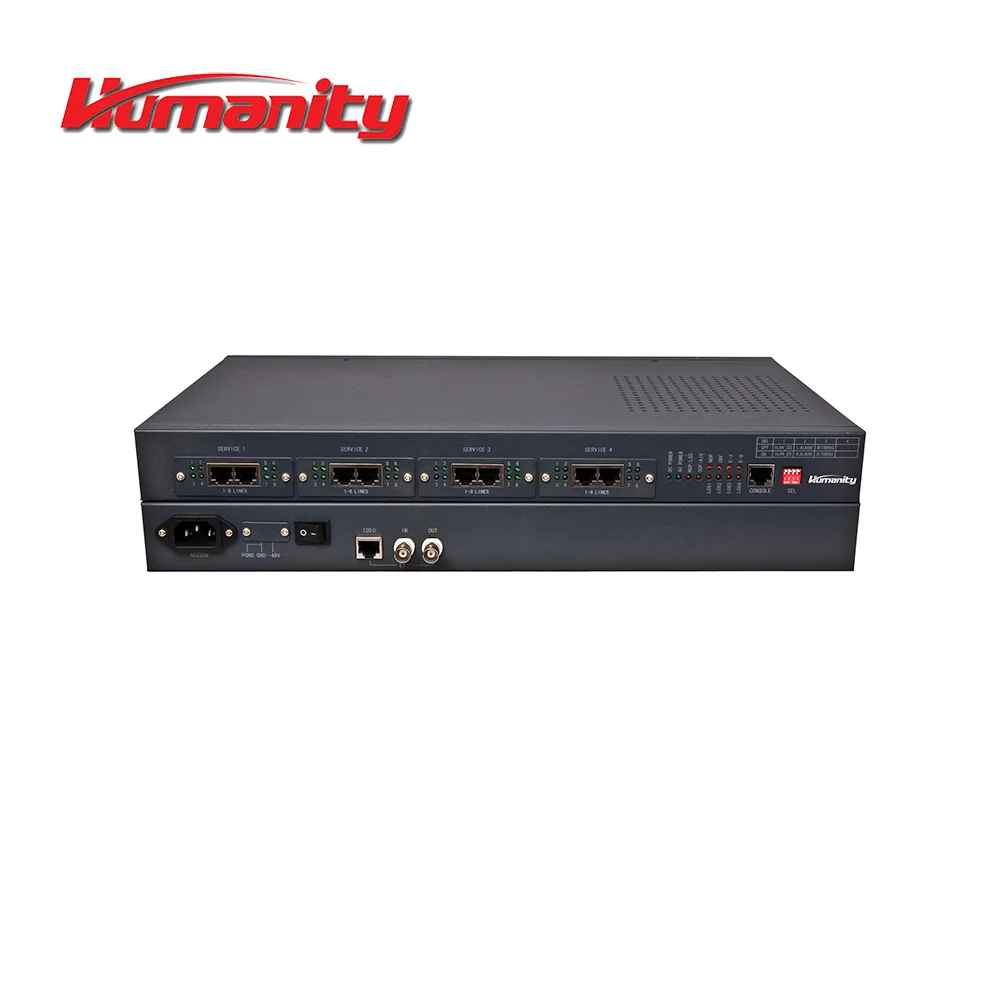

Humanity HM PE8L 8channel FXO/FXS over E1 PCM multiplexer for 8lines over E1. 1pair = 1pc 8FXO 1pc 8FXS
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (62592626433):
Product Overview
Description
One pair Humanity HM-PE8L 8lines over E1 PCM multiplexer
Humanity HM-PE8L 8ines over E1 PCM multiplexer is produced mainly for phone (FXS/FXO) transmission over E1. This product is for 8lines over E1.
One pair device includes 1unit FXO and 1unit FXS.
Main Features

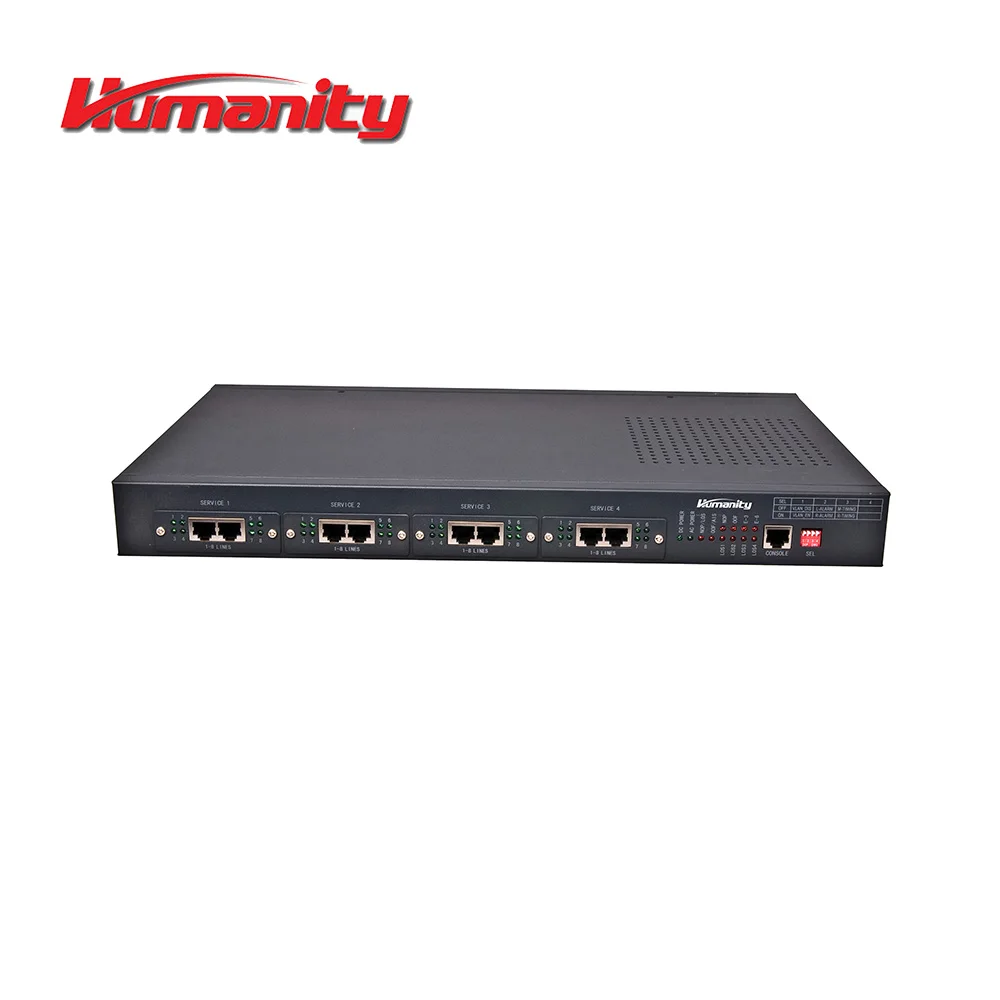

- 1U 19inch for cabinet installation
- 8channel FXO/FXS ports for the connection with PABX or PSTN
- Full alarm indicators
- E1 interface both with 75Ω and 120Ω
- With RS232 hyper terminal network management

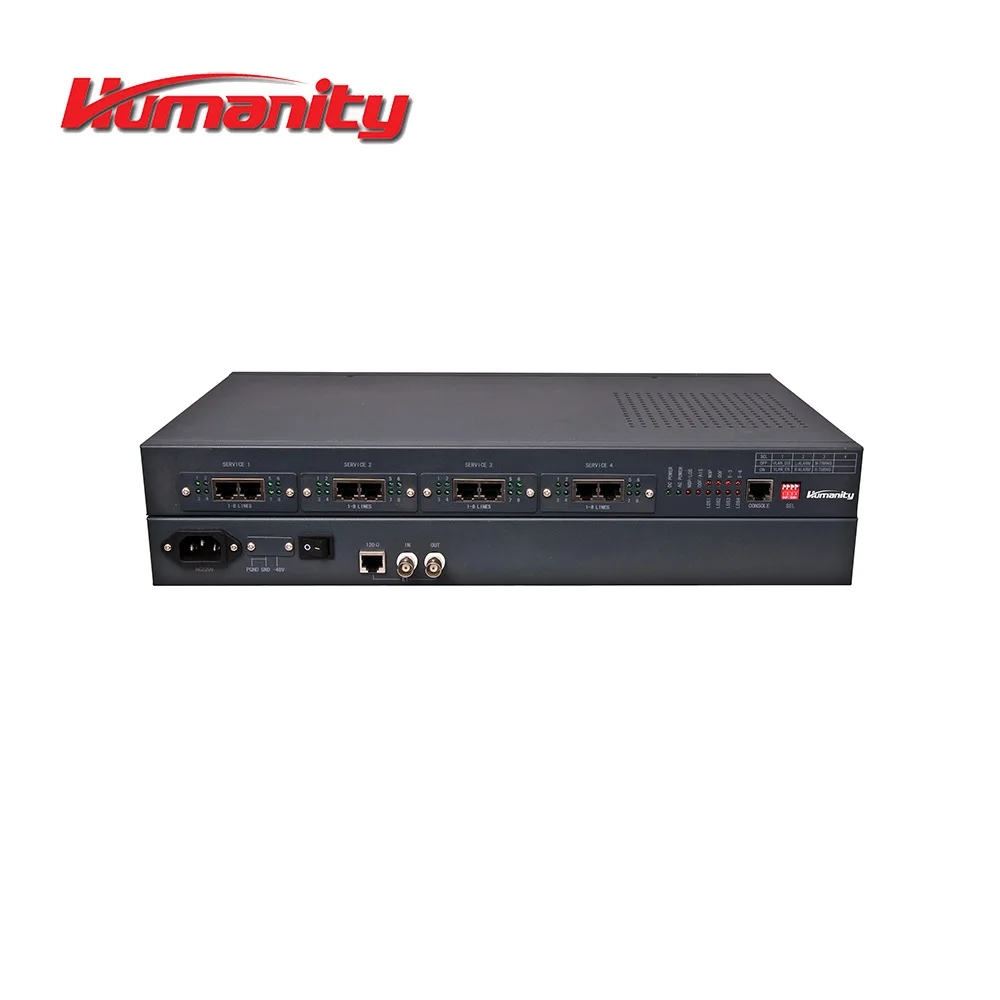

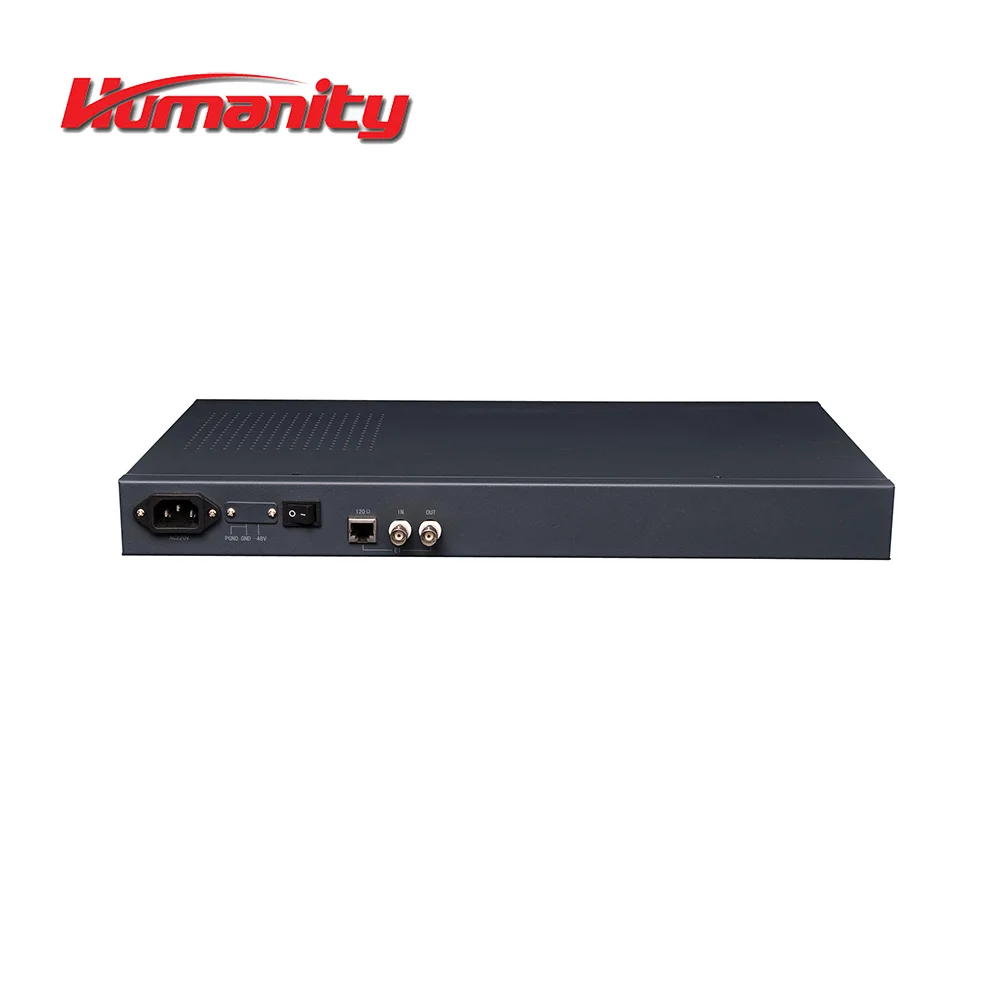

A: Power. 1-16 FXS/FXO can support dual power.
B: E1 interface. (75 Ohm&120 Ohm)
C: 4 extra slot, offers 8channel FXO/FXS
D: Console interface for network management.
E: Dip SEL switch.
Technical Specifications
| Device Construct | 1U 19 inches. Compact and good appearance |
| Main Feature | 4 slots to offer customized services, this device offers 30lines |
| E1 | Fully comply with ITU-T G.702, G.823 |
| Bit rate: 2048Kbps | |
| Code: HDB3 | |
| Connector: 120Ohm balance (RJ45) | |
| Phone (FXO/FXS) | 8 channel lines offered |
| Connector: RJ45 | |
| Impedance: 200Ω+680Ω 0.1uF | |
| Frequency character: 300-3400Hz(-0.6-+3dB) | |
| Weighted noise: ≤-65dBmop | |
| Interface loop resistance: ≤1800Ω | |
| Power | AC220V power supply |
| Power consumption≤30W | |
| Environment | Working temperature: 0 ~ 70°C |
| Relative humidity: ≤90%(25°C) |

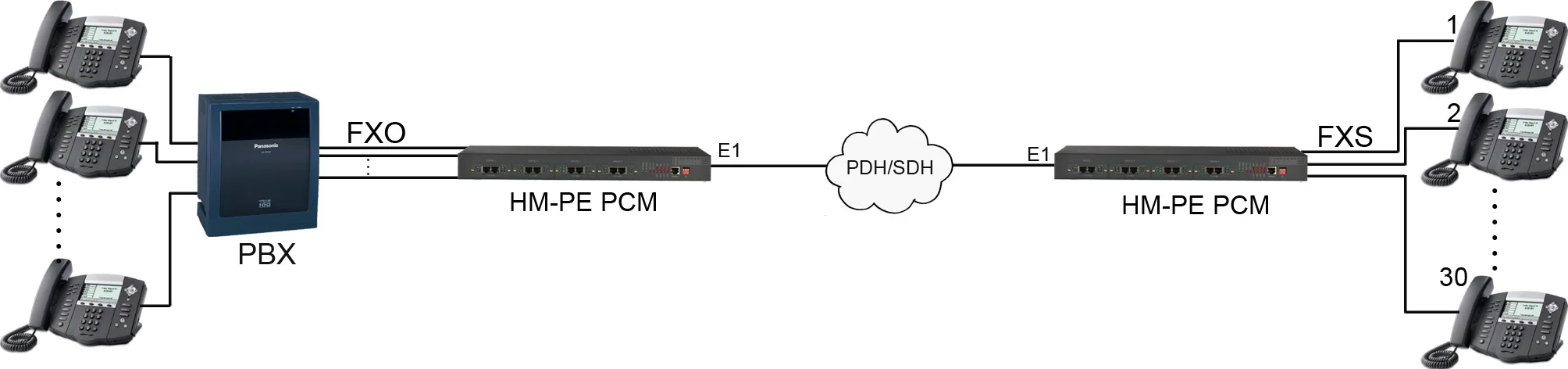

Application Diagram
Packaging & Shipping
Certificate
Exhibition
