traditional barn builders fully assembled sheds for sale
- Category: >>>
- Supplier: Gaomi Wantai Steel Structure Engineering Co. Ltd.
Share on (62593332049):
Product Overview
Description
Product Description

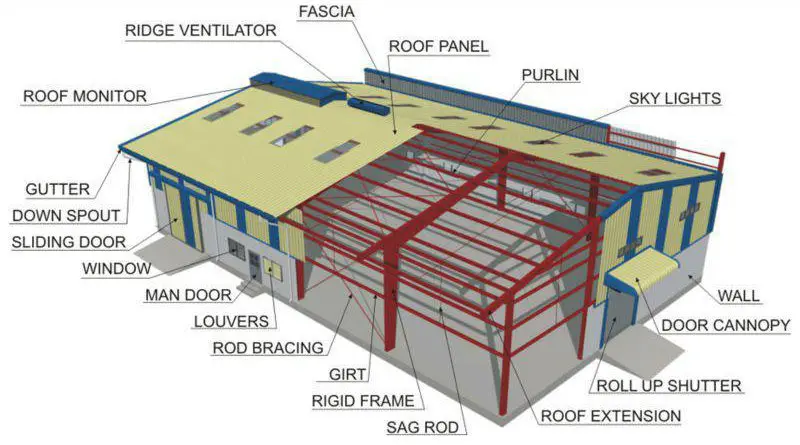

Steel barns formed by Steel Column , Roof Beam , Anti-Wind Column , the Secondary Steel
Structure mainly for Roof Bracing, Wall Bracing ,Tie Beam , Roof and Wall Purlin , the wall and roof panel used 0.5mm single color sheet
Benefits
1)The Steel Barn is very durable can withstand heavy wind and snow or earthquakes , we design the Steel Barn according the wind loading , snow loading in the project local , used enough and economical steel structure to guarantee the safety of the Barn Building
2)The Steel Barn is quickly installation , take less time for the construction , All the Steel Structure fabricated in workshop ,
after , cutting , welding , drilling , sandblast and painted then delivery to project site do the installation , much better than
the normal concrete building , and good for environmental.
3)The paneling of Steel Barn is made so that they overlap when they are fitted together. This doesn’t leave any openings so that the building is insulated against outside conditions. This helps keep the building warmer in the winter and cooler in the summer, saving you on energy costs.
2)The Steel Barn is quickly installation , take less time for the construction , All the Steel Structure fabricated in workshop ,
after , cutting , welding , drilling , sandblast and painted then delivery to project site do the installation , much better than
the normal concrete building , and good for environmental.
3)The paneling of Steel Barn is made so that they overlap when they are fitted together. This doesn’t leave any openings so that the building is insulated against outside conditions. This helps keep the building warmer in the winter and cooler in the summer, saving you on energy costs.
Scope & Technology
Size | 18m(W)x35m(L)x6m(H) , Height of Concrete Wall : 0.5m Main Structure |
Steel Column | Q345B Welding H section Beam ,Painted : three layer white color anti-rust Alkyd painted |
Roof Beam | Q345B Welding H section Beam , Painted : three layer white color anti-rust Alkyd painted |
Anti-wind Column | Q345B Welding H section Beam , Painted : three layer white color anti-rust Alkyd painted |
Roof Horizontal Bracing | Q235B Angle Steel , Painted : three layer white color anti-rust Alkyd painted |
Wall X Cross Bracing | Q235B Double Angle Steel , Painted : three layer white color anti-rust Alkyd painted |
Tie Beam | Q235B Welding Pipe , Painted : three layer white color anti-rust Alkyd painted |
Roof Purlin | Galvanized C section steel |
Wall Purlin | Galvanized C section steel |
Steel Rod | Galvanized Steel Rod |
Roof | 0.5mm Single Color sheet |
Wall | 0.5mm Single Color sheet |
Window | Aluminum Window |
Door | Automatic Roller up door |

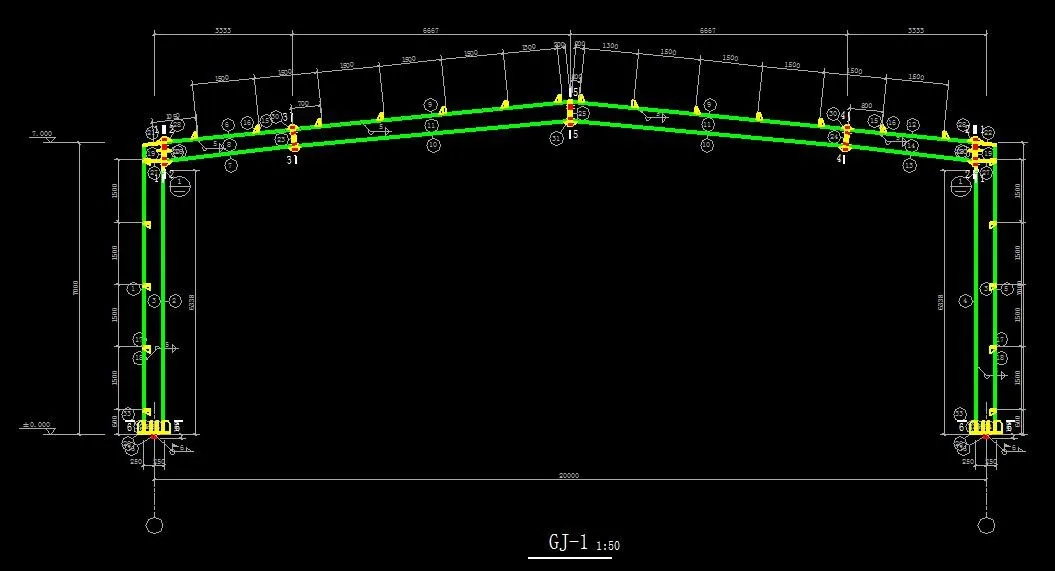

Design Parameters
Span : 1 Span , 18m wide
Live loading : 0.3kn/m2
Dead Loading : 0.5kg/m2
Wind speed : 0.6kn/m2
Distance of side column : 6000mm
Live loading : 0.3kn/m2
Dead Loading : 0.5kg/m2
Wind speed : 0.6kn/m2
Distance of side column : 6000mm
The Advantages of Steel Barn as follows
1. Features: fast and flexible to assemble, secure and safe, thermal and noise insulation, water proof and fire prevention;
2. Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3. Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
4. Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it’s also in line with the national
level of fire prevention.
5. Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.
1. Features: fast and flexible to assemble, secure and safe, thermal and noise insulation, water proof and fire prevention;
2. Cost-effective: Fast and easy installation greatly shorten the construction time which reduce the costs;
3. Durability: The whole structure is easy in maintenance, which can be used for more than 50 years.
4. Perfect design: Perfect design completely avoids leaks and water seepage. Meanwhile, it’s also in line with the national
level of fire prevention.
5. Carrying capacity: can resists the impact of strong wind and seismic performance and bears heavy snow loads.

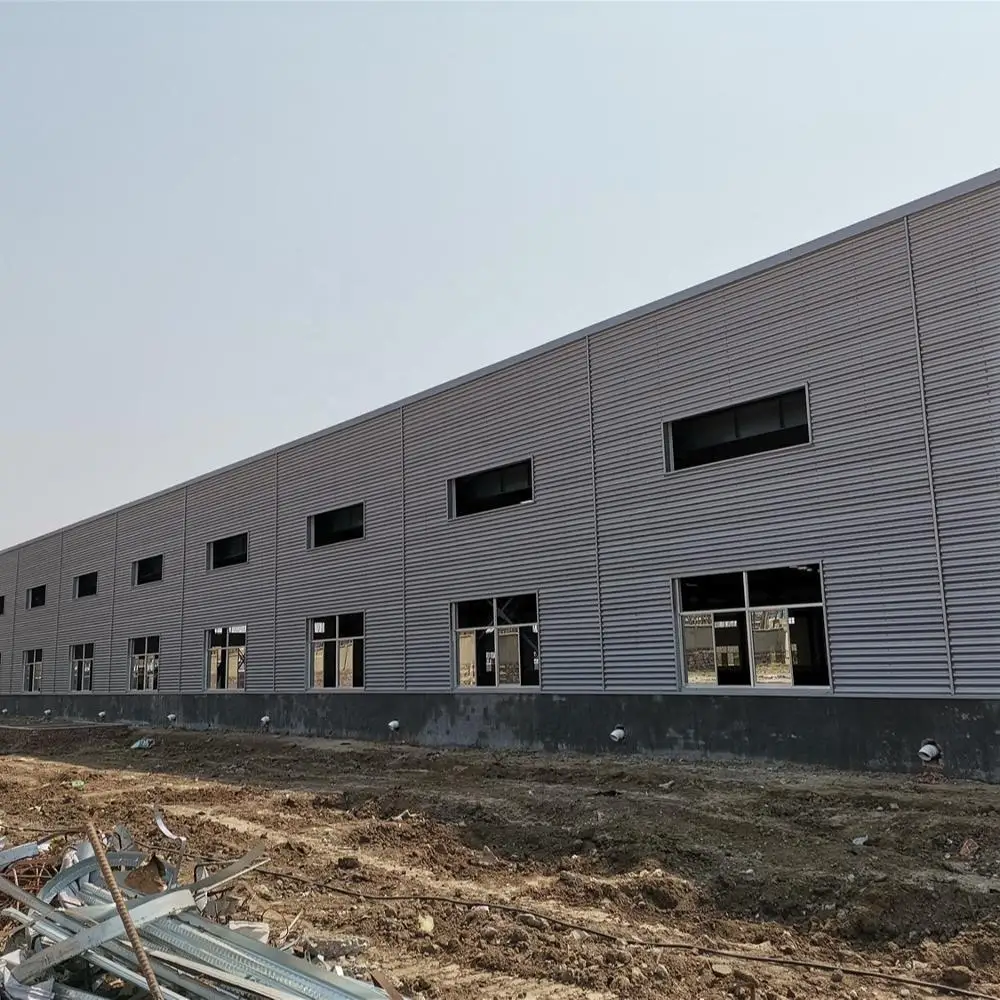

Excellent Show
Agricultural Steel Storage
Agricultural Storage
Agricultural Chicken Farm
Agricultural Cow Sheds
Agricultural Barn
Agricultural Machine Storage
Quality Control
Wantai Steel Structure quality system according to:
* ISO 14001:2004 – Environmental Management System
* OHSAS 18001:2007 – Occupational Health Safety Management System
* AWS D 1.1/ AWS D1.5 Welding Code
* BV/TUV third party inspection and supervision
For each project quality documents and qualifications will be providing
--Qualified welder according to AWS I EN I
--Quality Plan
--ITP (Inspection Test Plan)
--PQR
--WPS
--MDR (Manufacturer data report)--Size & Welds Checking Report
--Hot dip galvanized report ASTM A123
--Painting Reports
--Assembly Report
* Other documents may be required by Customer

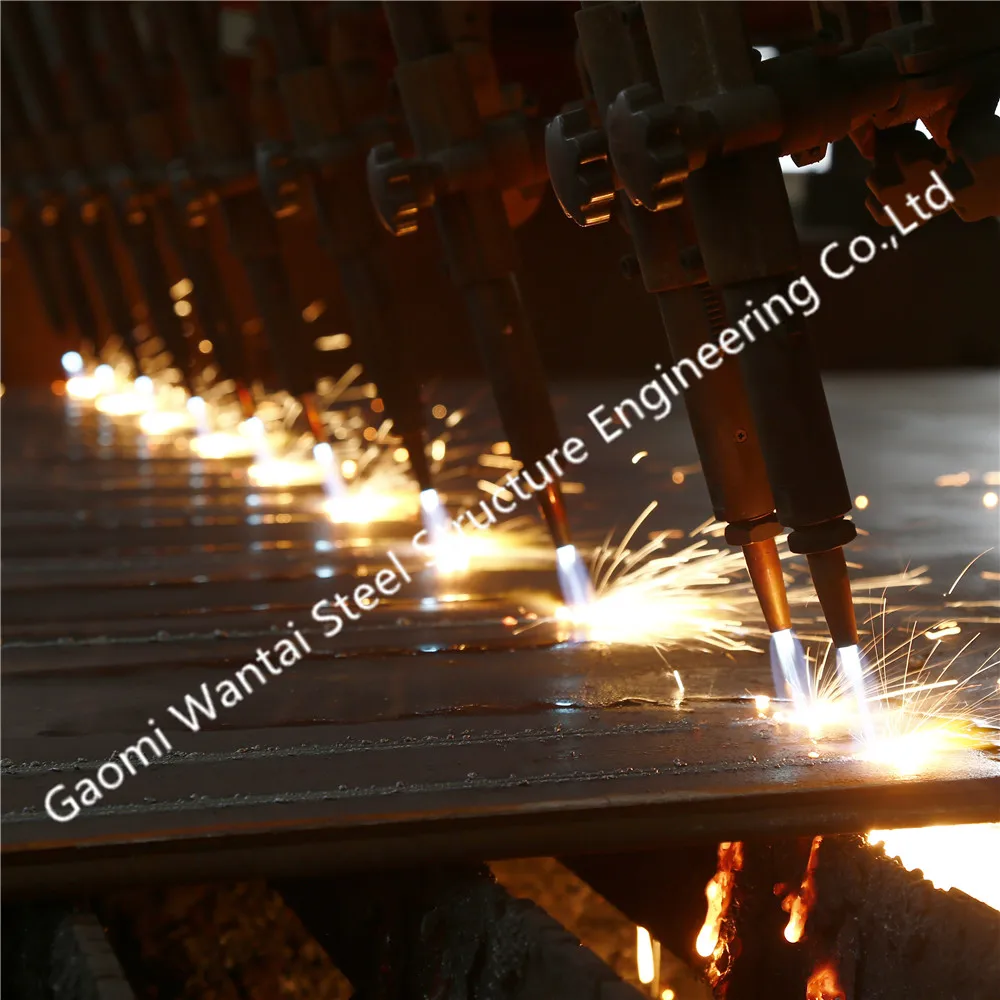

Fabrication Procedure

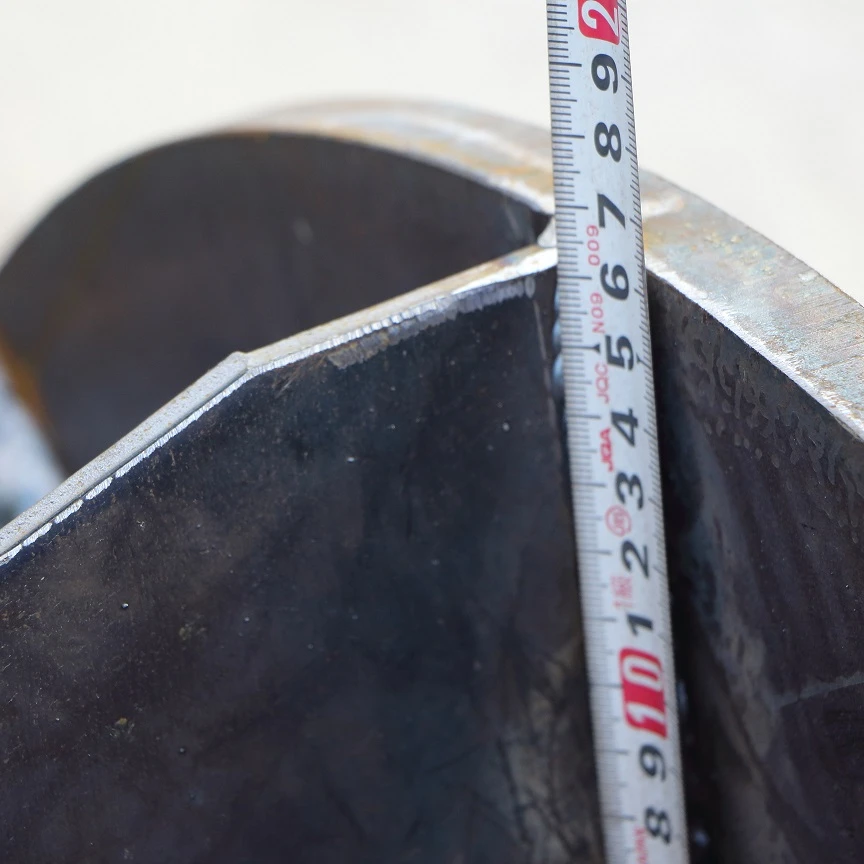

Size Checking
Grinding
Painting
Hot Dip Galvanizing
Welding
Scope & Technology
Wantai Steel Structure offer services as follow:
Design | Detailing | Fabrication | Surface Treatment | Erection
Design | Detailing | Fabrication | Surface Treatment | Erection
----Pre-engineered metal buildings (PEMB):
----Workshop/warehouse/Residential house | Sheds
----Pre-engineered commercial buildings
----Prefabricated steel Bridge | Infrastructure steel constructions
----Power/Energy steel structure Plant
----Hot Dipped Galvanized | Painted Profiles
----Steel Structure Components
----Mining Machinery and equipment
----Power/Energy steel structure Plant
----Hot Dipped Galvanized | Painted Profiles
----Steel Structure Components
----Mining Machinery and equipment
----Steel Towers
----Custom structural steel works
Health, Safe & Environmental
Structural steel, long considered the premier green construction material, is continuing to improve its environmentally friendly position by reducing greenhouse gas emissions. The structural steel industry has been proactive in pursuing measures of its own that typically exceed regulatory requirements.
WANTAI, as supplier of steel structure, is firmly committed to improving environmental performance. We comply with all relevant environmental legislation and policies. Furthermore, WANTAI Steel is dedicated to continuous improvement and progress in order to better address the ever-changing global issues on a more personal level. The overall direction for WANTAI is to act in an environmentally responsible manner.
Furthermore, WANTAI has a satisfied record of integrity and business ethic in continuously improving labor’s working condition. WANTAI believes that there is nothing if without worker safety especially due to a certain level risks environment for steel fabrication process in the workshop. Besides comply with the relative laws and policies of labor protection, WANTAI has been positive to do more like organize medical examination/tourism/sports meeting/offering a better salary system etc.
WANTAI Steel structure, a true life fabricator.
WANTAI, as supplier of steel structure, is firmly committed to improving environmental performance. We comply with all relevant environmental legislation and policies. Furthermore, WANTAI Steel is dedicated to continuous improvement and progress in order to better address the ever-changing global issues on a more personal level. The overall direction for WANTAI is to act in an environmentally responsible manner.
Furthermore, WANTAI has a satisfied record of integrity and business ethic in continuously improving labor’s working condition. WANTAI believes that there is nothing if without worker safety especially due to a certain level risks environment for steel fabrication process in the workshop. Besides comply with the relative laws and policies of labor protection, WANTAI has been positive to do more like organize medical examination/tourism/sports meeting/offering a better salary system etc.
WANTAI Steel structure, a true life fabricator.
