Product Overview
Description
Product Description

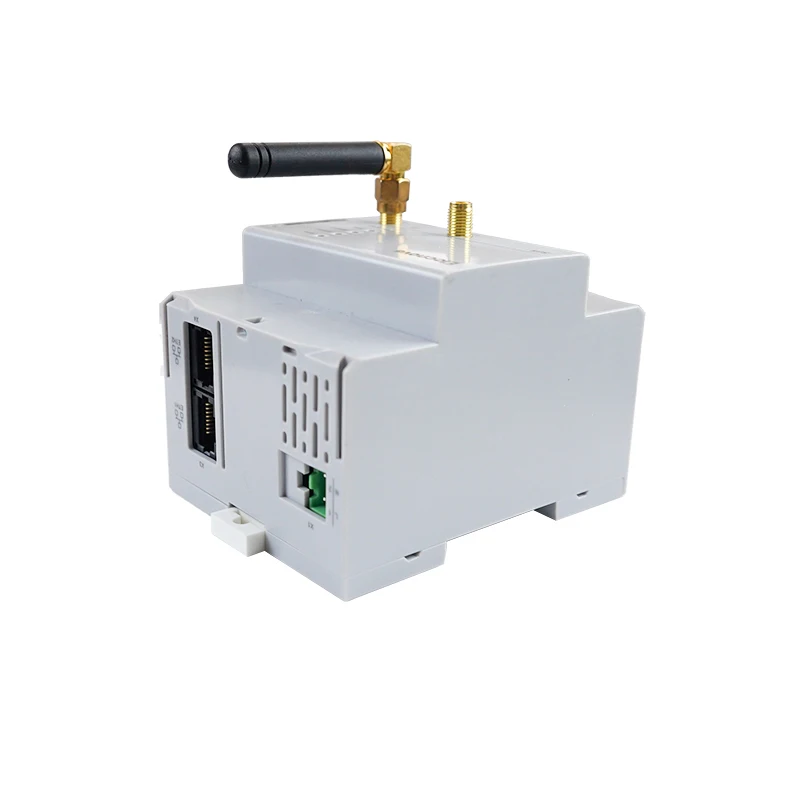

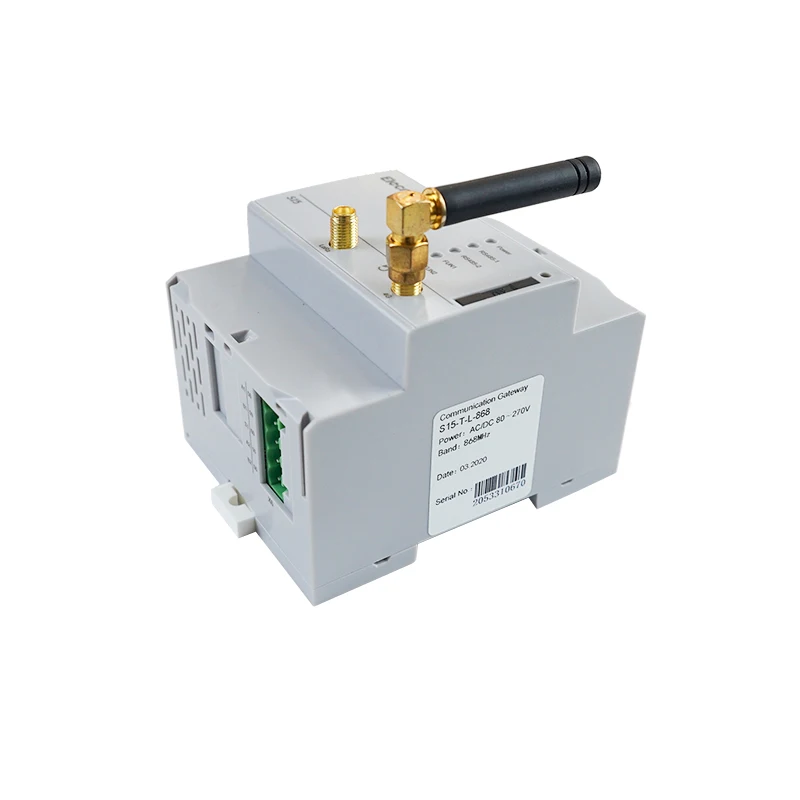

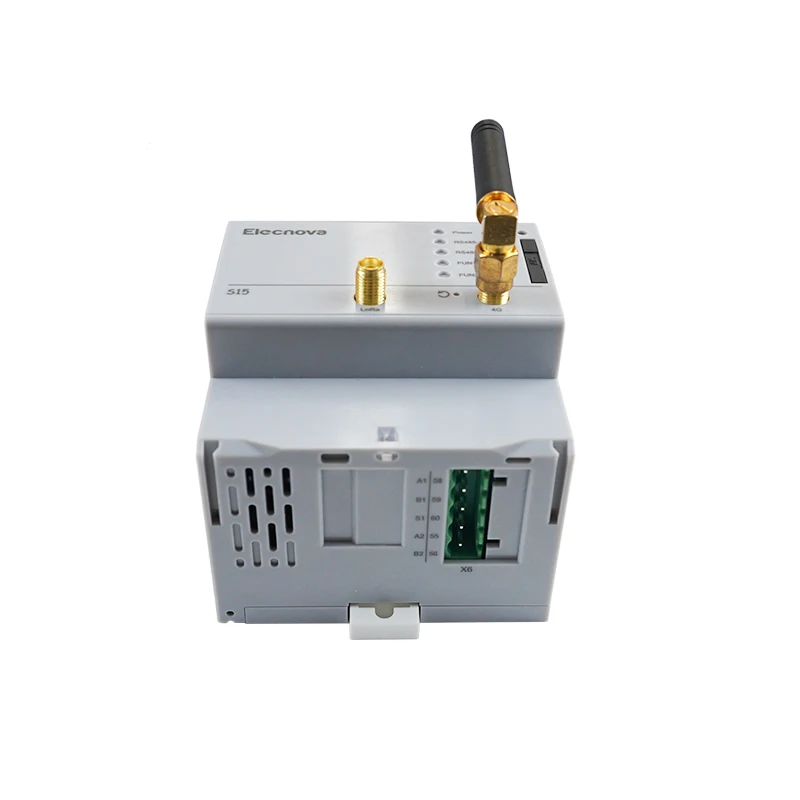

Product name：S15 NB-IoT gateway wireless communication module iot device
S15 gateway is a small gateway device that can collect multiple protocol bus devices and upload data
to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
to cloud platform or local HMI display. A complete set of SmartHMI tools supports the configuration of the device that hangs down and monitors its data or status.
Advantage
■ power supply：by itself
■ Launch frequency：100MW
■ communication rate：Max 115200bps （default 9600bps）
■ Available meters：1-32 pcs power meters
Product Paramenters
Hardware resource | ||||||
LED | 1Rd.running light ,2Rd. RS485 lights ,1Rd. Ethernet light ,1Rd. wireless light | |||||
RS485 | 2 Rd. | |||||
Ethernet | 2 Rd. | |||||
Extension | 2G、4G、NB-IoT、LORA、WIFI | |||||
Working environment conditions | ||||||
Working voltage | AC220V±20V 50Hz | |||||
Working temperature | -25...+70℃ | |||||
Storage temperature | -40...+85℃ | |||||
Relative humidity | ≤95%RH，noncondensing | |||||
Work altitude | ≤2000m | |||||
Protection level | IP20 | |||||
Insulation | double insulation | |||||
Voltage withstand | 2.5kV AC/1min | |||||
Communication interface | ||||||
Interface | Two RJ45(100M), electrostatic 6 KV | |||||
Standards | IEEE 802.3 | |||||
Communications agreements | Modbus TCP/IP,Modbus RTU,MQTT etc. | |||||
Electromagnetic Compatibility | ||||||
Electrostatic discharge immunity | IEC 61000-4-2- III level | |||||
Radiofrequency electromagnetic radiation immunity | IEC 61000-4-3- III level | |||||
Immunity of electric fast transient pulse group | IEC 61000-4-4- IV level | |||||
Impact (surge) immunity | IEC 61000-4-5- IV level | |||||

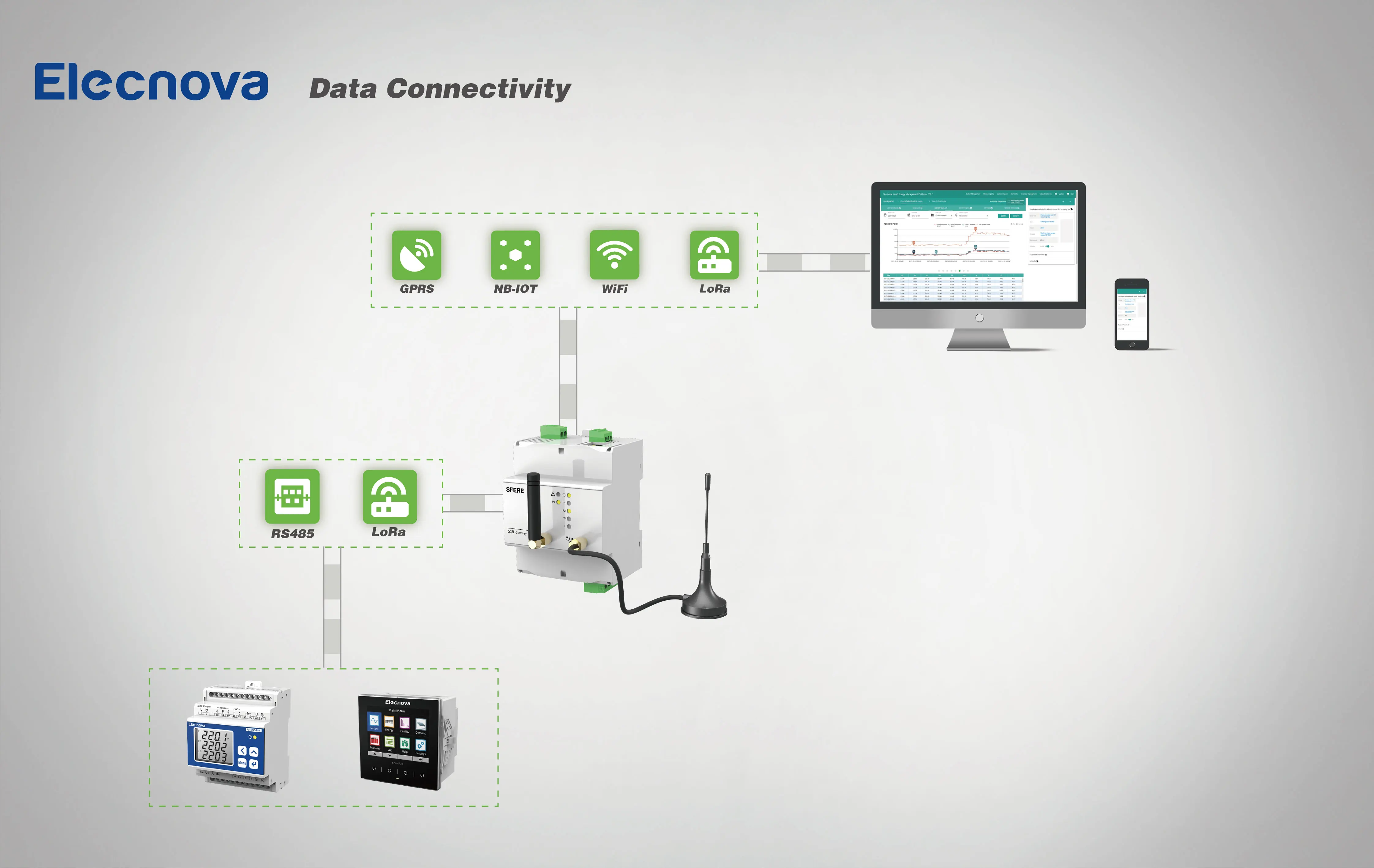

Data flow

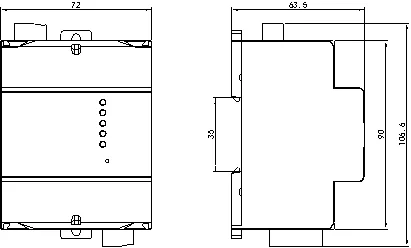

Dimensions and wiring diagrams
Applicable Products
Packing&Shipping
