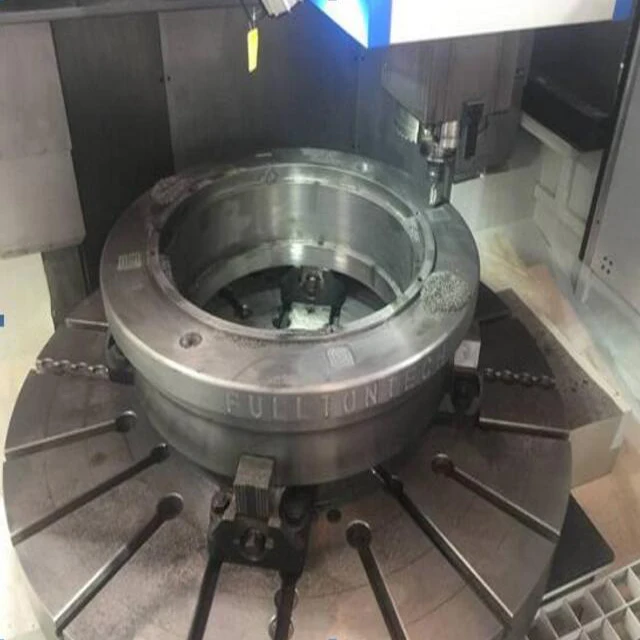

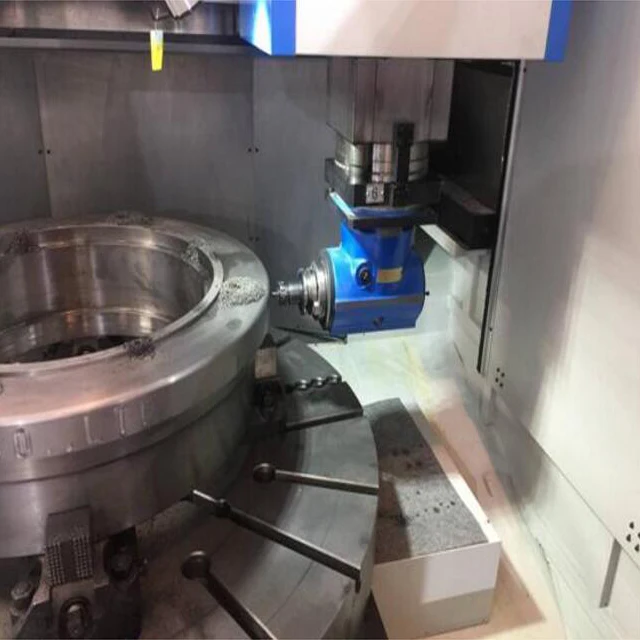

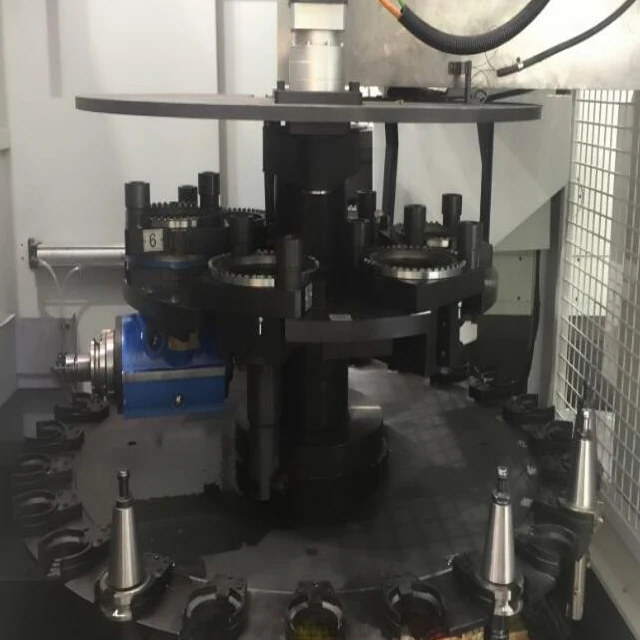

CK51 M CNC Vertical Turn Mill Lathe Machines for Sale
- Category: >>>
- Supplier: Dalian Fullton Machinery Co. Ltd
Share on (62593435315):
Product Overview
Description
BASIC SPECIFICATION | UNIT | CK5116M | CK5123M | CK5240M | CK5263M | ||||
MAX TURNING DIAMETER | MM | 1600 | 2300 | 4000 | 6300 | ||||
DIAMETER OF WORKTABLE | MM | 1400 | 1800 | 3600 | 4500 | ||||
MAX. WEIGHT OF WORKTABLE | TON | 12 | 12 | 40 | 60 | ||||
MAX. HEIGHT OF WORKTABLE | MM | 1600 | 2000 | 3150 | 4000 | ||||
RAM TWO | One CNC Ram with ATC or Two CNC Ram | ||||||||
ATC-OPTION | 6（ruining tool）and 24（miling tool） | ||||||||
MAX. TOOL WEIGHT | KGS | 20 | 20 | 20 | 20 | ||||
LIVE SPINDLE SPEED | RPM | 1-800 | 1-800 | 1-800 | 1-800 | ||||
HORIZONTAL TRAVERSE OF TOOL HEAD | 850 | 1200 | 4100 | 3250 | |||||
VERTICAL TRAVERSE OF TOOL HEAD | MM | 800 | 1000 | 1600 | 2000 | ||||
CNC SYSTEM | Siemens 840D | ||||||||
