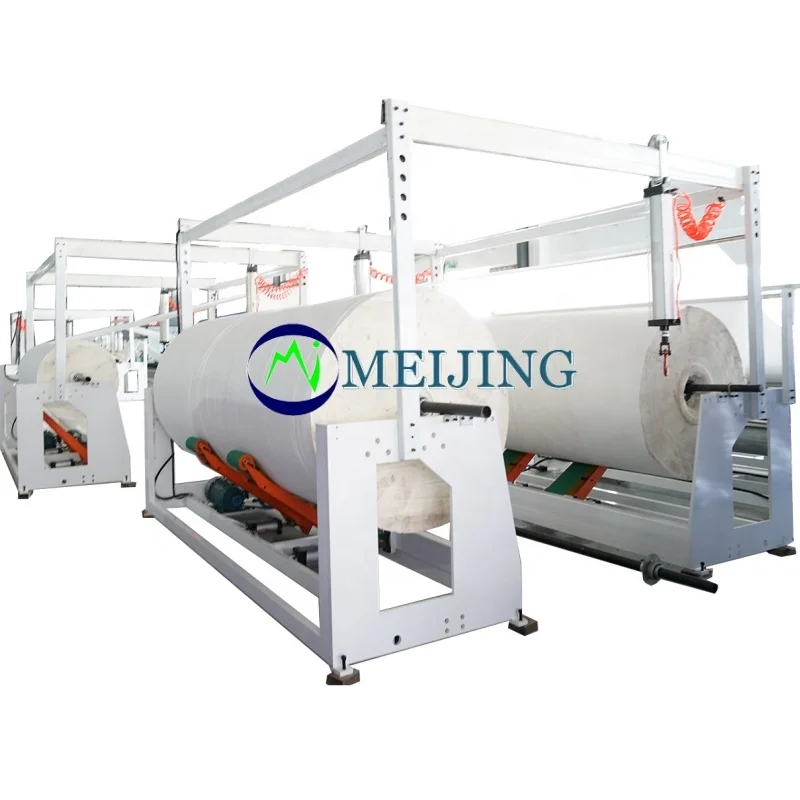

Manufacturing Price Facial/Napkin tissue Paper Folding Machine 6 10 lines To Produce Face Tissue Products
- Category: >>>
- Supplier: Foshan Nanhai Meijing Machinery Manufacture Co. Ltd.
Share on (62593452576):
Product Overview
Description
Product Description

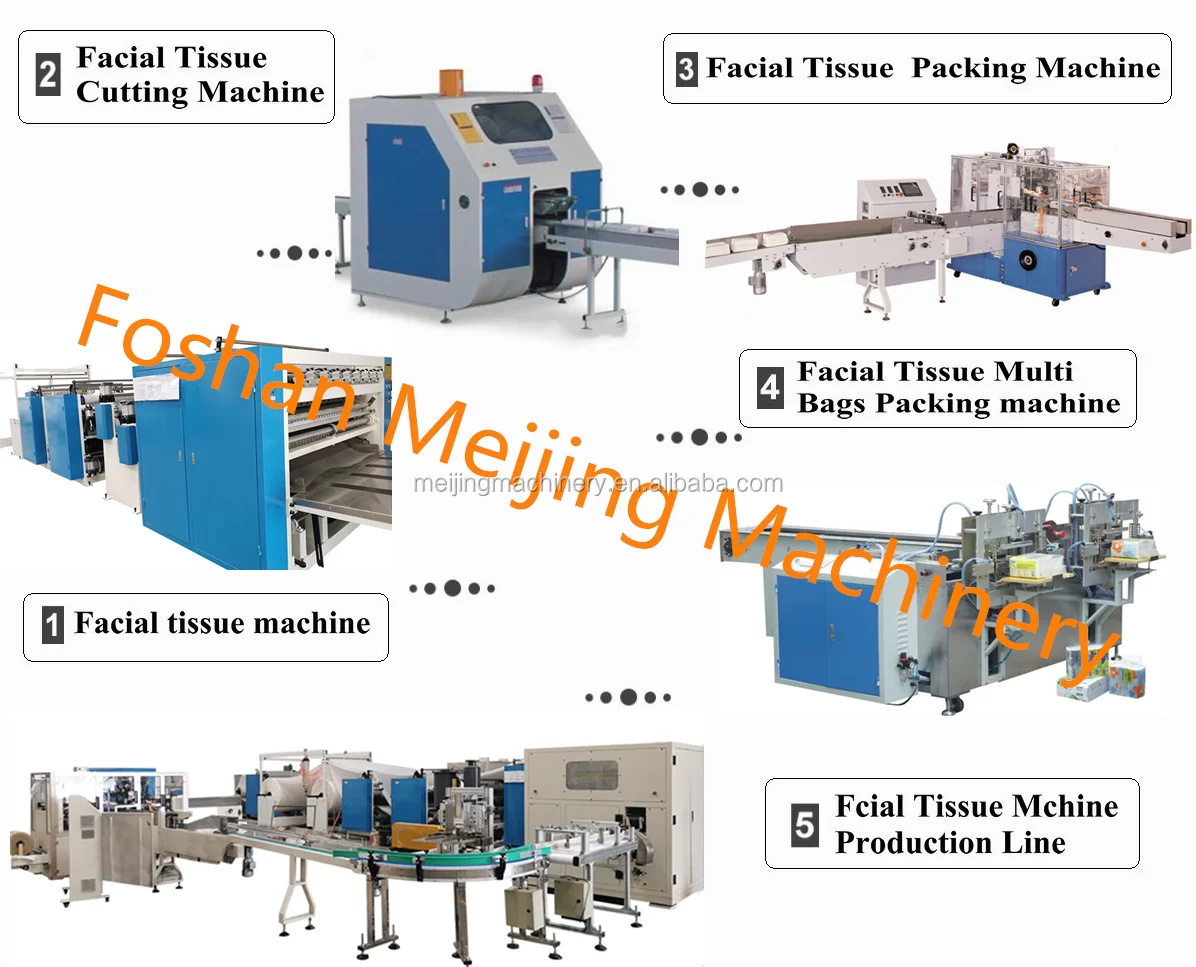

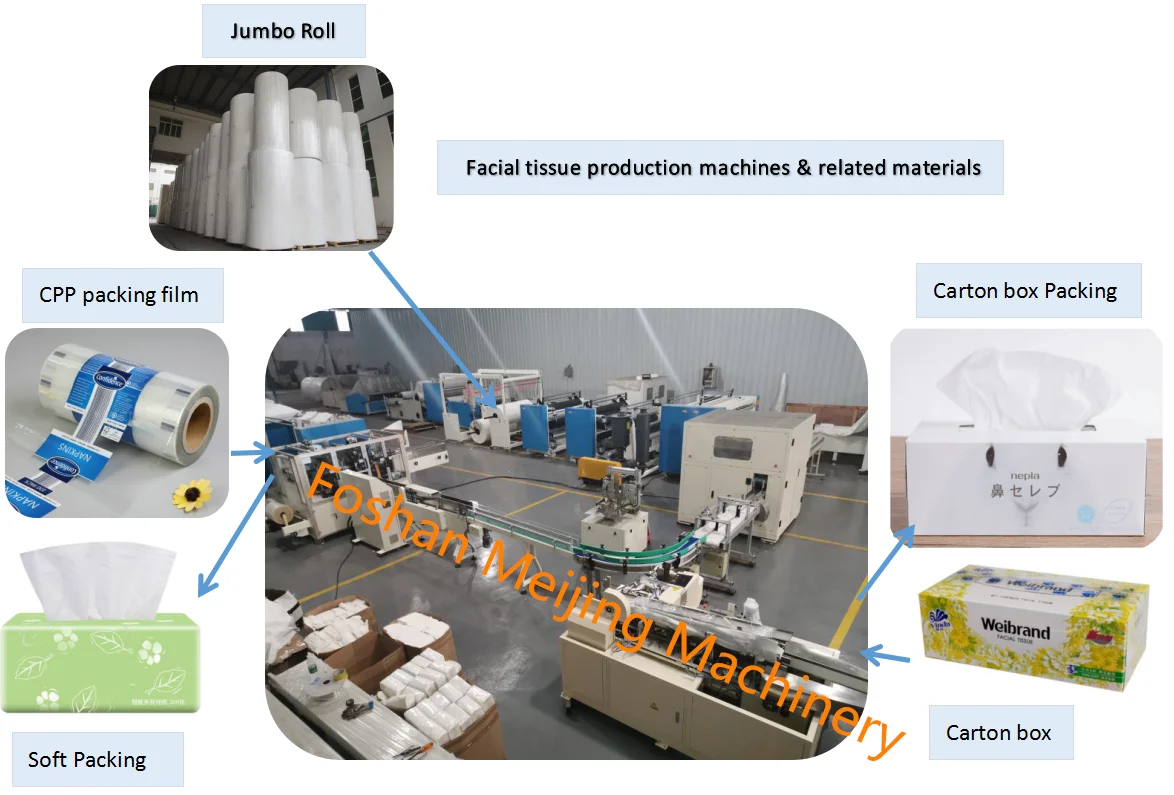

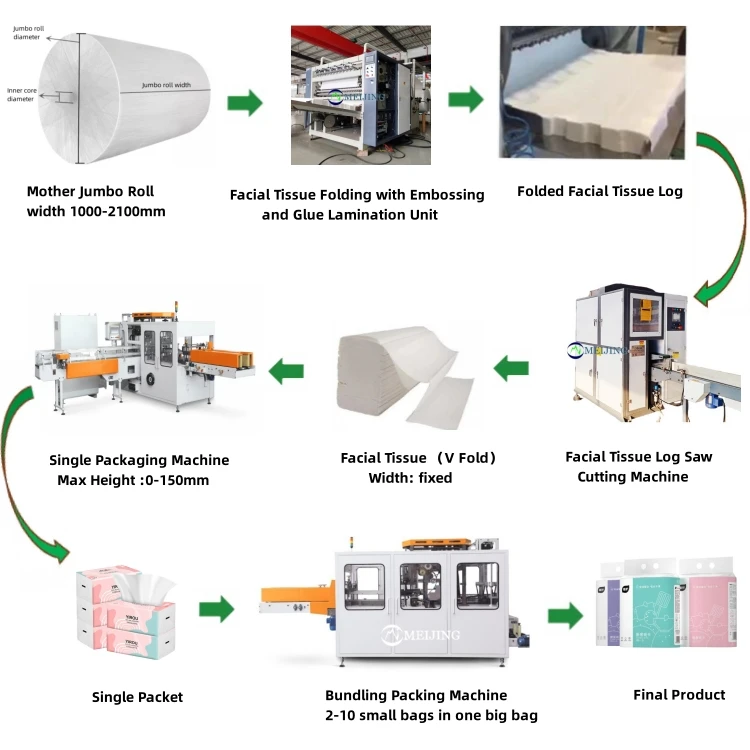

How to start a small facial tissue or cotton towel production? which machine shall need?
1. one set facial tissue folding machine
2. one set facial tissue cutting machine
3. one set facial tissue packing machine
There are different type machines, full auto type or semi auto type, very welcome your consulting to work on some different production solutions for your reference according to your market popular products.
1. one set facial tissue folding machine
2. one set facial tissue cutting machine
3. one set facial tissue packing machine
There are different type machines, full auto type or semi auto type, very welcome your consulting to work on some different production solutions for your reference according to your market popular products.
Funtions：
The max speed of Fully automatic Facial Tissue Folding Machine can reach 1000-1200 pcs/min
♦ Easy operation and maintenance, save space, need only one operator transfer tissue log after running machine
♦ Customer can select our automatic cutting machine so that greatly improve production efficiency and ensure tissue without second pollution by human hands
♦ The machine will stop when the paper broken. It avoid waste caused by no paper or paper broken
Details ：
Facial tissue paper making machine can be applied to face towel paper, wipe paper, non-woven soft towel, cleansing towel and other extraction products folding and cutting, a machine multi-use and pay back quickly.

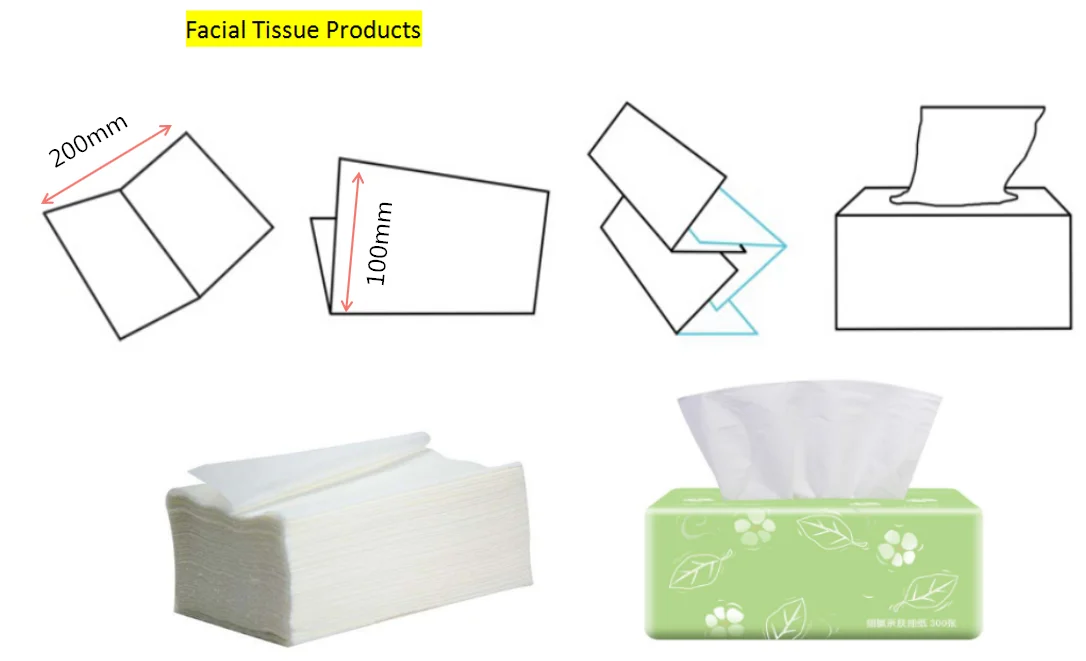

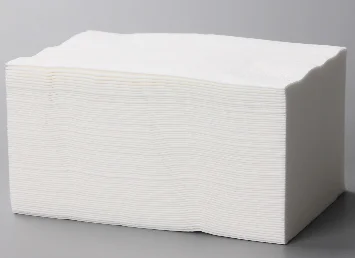

Complete series of removable pull-out type facial tissue folding machines are used to facial tissue into chain-type cross-folded rectangular pieces after the base paper is cut with a knife roller; The folded facial tissue paper can be pulled out one by one by each pulling so that the facial tissue can be used conveniently and kept clean.
Adopting vacuum suction and automatic fold counting function, with such advantages as high speed, neatly folding, and easy to operate etc.
Features:
1. Automatic counting and output;
2. The equipment provides 6-10 lines of different models for customers to choose.
2. The equipment provides 6-10 lines of different models for customers to choose.
3. The 6 line facial tissue folding machine is more suitable for the current market than 2-4 line.

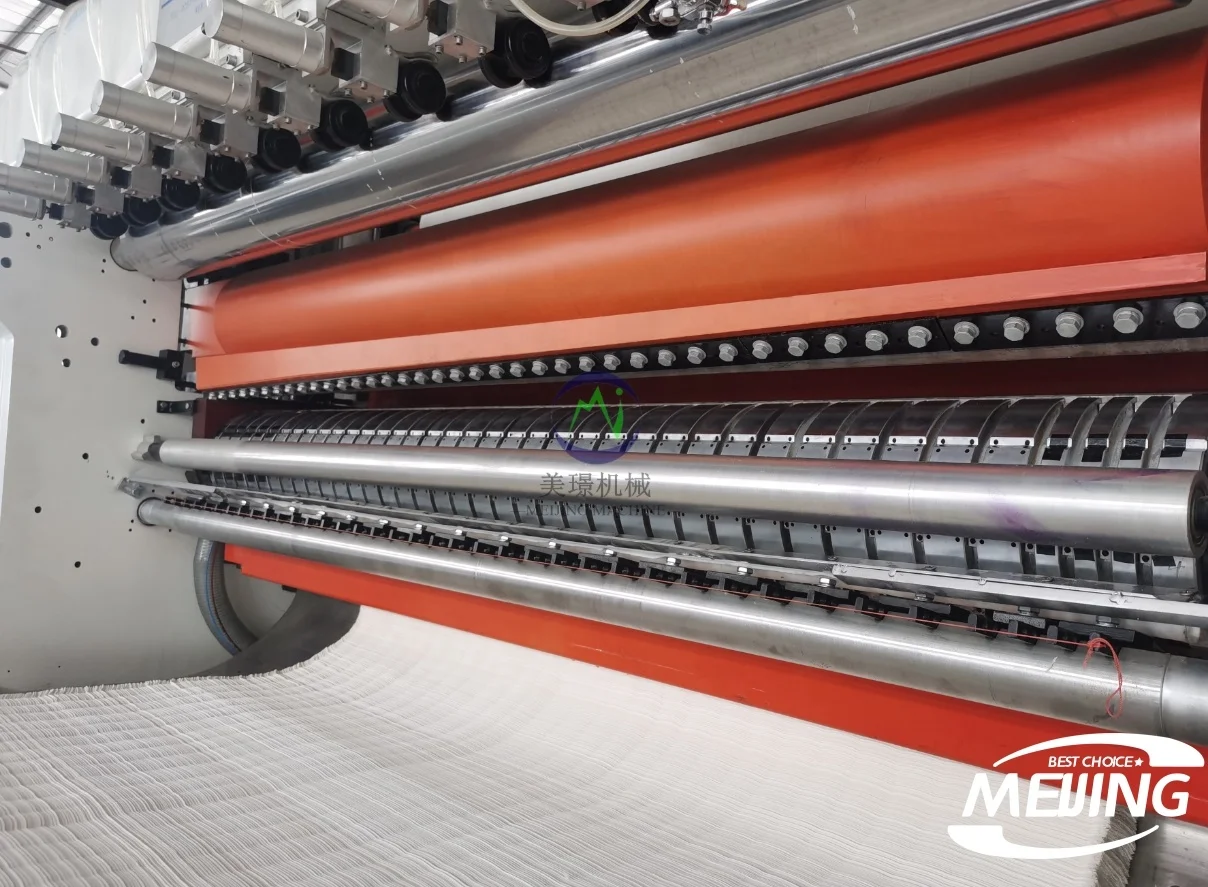

4. Independent valve control system of knife groove ensures sufficient adsorption and side-by-side folding.
5. Operation system: imported PLC and frequency conversion speed regulation system.

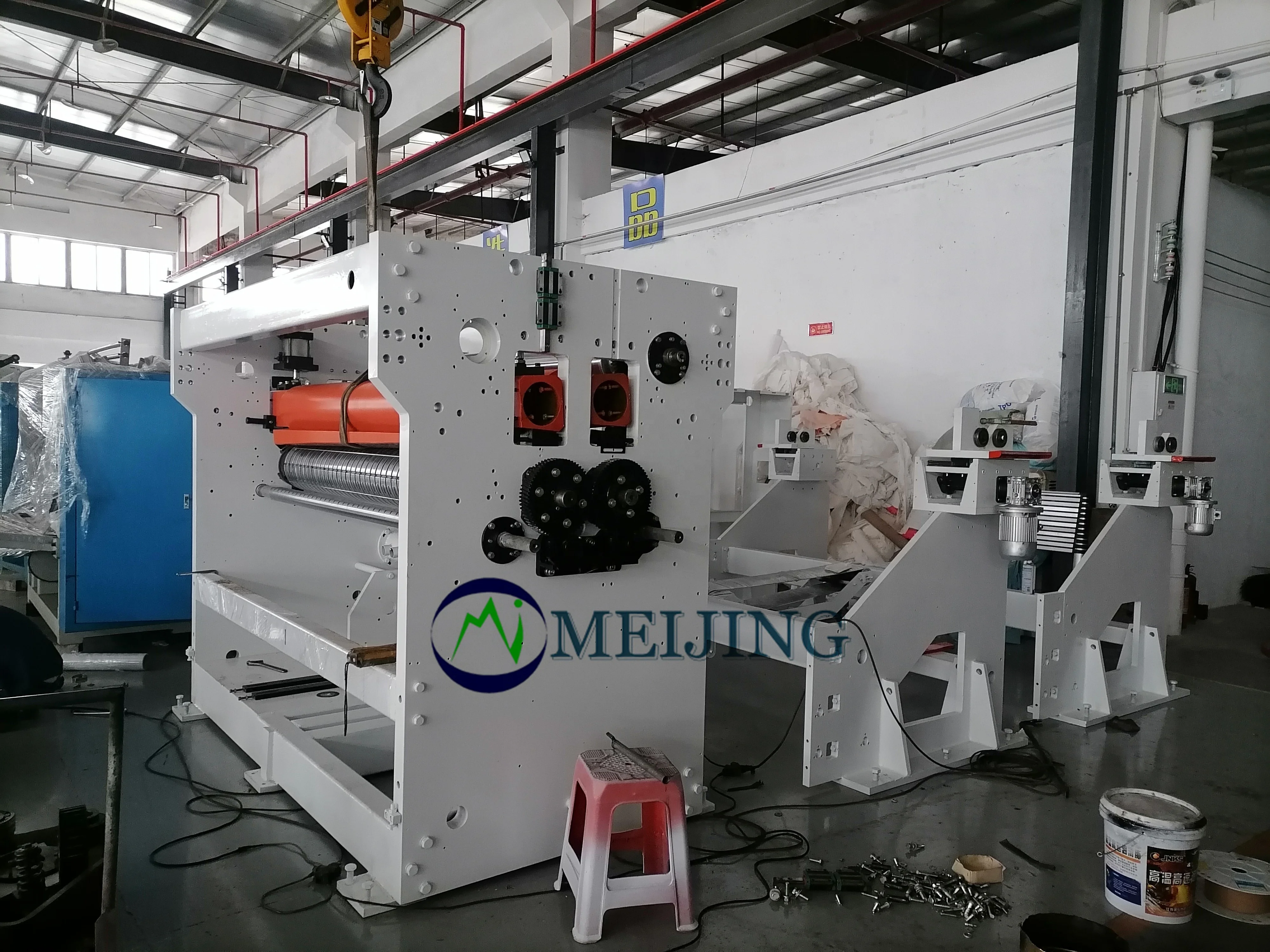

Name | Facial Tissue Folding Machine |
Capacity (10 hours) | 1-6 tons depend on your request |
Speed | 2000-2400 sheets/min/line for two jumbo rolls |
Power | 5.5-34.5 KW，380V，50Hz, 3Phase |
Size | (6-13m)*(1.5-4m)*2.1m |
Weight | 1-8 tons |
Features:

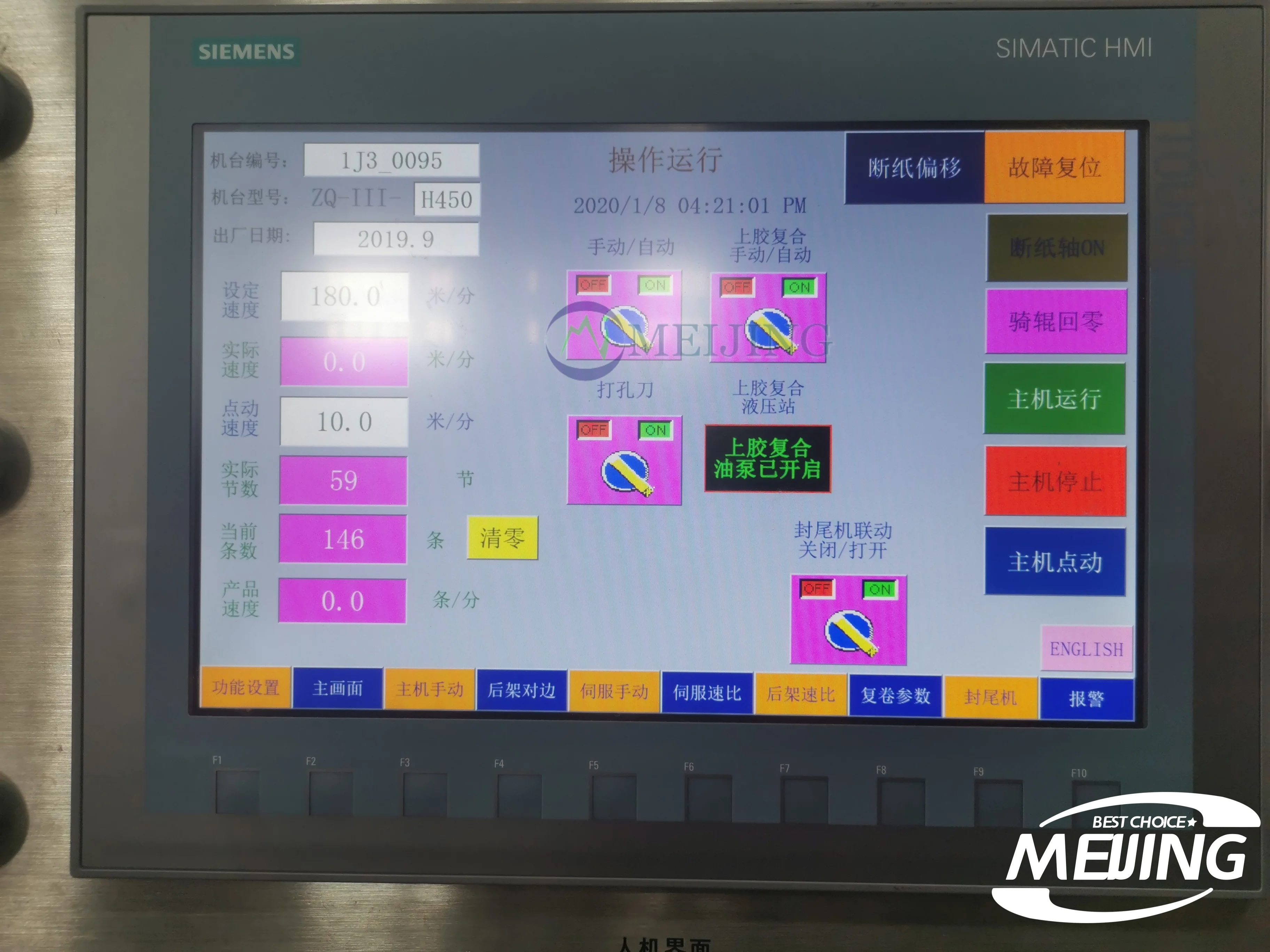

1. Siemens PLC control & touch screen.
2. Driving by independent motor & for each station. 3. Adjust paper tension on touch screen.
4. Adopts vacuum suction & automatic fold counting function,advantages with high speed, neatly folding.
5.Stepless speed regulation unwinding, adapt to the high and low tension of the base paper
6. With jogging button and Emergency button on machine
7.The machine will stop when the paper broken to avoid waste caused by no paper or paper broken
Name | Facial Tissue Log Saw Cutting Machine |
Application Object | Facial Tissue |
Capacity (10 hours) | 36000piles-84000piles |
Speed | 100 cuts/min, 1 stack/cut; 100 cuts/min, 2 stacks/cut |
Power | 9Kw |
Size | 4.3*1.6*1.8m |
Weight | 3-4 tons |
Features:
1. The machine will cut the facial tissue.
2. Adopt frequency control, PLC , servo tracking control to realize automatic control system.
3.The cutting size is adjustable freely
4. The servo system can guarantee the cutting size is more precocious
5. Equipped with Automatic photocell inspection system, the blade will stop cutting when no paper log coming;
6. Equipped with blade sharpening frequency,

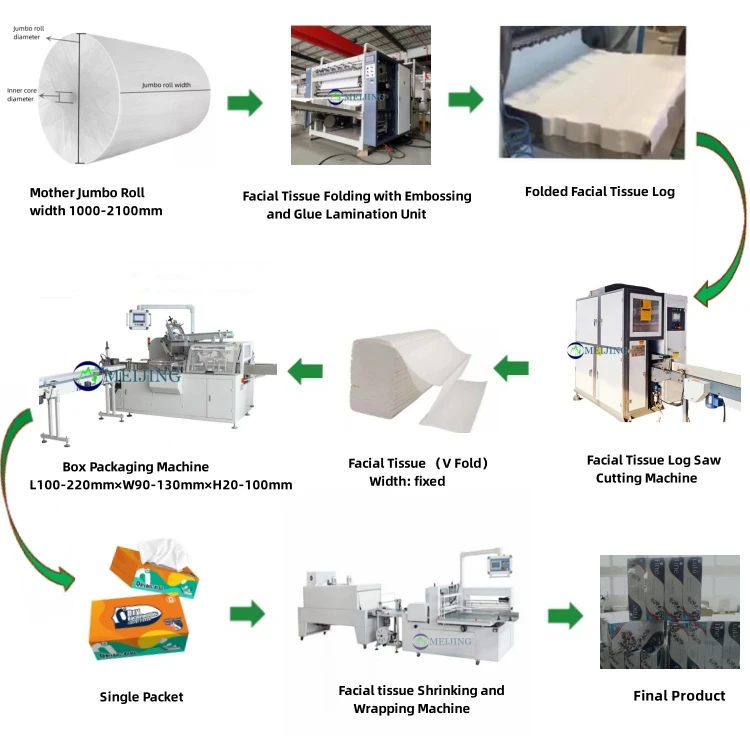

7. The machine will connect with facial tissue folding machine and packing machine to be production line.
Name | Facial Tissue Single Wrapping Machine |
Application Object | Facial Tissue Nylon Single Packing Type |
Capacity (10 hours) | 48000 bags-72000 bags depend on your request |
Speed | 80-120 bags/min |
Power | 6.83 KW，380V，50Hz,3Phase |
Size | 4*3.8*2m |
Weight | 1-2tons |
Features:
1. Adopt packing method by wrapping, folding and sealing with compact structure and high product appeal.
2. Adopts advanced PLC computer program, human-machine interface operation.
3. Automatic tailing, automatic push function,cutting and sealing
4. Emergency stop/pause control function,safe power off, pressure protection.
6. Sealing and cutting device adopts temperature control design, good sealing effect, no broken bag.
Optional Machine:
Name | Automatic Facial Tissue Bundle Packing Machine |
Application Object | Facial Tissue Bundle Packing Type |
Capacity (10 hours) | 9600 bags-12000 bags depend on your request |
Speed | 18-20 bags/min |
Power | 17 KW，380 V，50 Hz,3 Phase |
Size | 5.8*1.8*1.8m |
Weight | 3-4tons |
Name | Automatic Facial Tissue Boxing and Sealing Machine |
Application Object | Pack Box Drawing Facial Tissue ,Hand Towel |
Capacity (10 hours) | 30000-36000 boxes or 36000-48000 boxes |
Speed | 50-60 boxes/min or 60-80 boxes/min, need order |
Power | 5.1 KW,380 V, 50 Hz, 3 Phase |
Size | 2.7*1.7*1.5 m |
Weight | 1000-2000 kg |
Name | Automatic Facial Tissue Boxing and Sealing Machine |
Application Object | Pack Box Drawing Facial Tissue ,Hand Towel |
Capacity (10 hours) | 30000-36000 boxes or 36000-48000 boxes |
Speed | 50-60 boxes/min or 60-80 boxes/min, need order |
Power | 5.1 KW,380 V, 50 Hz, 3 Phase |
Size | 2.7*1.7*1.5 m |
Weight | 1000-2000 kg |
Q:Can engineer come to our country?My staff can't operate the machine
-- We have skillful and experience technician train and teach the workers to operate the paper machine,we have very very details installation video and guide training online too.
Q:How to purchase accessories or wearing parts matching the paper towel machine?Can you sell it to us
--Before shipping, we will prepare some wearing parts to avoid the need for replacement in the future about 2 years, after it, when you need we will send you at basic cost in time.
Q: How can i choose the machine model?
-- please send us inquiry and tell us your production demands ideas, like capacity, jumbo roll information, workers, workshop etc, we will make details analysis for your reference and to work on suitable production line for you.
-- please send us inquiry and tell us your production demands ideas, like capacity, jumbo roll information, workers, workshop etc, we will make details analysis for your reference and to work on suitable production line for you.
Q: How long we can receive the machines?
--According to different model type, usually the delivery time is about 50-70 days. We manufacturing the popular model in store, it will more fast delivery.
