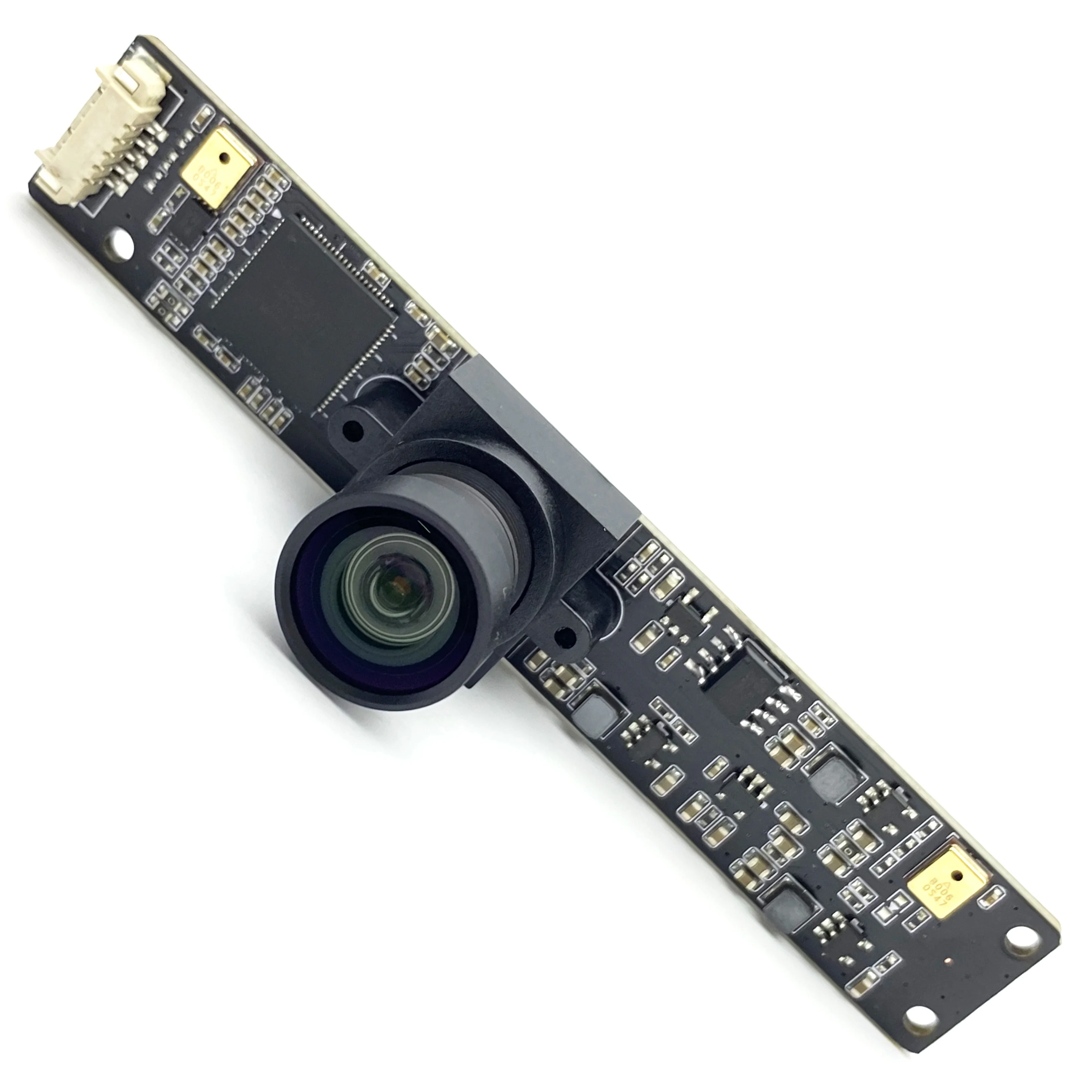

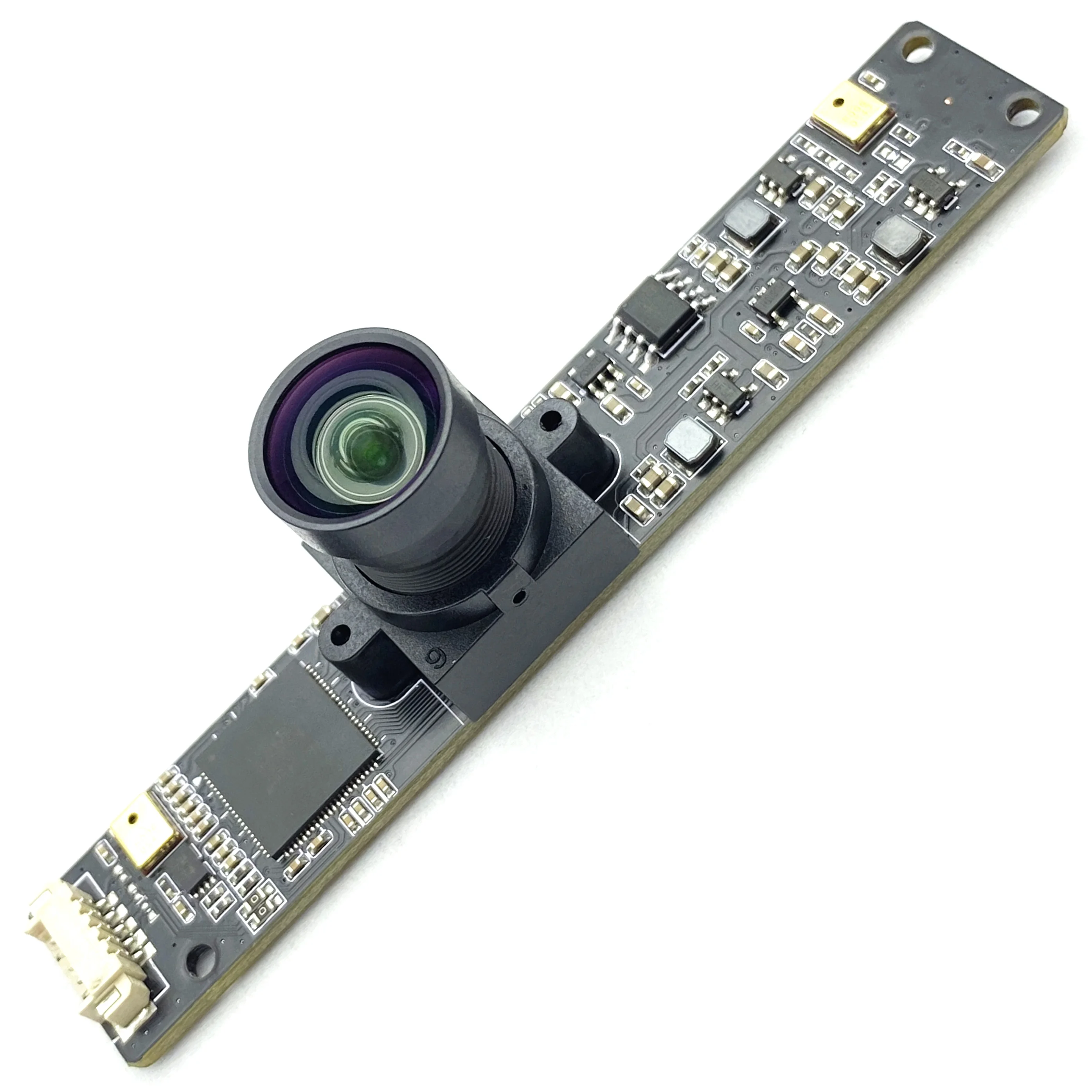

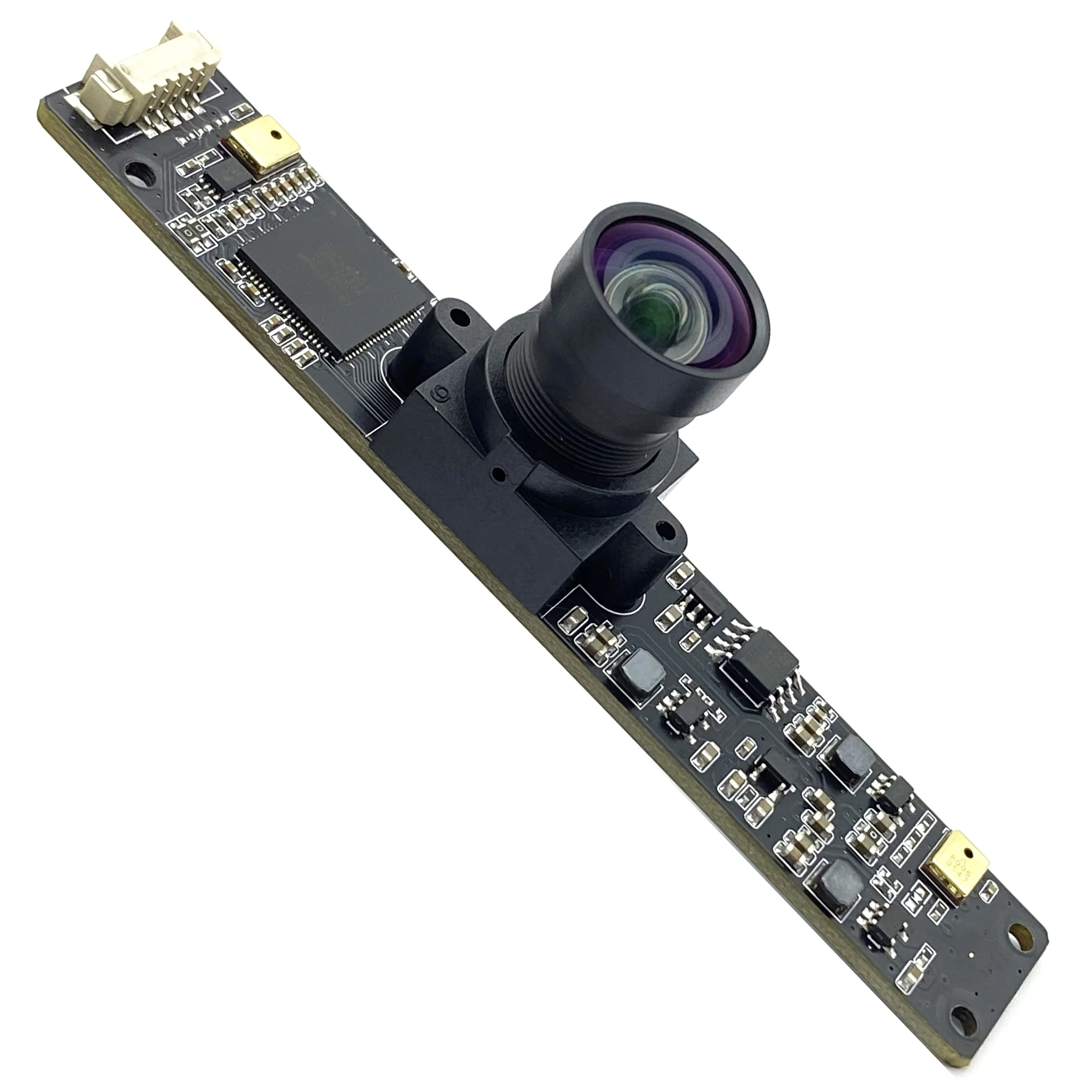

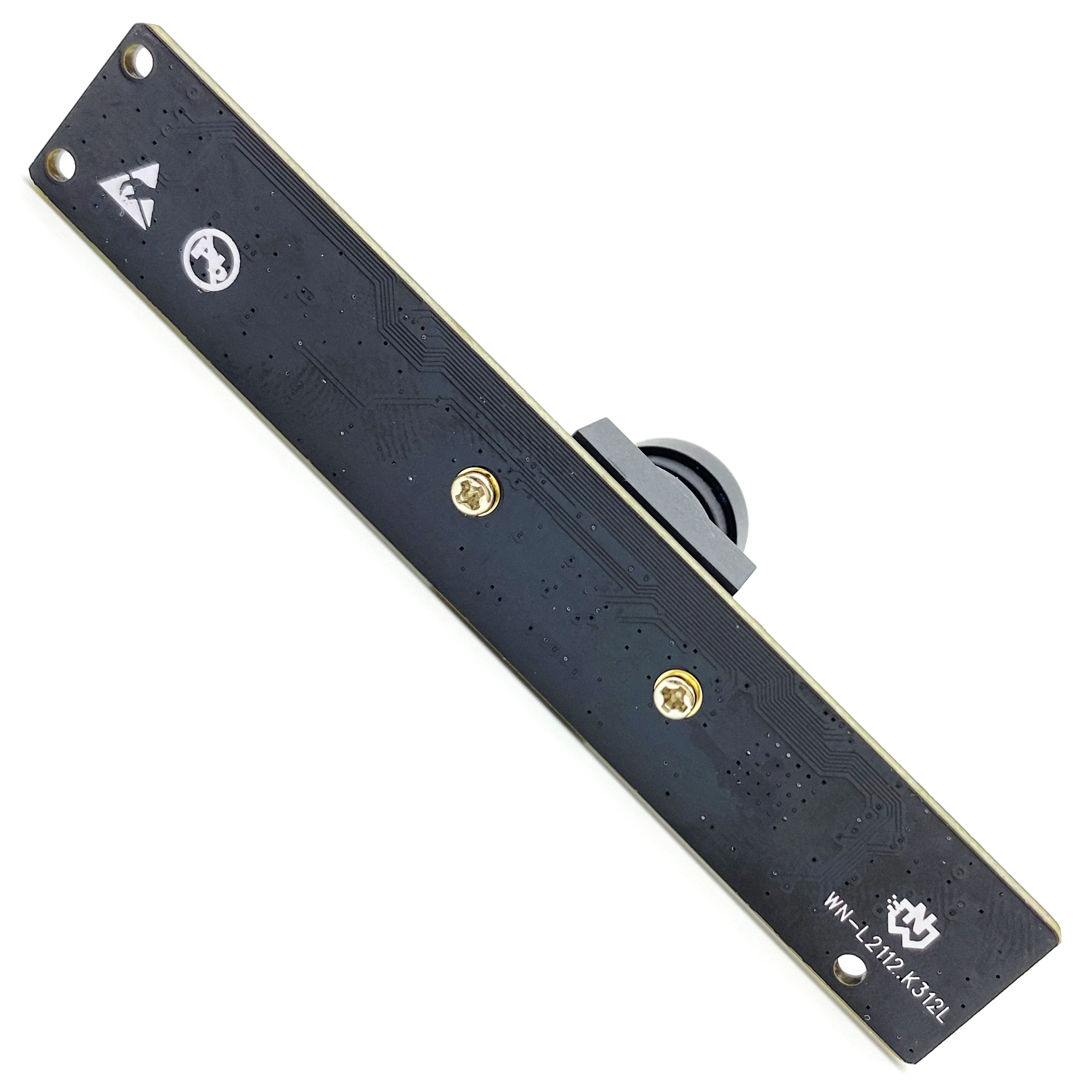

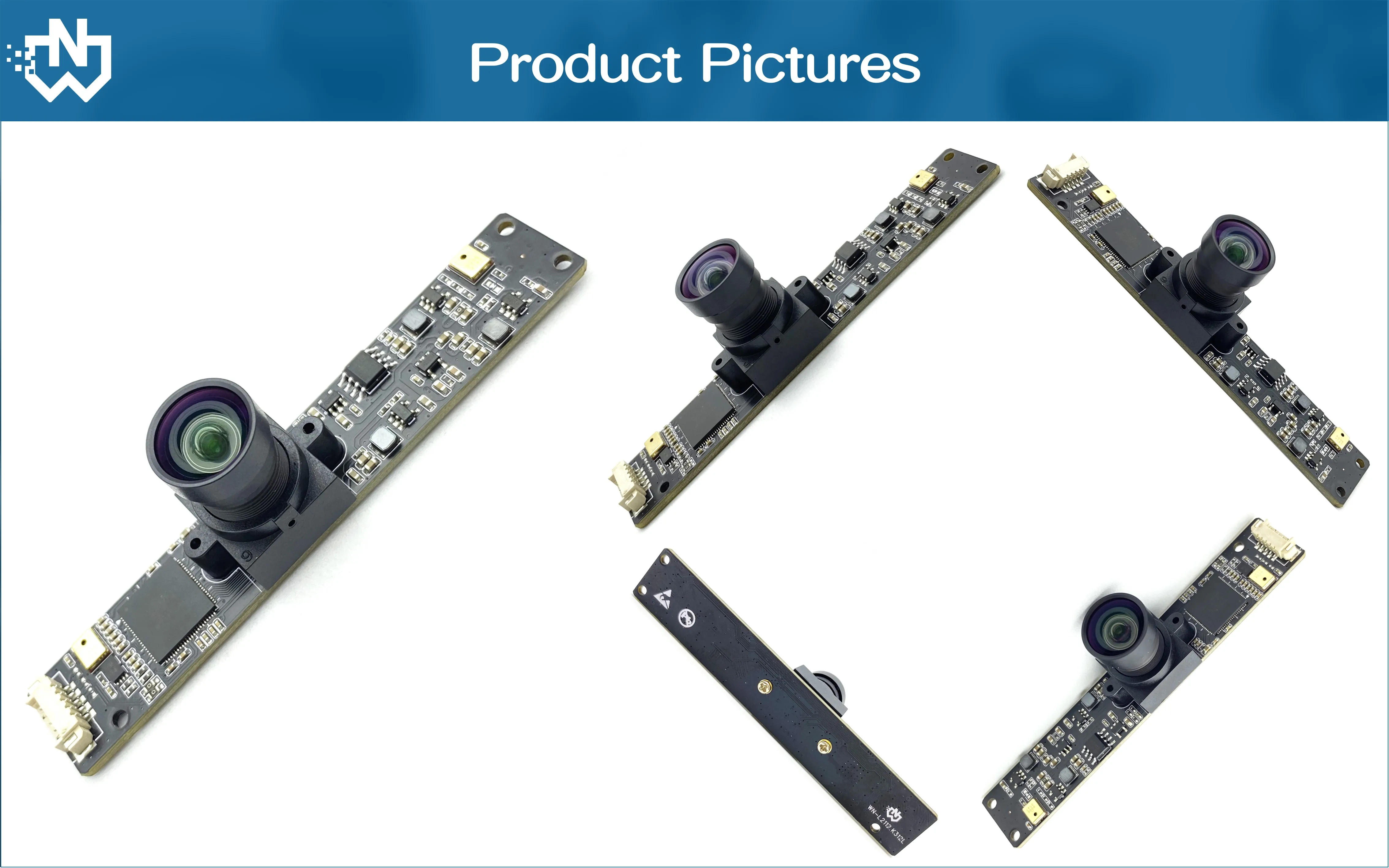

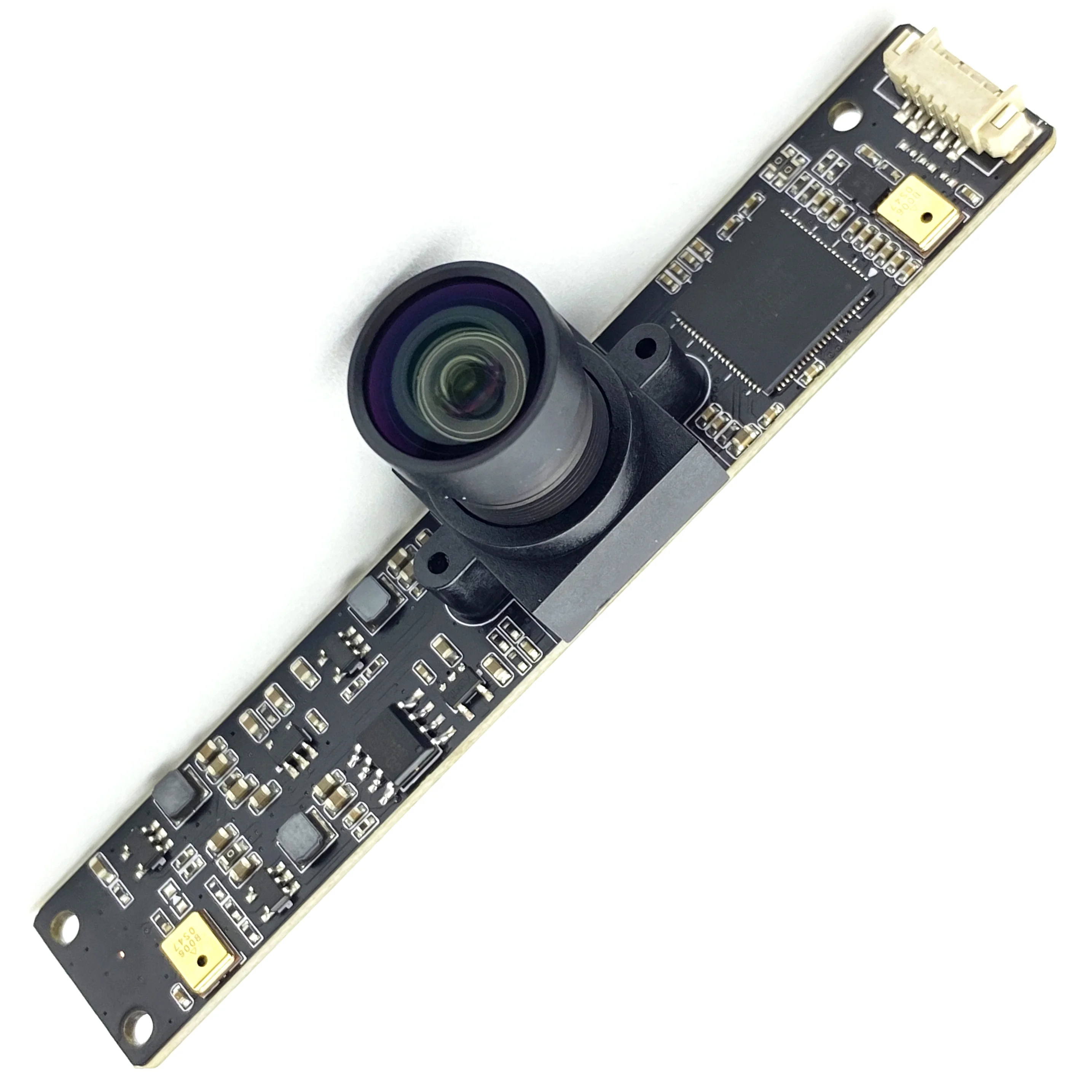

Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision
Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision
Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision
Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision
Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision
Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision
Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision

Factory Supply IMX577 11MP USB Camera Module with Digital Mic 30FPS Frame Rate Wide FOV No Distortion for Machine Vision

Share on (62593454895):


Price:$72.50 - $75.00

Quantity:


Product Overview

Description

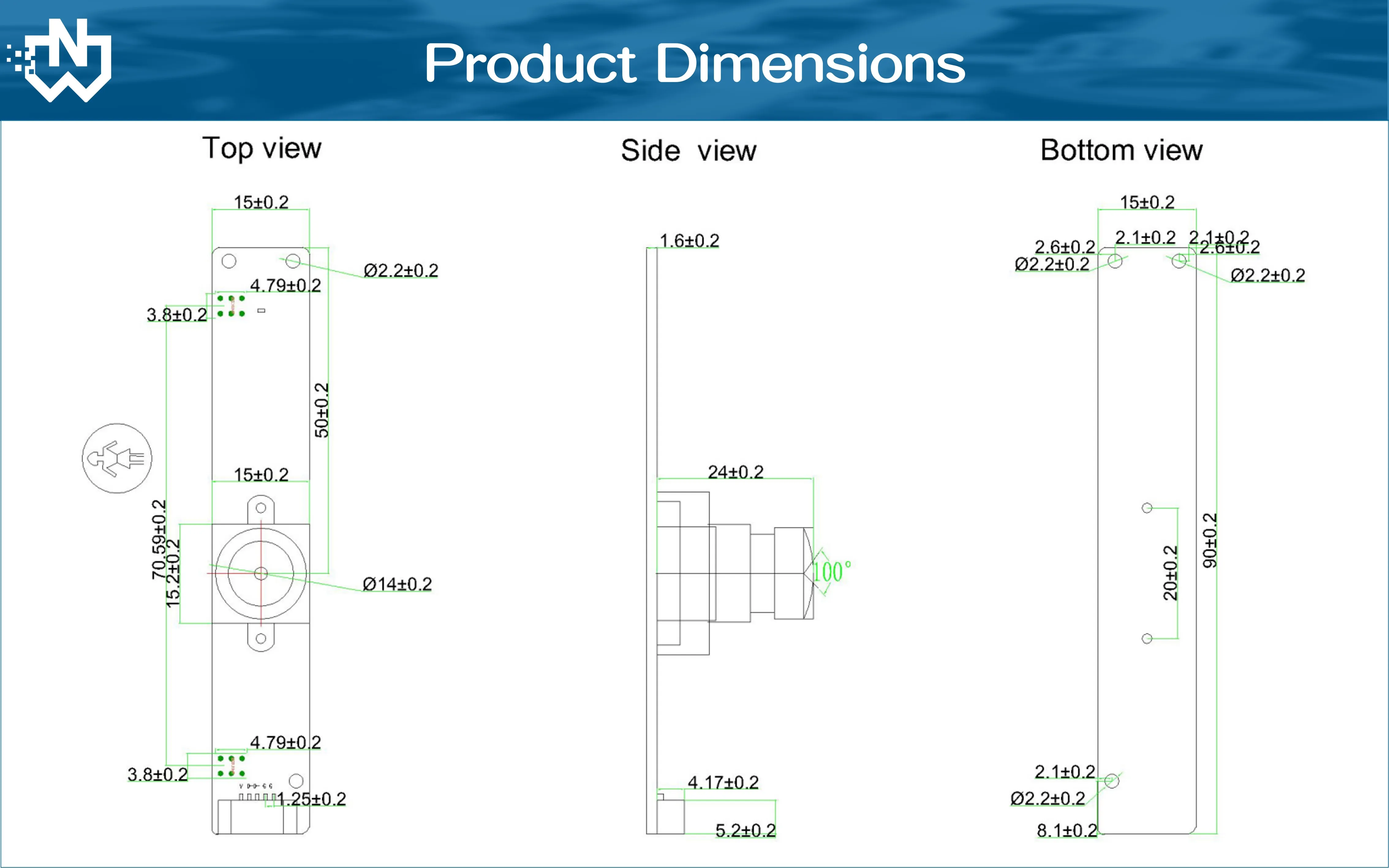

Module Size
90*15mm
Sensor
1/2.3 Inch CMOS IMX577
Pixel Size
1.55umX1.55um
Resolution
3840 H x 2880 V 11MP, 3840 H x 2160 V 4K
Output Format
MJPEG, YUY2
FOV
100 Degree without Distortion
Lens
EFL:3.24MM F.NO:2.7, 4G2P+650IR(M12-0.35P)
Focus Type
FF/ MF
Shutter Type
Electronic Rolling shutter
Audio Input
Dual Digital Mic
Output and Power Supply
High Speed USB2.0
Interface
5 PIN 1.25MM Socket
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
Windows, Android, Linux, Wince, Mac OS
Cable Length
Default 1.0 Meter USB Cable


Format
Resolution
Frame Rate (USB2.0)




MJPEG
3840x2880
30FPS
3840x2160(4K)
30FPS
2952x1944
30FPS
2048x1536
30FPS
1920x1080
30FPS
1280x720
30FPS



YUY2
640x480
30FPS





YUY2
3840x2880
1FPS
3840x2160(4K)
2FPS
2952x1944
2FPS
2048x1536
3FPS
1920x1080
5FPS
1280x720
10FPS
640x480
30FPS


Pin No.
Signal Name
Description
1
VCC
5V Power
2
DM
USB2.0 Data+
3
DP
USB2.0 Data-
4
GND
GND
5
GND
GND


Operating Voltage
USB DC +5V Supply
Operating Current
190mA
Operating Temperature
-20℃ ~ 60℃
Storage Temperature
-20℃ ~ 105℃
Humidity
80 ~85%




















Weinan Electronics camera modules have a wide range of applications like ATM Machine, kiosk, automatic vending machine, robot, sanner, virtual reality, medical equipment, machinery equipment, POS equipment, smart TV BOX, advisement player, LED display, safety box, notebook, video door phone, tablet external, on-the-spot law enforcement, recognition algorithm attendance machine, simple security system, teaching system, interactive system, credit card machine, attendance machine, voting system, high speed video shooting device, exam system, driving learning system, industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, medical auxiliary equipment, etc.
