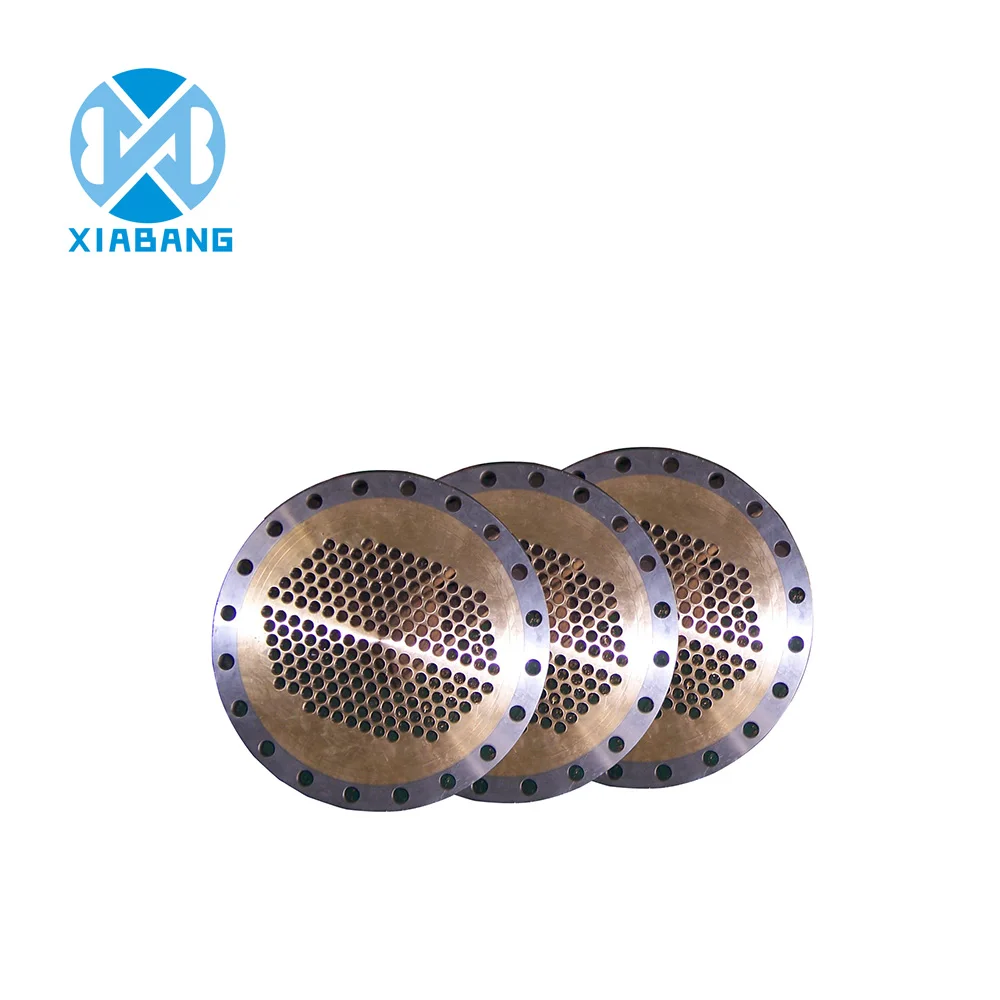

Freon to Water surface condenser design sic heat exchanger heat exchanger for gas
- Category: >>>
- Supplier: Jiangsu Xiabang Refrigeration Equipment Co. Ltd.
Share on (62593587125):
Product Overview
Description
Product Description
Our main products have :
Evaporator, Condenser, Oil Cooler, Stainless Steel Evaporator,
Sea Water Condenser, Group of evaporator and condenser, Plate Heat Exchanger, Accessories and Screw Machine
because we have variouse types and designs of heat exchangers,
and we do the mainly custom products, so if u have any need , just kindly inform us , we will provide you the most professional advice as fast as we can :
Place of origin : | Jiangyin, Jinagsu, China |
Business term : | OEM, ODM, Non-standard |
Cooling capacity range from: | 8.7--2180KW or customized |

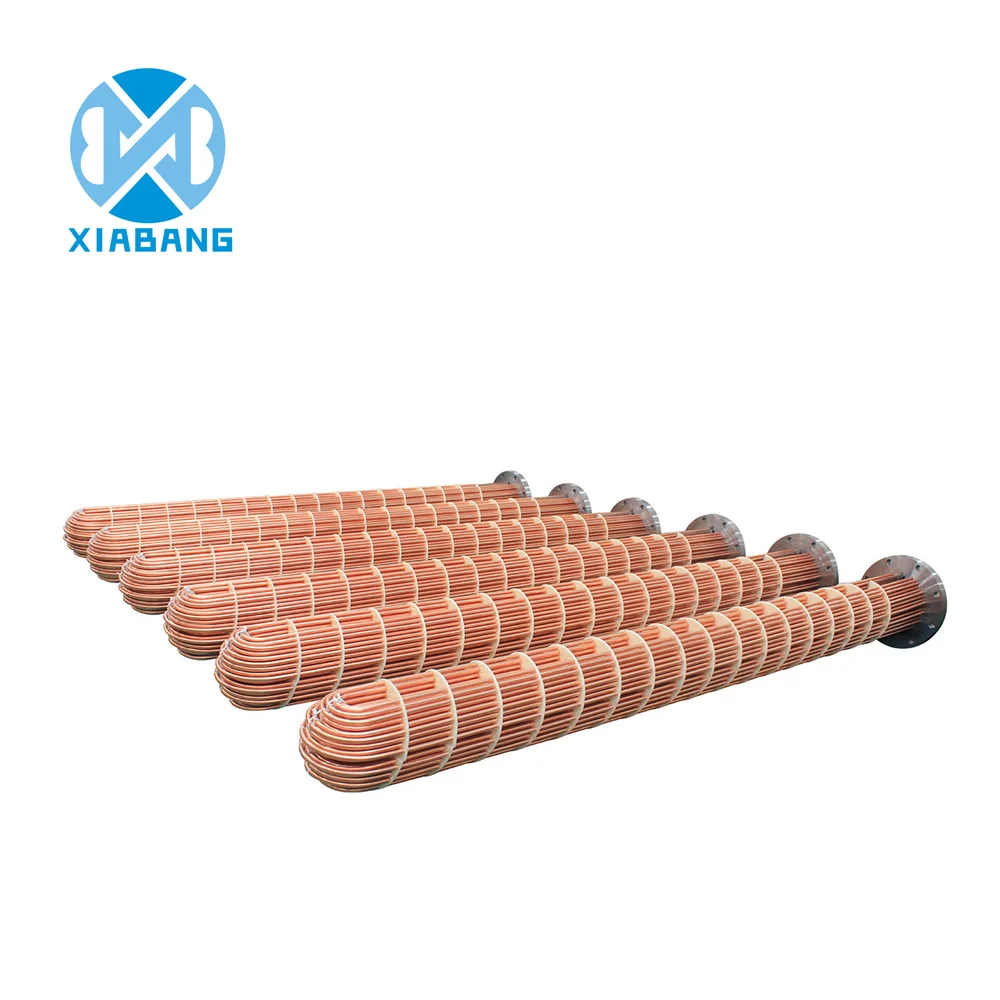

Tube core material: | copper , Al-brass , stainless steel, titanium |
Refrigerant: | option for R22, R407C, R134A, R404A |
Certification: | ISO9001,SGS,CE |
Packaging: | Standard export wooden case or According to customer's requirement |
MOQ: | We accept the small quantity or 1 set |
Transport way: | EXW, by express ,sea or air |
Production manufacture: | Usually 30days after order details confirmed and deposit received |
Lead-Time: | Stock available in factory: 5-15 days after full payment received |
Payment term: | we accept payment by Ali trade order, TT, L/C, Paypal, Western union, etc. before delivery |
| Model | XBU | 260D16 | 280D16 | 300D16 | 350D18 | 400D18 | 450D20 | 500D22 | 550D22 | 600D24 | |
| R22 refrigerant | Qn* | KW | 755.8 | 814.0 | 872.1 | 1017.5 | 1162.8 | 1308.2 | 1453.5 | 1598.9 | 1744.2 |
| Ti=12℃ To=7℃ | 104Kcal/h | 65.0 | 70.0 | 75.0 | 87.5 | 100.0 | 112.5 | 125.0 | 137.5 | 150.0 | |
| Tc=40℃ Te=2℃ | Wn | m³/h | 130.6 | 140.7 | 150.7 | 175.8 | 201.0 | 226.1 | 251.2 | 276.3 | 301.5 |
| FF=0.018 m²K/KW | Wm | m³/h | 217.7 | 234.5 | 251.2 | 293.1 | 335.0 | 376.8 | 418.7 | 460.6 | 502.4 |

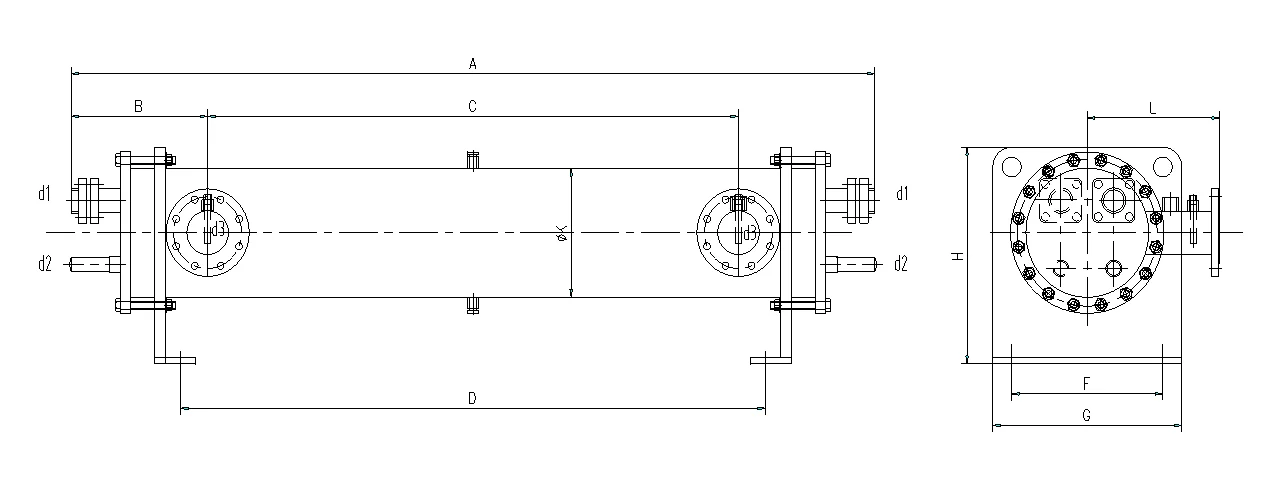

| Dimensios | A | mm | 3480 | 3780 | 4060 | 4210 | 4110 | 4710 | 5430 | 5570 | 5810 |
| B | mm | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
| C | mm | 2840 | 3140 | 3420 | 3570 | 3470 | 4070 | 4790 | 4930 | 5170 | |
| D | mm | 3000 | 3300 | 3580 | 3730 | 3630 | 4230 | 4950 | 5090 | 5330 | |
| F | mm | 535 | 535 | 535 | 570 | 620 | 620 | 670 | 670 | 720 | |
| G | mm | 545 | 545 | 545 | 580 | 630 | 630 | 680 | 680 | 730 | |
| H | mm | 635 | 635 | 635 | 670 | 720 | 720 | 770 | 770 | 820 | |
| K | mm | 426 | 426 | 426 | 457 | 508 | 508 | 560 | 560 | 610 | |
| L | mm | 350 | 350 | 350 | 380 | 400 | 400 | 426 | 426 | 550 | |
| Connections | d1 | mm | 159 | 159 | 159 | 159 | 159 | 219 | 219 | 219 | 219 |
| d2 | mm | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | 54 | |
| d3 | mm | 108 | 108 | 108 | 108 | 108 | 108 | 108 | 108 | 108 | |
Qn : Nominal cooling capacity temperature Wn :maximum water flow rate Ti:water inlet temperature To : water outlet
Wn : nominal water flow rate Tc : condensing temperature Te : Evaporation temperature FF : fouling factor
Our Advantages:
1>.Customized mass production: we can volume produce according to our different customers.
2>.Rich business modes: OEM,ODM,Non-standard are all available.
3>.Reliable & super quality: We have top technical team and senior business team.
4>.Industry leader : We’re domestic biggest supplier of Midea.
 |  | |
 |  |

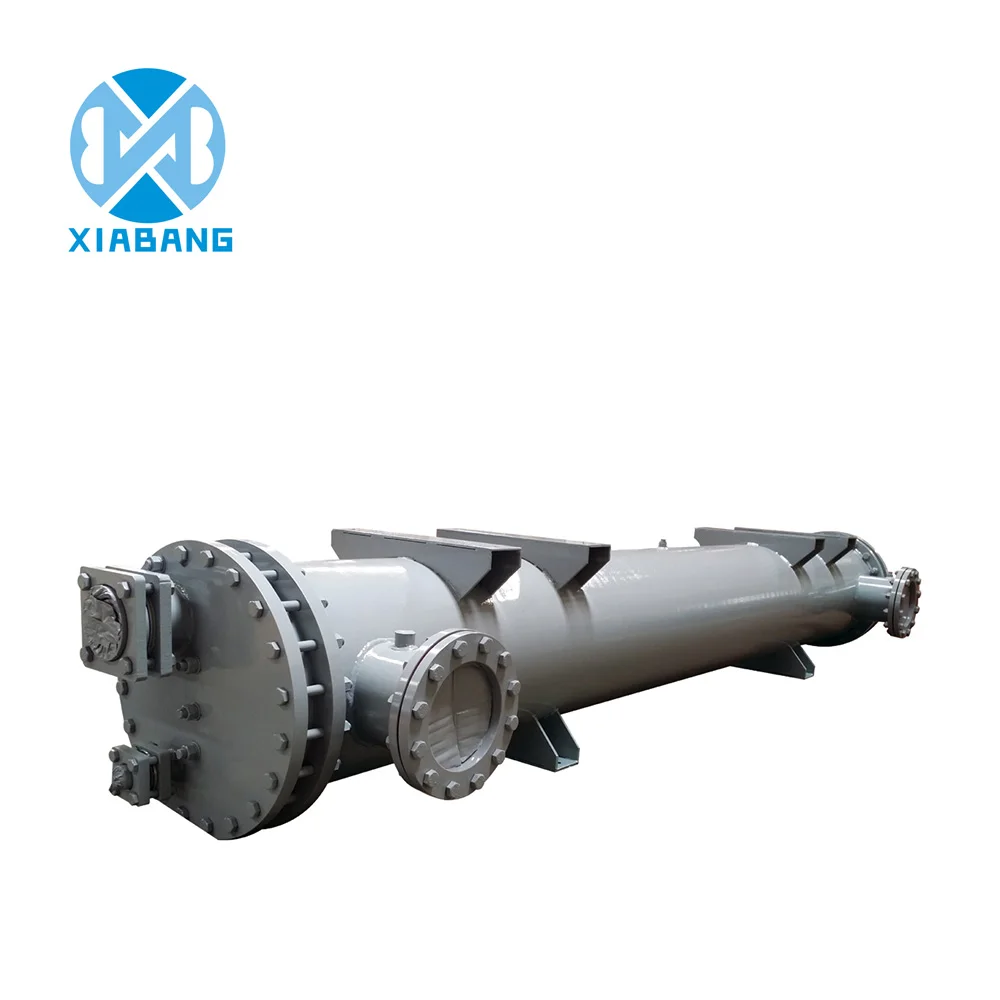

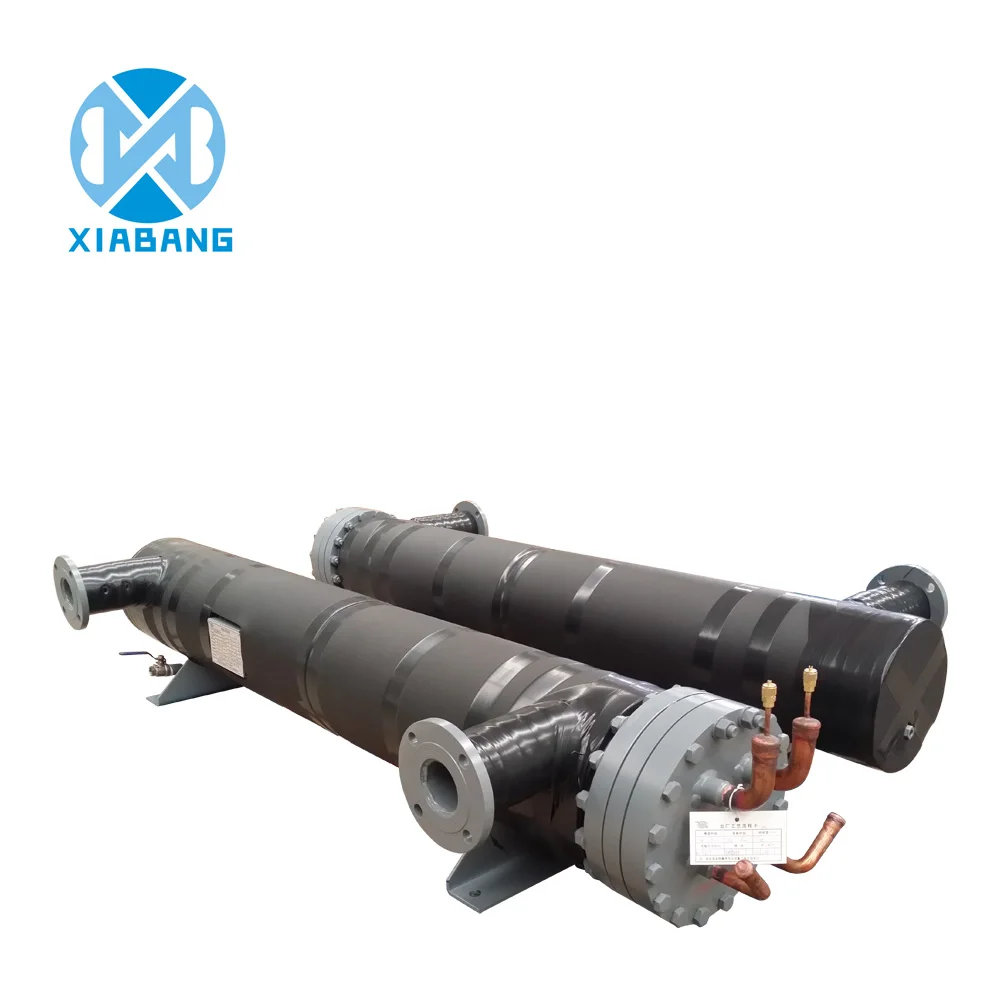

We manufacture the shell and tube tubular heat exchanger applied in many fields ,
such as central air-conditioning , industry cooling, commercial use(shopping malls), ship use,
shower room, aquaculture production and swimming pool etc.
Q1: Can we do our OEM logo?
A1: Yes, we can do OEM logo with your requirements.
Q2: Is sample available?
A2: Yes, but the sample and freight should be at your charge.
Q3: Are you a manufacturer or trading company?
A3: We are manufacturer.
Q4: What is your warranty?
A4: We can assure you 12 months against delivery from our factory.
Remarks: In order to provide a suitable solution and quotation for your application, please just contact our sales directly!
