Product Overview
Description
Automatic Peanut Frying Production Line for Business
Product Description

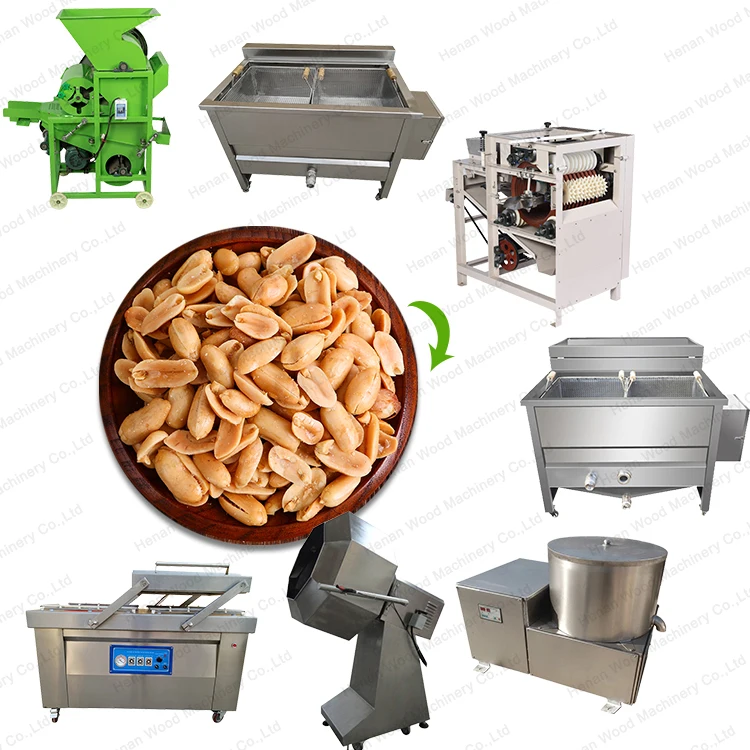

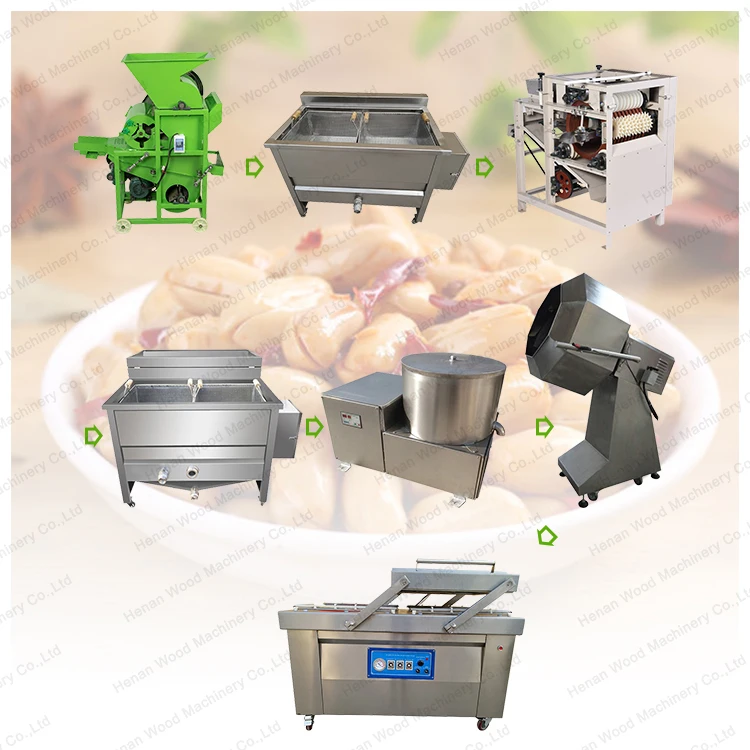

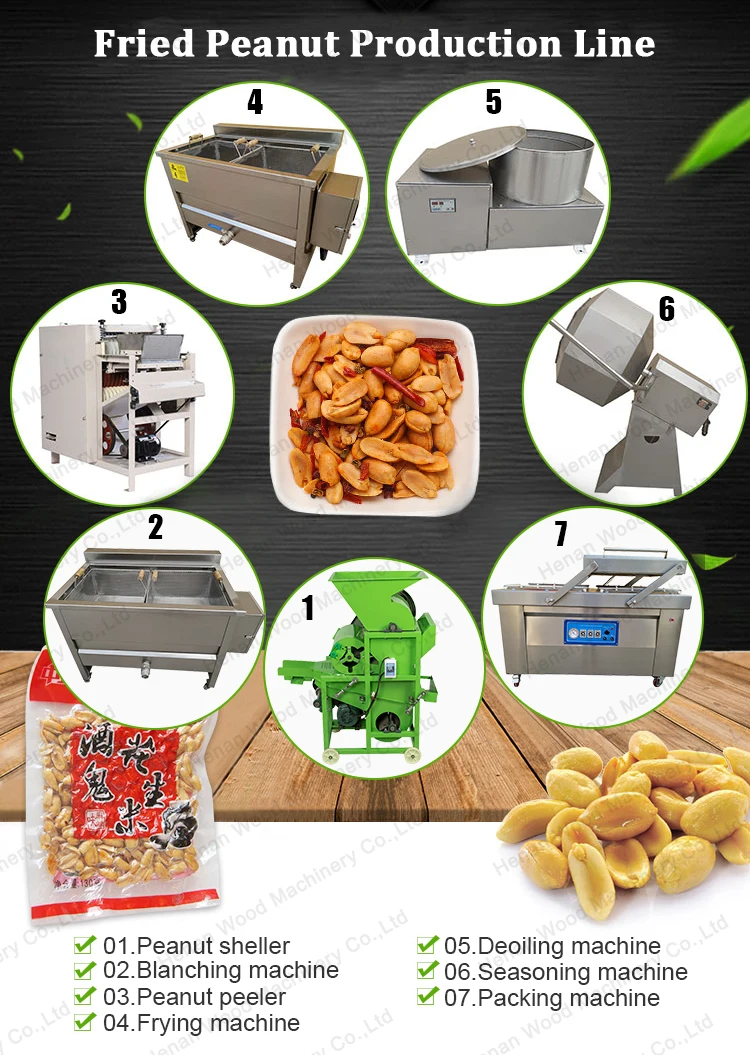

Introduction of Peanut Frying Production Line
Peanut Frying Production Line is the equipment for making peanut snack, we can provide different solutions, equip different production line according to customers’ need. Here, we will introduce 100kg/h peanut frying production line firstly.
Application of Fried Peanut
1.Fried Peanut, as a snack favored by public, is commonly seen in supermarket, restaurant, snack street, farmer’s market.
2.Some businessmen and food factory plant ordered these machines for processing and selling peanuts, that’s a profitable field.

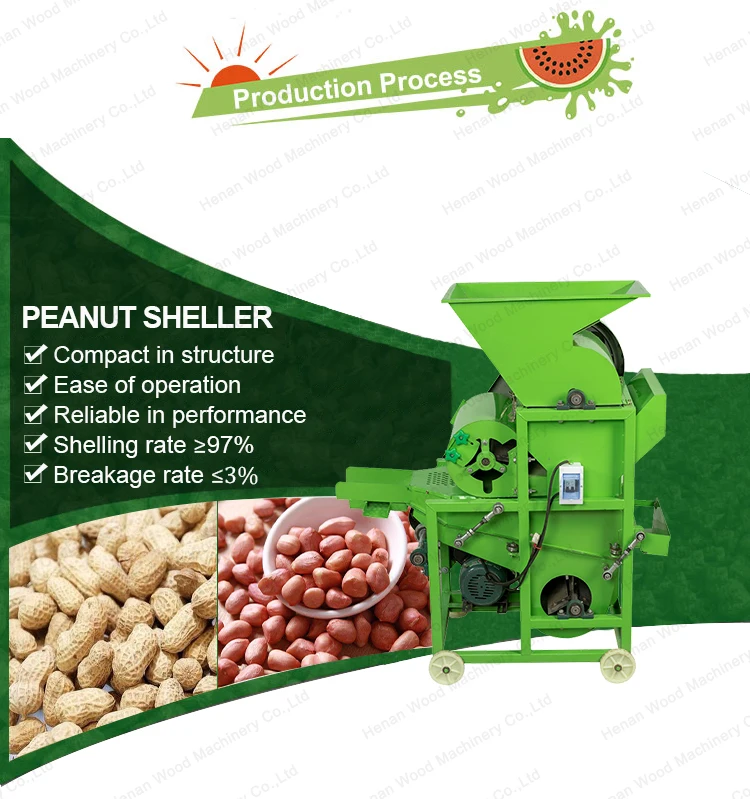

Peanut Sheller
1.Open the motor,put the peanuts into the hopper quantitatively;
2.The peanut shells are broken under the repeated impact, friction and collision of the rotor;
3.The peanut shells and grains are subjected to the blowing force of the rotating fan, and the light-weight peanut shells are blown out of the body, and the peanut grains are screened by the vibrating screen.

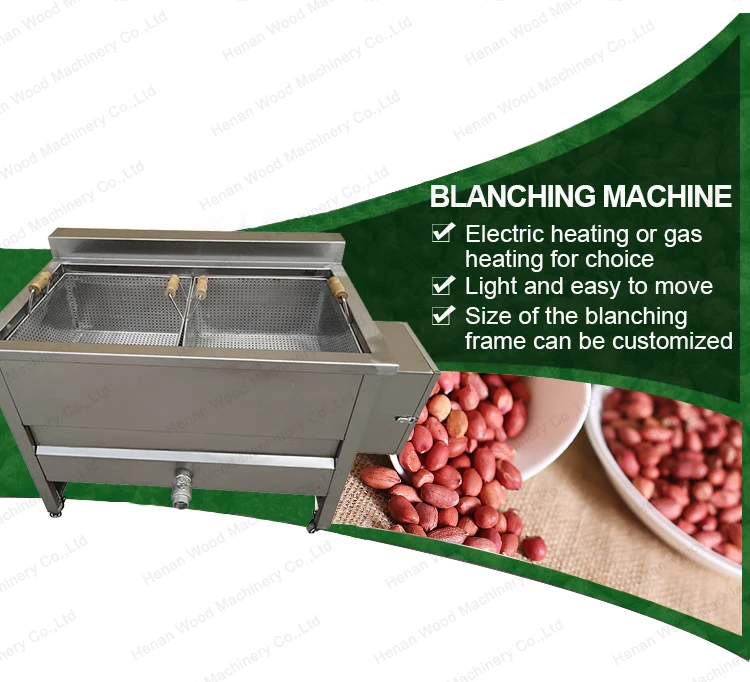

Blanching Machine
1.Pour the water into the blanching machine.
2.When the water is heated to an appropriate temperature(80-90 degree), put the peanuts into the blanching machine.
3.After about 10 minutes, take out the peanuts.

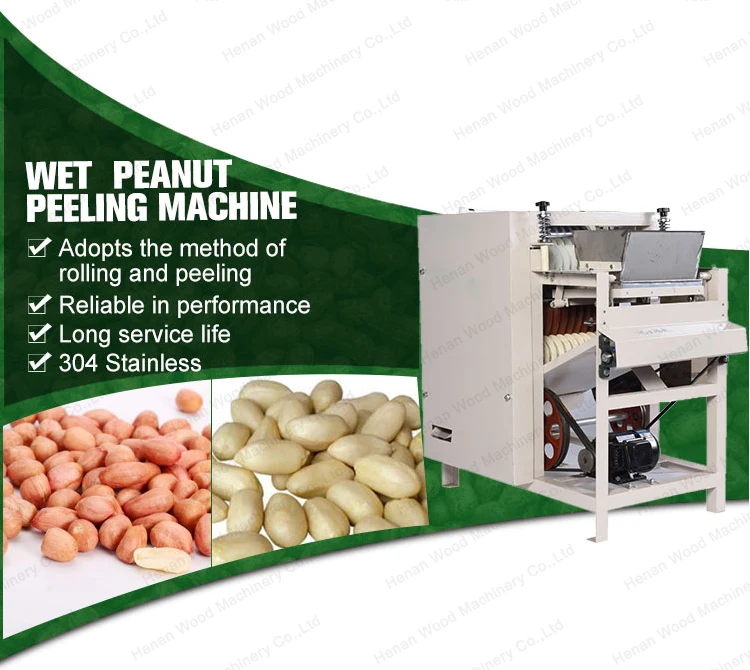

Peanut Peeler
1.Put soaked peanut into feeding funnel of this machine.
2.The rubber will ring rub to peel peanuts easily and gently like human hands.

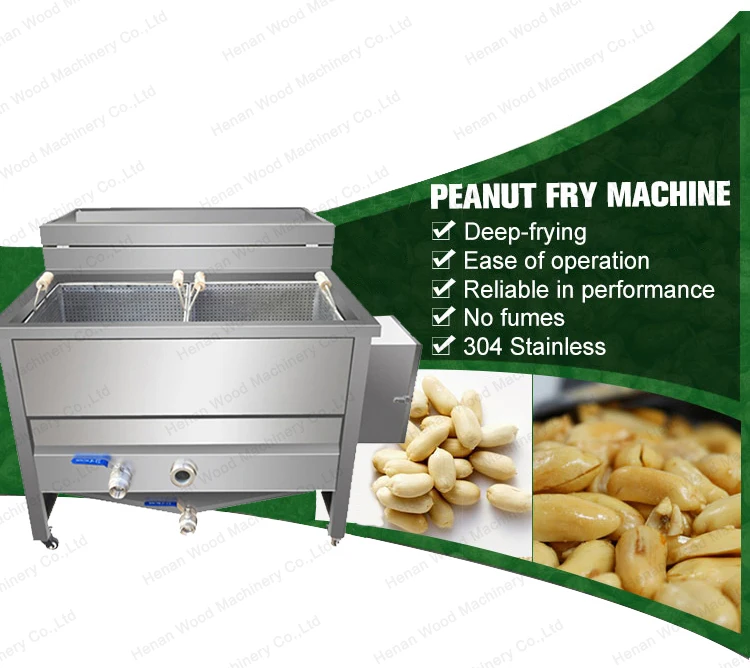

Frying Machine
1.Put the peanut peeled in peanut frying production line
2.Keep the oil temperature between 150-160 degrees.
3.After about 10 minutes, take out the peanuts.

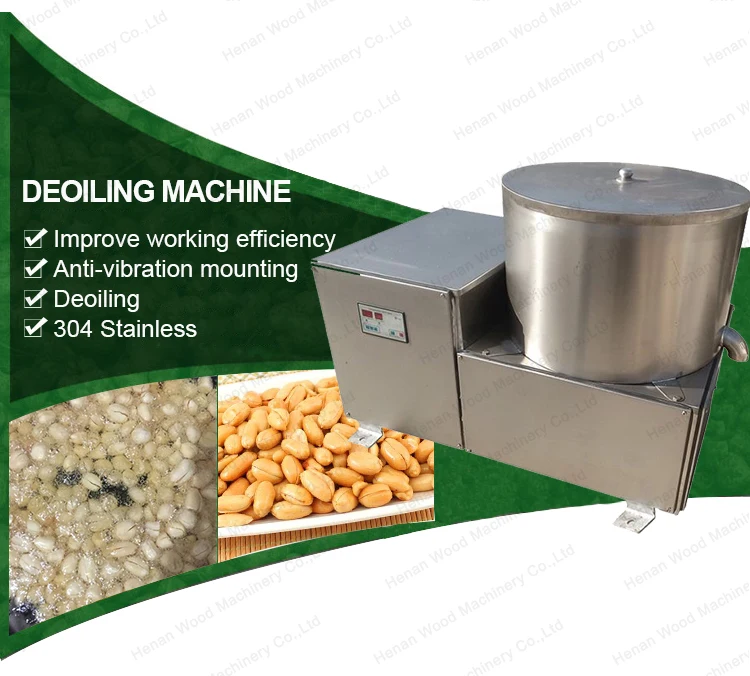

Deoiling Machine
1.The deoiling machine uses the centrifugal motion as its working principle that the motor drives the inner tank to rotate at a high speed.
2.The oil splashes out of the inner liner from the eyes of the inner shell to reach the inner tank to reach the deoiling purpose.

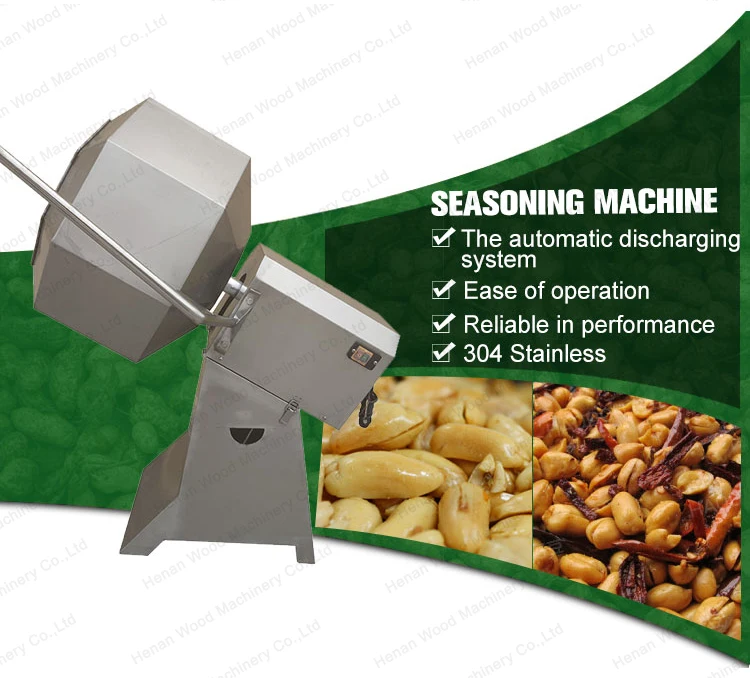

Seasoning Machine
1.After the machine has been running safely for one minute, stop the machine and put in the required raw materials for seasoning.
2.After working for a period of time, the machine should be turned off after the required seasoning materials are evenly mixed and meet the requirements.
3.Push the control lever at the back of the machine to pull the material forward and pull the material out

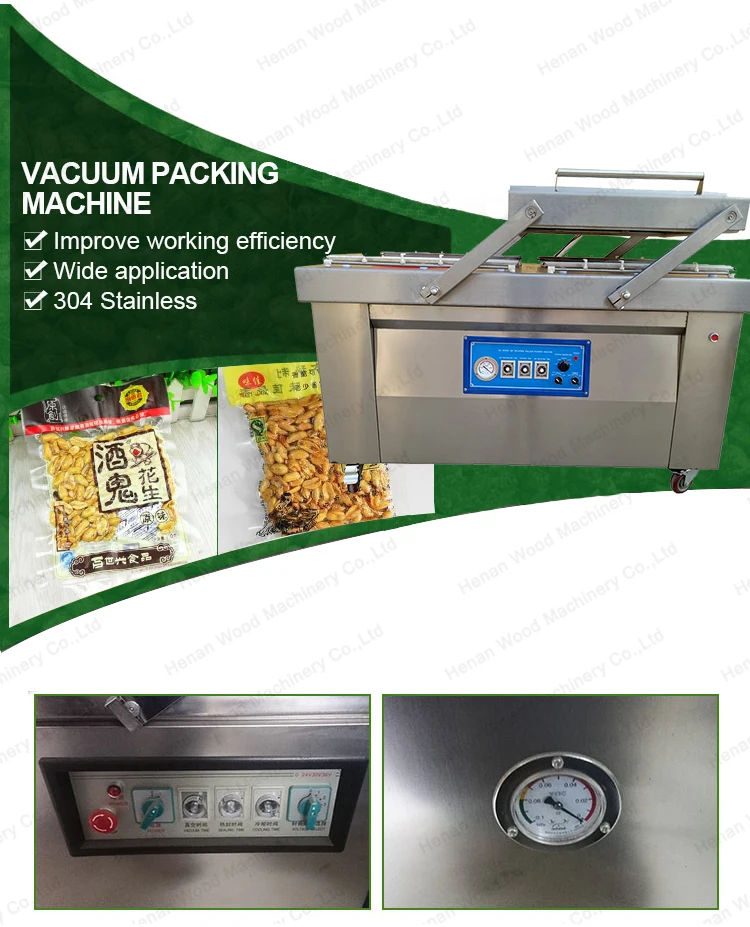

Packing Machine
1.Plug in the power, turn on the power button.
2.Adjust the pumping time, sealing time, cooling time.
3.Pack the items and place at the seal.
4.Press the top cover to operate, the zero return of the vacuum gauge represents the completion of the work.
Technical Parameter of Fried Peanut Production Line
No | Size | Power | Capacity | Weight |
Peanut Sheller | 650*560*1000mm | gasoline engine 170/ motor/diesel engine 6 horsepower | 200kg/h | 40kg |
Blanching Machine | 1200*700*950mm | 24kw | 100kg/h | 100kg |
Peanut Peeler | 1100*700*1100mm | 0.55kw | 120-150 kg/h | 100kg |
Frying Machine | 1200*700*950mm | 24kw | 100kg/h | 100kg |
Deoiling Machine | 1000*500*700mm | 1.1kw | 300kg/h | 360kg |
Seasoning Machine | 1000*800*1300mm | 1.1kw | 300kg/h | 130kg |
Packing Machine | 1425*750*930mm | 380v/50hz/2.2kw | 90-360/h | 350kg |
Market of Peanut Frying Production Line
Peanut Frying Production Line we produced had exported to United States, Nigeria, Argentina, India etc countries.
FAQ
1.How long does the material need to be seasoned?
About 5 minutes.
2.What’s the material of peanut frying machine?
38*38mm Square tube 304 stainless steel,outer plate 1.2mm,6cm heat preservation cotton.
3.What’s the oil consumption of peanut frying machine?
25-30%
4.What’s the heater strip material of blanching machine?
All are high temperature resistance glass material, durable lasting.
5.What’s the advantages of hand shank of blanching machine?
Ergonomics, it will not drop blocks and slag and cause pollution to the product for long time use.
6.Do you provide other capacity of fried peanut and other frying production line?
Yes, we are committed to peanut frying production line with more than 20 years experience, we can provide different solutions according to the capacity and raw materials.

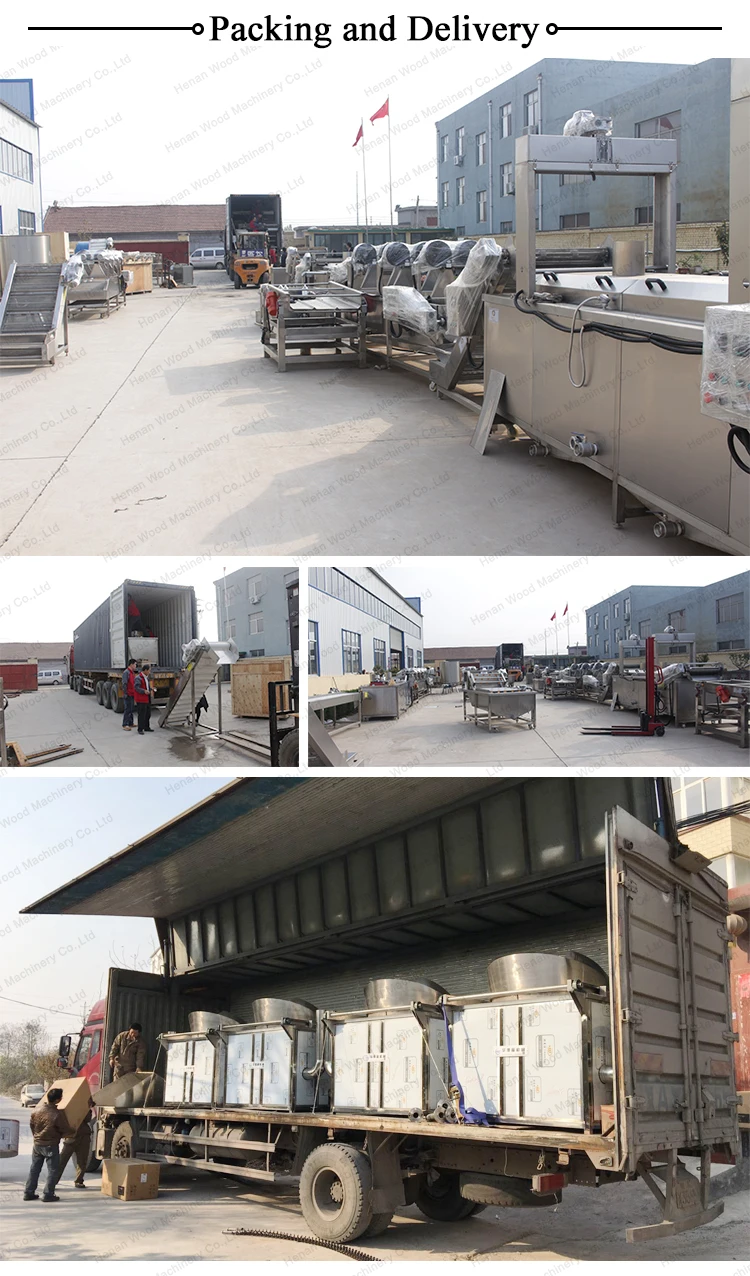

Packaging & Shipping
Company Information
Henan wood machinery specializes in the research and development, manufacturing and sales of food machinery equipment since 2006, and provides customers with comprehensive and high-efficient quality product production solutions. The Wood machinery main product is food processing machine, including peanut frying production line, meat cutting machine, fruit vegetable washing machine etc.Wood has passed SGS, ISO, TUV, CE, BV and other certifications.
