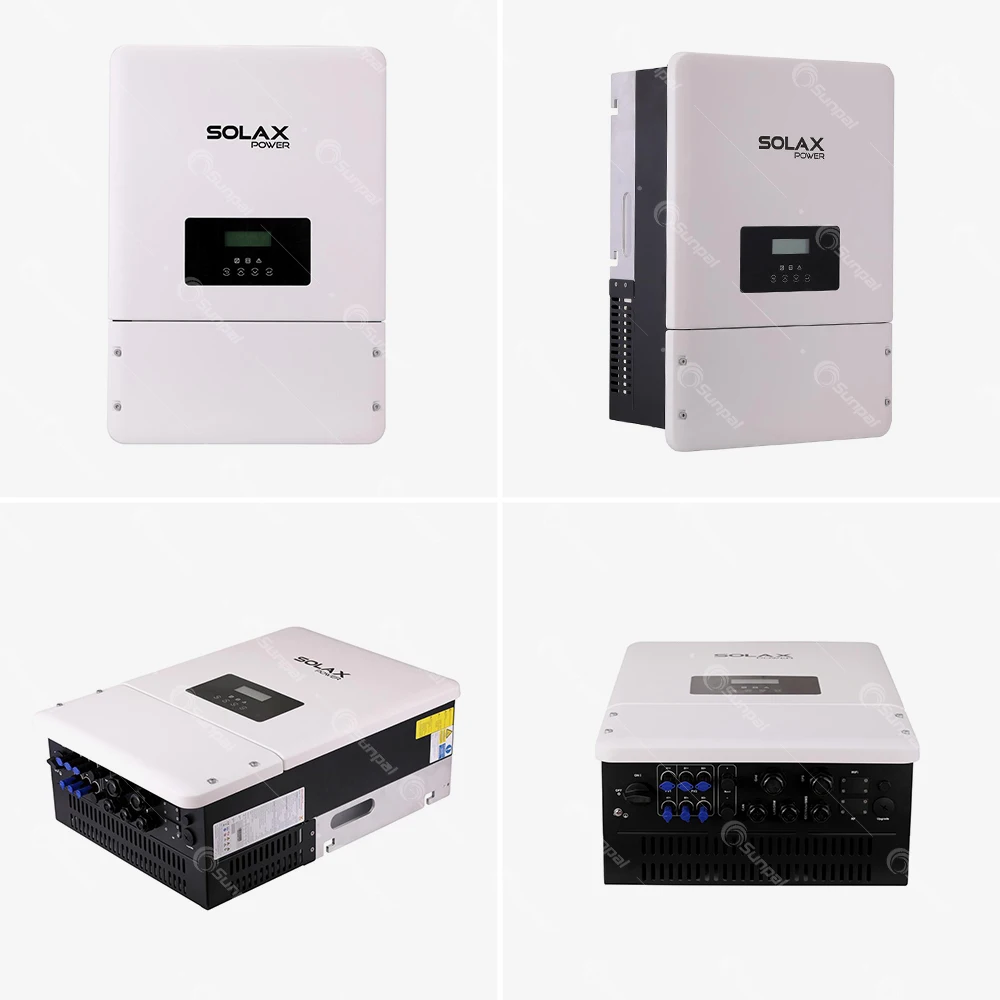

Hot Sale Solax 3Kw 5Kw 6Kw 8Kw 10Kw Hybrid Grid Tied Solar Energy Storage Inverter With Competitive Price
- Category: >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (62593692194):
Product Overview
Description
Product Description

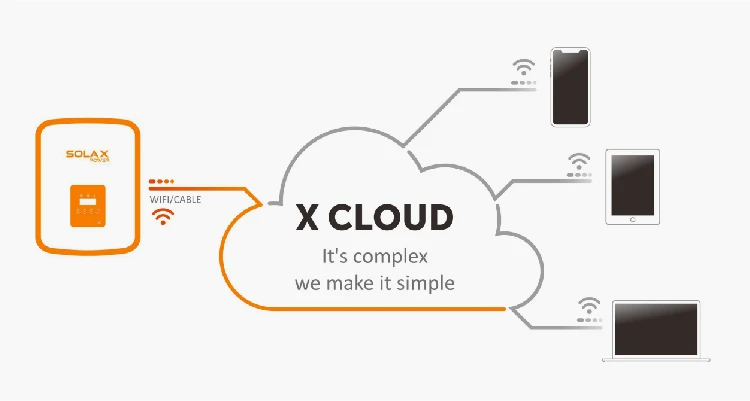

Smart Monitoring System
Technical specifications
X1-HYBRID HV | X1-HYBRID-3.0T | X1-HYBRID-3.7T | X1-HYBRID-4.6T | X1-HYBRID-5.0T | ||||
INPUT (DC) | ||||||||
Max.PV array power [Wp] | 4000 | 5000 | 6000 | 6000 | ||||
Max.DC voltage [V] | 600 | 600 | 600 | 600 | ||||
Nominal DC operating voltage [V] | 360 | 360 | 360 | 360 | ||||
Max. input current (input A/input B) [A] | 10/10 | 10/10 | 10/10 | 10/10 | ||||
Max. short circuit current (input A/input B) [A] | 14/14 | 14/14 | 14/14 | 14/14 | ||||
MPPT voltage range[V] | 125-550 | 125-550 | 125-550 | 125-550 | ||||
Start operating voltage[V] | 150 | 150 | 150 | 150 | ||||
No. of MPP trackers | 2 | 2 | 2 | 2 | ||||
Strings per MPP tracker | 1 | 1 | 1 | 1 | ||||
OUTPUT AC | 20KW | 25KW | 30kW | |||||
Nominal AC power [VA] | 3000 | 3680 | 4600 | 4999 | ||||
Max. AC power [VA] | 3000 | 3680 | 4600 | 4999 | ||||
Nominal grid voltage(AC voltage range) [V] | 220/230/240(180-270) | 220V/230V/240V | ||||||
Nominal grid frequency/range [Hz] | 50/60 | 50Hz,60Hz /±5Hz | ||||||
Nominal AC current [A] | 13 | 16 | 20 | 21.7 | ||||
Max. AC current [A] | 14.4 | 16 | 21 | 21.7 | ||||
Displacement power factor | 0.8 leading ~ 0.8 lagging | Single phase | ||||||
THDi, rated power [%] | <2 | |||||||
OUTPUT DC (BATTERY) | 98.7% | 98.7% | 98.9% | |||||
Battery voltage range [V] | 85-400 | |||||||
Recommended battery voltage[V] | 300 | |||||||
Max.continuous charge/discharge current [A] | 20 | |||||||
Communication interfaces | CAN/RS485 | |||||||
Reverse connect protection | Yes | |||||||
EPS OUTPUT (WITH BATTERY) | ||||||||
EPS MAX. continuous apparent power [VA] | 4000 | 4000 | 5000 | 5000 | ||||
EPS rated voltage[V],Frequency [Hz] | 230, 50/60 | |||||||
EPS MAX.continuous current [A] | 21.7 | 21.7 | 26.0 | 26.0 | ||||
EPS peak apparent power [VA] Duration [s] | 6000 10 | 6000 10 | 8000 10 | 8000 10 | ||||
Changeover time [ms] | <500 | |||||||
THDv, linear Load [%] | <2 | Yes | ||||||
EFFICIENCY | Yes | Yes | Yes | |||||
MPPT efficiency [%] | 99.9 | TypeII | TypeII | TypeII | ||||
Euro efficiency [%] | 97.0 | Yes | Yes | Yes | ||||
Max. efficiency [%] | 97.8 | Yes | Yes | Yes | ||||
Battery charge/discharge efficiency [%] | 98.5 (PV-BAT) 97.0 (BAT-AC) | TypeII | TypeII | TypeII | ||||
POWER CONSUMPTION | YES | Yes | Yes | Yes | ||||
Standby consumption (Night) [W] | <3 | Yes | Yes | Yes | ||||
STANDARD | YES | Yes | Yes | Yes | ||||
Safety | IEC62109-1/-2 | |||||||
EMC | EN61000-6-1/EN61000-6-2/EN61000-6-3 | 271/299/141 | ||||||
Certifification | VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 /G99 /G98 / AS4777 / EN50549/ CEI 0-21 /VDE 2510 / and so on | 6.4KG | ||||||
ENVIRONMENT LIMIT | ≤25 dB(A) | |||||||
Degree of protection(according to IEC60529) | IP65 | <0.5 W | ||||||
Operating temperature range [℃] | -25~+60(derating at 45) | Transformerless | ||||||
Max. operation altitude [m] | 2000 | Natural | ||||||
Humidity [%] | 4~100 (Condensing) | IP65 | ||||||
Storage temperature [℃] | -25~+60 | |||||||
Typical noise emission [dB] | 40 | |||||||
DIMENSION AND WEIGHT | ||||||||
Dimensions(WxHxD) [mm] | 476*464*180 | |||||||
Weight[kg] | 24 | |||||||
Cooling concept | Natural | |||||||
Topology | Non-isolated | |||||||
Communication interfaces | Ethernet/Meter/Pocket WiFi(optional)/Pocket LAN(optional)/Pocket GPRS(optional)/DRM/USB/ISO alarm/CT | |||||||
LCD display | Backlight 20*4 character | |||||||
Standard warranty [years] | 5-10 | |||||||
Technical specifications
X3-HYBRID HV | X3-HYBRID-5.0T | X3-HYBRID-6.0T | X3-HYBRID-8.0T | X3-HYBRID-10.0T | ||||
INPUT (DC) | ||||||||
Max.PV array power [Wp] | 6000 | 8000 | 10000 | 13000 | ||||
Max.DC voltage [V] | 1000 | 1000 | 1000 | 1000 | ||||
Nominal DC operating voltage [V] | 720 | 720 | 720 | 720 | ||||
Max. input current (input A/input B) [A] | 11/11 | 11/11 | 20/11 | 20/11 | ||||
Max. short circuit current (input A/input B) [A] | 14/14 | 14/14 | 23/14 | 23/14 | ||||
MPPT voltage range[V] | 180-950 | 180-950 | 180-950 | 180-950 | ||||
Start operating voltage[V] | 180 | 180 | 180 | 180 | ||||
No. of MPP trackers | 2 | 2 | 2 | 2 | ||||
Strings per MPP tracker | 1 | 1 | 1 | 1 | ||||
OUTPUT AC | 20KW | 25KW | 30kW | |||||
Nominal AC power [VA] | 5000 | 6000 | 8000 | 10000 | ||||
Max. AC power [VA] | 5000 | 6000 | 8000 | 10000 | ||||
Nominal grid voltage(AC voltage range) [V] | 400/230;380/220 | 220V/230V/240V | ||||||
Nominal grid frequency/range [Hz] | 50/60 | 50Hz,60Hz /±5Hz | ||||||
Nominal AC current [A] | 7.2 | 8.7 | 11.6 | 14.5 | ||||
Max. AC current [A] | 8.0 | 9.6 | 12.8 | 16.0 | ||||
Displacement power factor | 0.8 leading ~ 0.8 lagging | Single phase | ||||||
THDi, rated power [%] | <3 | |||||||
OUTPUT DC (BATTERY) | 98.7% | 98.7% | 98.9% | |||||
Battery voltage range [V] | 160-800 | |||||||
Recommended battery voltage[V] | 25 | |||||||
Communication interfaces | CAN/RS485 | |||||||
Reverse connect protection | Yes | |||||||
EPS OUTPUT (WITH BATTERY) | ||||||||
EPS MAX. continuous apparent power [VA] | 5000 | 6000 | 8000 | 10000 | ||||
EPS rated voltage[V],Frequency [Hz] | 400/230VAC;380/220VAC; 50/60 | |||||||
EPS MAX.continuous current [A] | 7.2 | 8.7 | 11.6 | 14.5 | ||||
EPS peak apparent power [VA] Duration [s] | <10000 60 | <12000 60 | <14000 60 | <15000 60 | ||||
Changeover time [ms] | <1.5 | |||||||
THDv, linear Load [%] | <2 | Yes | ||||||
EFFICIENCY | Yes | Yes | Yes | |||||
MPPT efficiency [%] | 99.9 | TypeII | TypeII | TypeII | ||||
Euro efficiency [%] | 97.0 | Yes | Yes | Yes | ||||
Max. efficiency [%] | 97.8 | Yes | Yes | Yes | ||||
Battery charge/discharge efficiency [%] | 97.0/96.0 | 97.0/96.0 | 97.5/96.5 | 97.5/96.5 | ||||
POWER CONSUMPTION | ||||||||
Standby consumption (Night) [W] | 50 in standby mode, 10 in idle mode | Yes | Yes | Yes | ||||
STANDARD | YES | Yes | Yes | Yes | ||||
Safety | IEC62109-1/-2 | |||||||
EMC | EN61000-6-1/EN61000-6-2/EN61000-6-3 | 271/299/141 | ||||||
Certifification | VDE 0126-1-1 A1:2012 / VDE-AR-N 4105 / G98 / AS4777 / EN50549 / CEI 0-21 / and so on | 6.4KG | ||||||
ENVIRONMENT LIMIT | ≤25 dB(A) | |||||||
Degree of protection(according to IEC60529) | IP65 | <0.5 W | ||||||
Operating temperature range [℃] | -25~+60(derating at 45) | Transformerless | ||||||
Max. operation altitude [m] | 2000 | Natural | ||||||
Humidity [%] | 0-100 (non-condersing) | IP65 | ||||||
Storage temperature [℃] | -25~+60 | |||||||
Typical noise emission [dB] | 40 | |||||||
DIMENSION AND WEIGHT | ||||||||
Dimensions(WxHxD) [mm] | 457*654*228 | |||||||
Weight[kg] | 45 | |||||||
Cooling concept | Natural | |||||||
Topology | Non-isolated | |||||||
Communication interfaces | Ethernet/Meter/Pocket WiFi(optional)/Pocket LAN(optional)/Pocket GPRS(optional)/DRM/USB/ISO alarm/CAN/BMS/NTC | |||||||
LCD display | Backlight 20*4 character | |||||||
Standard warranty [years] | 5-10 | |||||||
Our Factory

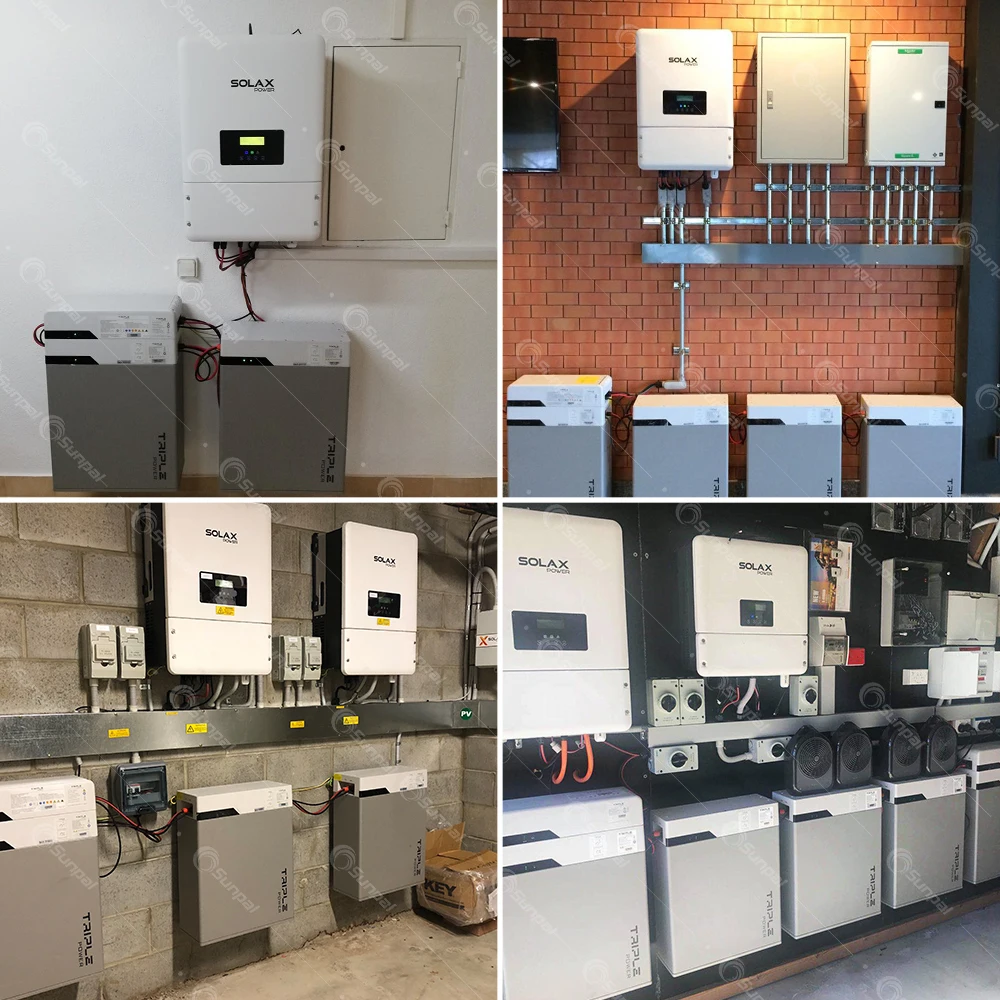

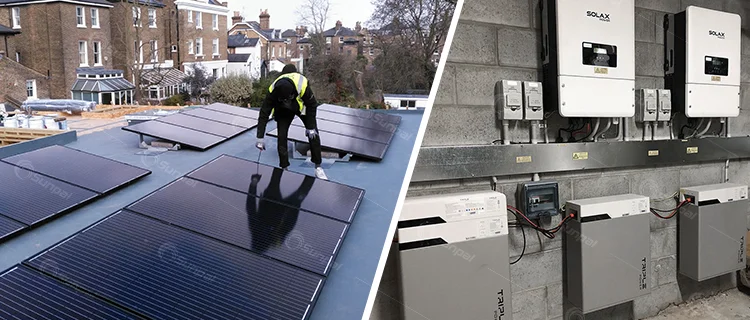

Our Projects
