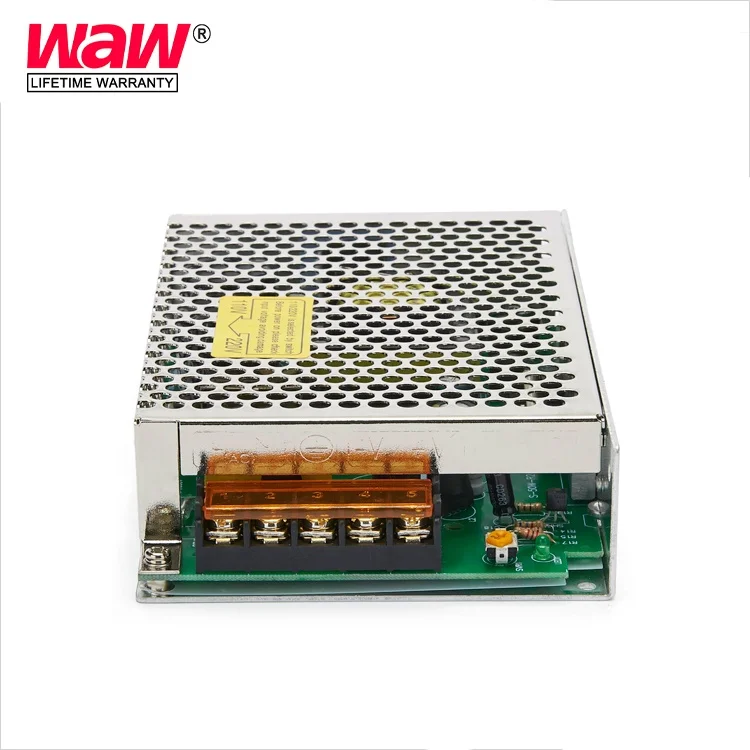

24v 3a 75w short circuit protection transformer power supply strip adaptor
- Category: >>>
- Supplier: Yueqing Wode Electrical Co. Ltd.
Share on (62593996857):
Product Overview
Description
Product Description
24v 3a 75w short circuit protection transformer power supply strip adaptor
Features
1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.LIFETIME WARRANTY
Specifications
| MODEL | S-75-5 | S-75-12 | S-75-24 | S-75-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 24V | 48V |
| RATED CURRENT | 12A | 6A | 3A | 1.6A | |
| CURRENT RANGE | 0 ~ 12A | 0 ~ 6A | 0 ~ 3A | 0 ~ 1.6A | |
| RATED POWER | 60W | 72W | 72W | 72W | |
| RIPPLE & NOISE (max.) | 70mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | +10,-5% | ±10% | ±10% | ±10% | |
| VOLTAGE TOLERANCE | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 200ms,100ms,30ms at full load | ||||
| HOLD TIME | 100ms/230VAC 20ms/115VAC at full load | ||||
| INPUT | VOLTAGE RANGE | 85~264VAC or 240~370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 77% | 80% | 84% | 85% | |
| AC CURRENT | 2A/115VAC 1A/230VAC | ||||
| INRUSH CURRENT (max.) | COLD START 18A/115V 36A/230V | ||||
| LEAKAGE CURRENT | <3.5mA/240VAC | ||||
| PROTECTION | OVERLOAD | Above 105%~150% rated output power | |||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75~6.75V | 13.8~16.2V | 27.6~32.4V | 52.2~64.81V | |
| Protection type :Shut off | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +60°C | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -30 ~ +85°C, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/ (0 ~ 40°C) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min | ||||
| SAFETY & EMC | SAFETY STANDARDS | Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC | ||||
| EMC EMISSION & IMMUNITY | EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved | ||||
| OTHERS | MTBF | 500K hrs min | |||
| DIMENSION | 159×97×38mm (L*W*H) 0.49kg | ||||
