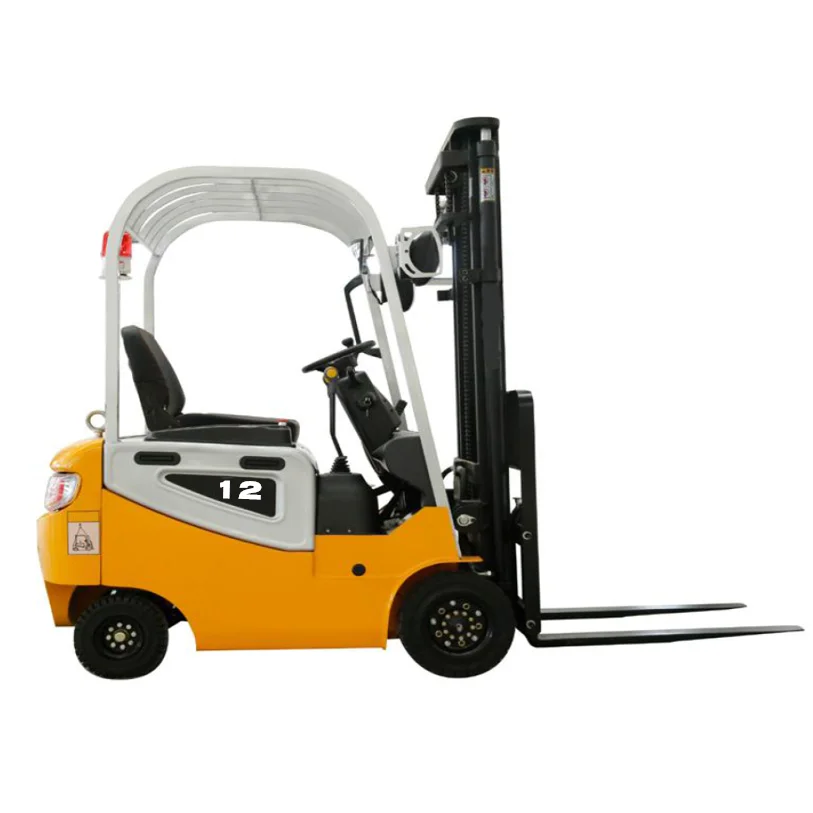

Mini Forklift 1ton 1.2ton Mini 4 wheel Electric Forklift 2020 hot sale forklift truck price

Product Overview

Description







Model		FB12E	FB15E	FB20E	FB30E
Rated capacity	kg	1200kg	1500	2000	3000
Load center distance	mm	500	500	500	500
Tyre type		Solid tyre	soild tyre	soild tyre	Pnuematic Tires
Tilt of the mast,front/rear	°	5/10	5/10	5/10	5/10
Fork size(LxWxT)	mm	920*100*30	920*100*35	920*100*35	1070*122*45
Truck body length *With* Height (fork excluded)	mm	1722*1020*2027	2063*1096*2030	2063*1096*2030	2547*1225*2057
Service mass(with battery)	kg	1820	2430	2710	4630
Turning radius	mm	1800	2070	2070	2300
Width of aisle right-angle stacking(pallet1000x1000mm clearance 200mm)	mm	3300	3655	3655	4170
Width of aisle right-angle stacking(pallet1200x1200mm clearance 200mm)	mm	3500	3855	3855	4390
Travel speed,laden/unladen	km/h	11/12	12/13	12/13	12/13
Lifting speed,laden/unladen	mm/s	230/350	300/450	300/450	300/450
Maximum negoniable gradient,laden/unladen	%	15/17	15/20	15/20	15/20
Service mass(with battery)	kg	1820	2430	2710	4630
Drive motor	kW	5.5 Permanent magnet	6.5 Permanent magnet	7.5 Permanent magnet	11 Permanent magnet
Lift motor	kW	5 Permanent magnet	6 Permanent magnet	10.6 Permanent magnet	12 Permanent magnet
Battery voltage /nominal capacity	V/Ah	48V/120Ah	48V/240Ah	48V/300AH,420AH,500AH	80V/500AH/300AH/350AH/400AH


Q1: How long is the Warranty for EVERLIFT product?
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.

Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.

Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.

Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.

Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases, 50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.

Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
