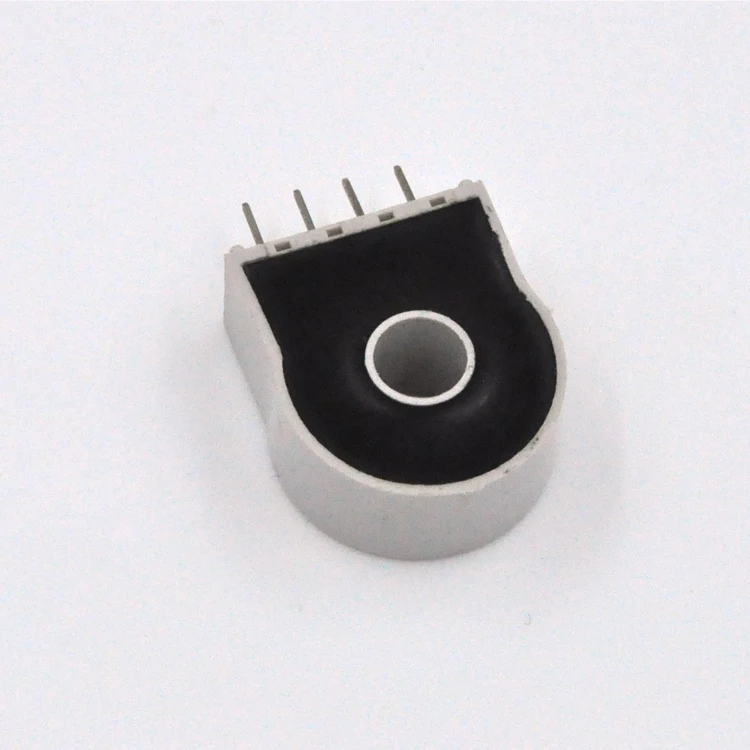

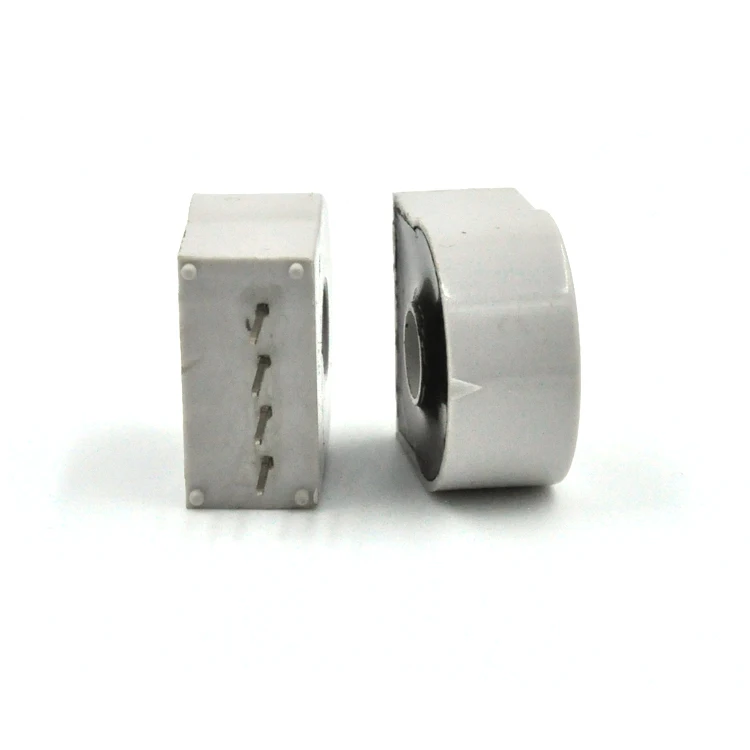

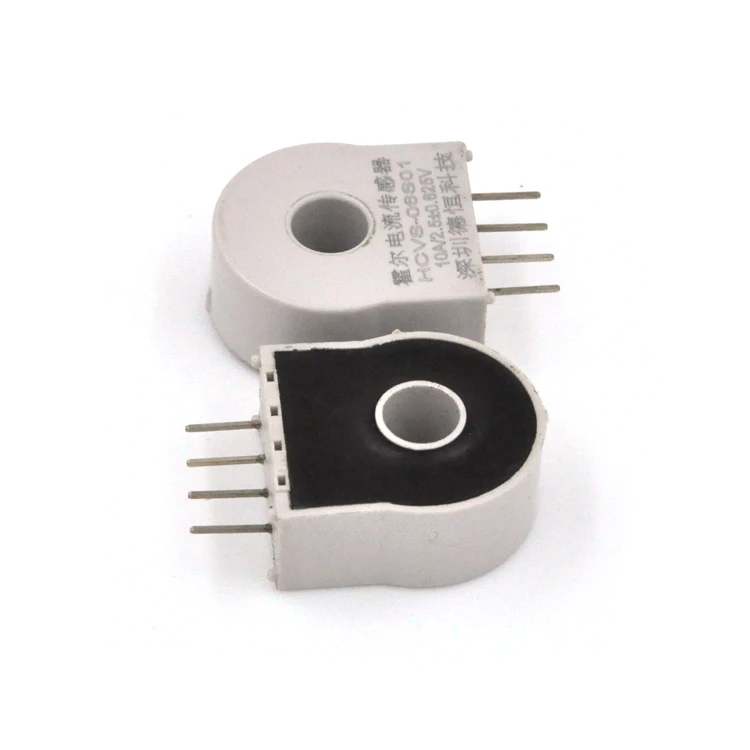

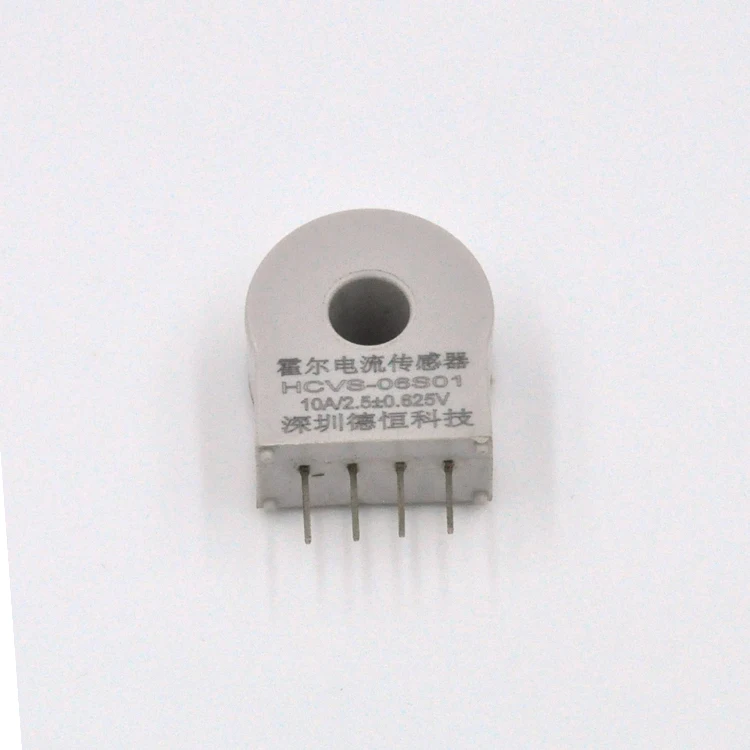

10A/2.5V hall current sensor with pcb install

 HOVS-06S Series Hall Current Sensor (single supply)

Introductions:

These are newly developed open loop hall current sensor series which can be used for detecting of DC,AC,  high frequency, pulse as well as various of irregular wave of current signals.

Primary and secondary isolation, pressure and safety.

Applied to a dual power supply system,power supply and output voltage support customized.

Features:

Compact and light

PCB install

Flame retardant (UL94- V0).

Environmental protection( EU RoHS)

Advantages:

High  precision and good linearity.

Low offset and gain drift.

Low insert loss, Good overload capacity.

Wide band frequency, quick response.

Application:

Communication base station equipment

New energy equipment

Welding machine power supply

Communication power

Switching power,

Medical equipment

Instrumentation,

Rail transit

Industrial measurement

Power control

Inverter

Instructions for use:

 1. Connect the current according to the calibration direction of the circuit diagram, pay attention to the direction of current.

 2. Connect the wire according to the function pin definition of the calibration in the structure diagram.

Specification:

   we are professional manufacturer of sensor including current transformer, hall sensor, fluxgate sensor, rogowski coil sensor, EV charging equipment as so on, Also we can provide customized service for you.
