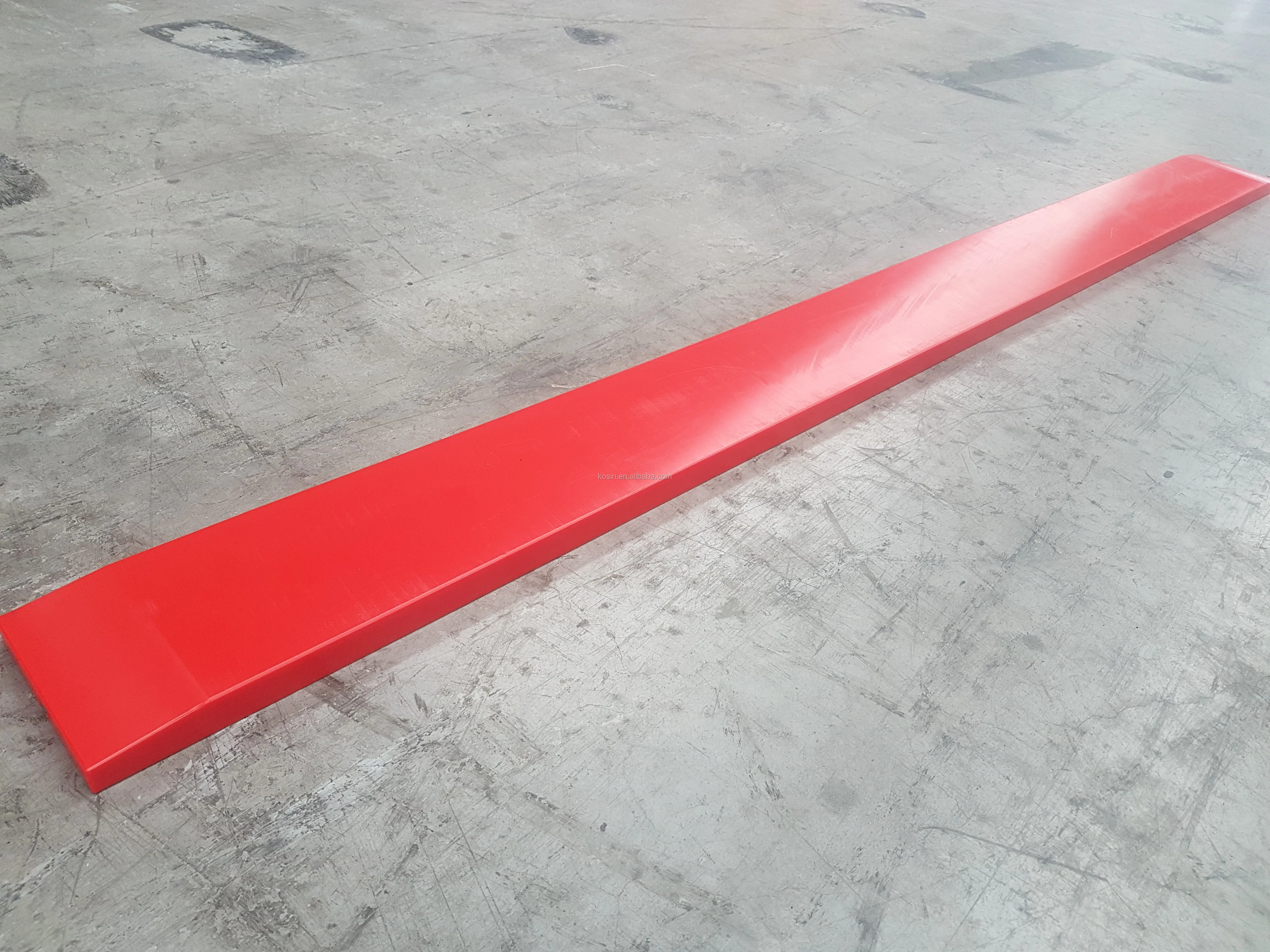

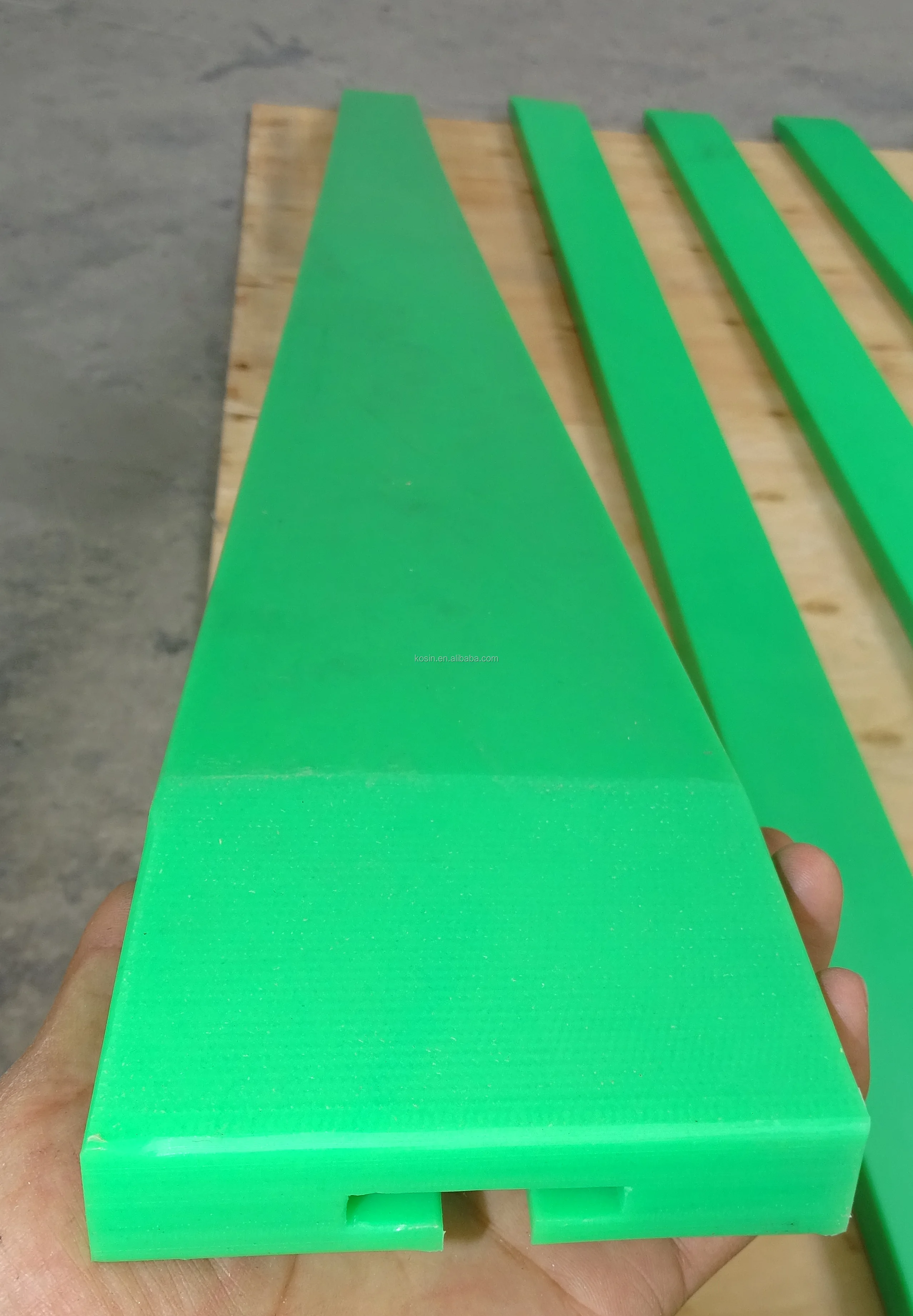

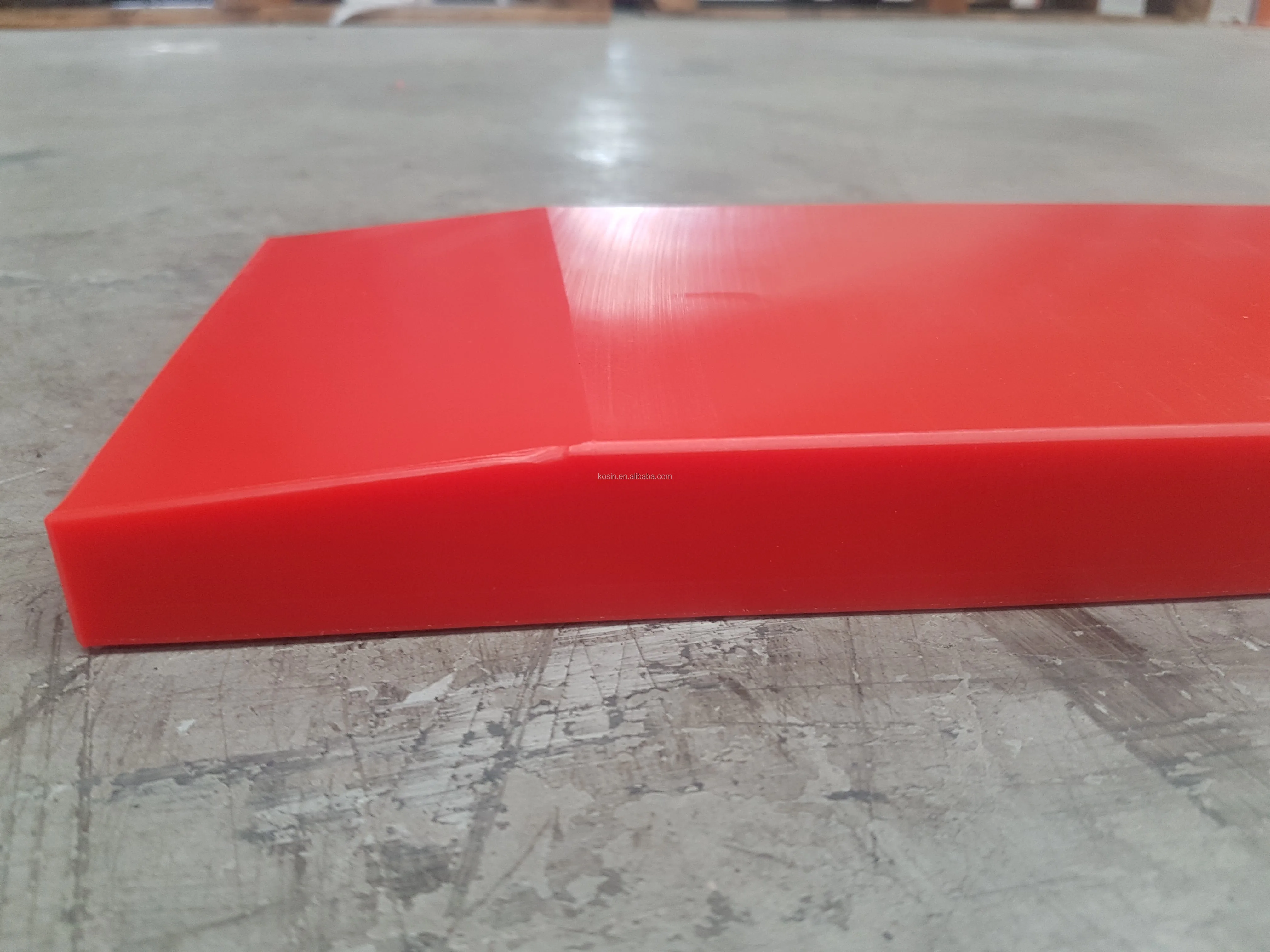

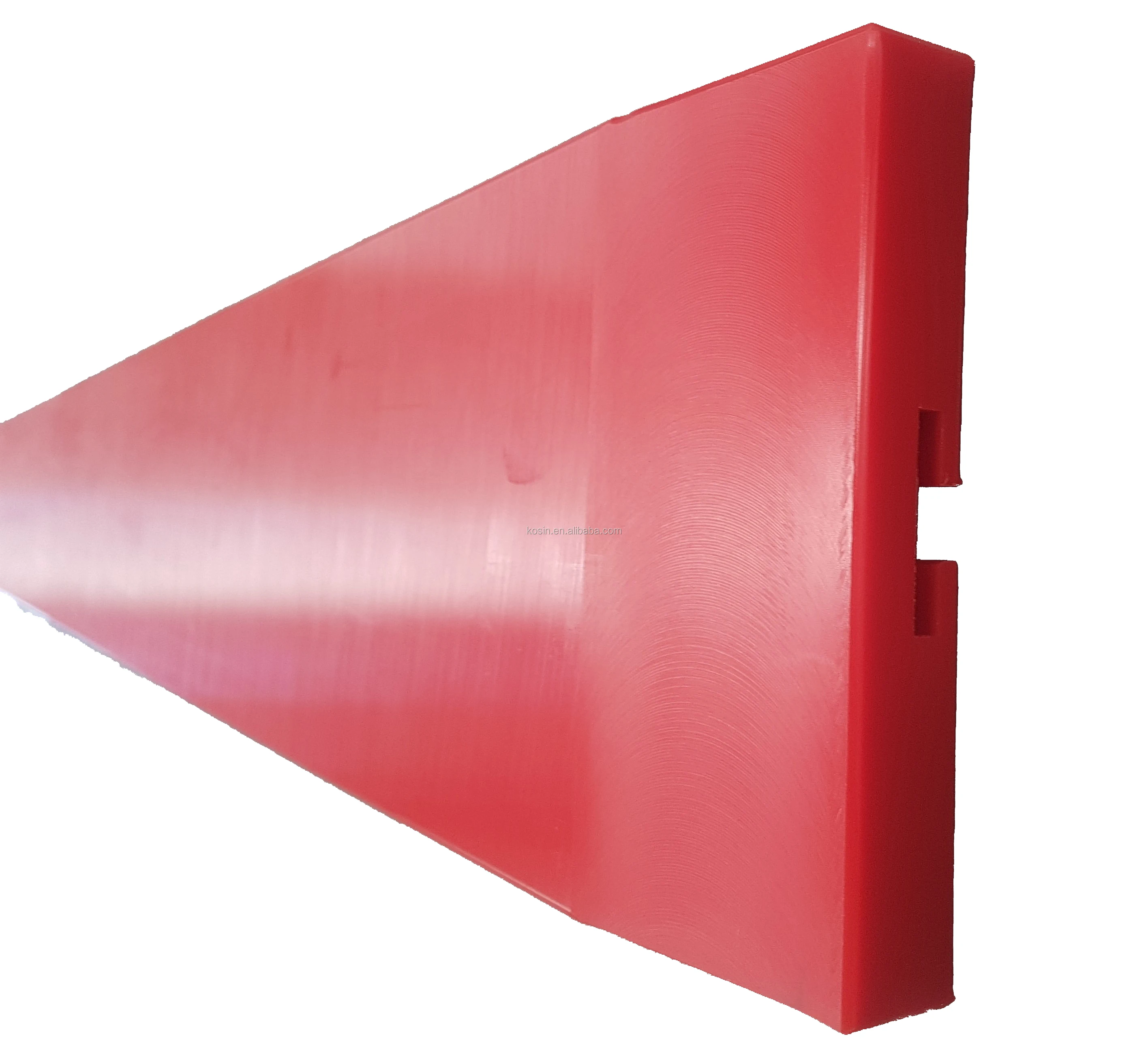

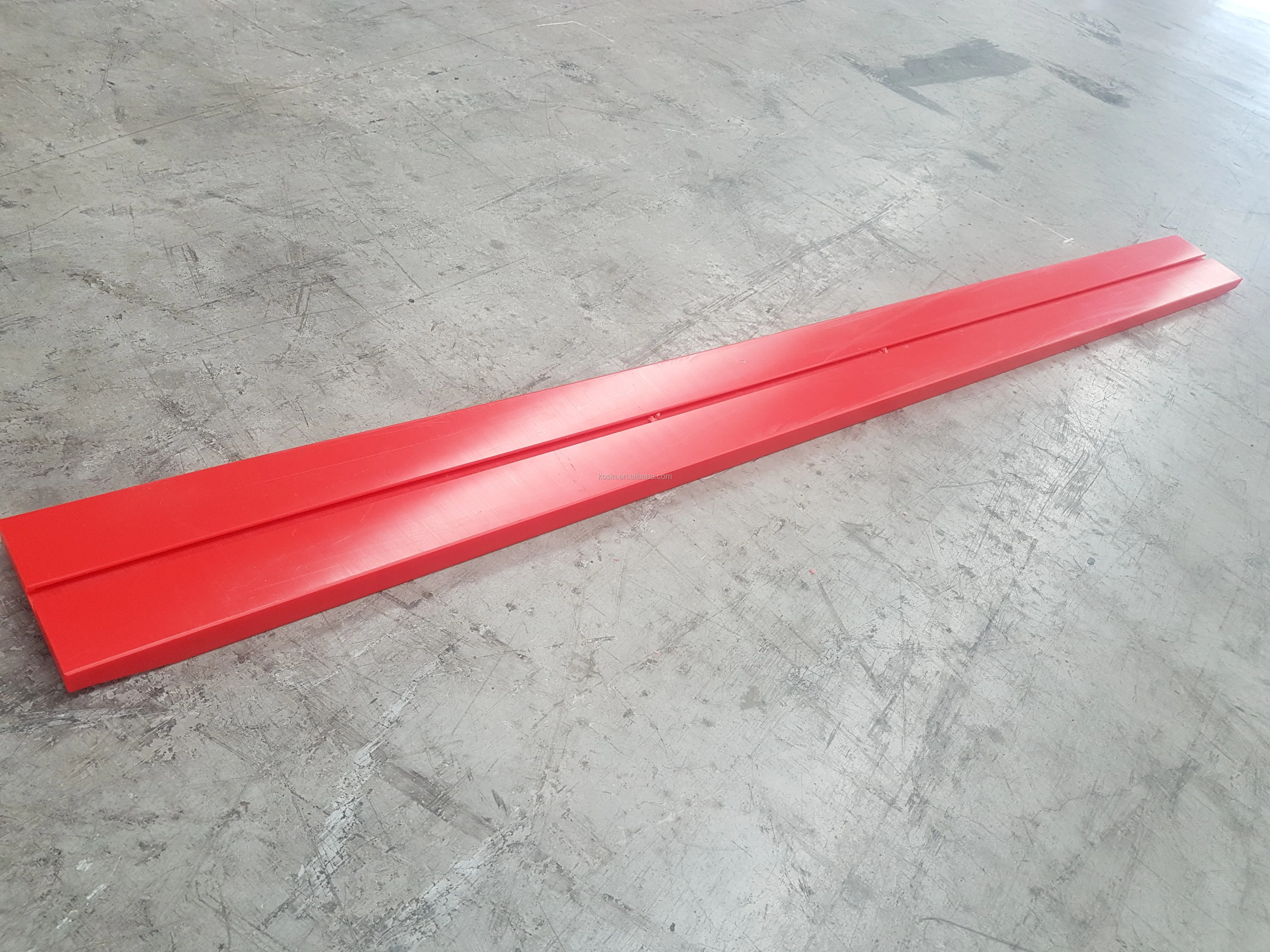

UHMWPE Polyethylene Wear Strip Slider Rail for Conveyors Belt Support System

Belt sag is usually causes when there are too few idlers installed at the loading point. Belt Support System corrects this by
utilising the existing conveyor idler frames and load carrying the centre conveyor roller. The wing rollers are then placed by
Belt Support System’s universal adaptor brackets and low friction polymer belt support rails.
The System requires no pre-engineering, adjustments or special tools. The outcome is successfully controlled spillage and
contained dust leakage.
Features:
* Limits belt damage
* Controls spillage
* Reduces dust leakage
* Fits into existing idler frames
* Easy to install

Available sizes:
* 30 x 100 x 2000mm Type 1 Support with T-Bolt
* 30 x 150 x 2000mm Type 2 Support with T-Bolt

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
