Hot Sale China Rotary 360 Omnibearing Grinding Milling Making Glass Powder Planetary Ball Mill Machine

Product Overview

Description

Production Style Hot Sale China Rotary 360 Omnibearing Grinding Milling Making Glass Powder Cost Of Planetary Ball Mill

Brand Name	MITR
Model	360 degree rotating omnidirectional planetary ball mill- MITR-QMQX-2L

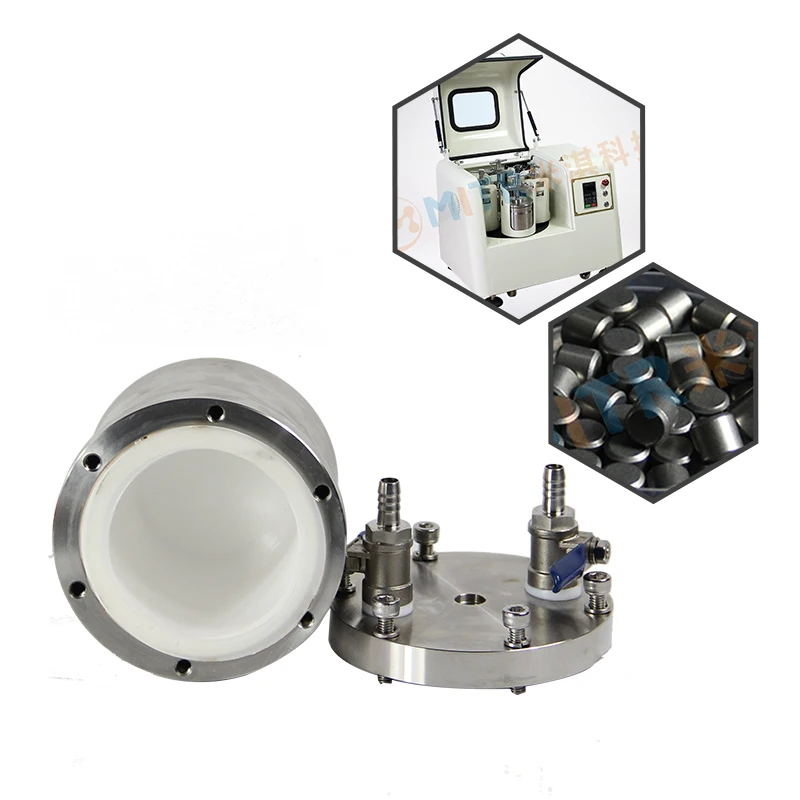

Single Jar Grinding and Total Volume	500ml*4=2L(Vacuum jar selection 500ml)
General grinding jar material selection	Metal material selection:304 stainless steel,Tungsten carbide(YG8)
	Nonmetal material selection:ceramic / corundum / alumina, zirconia, agate
	high polymer material selection: Nylon, polyurethane, polytetrafluoroethylene(PTFE)

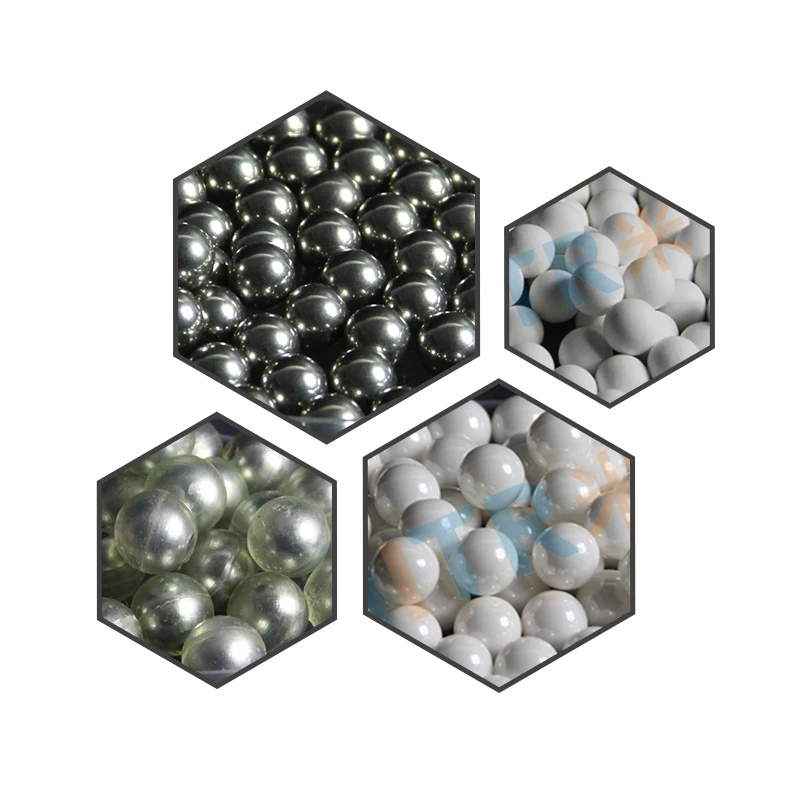

General grinding ball material selection	Stainless steel,ceramic,corundum,alumina,zirconia,agate, tungsten carbide
Maximum loading per jar	Raw material and grinding ball less than 2/3 of grinding jar
Initial size	Friable material less than 10mm,others less than 3mm
Final size	Minimum up to 0.1μm
Grinding Method	Dry grinding / wet grinding / high energy alloying grinding / vacuum grinding(need customized) / low temperature grinding(need customized)
Planetary speed (variable frequency adjustable)	Max Revolution 0-400r/min,Rotation 0-800r/min
	Planetary total speed:0-3200r/min
360 degree speed(variable frequency adjustable)	1-14/min
speed ratio(revolution:rotation)	1:2
Adjusting speed control method	PLC Frequency conversion control system,Touch screen control system
Driving style	Gear drive
Voltage	220V
Power	0.55Kw
Working method	Two or four cans working at the same time
Maximum continue working time	72h(Timing 0-9999h)
Programmed control	The ball grinding used for high-tech micro computer chip control.It can run alternately for positive turn and reverse turn(0-999min), and run alternately for positive turn and pause,reverse and pause,and than positive run. It is especially suitable for cooling or intermittent operation.
Weight	200kg
Dimension	85*85*85CM

Production Style Shqm Hot Salechina Rotary Qfw Cheap Price Milling Ppt Making Glass Powder Portabal Cost Of Planetary Ball Mill

 Feature of MITR oil seal mute planetary ball mill:

* Factory direct selling and certified products.---High cost performance and quality assurance.

* Our machine running noise low 50db. Prolonging gear life.---Planetary ball mill

* Arc sleeve and safety lock ball mill jar device.---Planetary ball mill

* PLC frequency conversion control

* Acrylic transparent glove box with vacuum to -0.1Mpa.

* Stainless steel glove box with vacuum to -0.1Mpa

*Our product widely used in the field of biochemistry, metallurgy, electronics, chemical engineering, geology, mineral, medicine.

*Used for electronic materials, magnetic materials, equipment batteries, biological breeding, etc.

* Many agents and university all over China. Plan to expand business over the world .

* More than 10 years of manufacture experience in lab planetary ball mill and lab glove box.--- Professional!



Application

     Pearl, ginseng, Dendrobium candidum, tablets, medicament, liquorice, coke, coal, glass, cellulose, paper, chip, polymer, pigment, metal oxide, iron ore, iron powder, aluminum powder, magnesium powder, ceramics, Alumina, bone, kaolin, Limestone, gypsum, quartz, minerals, ores, carbonized fibres, graphite, ink, clay minerals, fibre products, sewage sludge, catalysts, chemicals, alloys, soils, waste samples, wood, plant materials, Cement slag, concrete, slag, tobacco.

Instruction:

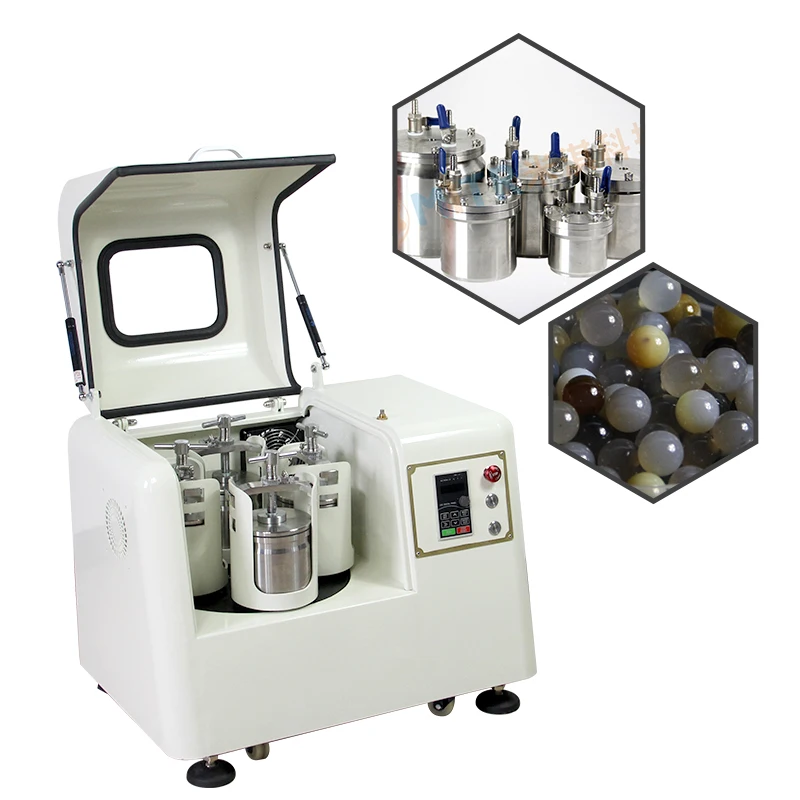

    MITR Planetary ball mill is a necessary device for mixing,fine grinding,small samples prepared,dispersion of nanomaterail,R&D of new product and small batch production for high tech materials. The equipment with small volume,comprehensive function,high efficiency,low noise which is the ideal device of obtaining micro-particle research samples used for research and development institute,collages and universities,enterprise laboratory(Four samples can be obtained at the same time in each experiment). The samples could be ground under vacuum state with using the vacuum ball mill jars.

Technical parameter:

Details:







Accessories

Company Information:

Our main business is the R&D,production and marketing of experimental equipmental and related technical consultation service.

We are specialized in planetary ball mill,roller ball mill,stainless vacuum glove box,acrylic vacuum glove box,horizontal light ball mill,tablet machine and related equipment with more than 10 years. Our company have the laboratory with 1000 sets of application cases and maybe could provide you some suggestion.

We have the talented technical team members more than 30 including Ph.D.,Master,Senior engineer,Senior technician,technicians. We have more than 150 staff in the factory.
