NEW XINQI 13000lb electric winch waterproof electric winch

Product Overview

Description

OEM/ODM Services	Customized Logo&Packaging
Quality Certification	Samples available to approval the quality
Sample Charge Refund agreement	Refunding custcomers samples cost after order
Secure Payment	Alibaba Trade Assurance Services 100% protection
Faster Delivery	Shipping mass goods within 35 days after payment
After-Sale Service	XINQI Team will always on your side



ENJOIN 13000lb electric winch waterproof electric winch





Specification:





Single line rated pull	13000lb (5443kg)	Motor	6.0hp/4.5kw,Series Wound
Control	Remote Switch, Extra long 4.5m lead , In and Out PLUS Twin Handset Wireless Remote	Gear train	3 Stage Planetary
Gear reduction ratio	265:1	Clutch	Sliding Ring Gear
Braking Action	Automatic In The Drum	Drum size	Diameter 64mm (2.5")Length 233.5mm(8.82”)
Cable	24m (78ft) of 9.4mm (3/8”)diameter	Fairlead	4-Way Roller Fairlead
Battery	Recommended 650CCA minimum for winching	Battery Leads	2 gauge, 1.83m (72”) 25mmsq - 6.5mm Diameter
Finish	Black	Weight	GW 38KG
Overall Dimensions(LxWxH)	526x160x218mm (20.8"x6.5"x8.6")	Mounting Bolt Pattern	10.00”±0.015"x4.50”±0.010"(255x114mm)
Motor Current	65-400A	No Load Line Speed	6.5m/min (21.3 ft/min)

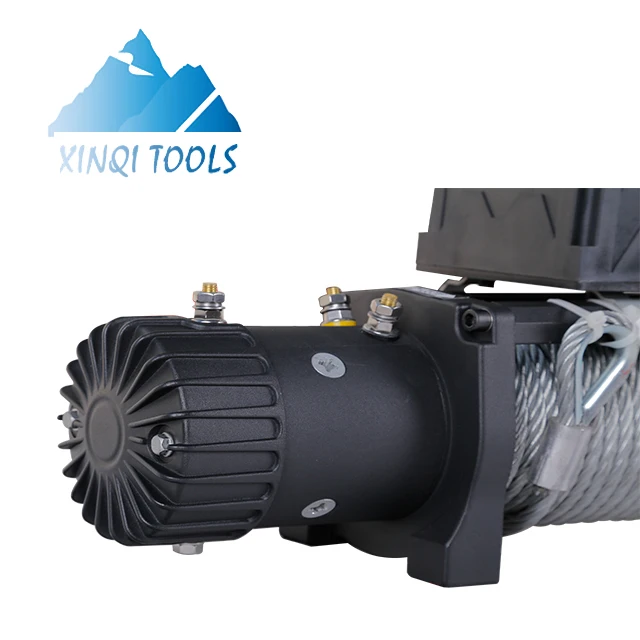

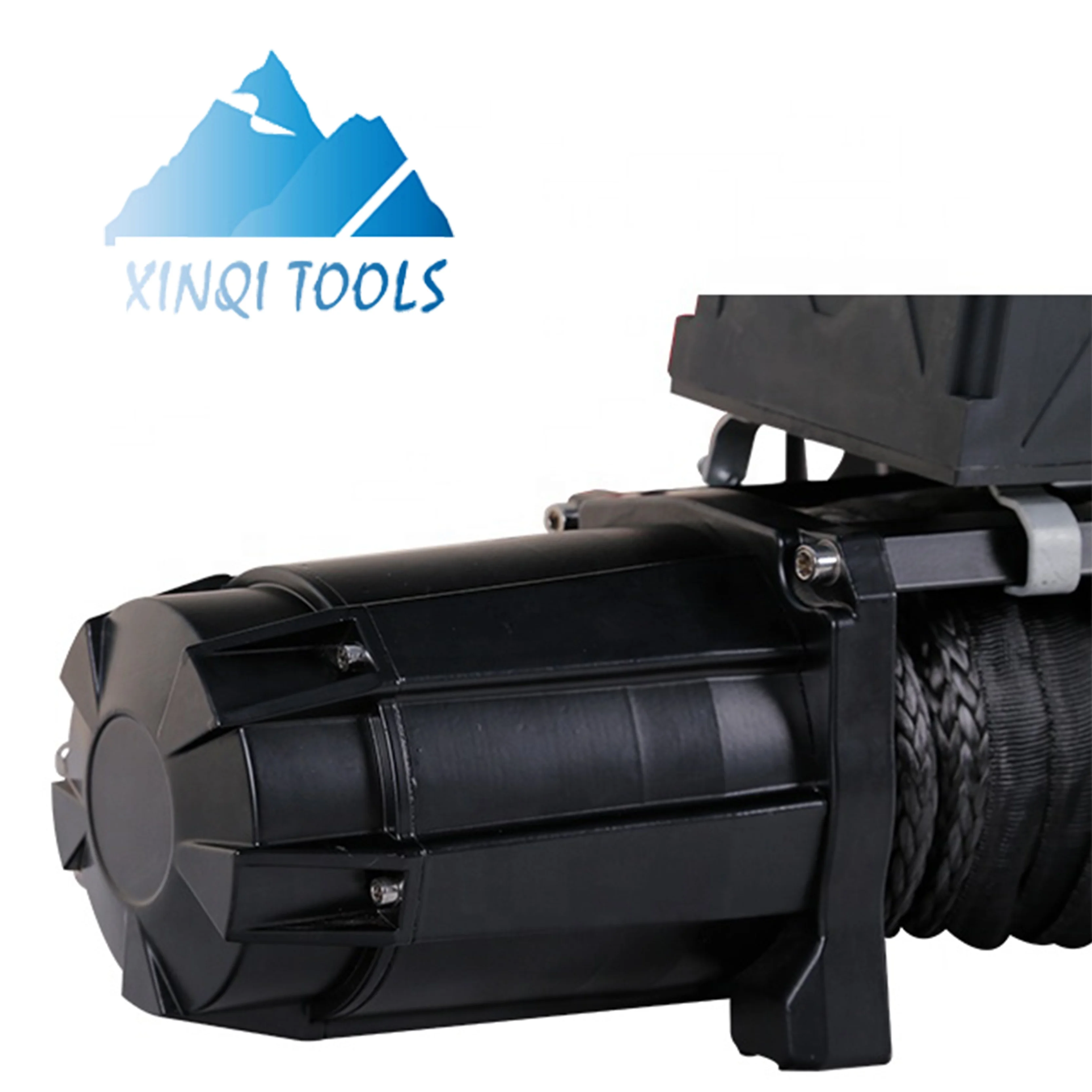

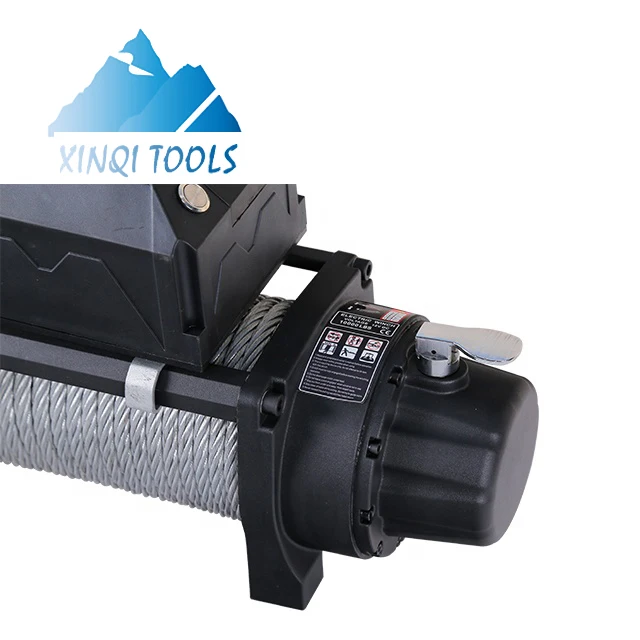

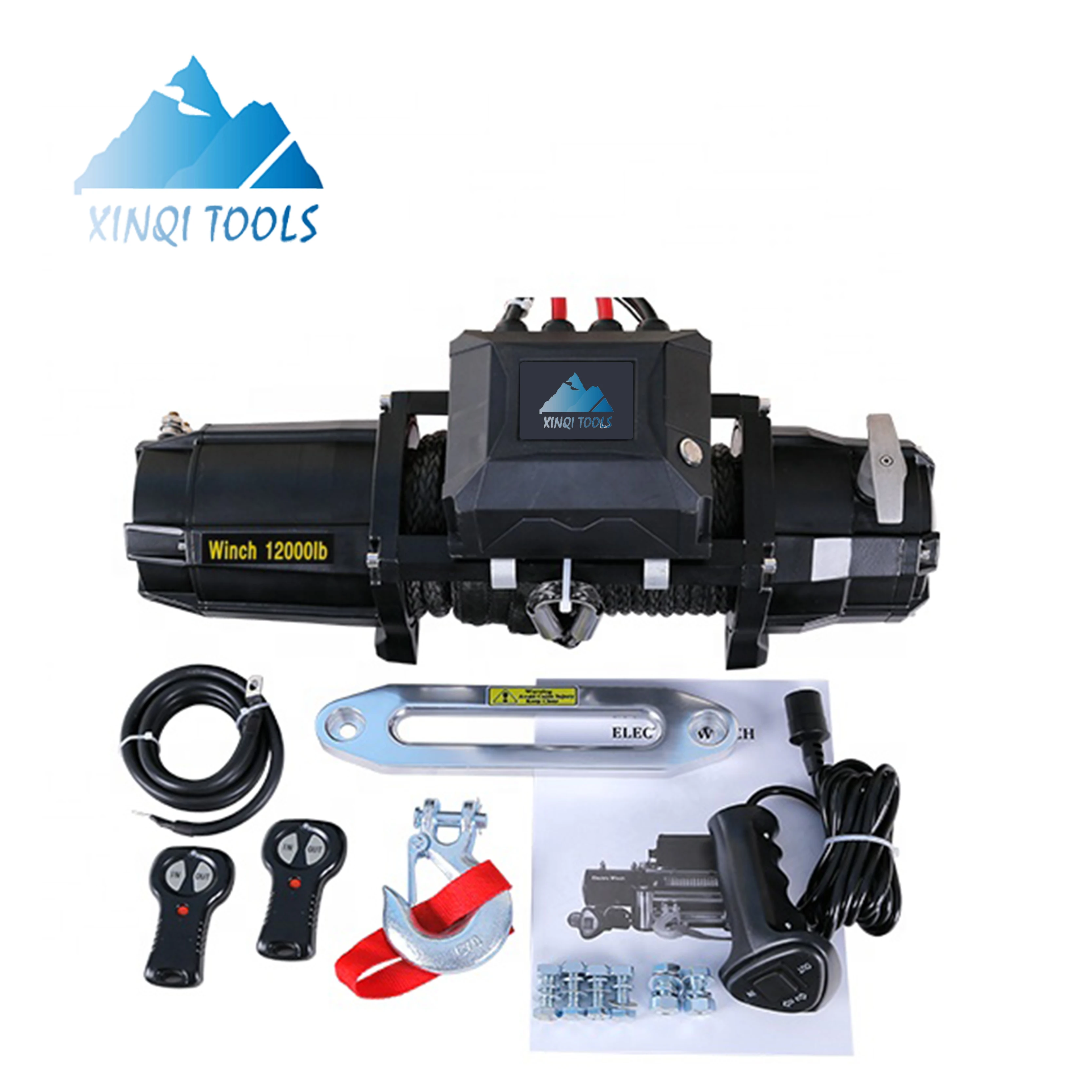

Product Show










Other Available Enjoin winch



ENJOIN WARRANTY
3 YEAR WARRANTY- ENJOIN offer 3 year warranty (3 year mechanical and 1 year electrical/wear parts) to keep you up and running for years to come.



Why choose us?



* One Stop Shop ! ENJOIN are standing by to fill your needs.



* We offer OEM/ODM service.



* We have a professional R & D team and excellent customer service.

* Achieve the results and performance you want.

* The perfect balance between quality and cost.



* Fast delivery and perfect after-sales service system.



* Payment: We support L/C,T / T, Western Union, Paypal.

CLICK HERE TO SEND US AN INQUIRY AND LEARN MORE !
