This type uses all-glasses evacuated tubes as the solar collector for absorbing solar energy and transferring it into heat energy. As the different densities of hot water and cold water, the hot water flows automatically upwards while the cold water flows down. The water flowing cycle is created in the tube. And the water in the storage tank is heated from this natural circulation. The hot water pressure of this non-pressure system is from the gravity, so it should be installed on the roof or at least 3-4 meters higher than hot water tap. Or you can install a booster pump to get stronger outlet hot water.
Product Name

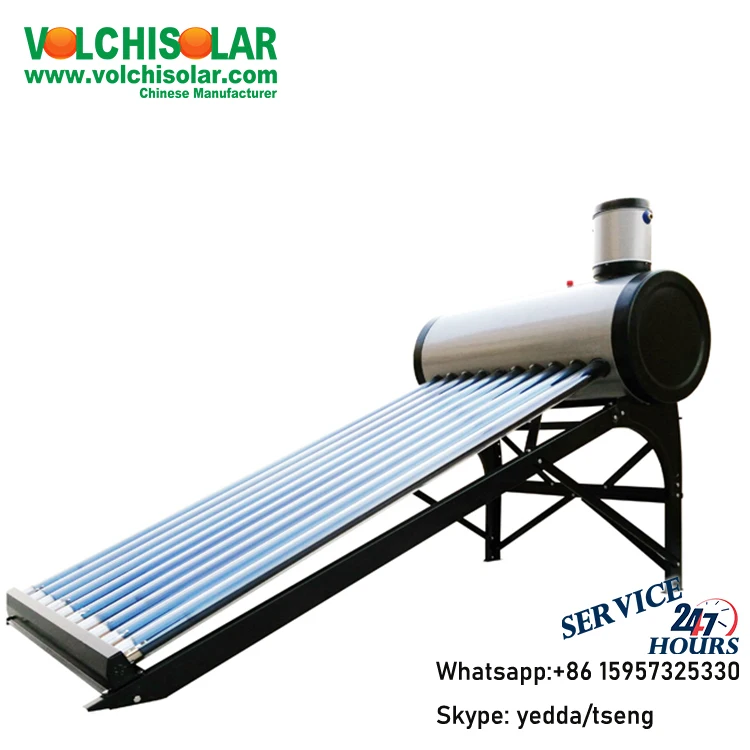

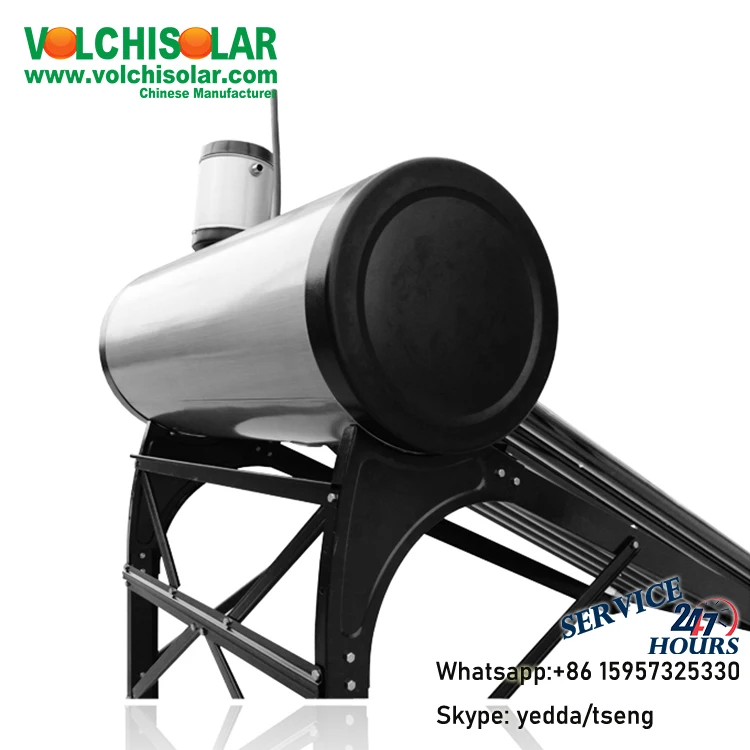

Compact Non-Pressurized Solar Water Heater with feeding tank
Brand
Volchisolar, support OEM service
Inner tank
FVDF 0.4mm which is good at anti corrosion stainless steel.Ø360mm
Outer tank
Galvanzied steel .Ø460mm
Insulation
High density polyurethane foam 50mm
Vacuum tube
3 target tube AL-N-AL/SS/CU coated.47*1500mm or 58*1800mm
Bracket
High quality Stainless Steel, 1.2-1.4mm thickness
Welding
Argon arc welding
We accept the custom-made according to your specifications.

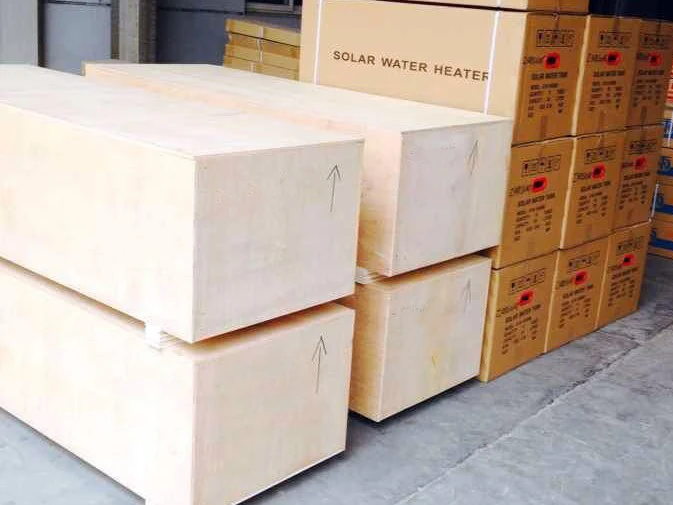

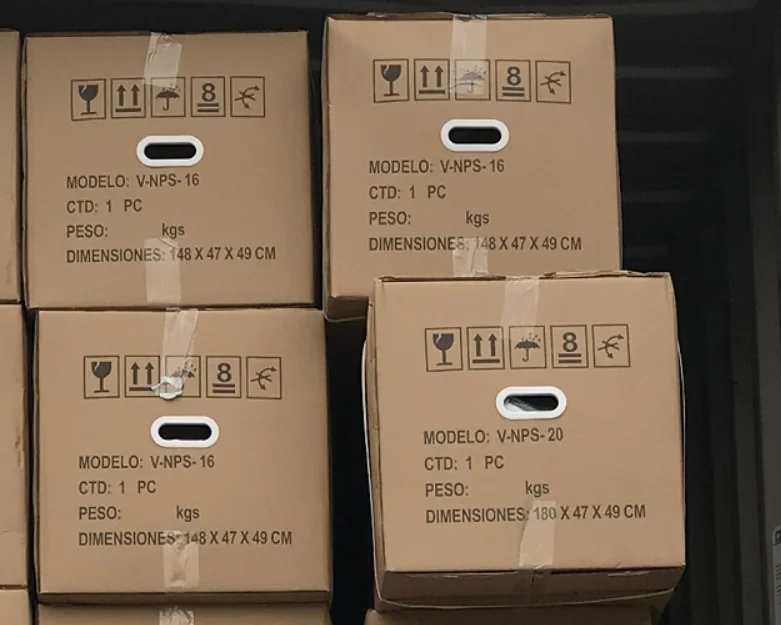

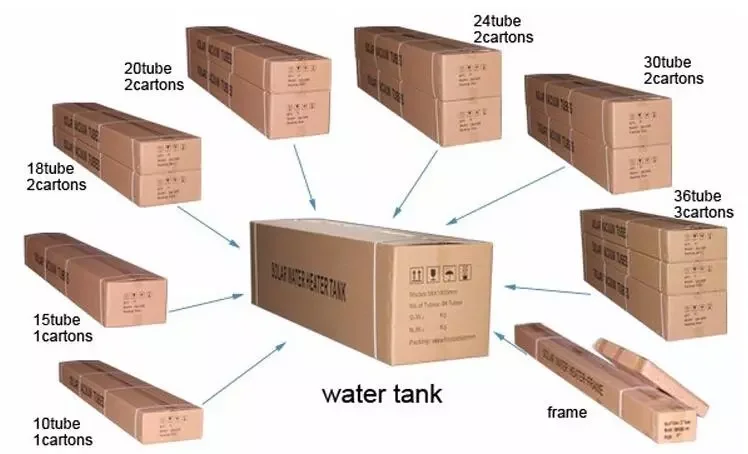

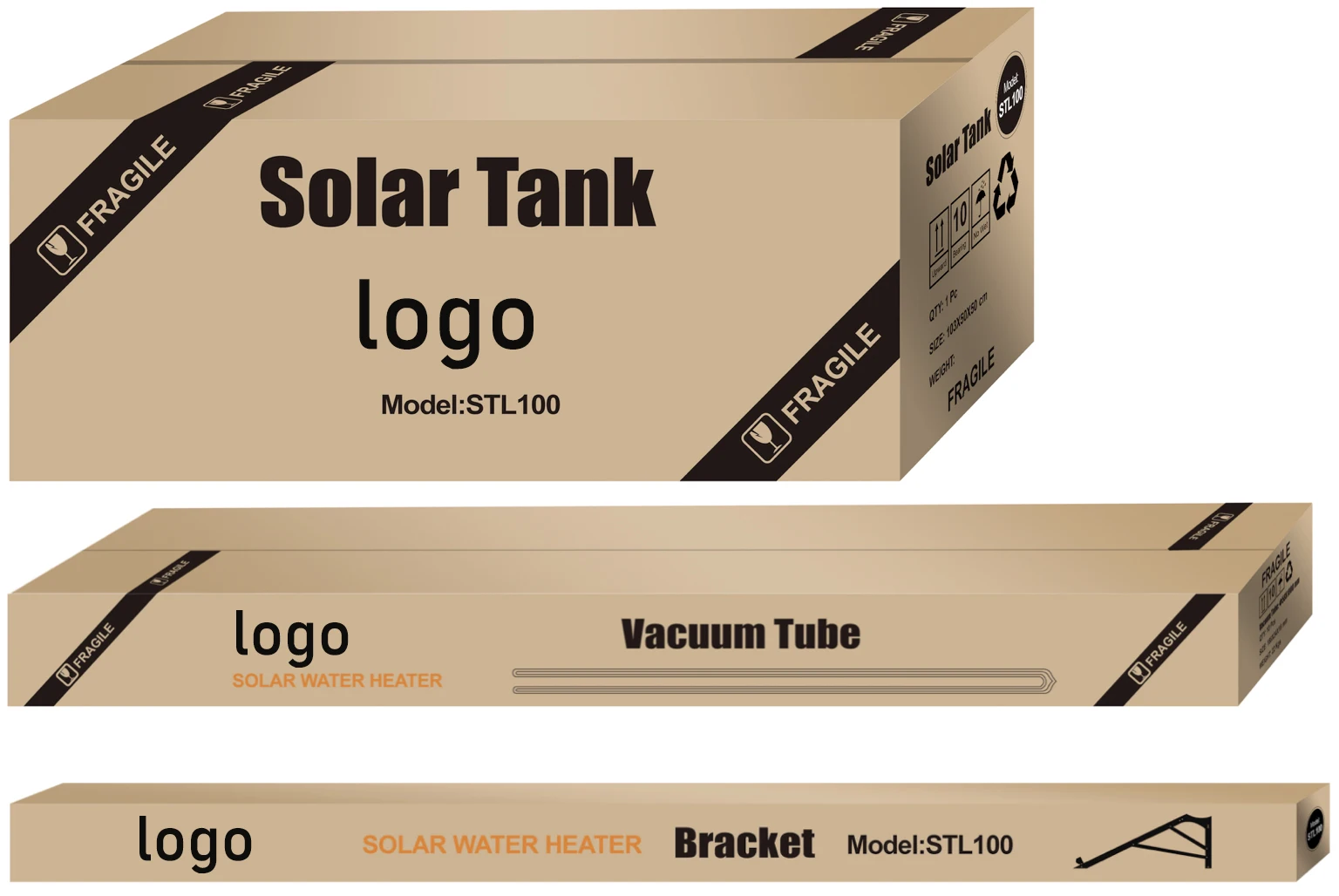

Packing&Shipping

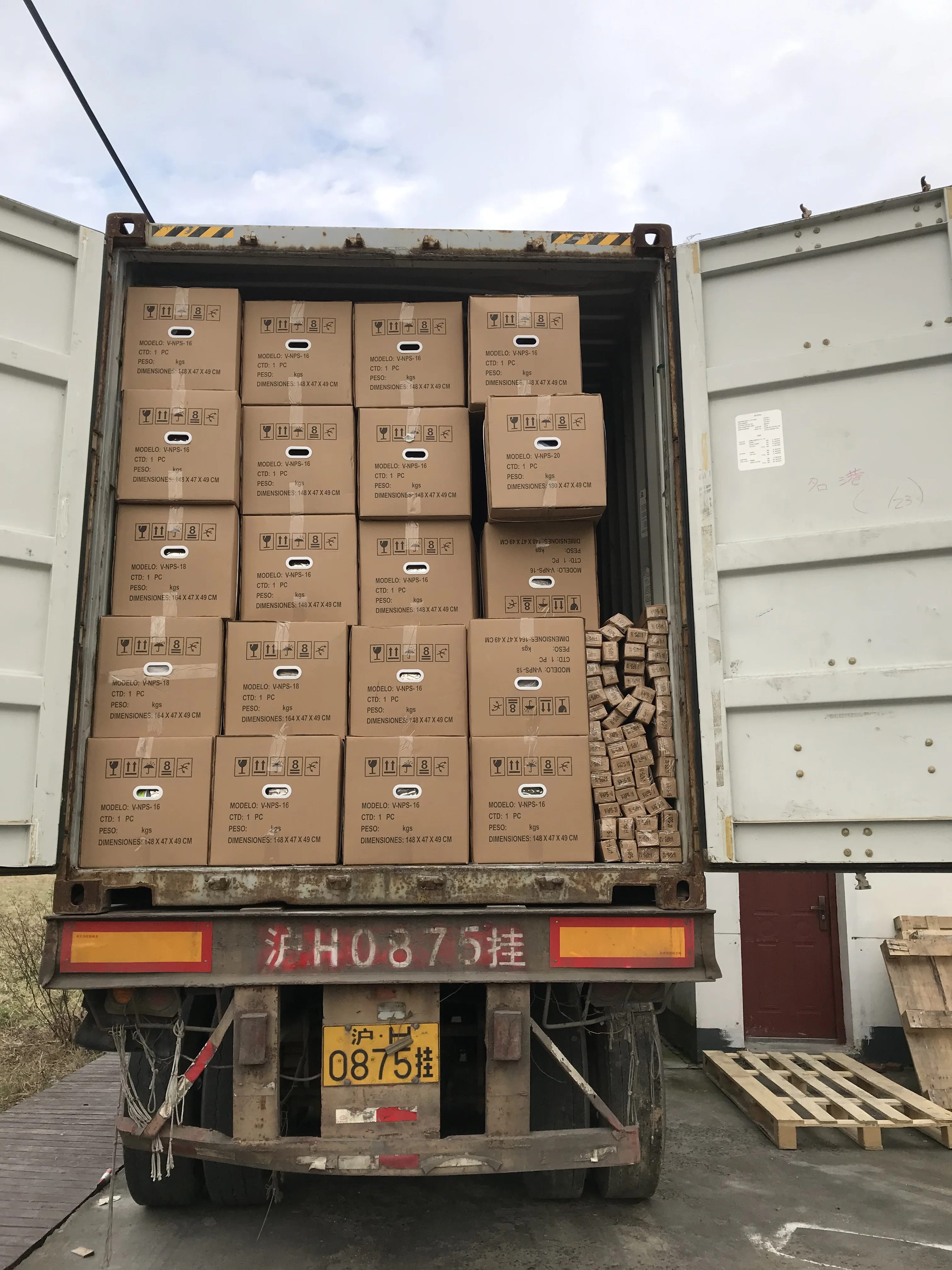

LCL order/Sample order in wood cartoon. Full container order in high quality standard export carton.
Company Introduction
Welcome to the Volchisolar. Volchisolar is a leading designer and manufacturer of solar water heater parts and machine equipment. With a focus on continual improvement of products, management and service, Volchisolar completes R&D and manufacturing in the company-owned facility that is certified to ISO9001:2008 management and production standards. All of our products are produced with a strong emphasis on simplistic design and ease of installation while aiming to minimize the environmental impact of all products and operations. With a number of patented designs, Volchisolar invests strongly in product improvements and new developments based heavily on feedback from the diverse global customer base. At Volchisolar we are strongly committed to providing simple and effective solutions for families and businesses concerned about climate change and rising energy costs. Our team has an excellent reputation in the solar thermal industry and we pride ourselves on offering the best customer service available. We are very passionate about what we do, working hard to push the industry in a positive direction and ensuring that your experience with Volchisolar is a positive and enjoyable one.

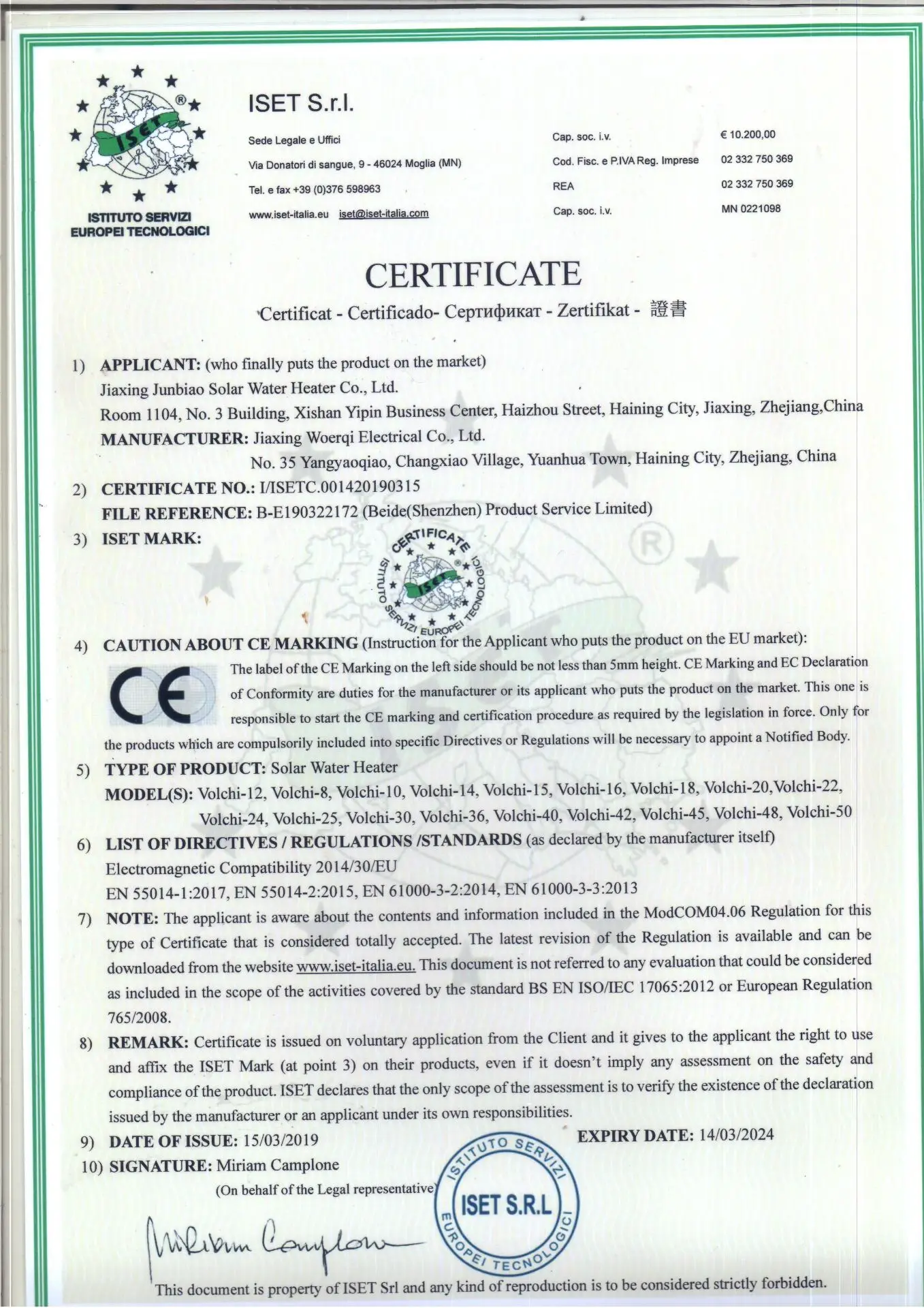

Certifications
FAQ
1- What is your Delivery Time? LCL order/Sample order: within 7 days. Full container order: 7-14days. 2- What is your Packing?
LCL order/Sample order in wood cartoon. Full container order in high quality standard export carton. 3- Can you accept OEM ? YES. offer to make customized logo on solar products and packing cartons.
4- What is your Payment Term? We accept T/T or L/C at sight, Western Union. 5- What is your MOQ? 1 sample. 6- What is your Guarantee Time? 5 years for the tank and frame,15years for the vacuum tubes 7- What is your FOB Port? We accept FOB Shanghai, Ningbo etc. 8- What is your Monthly Production Capacity? 6000 sets. 9- What is your Shipping Term? By Sea/Air/Rail.
