LED Dance Screen Outdoor P3.91 LED Floor Screen Panel LED Interactive Screen
- Category: >>>
- Supplier: Shenzhen Longcheng Photoelectric Technology Co. Ltd.
Share on (62594551540):
Product Overview
Description
Product Description

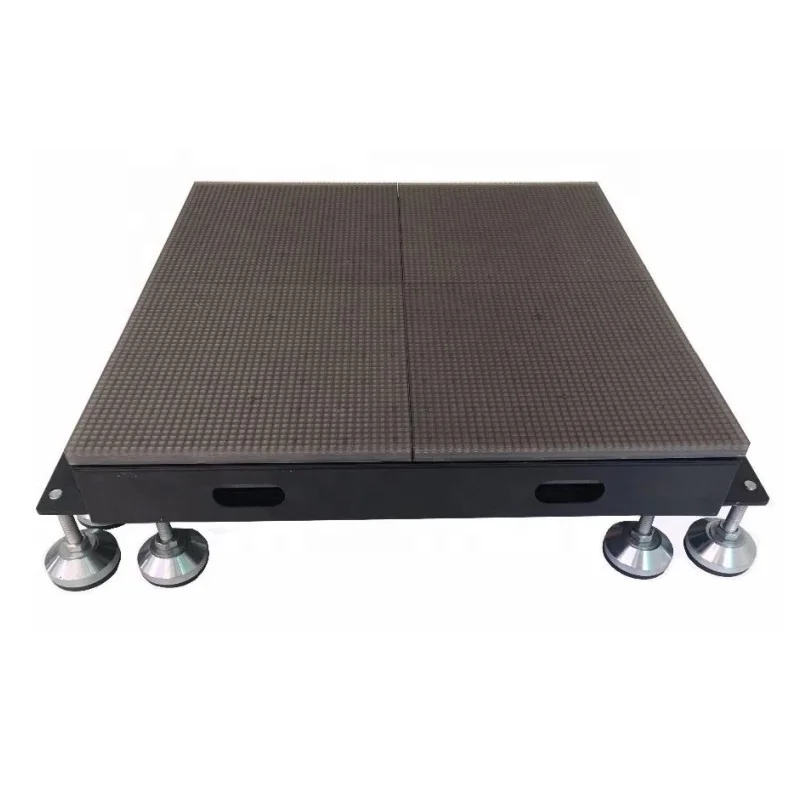

LED Dance Screen Outdoor P3.91 LED Floor Screen Panel LED Interactive Screen
Our product Item:
LED Display series:
1) Small pitch pixel: P1.2,P1.5625,P1.667,P1.875,P1.9,P1.923,P2,P2.5
2) Professional Rental led display:P3.91,P4.81,p5.95
3) Indoor LED display: P3,P4,P5,P6,P7.62,P8,P10
4) Outdoor LED display: P4,P5,P6,P8,P10
Function
HD
Ultra thin and ultra light
Low attenuation,high gray level,good stability,anti-static

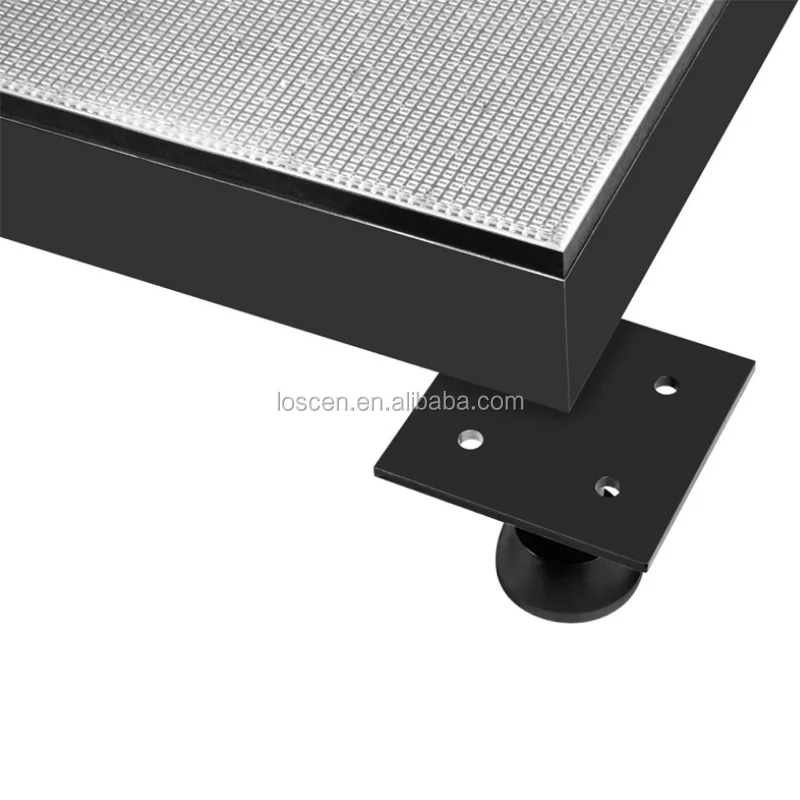

Installed with die casting aluminum cabinet 500*500mm or 500*1000mm

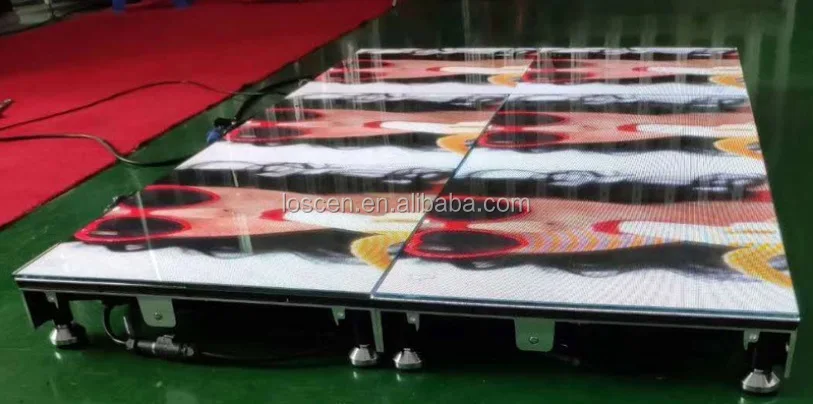

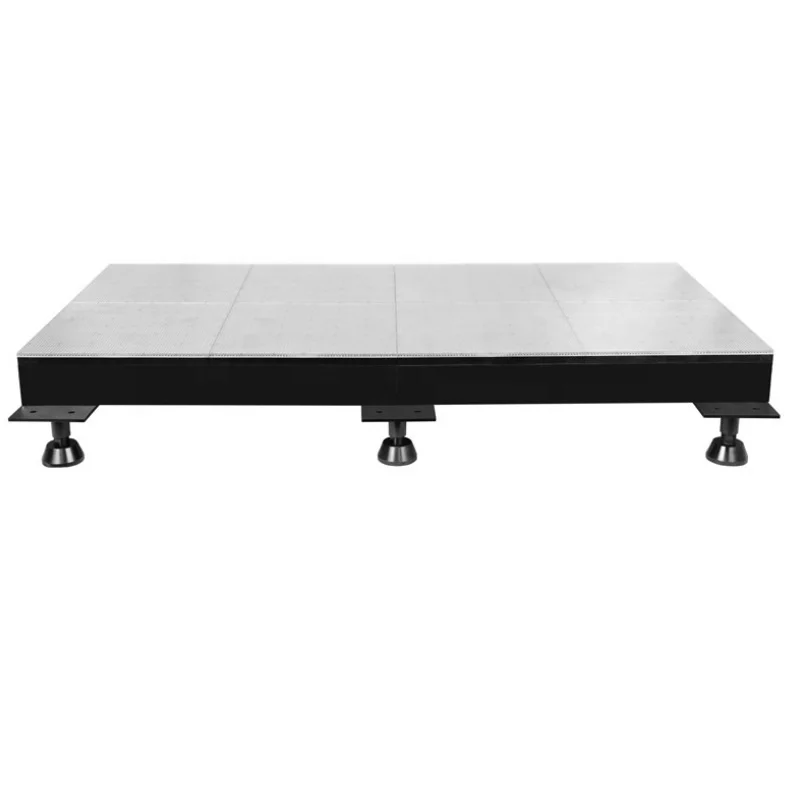

| P3.91 LED dance floor panel | ||
| Unit Module | Item | Parameter |
| Part No | P3.91-LC-16S | |
| Pixel pitch | 3.91mm | |
| Module size | 250mm*250mm | |
| Tube chip color | full color | |
| Pixel Density | 65536dots/square meter | |
| LED type | SMD1921 | |
| LED combination | 1R1G1B | |
| Module resolution | 64*64dots | |
| main technical parameters | Scan method | 1/16s |
| Refresh rate | ≥1920Hz | |
| Brightness of white balance | ≥5000cd/square meter | |
| cabinet resolution | 128mm*128mm | |
| cabinet size | 500mm*500mm | |
| Best view distance | 4m-40m | |
| Best view angle | 160degree(W)*160degree(H) | |
| Storage temperature | -35℃-+85℃ | |
| Working temperature | -20℃-+50℃ | |
| working voltage | AC110/220V±10% | |
| Average power consumption | ≤400W/square meter | |
| Max power consumption | ≤800W/square meter | |
| Brightness adjustment method | Brightness induction automatic adjustment | |
| MTBF | ≥5000hrs | |
| Control system | Display card | DVI graphics |
| Control method | Synchronization/Asynchronization | |
| Operation syetem | WIN98,WINXP,WIN2000,etc | |
| Display sign | RF,S-Video,RGB,RGBHV,YUV, YC,COMPOSITION, etc | |
Company Information
Company Information
Production process

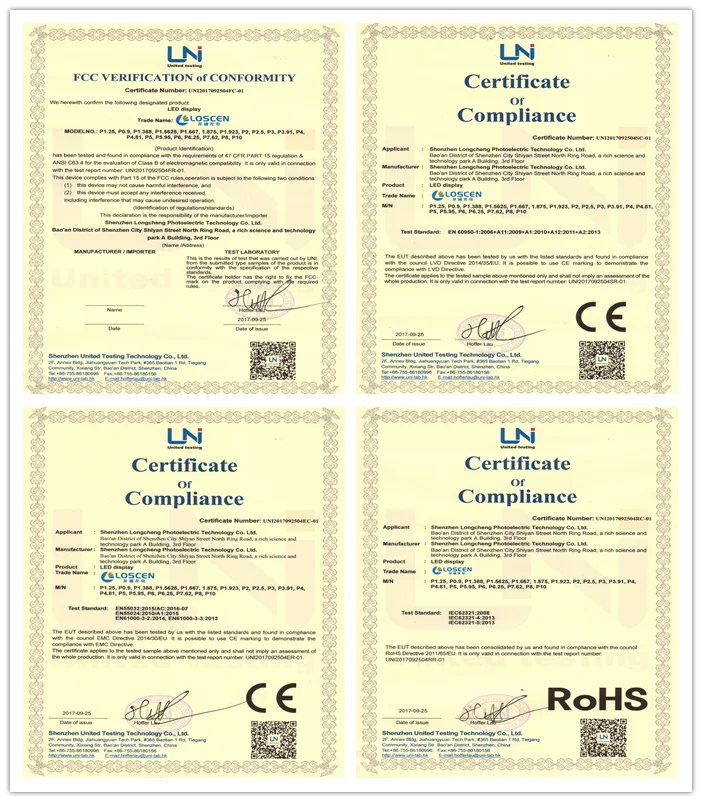

Certifications
Our Advantages
WHY CHOOSE US
Our service
Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.
After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 2years
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
