High speed centrifugal atomizer

Product Overview

Description

  High-speed centrifugal atomizer

ABOUT   US:

Wuxi tianyang drying equipment co., LTD. (www.tydryer.com) is a science and technology as the guide, independent research and development, design and manufacture of spray drying equipment specialized company. At the same time is also a collection of scientific research and production of the combination of straight-pilot leader.

Products are constantly updated, has formed the following series: high-performance high-speed centrifugal spray drying equipment, high-speed centrifugal spray drying equipment, high-speed centrifugal spray drying granulating equipment, low pressure spray granulation and drying equipment, flow and pressure of spray granulation and drying equipment) and so on dozens of varieties.

 Mainly for the biological, pharmaceutical, food, biological, chemical, ceramics and other industries. Over the years products are sold well all over the country, and exported to southeast Asia and Europe and the United States and other countries.

. The company developed a new choice for development planning and new product development plans, focusing on design and development of low-temperature vacuum spray drying equipment, research and development success will fill the gaps, and the biological, biochemical, pharmaceutical, medicine and health products, health food, and other industries . Drying Equipment Co., Ltd. Wuxi-day customer satisfaction for the purpose of serving enterprises, the pursuit of scientific design, configuration and reasonable, well-made, energy-saving, low-carbon environment, automated continuous production for corporate philosophy, the limited Wuxi-day drying equipment company to build industry-leading companies to fulfill.

High-speed centrifugal atomizer

Product information:



Processing custom:YES	Brand:tianyang
The atomization type: mechanic	Applicable materials: liquid liquid
Applications: electronic ceramics, biological, chemical, pharmaceutical	Model: RW - 150
The evaporation capacity: 150-150 (/ h)	Drying tower diameter: unlimited (m)
Inlet air temperature: 0-600( ℃)	Dimension: unlimited (m)
Height: unlimited (m)	Weight: 700 (kg)

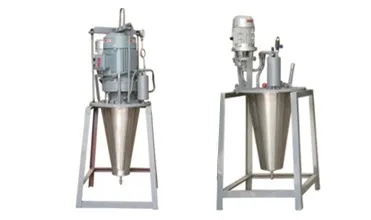

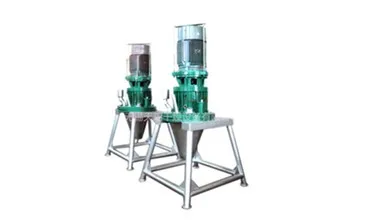

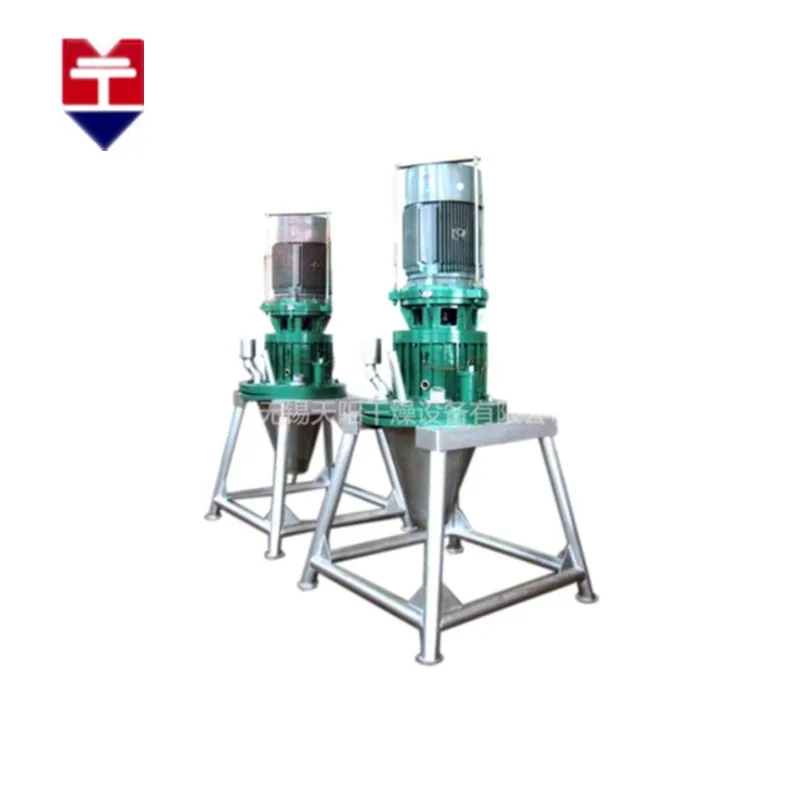

High-speed centrifugal atomizer is high-speed centrifugal spray drying heart, including high-speed motor, spindle, nylon block, large coupling plate, bearings and spray disk, etc., by connecting the motor shaft couplings and soft nylon block nebulizer spindle spindle motor vibration and atomizer spindle and do not pass, the nebulizer for flexible shaft spindle rotating at high speed when the resonance region, nebulizer spindle will rotate as stable as gyro, high-speed motor is provided with a water-cooled jacket and spray lubrication, nebulizer spindle lubricating oil circulation. Which has a higher speed, smooth running, small vibration, long life, simple operation, and can be widely used in high-speed spray dryer, the liquid spray dried into a powder material is applied to the finished product, and other industrial fields.
High-speed centrifugal atomizer is a core component of centrifugal spray dryer; Our company specializes in the production of high-speed centrifugal atomizer, elected on the basis of absorbing foreign technology, based on independent research, computing, manufacturing, won the praise of domestic households . After all the gear tooth grinding, precision in 5 above, transmission parts have been balancing test, more accuracy G2.5 level, idling vibration is less than 5un, vibration load value of less than 15um, trouble-free operation time of up to 7000 hours, Large atomizer with oil temperature, oil pressure, oil level, put blocking materials, such as testing, enabling the atomizer more safe and reliable operation, to achieve the atomizer operation monitoring in the operating room; centrifugal atomizer on plate according to the characteristics of different materials can be tailored to different specifications, different materials, different shapes of centrifugal disk;
  Nebulizer main technical parameters: total feed: 150-600kg / h, speed: 8000-25000r / min.
