Roller glass coating machine
US $10000-$13000
Second Hand Double Glazing Glass Processing Machines With cnc glass working center for insulating glass
- Category: >>>
- Supplier: Jinan Kation Trading Co. Ltd.
Share on (62594901738):
Product Overview
Description

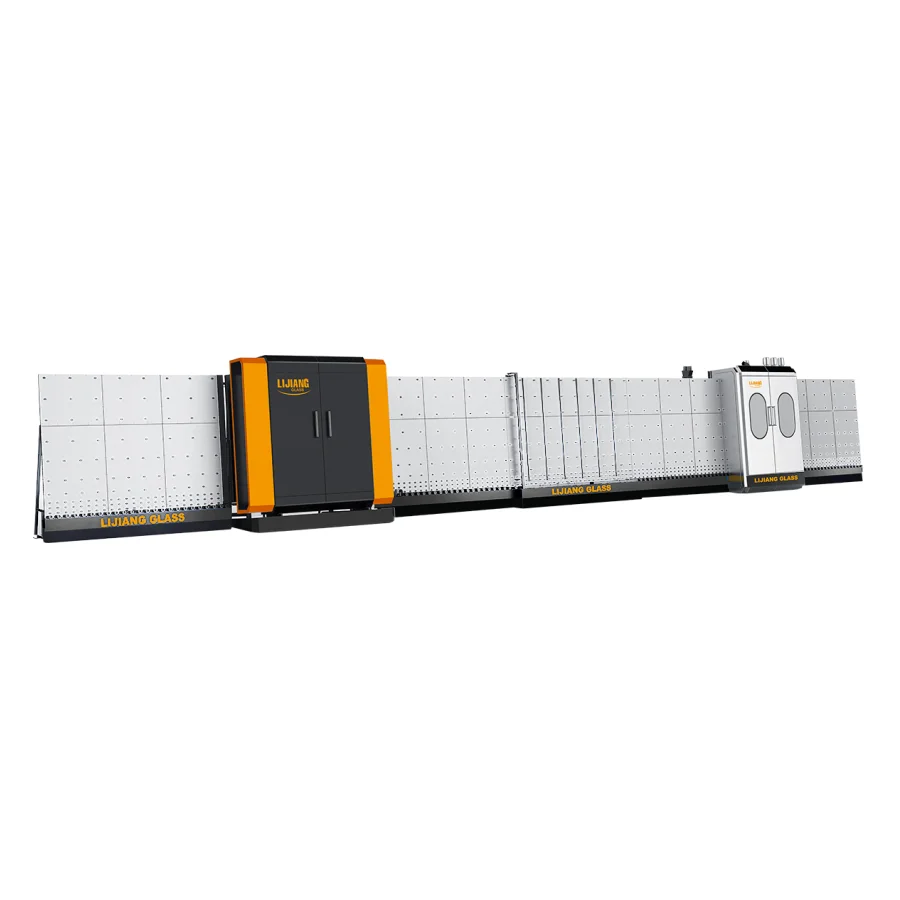

Automatic Insulating Glass Production Line LJBZ2535
LIJIANG IG line adopts the latest technology, its main purpose is to create high-end quality and provide a great deal of useful functionality, improve production efficiency, save production costs and produce maximum benefits.

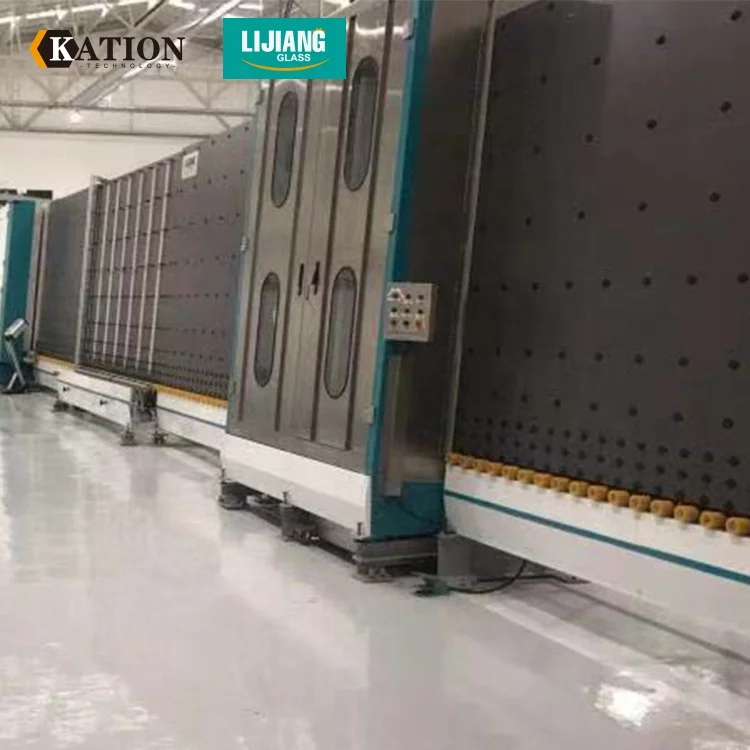

Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new
technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
Now LIJIANG mainly has two kinds of IG line with different two different technologies. One (Picture 1) uses transfer wheels to transport glass, and the other (Picture 2) is a new technology that uses air-floating technology to transport glass. This new
technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
It has 6 brushes which are all soft brush, can wash low-e glass, flat glass, tempered glass and so on. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass.
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity：40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
