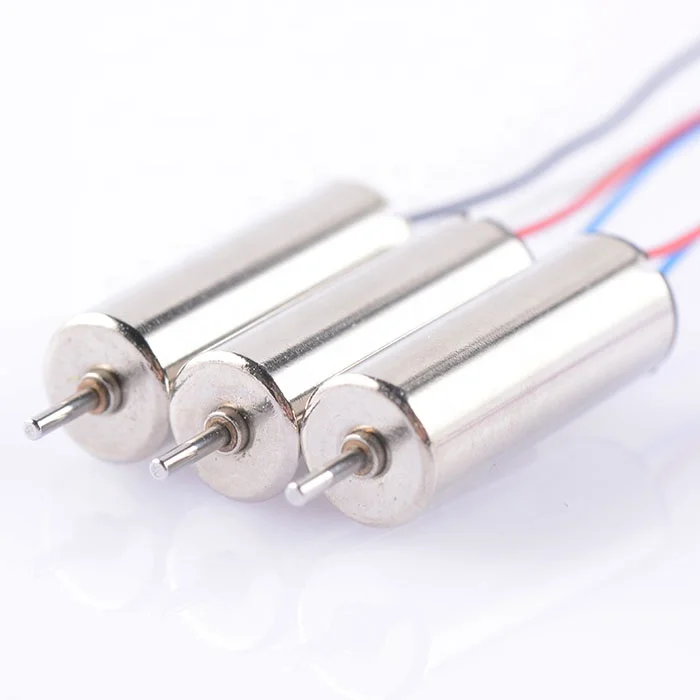

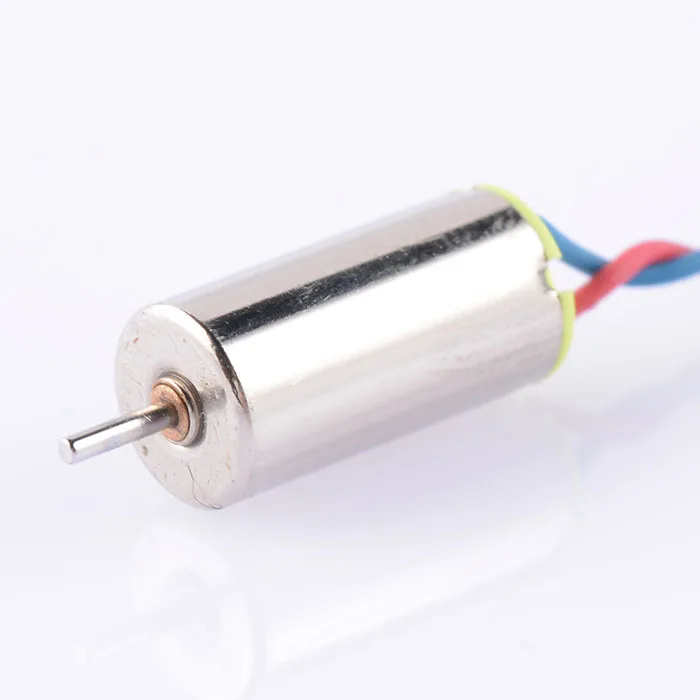

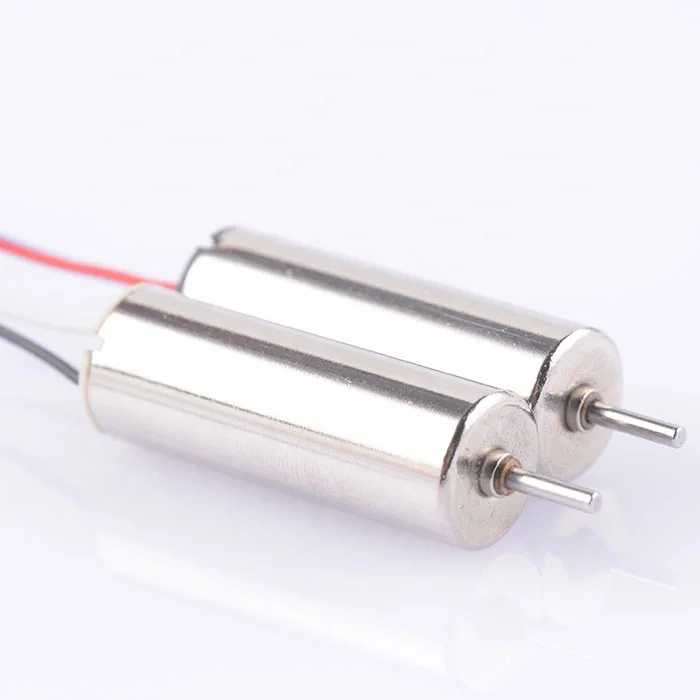

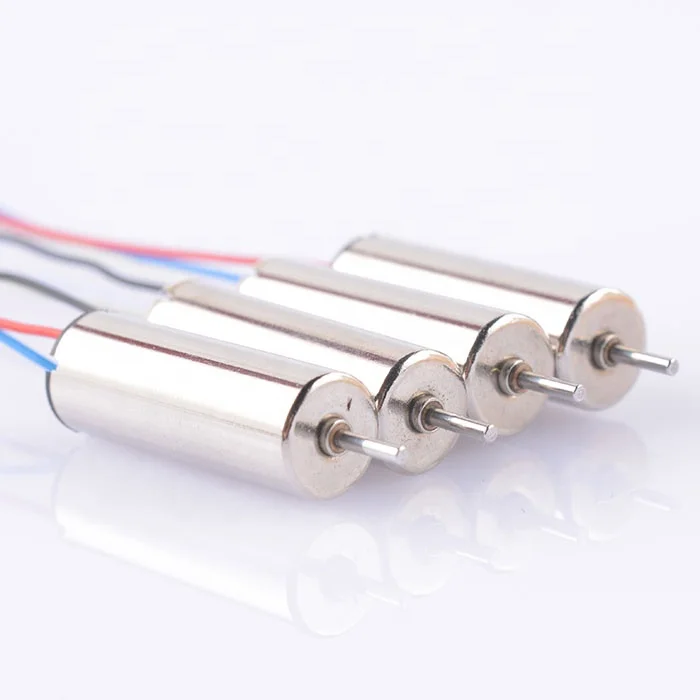

6mm 4.5V Micro coreless driving dc motor for mini drone
- Category: >>>
- Supplier: Yichang Wingfong Industry & Trade Co. Ltd.
Share on (62595213849):
Product Overview
Description
Typical Application
0612 6mm diameter Micro DC Driving Motor is widely used in:
Electric Toys, Hand Generator, Small Fan, Scientific Experiment Equipment, Intelligent Toy, Solar Toy Car, Model Aircraft.

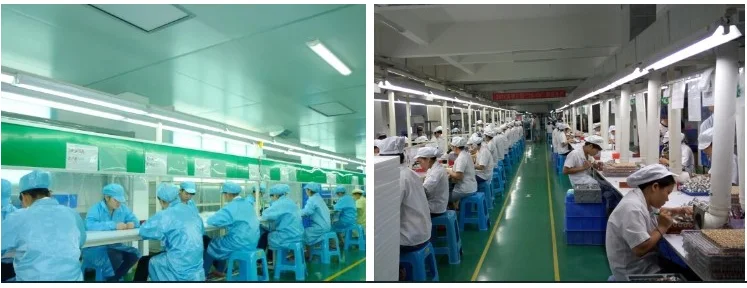

Company Profile
Yichang Wingfong Industry & Trade Co., Ltd. is a national high-tech enterprise specializing in the research, development and manufacturing of hollow-core (coreless) permanent magnet DC micro motors and various core motors certified by SIRA and Rohs .
We provide professional design, stable quality, reasonable price, timely delivery and sincerely service to every customer!
Our Service
As the special and professional manufacturer of Micro Motor in China，
We Supply
Driving or Vibrating Micro Motors
&
Customized motors

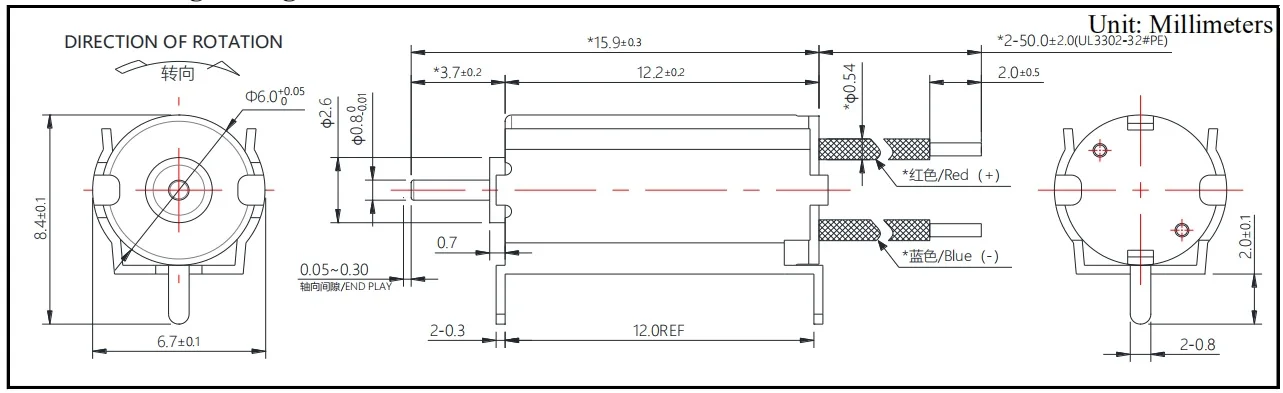

Motor Paramenters
№ | Item | Specifications | № | Item | Specifications |
1 | Rated Voltage | 1.5V DC | 11 | Rated Load | As Customized |
2 | Operating Voltage | 1.0~2.0V DC | 12 | Starting Voltage | 0.6V DC |
3 | Rotation Direction | CW | 13 | Terminal Resistance | 0.5 ±5%Ω |
4 | Operating Conditions | -10℃～60℃≤60%RH | 14 | Insulation Resistance | 10MΩ |
5 | No Load Current | 230 mA Max | 15 | Appearance | No any damage |
6 | No Load speed | 53500 ± 12% Rpm/min | 16 | Weight | About 1.4g |
7 | Rated Current | / | 17 | Clearance between shafts | 0.05~0.30mm |
8 | Rated Speed | / | 18 | Torque Constant | 2.23 g.cm/A |
9 | Stall Current | 2.95 A | 19 | Speed Constant | 37520.77 Rpm/V |
10 | Stall Torque | 6.21 g.cm | 20 | Speed/Torque Constant | 8575.8 Rpm/g.cm |

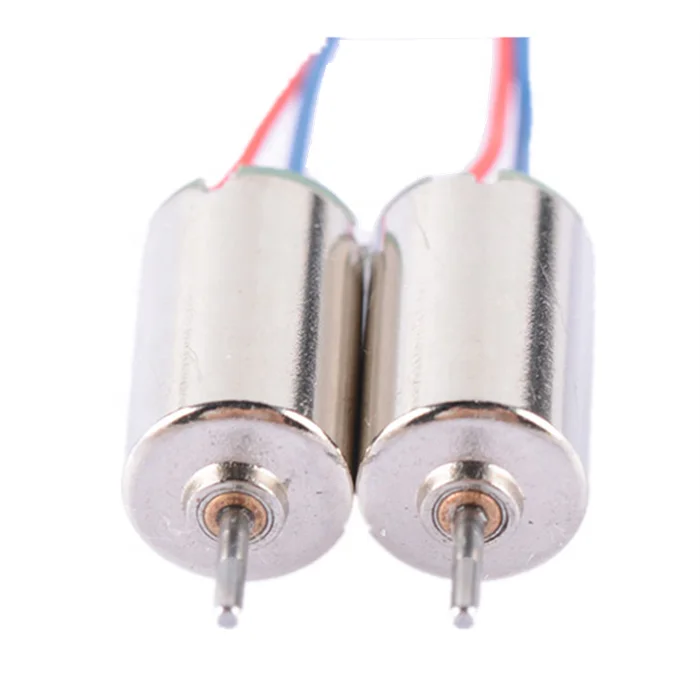

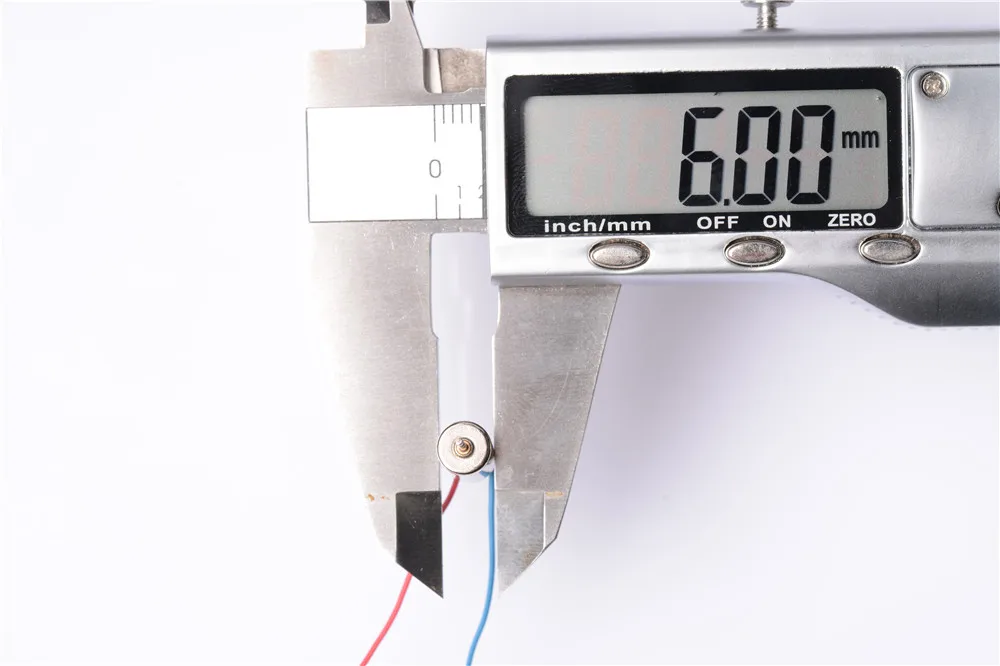

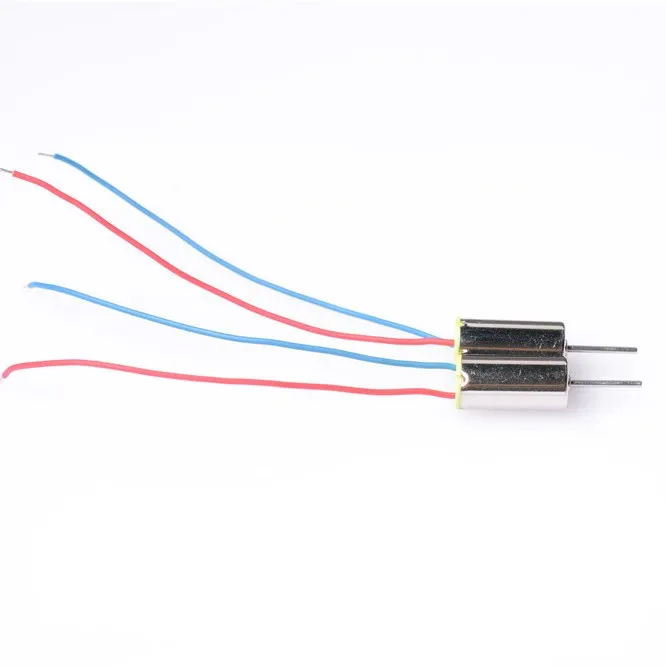

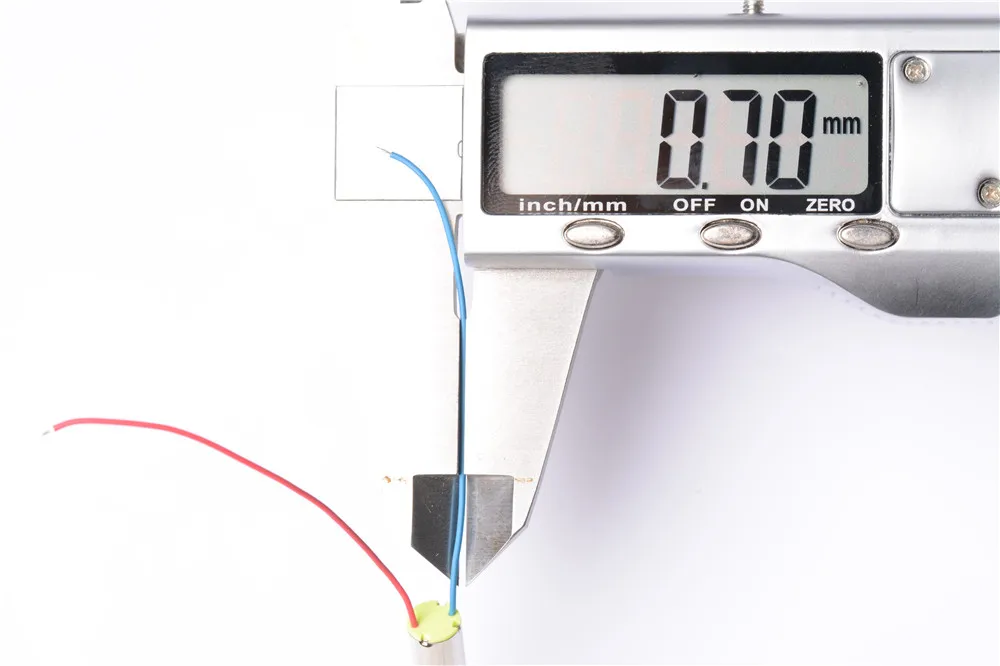

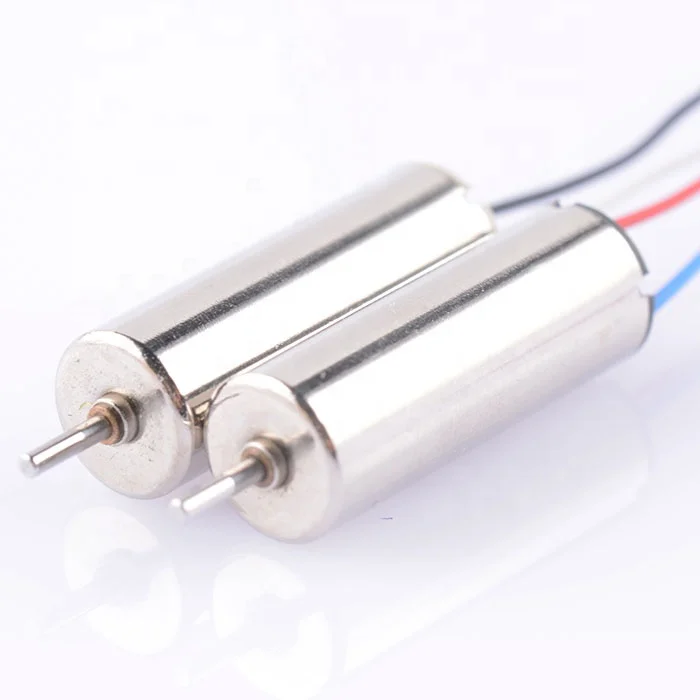

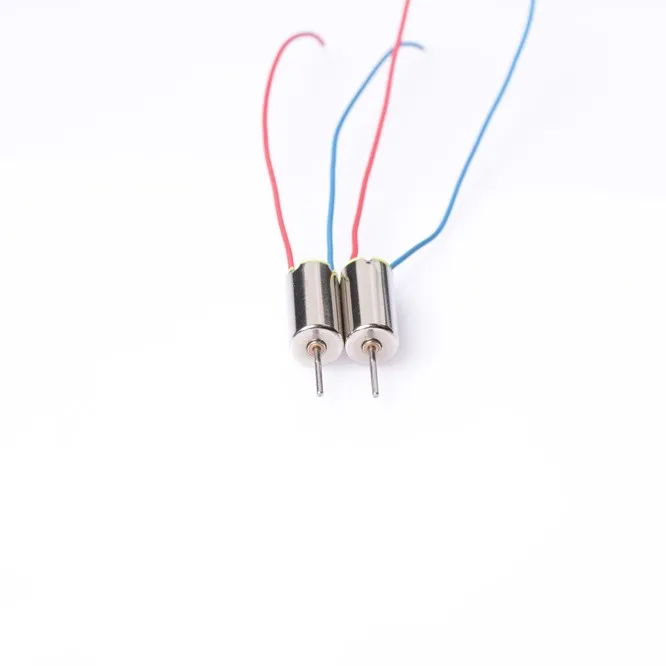

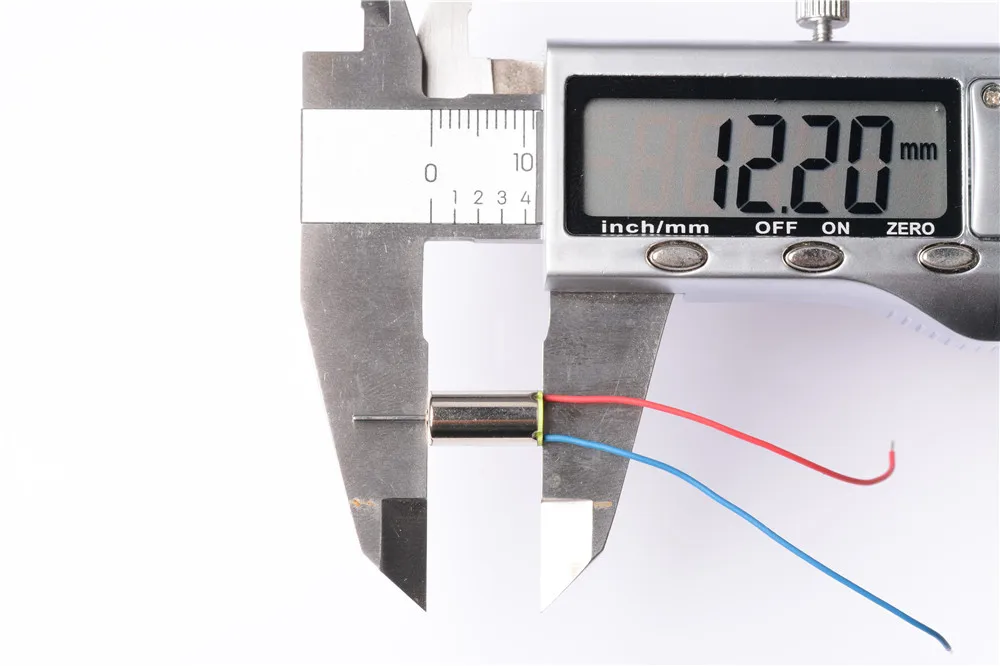

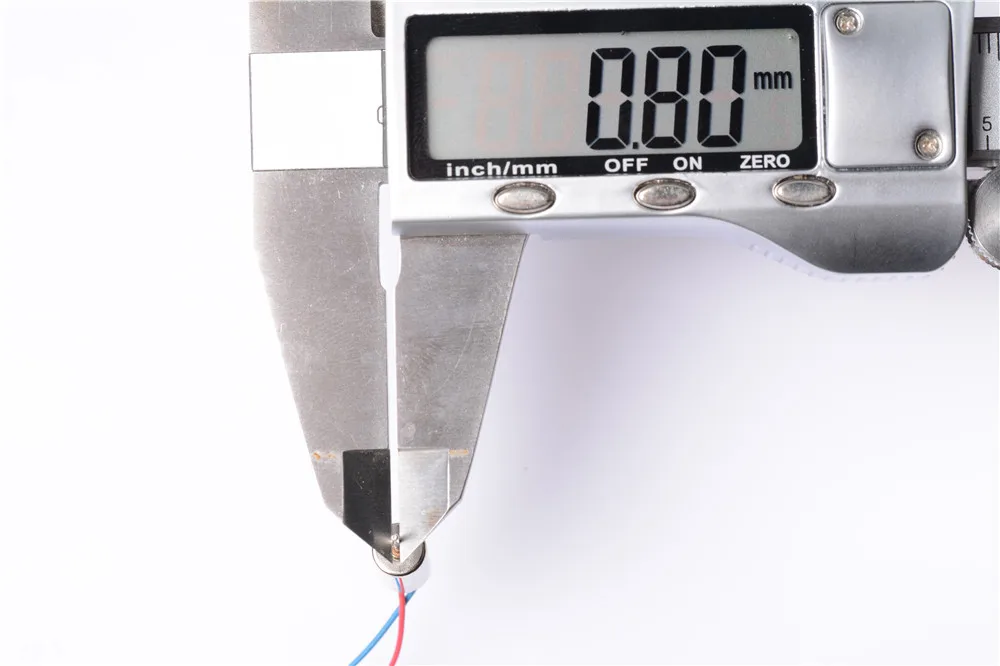

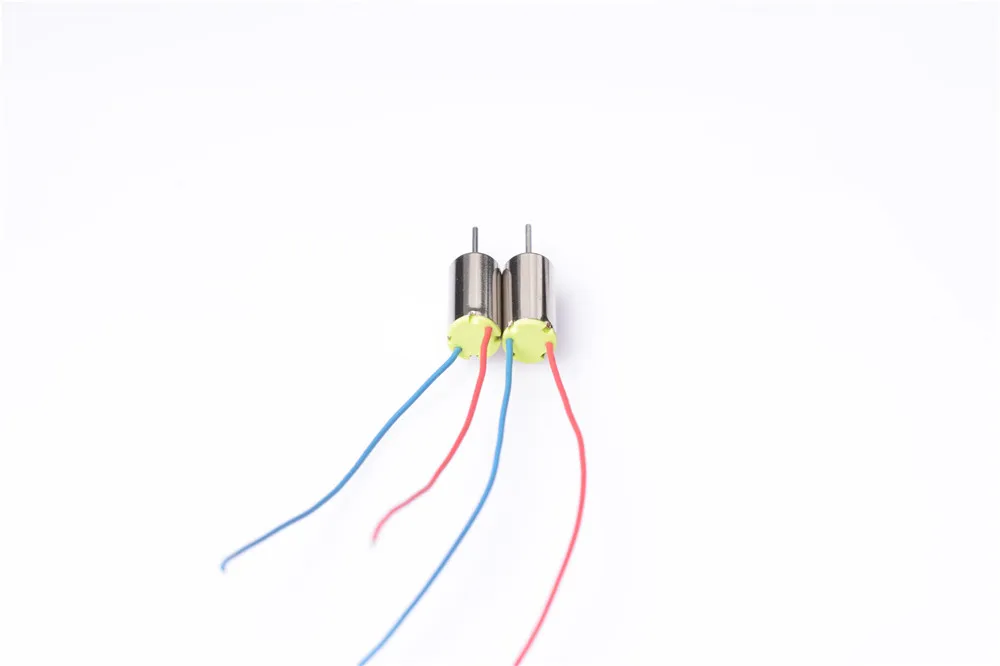

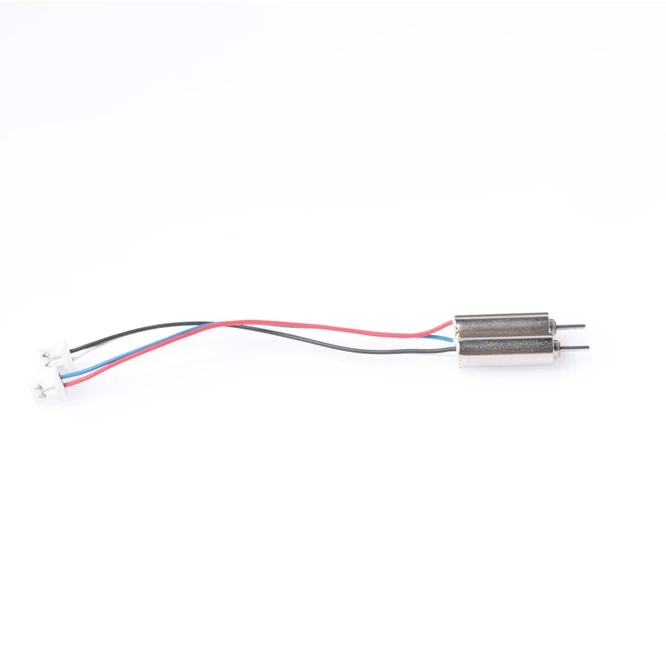

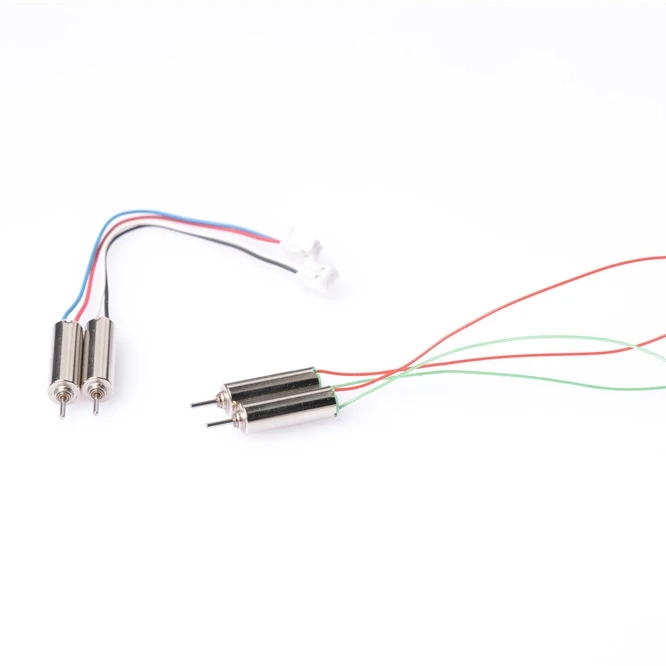

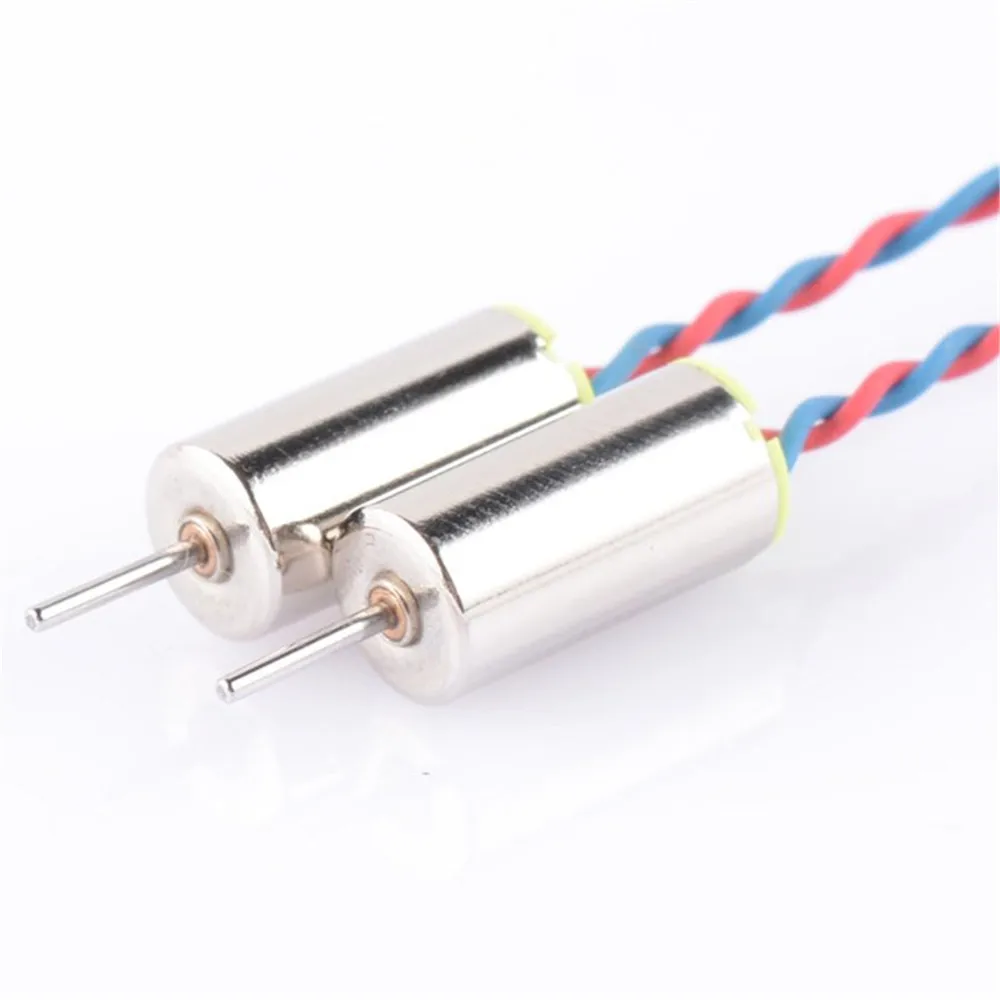

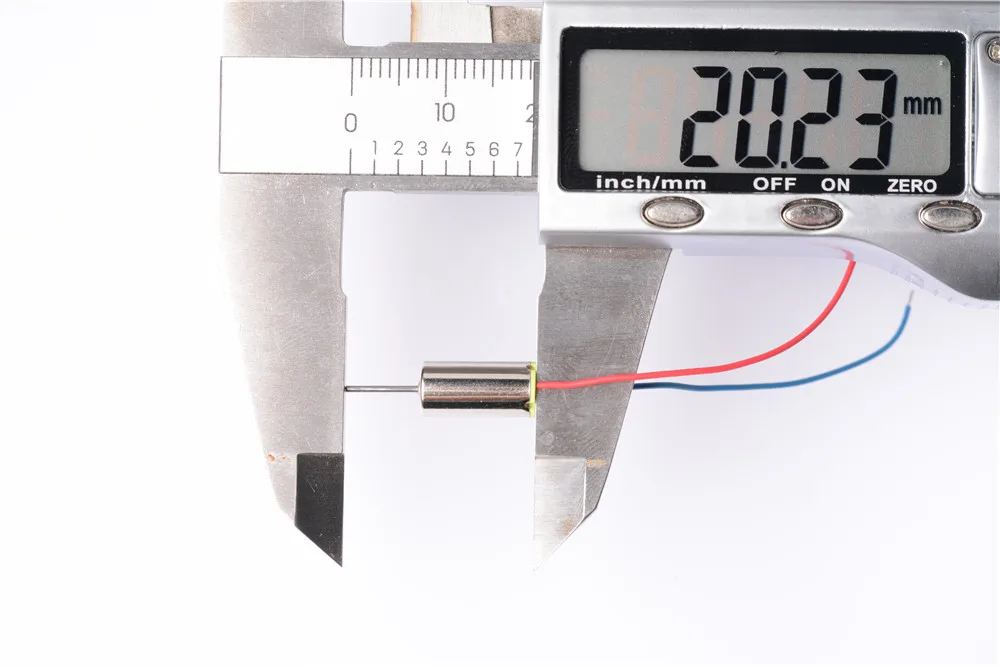

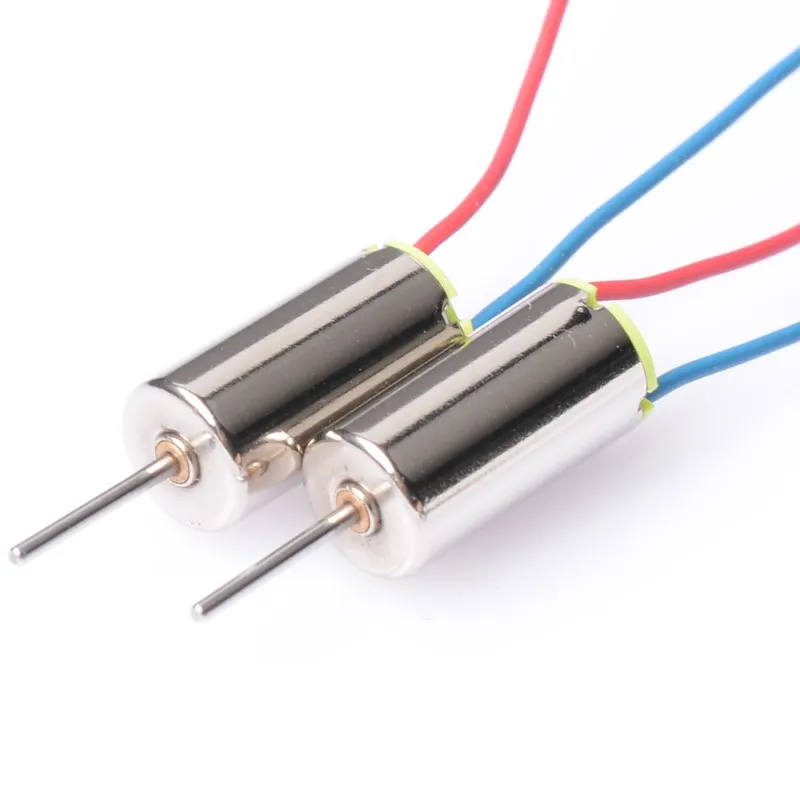

Product Show
Shipping & Packing
Packaging Details:
Polystyrene / Hard paper box / water proof layer
We have reliable resources to assure safe transportation to customers.
FAQ
Q: Sometimes I don't know the exact required parameter，how can I choose a suitable model?
A: We will make some suggestion if you provide your specific requirement on size and performance. Or send us samples or application directly. Then we will make full assessment accordingly.
Q: Can I get some samples first? How soon can I get the samples?
A: Yes, we can make samples, usually 3-10 days is possible to send out.
Q: Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation and confirm if we can arrange or not.
