Распродажа плавающей сухой док станции 5000MT

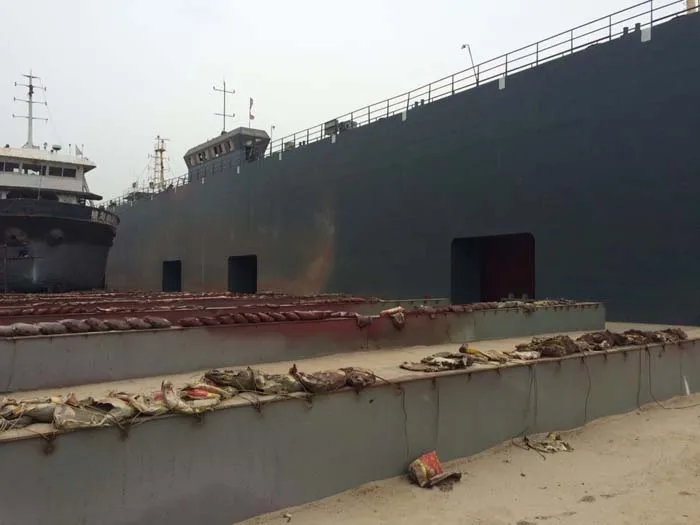

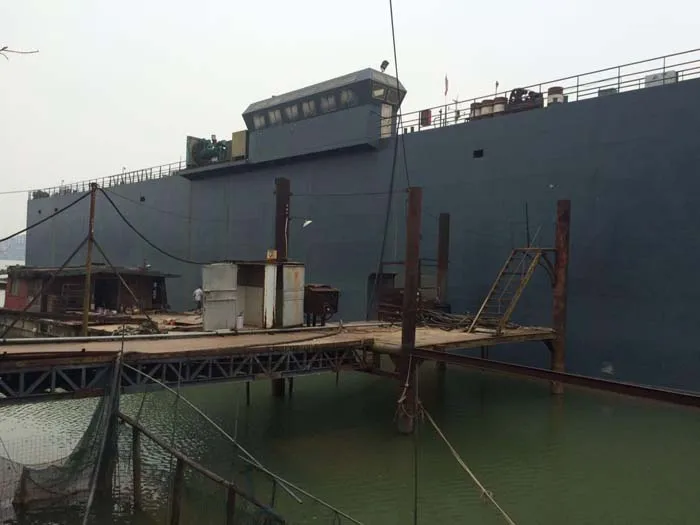

5,000 mt LT floating dry dock

Built: 2014, China

Flag:  China

Class: ZC (vessel designed as per CCS rules), Coastal Area

       Can be accepted by other NON-IACS class.

Steel plates: CCSA Marine Steel plates with CCS approval.

LOA: 110.0m

Breadth: 29.0m

Inner Breath: 25.0m

Working draft: 2.5m

Max Depth: 14.8m

Max Draft: 6.3m

Height of Keel Blocks: 0.9m

Height of Pontoon (midline/side): 3.0m/2.8m

Max design lifting capacity: 5,000 mt

(but tested max lifting during operating is up to max 7,500mt)

Diesel Generator Engine: Cummins 1,100Kw

Ballast pumps: Boyang Pump, 30sets x 300cbm/H (Qualified Famous Brand in China)

FIFI pumps, life-saving equipment fixed as per class rules

Anchors, Winches, towing gears fixed

Centre Console

Inclination, deflection measuring, and alarm

Ballast pumps remote control

Broadcast

Crew: 10 P
