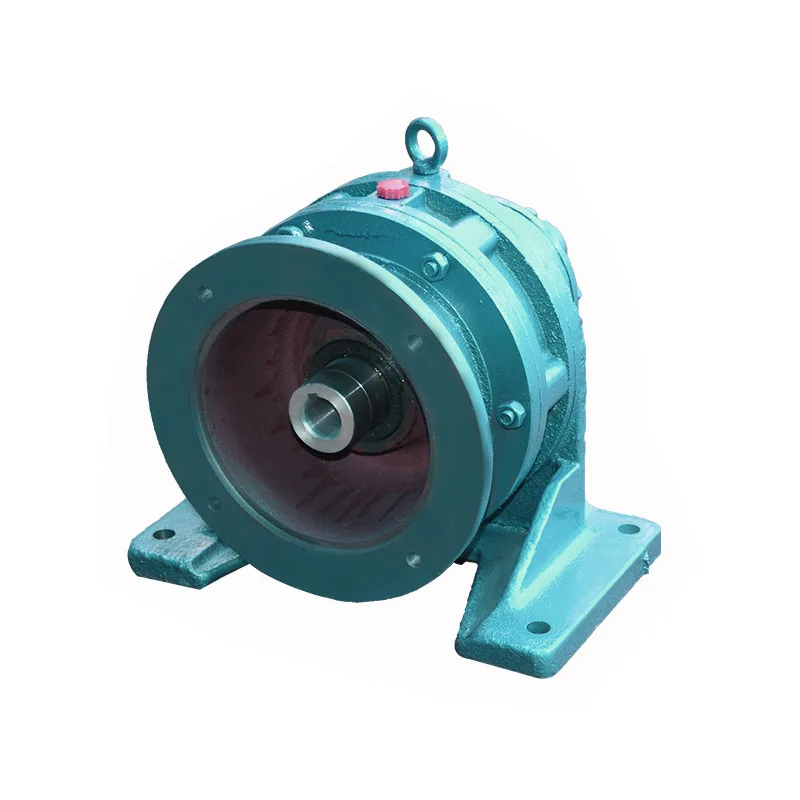

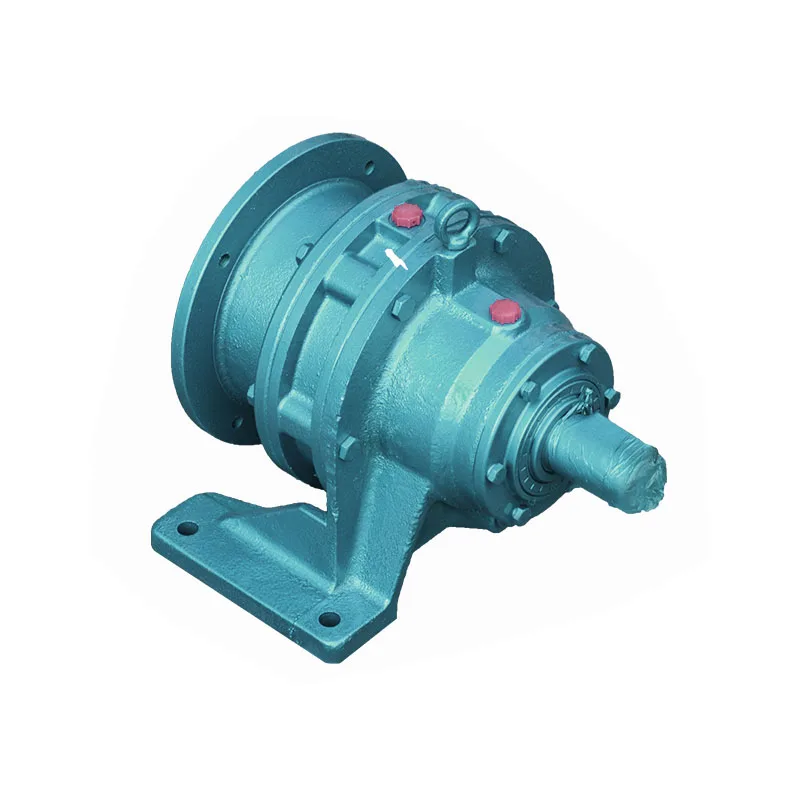

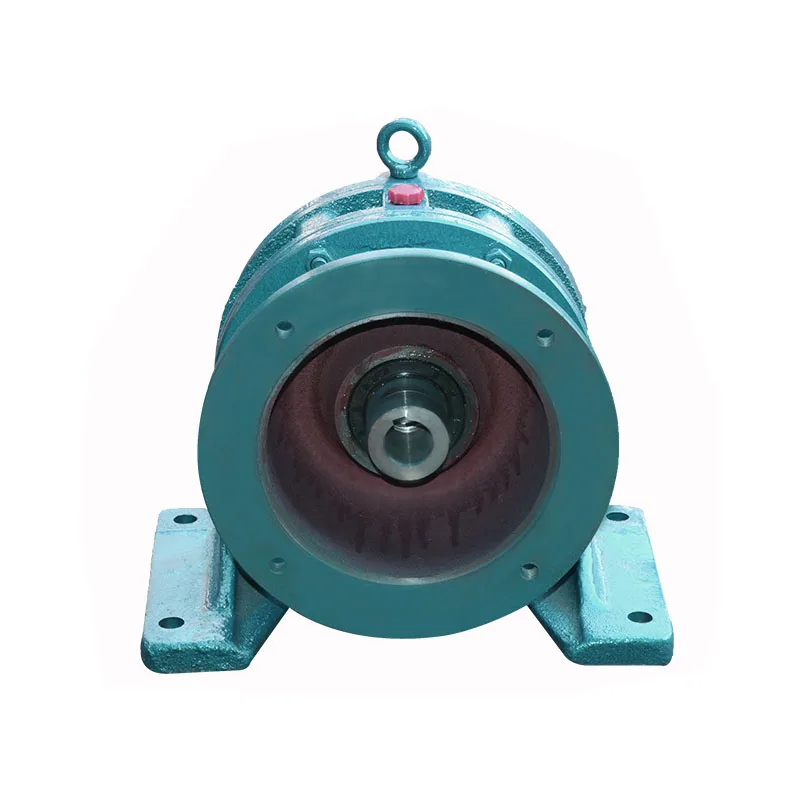

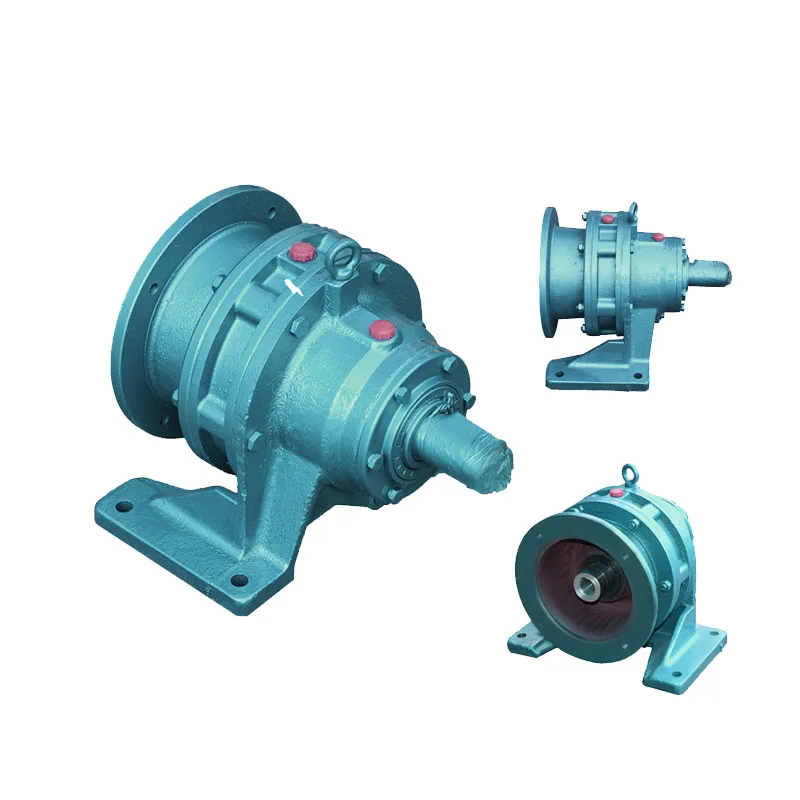

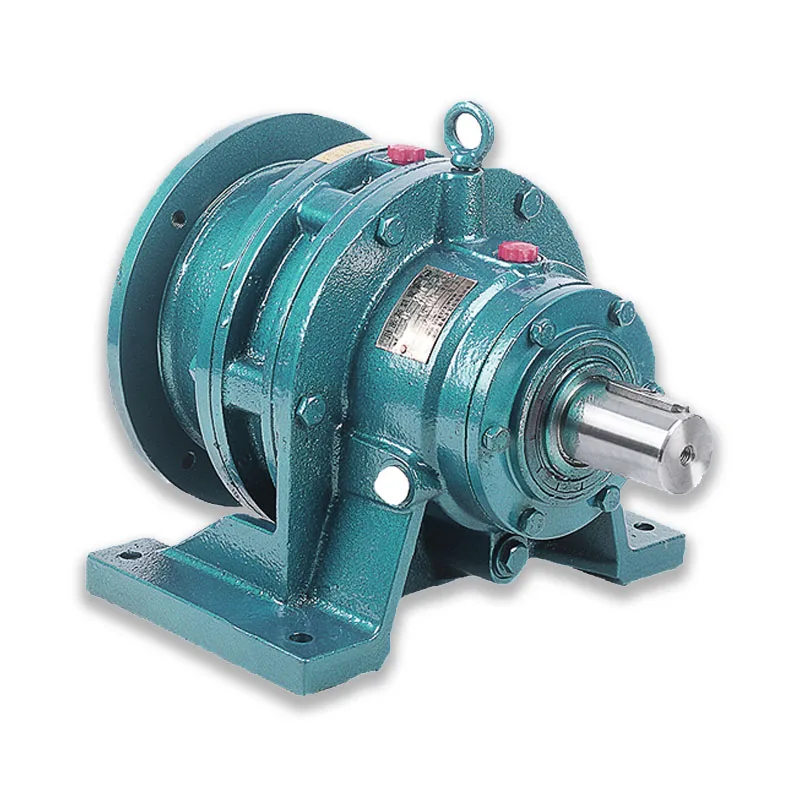

8000 series cyclo sumitomo type cycloidal gearbox servomotor gearbox agricultural transmission gearbox automatic transmission
- Category: >>>
- Supplier: Hangzhou Xinlan Technology Co. Ltd.
Share on (62595399167):
Product Overview
Description
Product Description

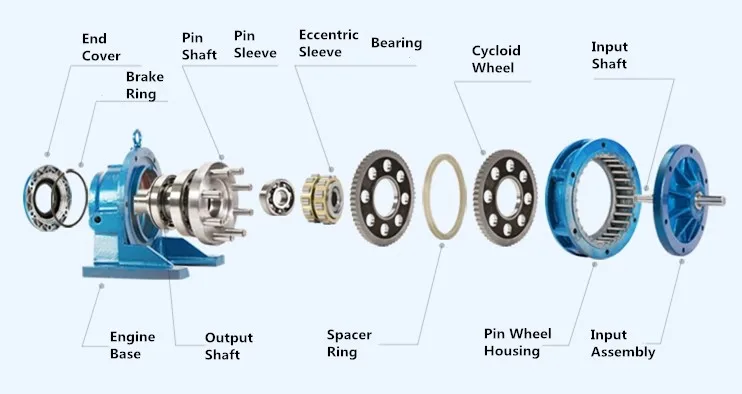

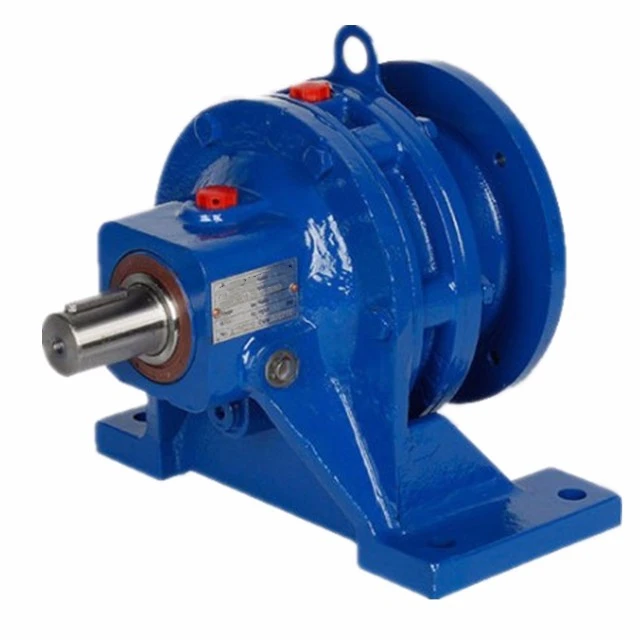

Cycloidal Pin Wheel Reducer
Cycloidal gear reducer has solid shaft output, hollow shaft output and contract disk hollow shaft output,which can be installed horizontally , vertically. Cycloidal Gearbox is made of high strength quality alloy steel through quenching and possesses high efficiency and long life gear .Othermore,Cycloidal gear reducer can bear large axial and radial load.Features is low in run noise, high in reliability, compact and so on.
Product Application
Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission has many advantages, versatile, and can be both positive and negative operation.
Perfect for the machinery and equipment of following industry:
• Power Plant Equipment
• Metallurgical Industry
• Metal Forming Machinery
• Petrochemical Industry & Mining Machine
• Hoisting Machinery
• Construction Industry
• Environmental Protection Industry
• Cable Industry
• Food Machinery
Product Feature
• Single stage drive with reduction ratio 1:87, high effciency.
• Input shaft and ourput shaft are in the same axis, so it's compact in structure. .
• Cycloid gear with high overlap coefficient, steady the machine and lower the noise.
• The reducer is made by bearing steel, it's has a long sevice life.
Cycloid reducer is a cycloid needle teeth meshing planetary transmission principle drive models, is an ideal transmission has many advantages, versatile, and can be both positive and negative operation.
Perfect for the machinery and equipment of following industry:
• Power Plant Equipment
• Metallurgical Industry
• Metal Forming Machinery
• Petrochemical Industry & Mining Machine
• Hoisting Machinery
• Construction Industry
• Environmental Protection Industry
• Cable Industry
• Food Machinery
Product Feature
• Single stage drive with reduction ratio 1:87, high effciency.
• Input shaft and ourput shaft are in the same axis, so it's compact in structure. .
• Cycloid gear with high overlap coefficient, steady the machine and lower the noise.
• The reducer is made by bearing steel, it's has a long sevice life.
X1 | X2 | X3 | X4 | X5 | X6 | X7 | X8 | X9 | ||||||||||
B09 | B0 | B1 | B2 | B3 | B4 | B5 | B6 | |||||||||||
Output Torque N.M | ||||||||||||||||||
Speed Ratio | Input Speed 1500 rpm | 1000 rpm | ||||||||||||||||
11 | 26 | 48.3 | 141.7 | 257.6 | 483.0 | 708.3 | 965.9 | 1787.0 | 2125.1 | |||||||||
17 | 40 | 74.6 | 149.3 | 398.1 | 746.4 | 1094.7 | 1492.8 | 2761.8 | 3284.3 | |||||||||
23 | 27 | 53.9 | 202.0 | 296.2 | 740.5 | 1481.8 | 1481.8 | 3736.5 | 3736.5 | |||||||||
29 | 34 | 67.9 | 186.7 | 373.5 | 933.7 | 1867.4 | 1867.4 | 2546.5 | 4711.3 | |||||||||
35 | 41 | 82 | 225.4 | 307.4 | 819.6 | 1536.7 | 2253.8 | 3673.4 | 5686.5 | |||||||||
43 | 50 | 100.7 | 151.0 | 377.6 | 755.2 | 1384.5 | 1887.9 | 2768.9 | 3775.8 | |||||||||
59 | 207.2 | 380.0 | 759.9 | 1381.5 | 1899.6 | 2590.4 | 3799.3 | |||||||||||
71 | 166.3 | 332.5 | 623.5 | 1246.9 | 1662.5 | 2286.0 | 4572.0 | |||||||||||
87 | 280.1 | 764.0 | 1120.5 | 2037.2 | 2037.2 | 7639.5 | ||||||||||||
THICKENING BASE
The box body is made of HT200 material,which is cleaned by professional screening and washing equipment to ensure that the inner cavity of the box body is cleaner without iron filings.

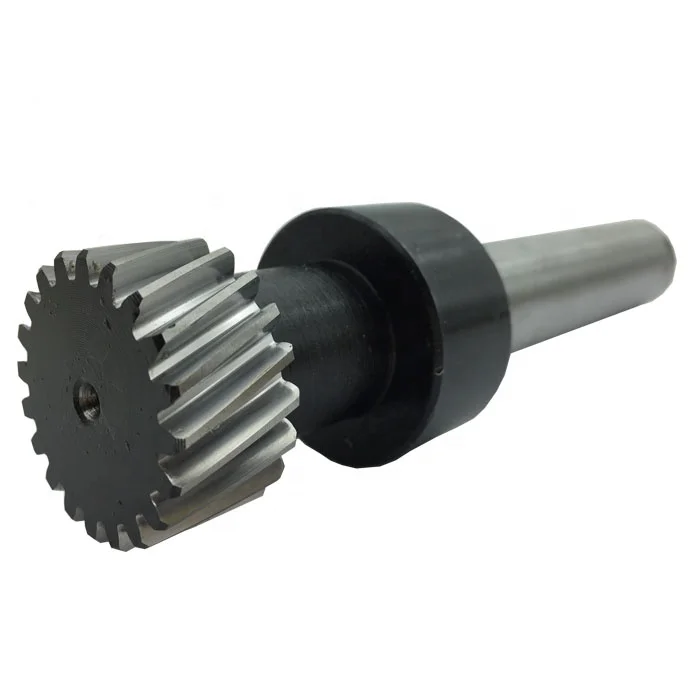

REDUCER SHAFT
New national standard shaft.
Multi-precision machining, through strict dynamic and static balance test procedures, to ensure the reducer running low noise, balance smooth.

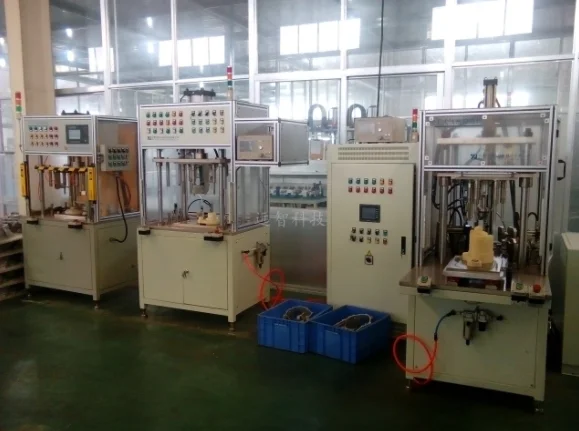

PROFESSIONAL AIR TIGHTNRSS TEST
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Cycloid wheel
The cycloid wheel hardened bearing steel,
high strength, long service life of the rolling friction contact parts adopt.
PRODUCT CHARACTERISTICS
High Speed Ratio and High Efficiency
Single-stage transmission can achieve a deceleration ratio of 1:87, and the efficiency is over 90%. If multi-stage transmission, the deceleration ratio is larger.
Compact structure and small volume
Because the planetary transmission principle is adopted, the input shaft and the output shaft are on the same axis, so the structure is compact and the volume is small.
Smooth operation and low noise
Cycloidal pin teeth have many meshing teeth, large overlap coefficient and smooth mechanism, which limits vibration and noise to a minimum.
Reliable use and long service life
Because the main parts are bearing steel, high strength is obtained by quenching treatment (HRC58-62), and rolling friction is used in some transmission contacts, which is durable and has long service life.
Products Description

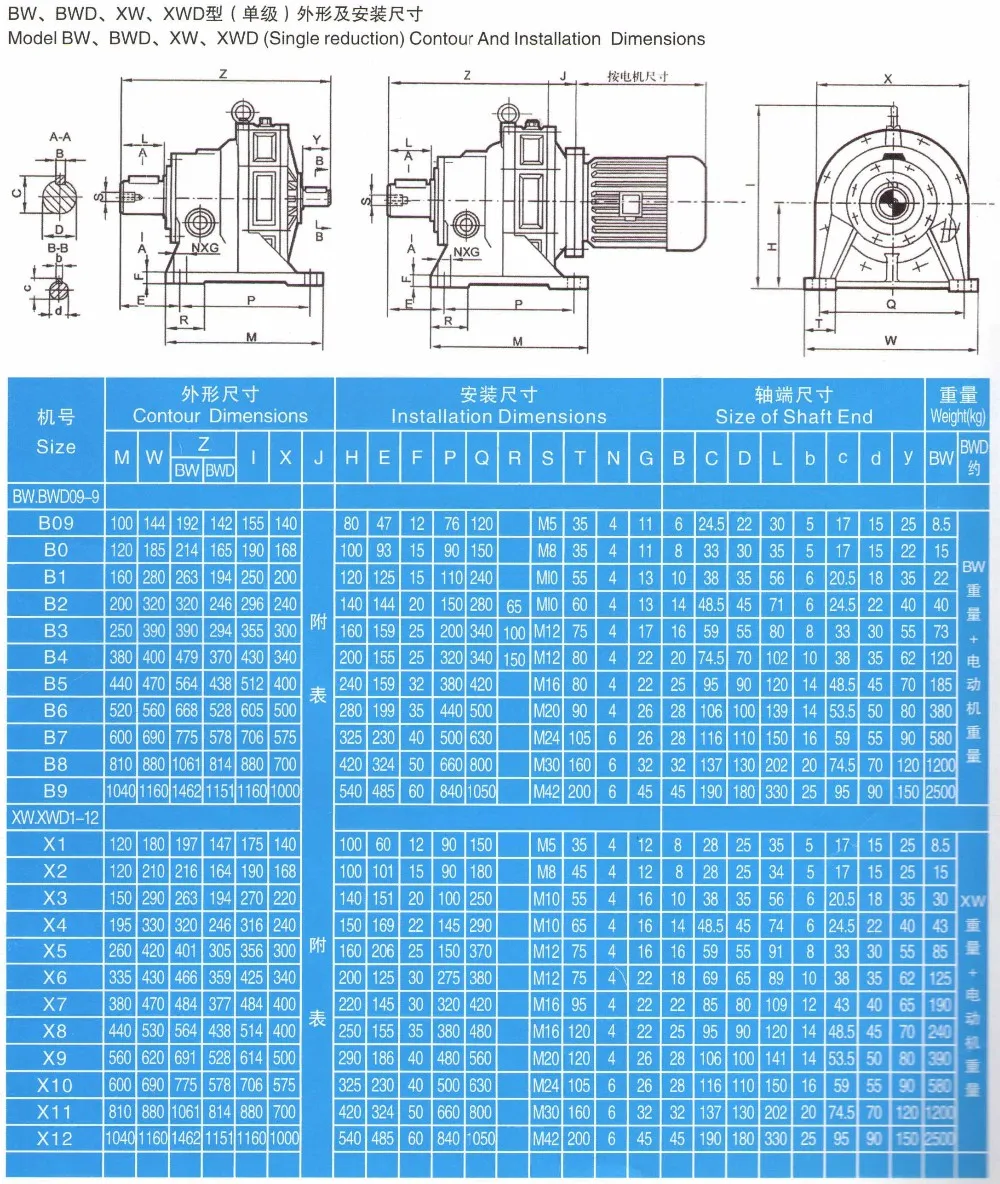

BWD Series Cycloidal Gear Speed Reducer with AC Motor
BWD0 BWD1 BWD2 BWD3 BWD4 BWD5 BWD6 BWD7
XWD0 XWD1 XWD2 XWD3..........
BLD0 BLD1 BLD3 BLD4 BLD5 BLD6 BLD7
XLD0 XLD1 XLD2 XLD3......
WITH OR WITHOUT MOTOR DEPENDS ON YOUR REQUIREMENT
Quick Details:
X,B series cycloidal reducer motor planetary transmission principle is an application ,using cycloid meshing , advanced design, novel structure of the reduction gear. This gear has been replaced in most cases two , three ordinary cylindrical gear reducer and cylindrical worm reducer, in the military , aerospace, metallurgy, mining , petroleum, chemicals, shipbuilding, light industry, food, textile, printing and dyeing , pharmaceutical, rubber, plastics, and lifting transport and other aspects of an increasingly wide range of applications.
Advantages
High speed ratio and efficiency
Single stage transmission can reach to 1:87 of speed-down ratio and the efficiency is more than 90%. If use multi-speed drive the speed-down ratio is bigger.
Compact
Being adapted epicyclic transmission principle, the input and output shaft are at same axis center, it is compact.
Smooth and stable run and low noise
The cycloidal pinwheel has more meshed teeth, the overlapping coefficient id big and the machine part is stable, the vibration and noise is limited at the minimum content. Reliable in operation and long life
Because the main parts are made of bearing steel through quenching treatment(HRC58-62), it got high strength. Meanwhile the transmission contact of part adapts rolling friction, so it is durable and long life.Because of reasonable in design, convenient in maintenance, easy to disassemble and assemble, the minimum amount of part and simple lubrication, so it is trusted by customers deeply.
Type | Cycloidal-Pin Gear Speed Reducer |
Input Speed | 1400-1500rmp |
Output Speed | 14-280rpm |
Certification | ISO9001 CE 3C Ex |
Power | 0.18-132KW |
