Factory Direct UCR T1650D Automatic Pallet Wrapper with Top Press For Sale
- Category: >>>
- Supplier: Qingdao Youchuang Packaging Equipment Co. Ltd.
Share on (62595513890):
Product Overview
Description
Product Description
Our range of pallet wrappers includes base models through to fully automatic pallet wrappers with scales and multiple pre-set programs. Pallet wrappers in dispatch operations significantly increase output and with more securely wrapped pallets, the likelihood of damaged in transit is reduced.

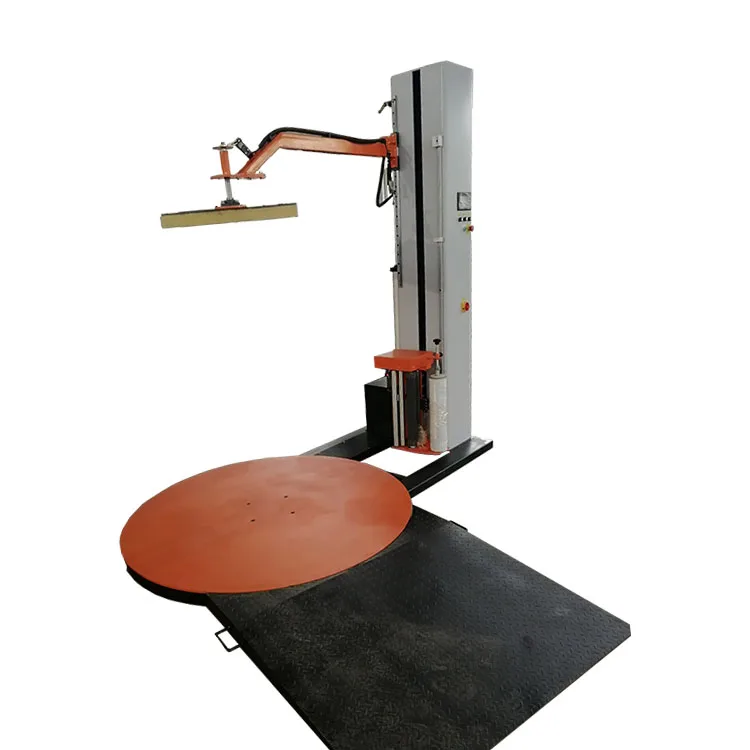

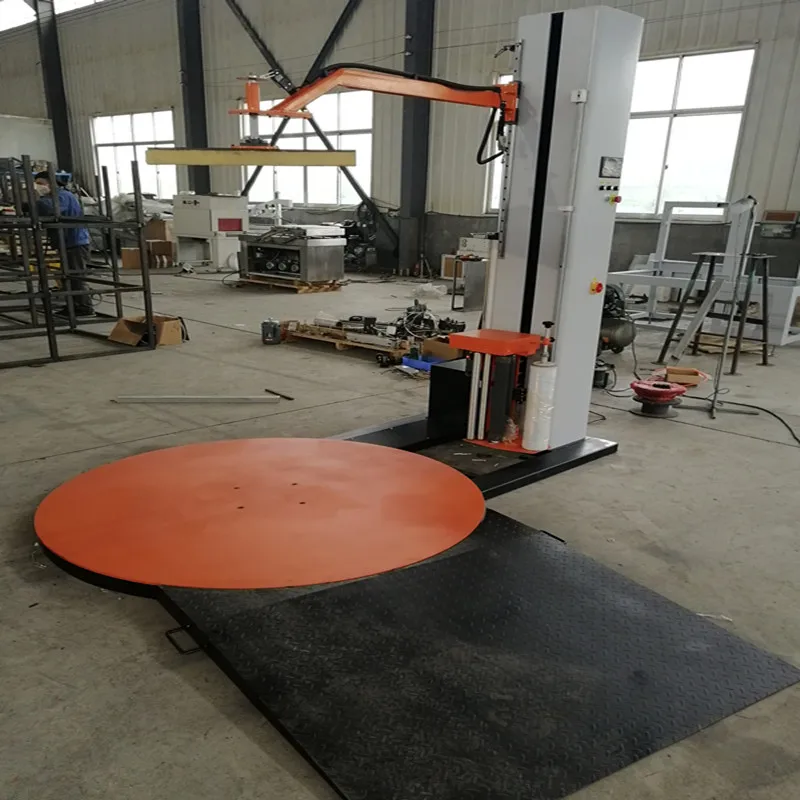

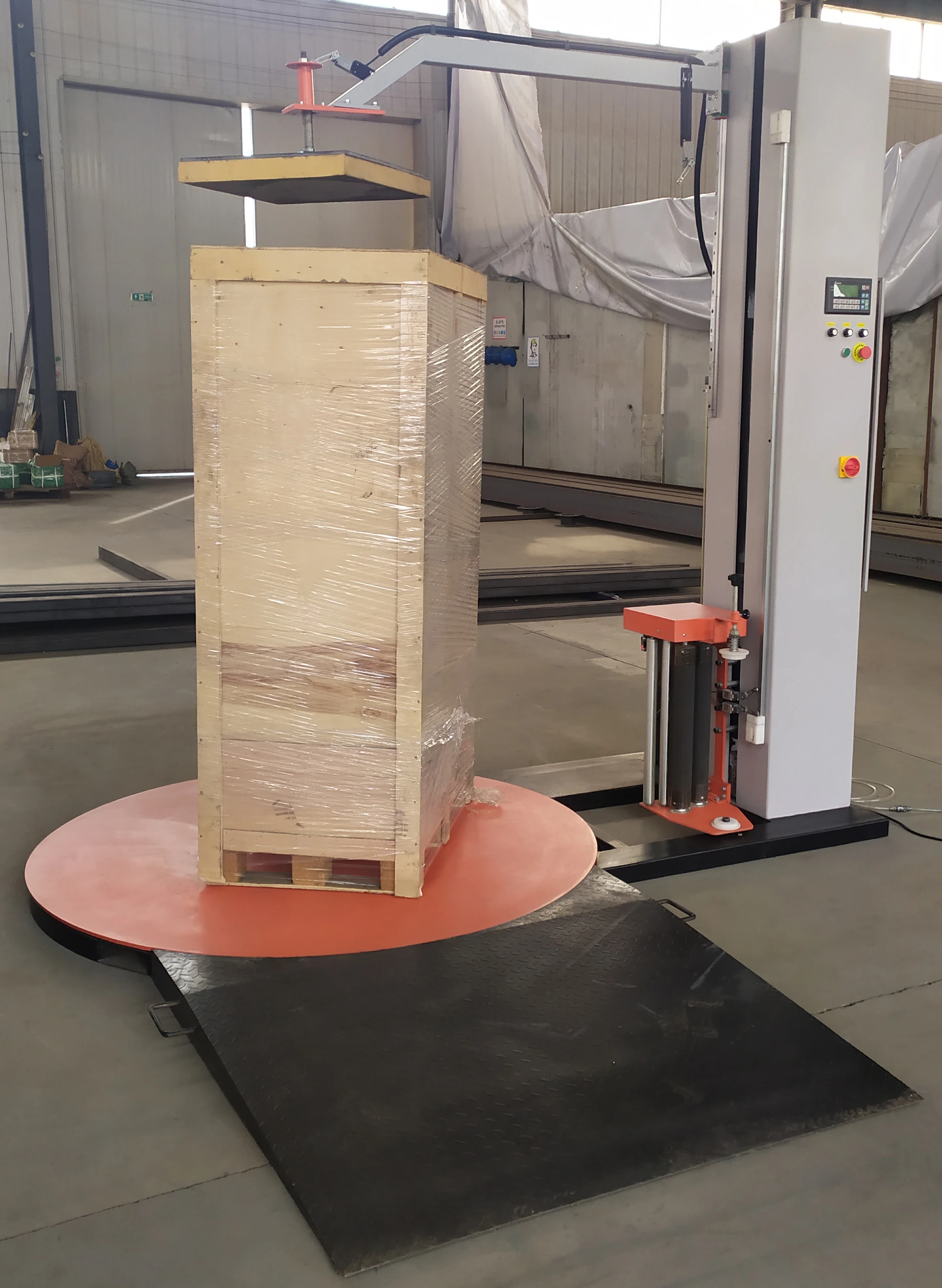

This UCPACK UCR-T1650D pallet stretch wrapper comes standard with photocell load height detector, a choice of standard or automatic modes, soft start /stop mechanism and top plate driven by electric or pneumatic provide extra pressure for light weight loads/loose loads preventting collapsing in the process of wrapping. Also available is the Loading Ramp to enable easy loading of pallets onto turntable.

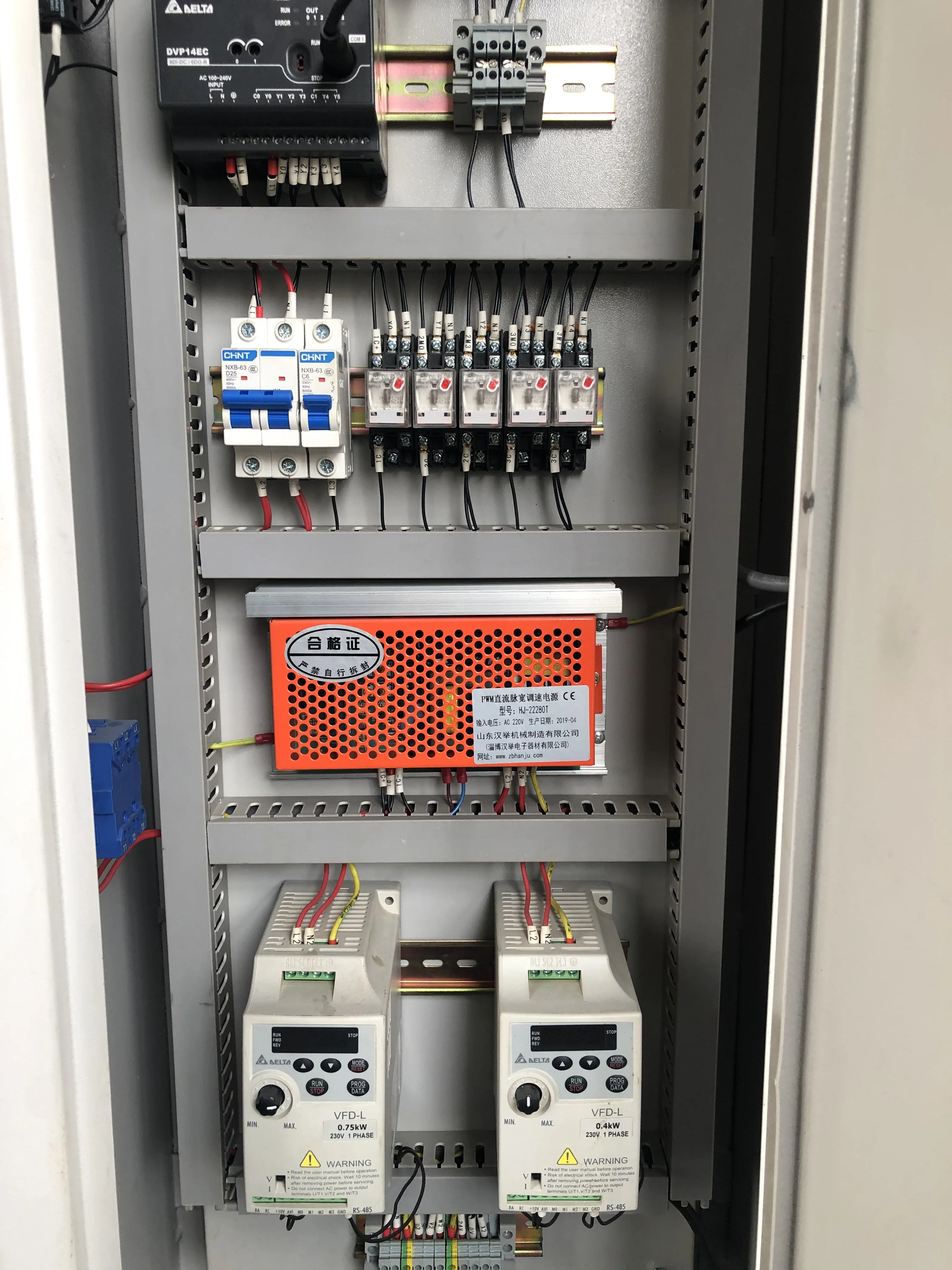

Detailed Images
Specifications
Model | UCR-T1650D |
Load weight max | 2000kg |
Pallet height max | 2000mm |
Turntable size | Diam:1650mm; Height:85mm |
Turntable speed max | 12rpm |

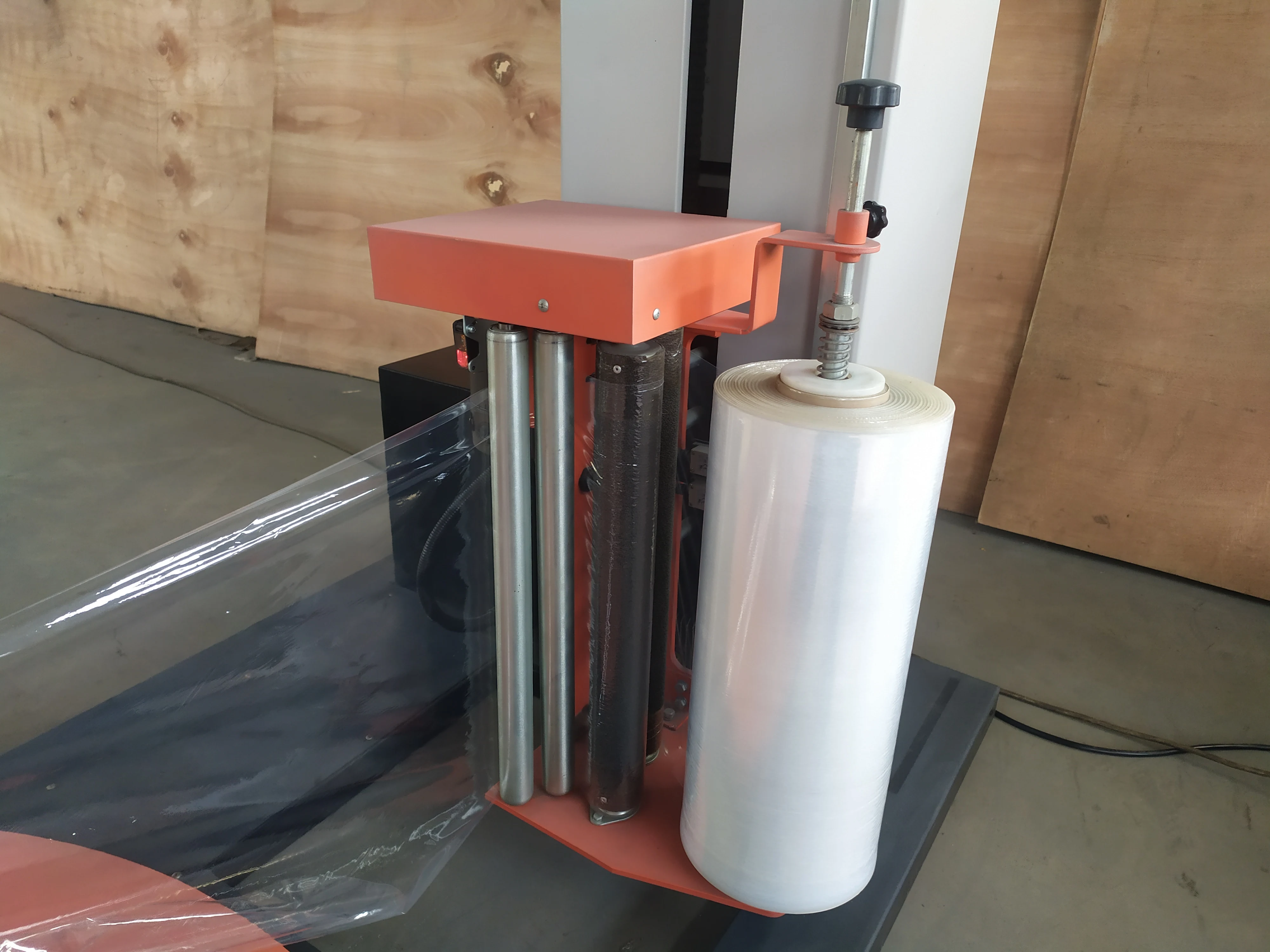

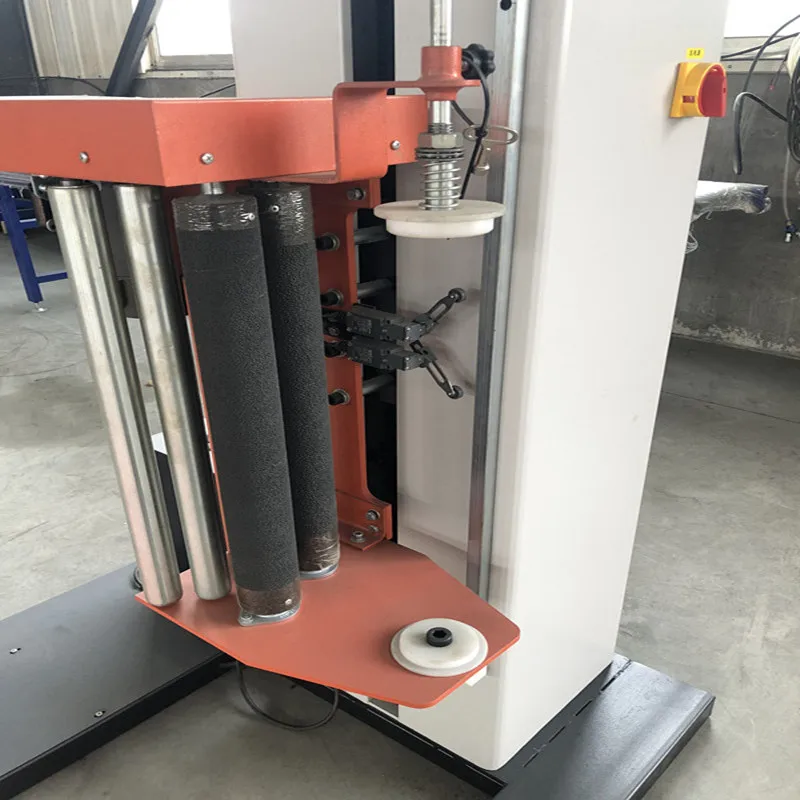

Pre-stretch rate | 250% |
Wrapping efficiency | 25-35 loads/h |
Top plate size | 500mm*500mm |
Top plate driven type | Electric or pneumatic |
Film width | 500mm |
Film roll diameter max | 250mm |
Film core diameter | 76mm |
Voltage | 220V 50/60Hz single-phase |
Power | 1.5kw |
Machine size L×W×H | 2550mm×1650mm×2460mm |
Machine weight | 600kg |
Main Features
Affordable to buy and maintain;

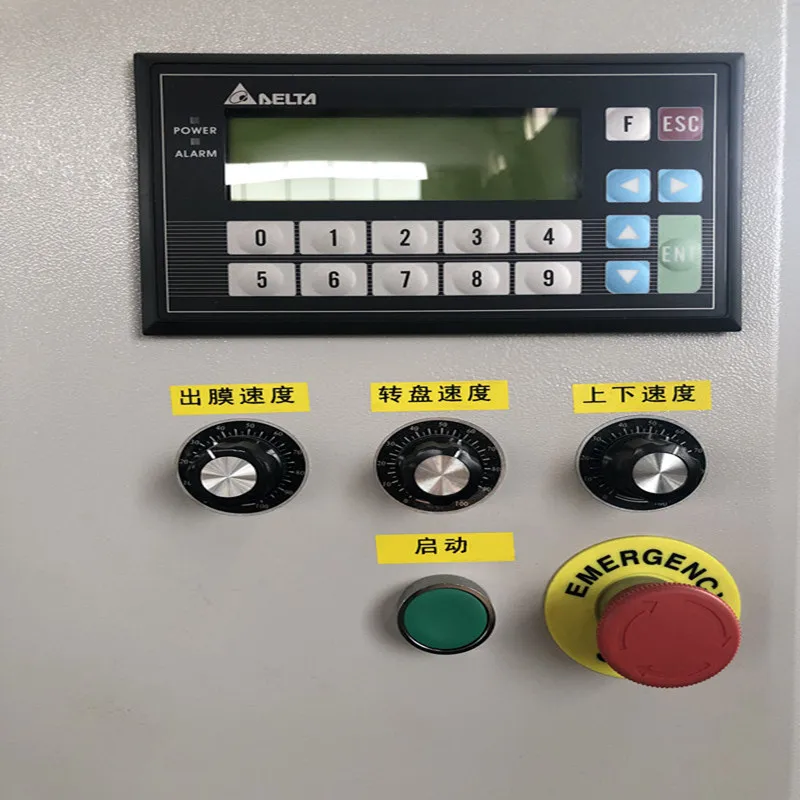

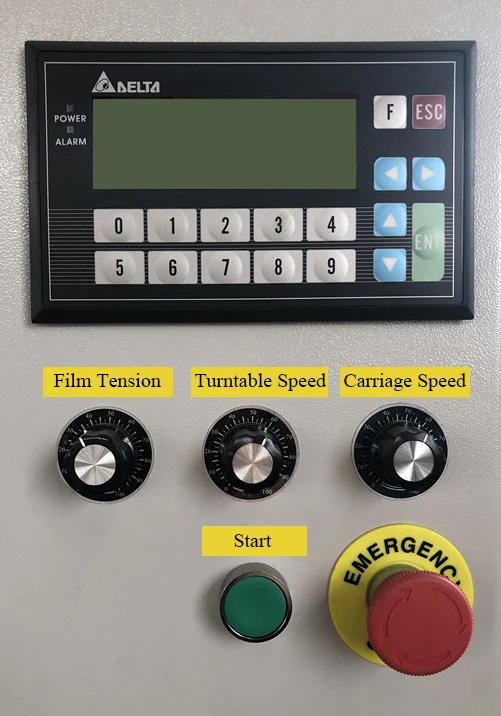

Simple to operate: In Automatic wrapping mode, simply specify the reinforcing wraps as required at the top or bottom or both, adjust the film carriage speed and the turntable speed then press the start button; And in manual wrapping mode, switch to another page on the screen, each press of the screen button alternatively raises or lowers the film carriage;
Soft start and start;
Film carriage always stops at the same home station.
Photo electric eye senses pallet height in auto mode with Limit switch for extra security assurance.
Trouble shooting options display.

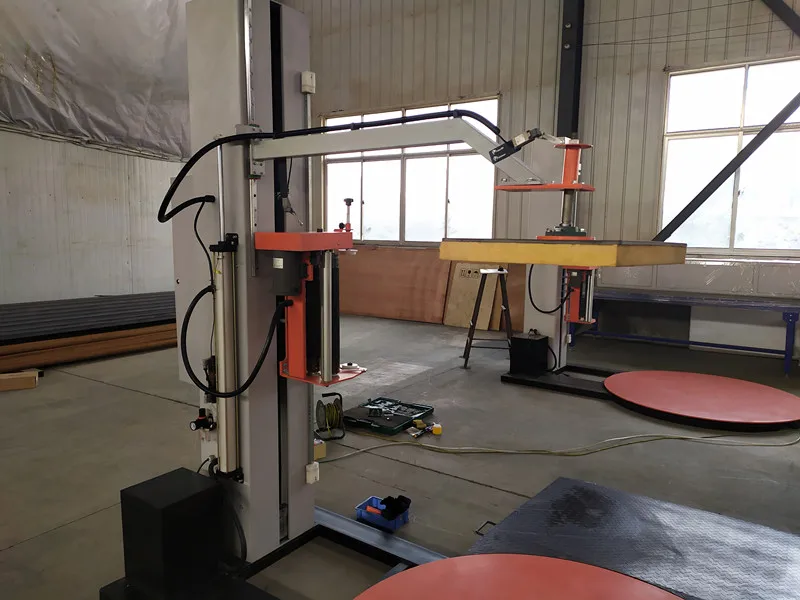

Top plate driven by electric or pneumatic provide extra pressure for light weight loads/loose loads preventting collapsing in the process of wrapping
Packing&Shipping
Packaging Details: Wooden case
Port: Qingdao Port
Our service
24/7 online support service;
One year warranty;
90% of replacement parts can be shipped for next day delivery;
Field installation available.
90% of replacement parts can be shipped for next day delivery;
Field installation available.
