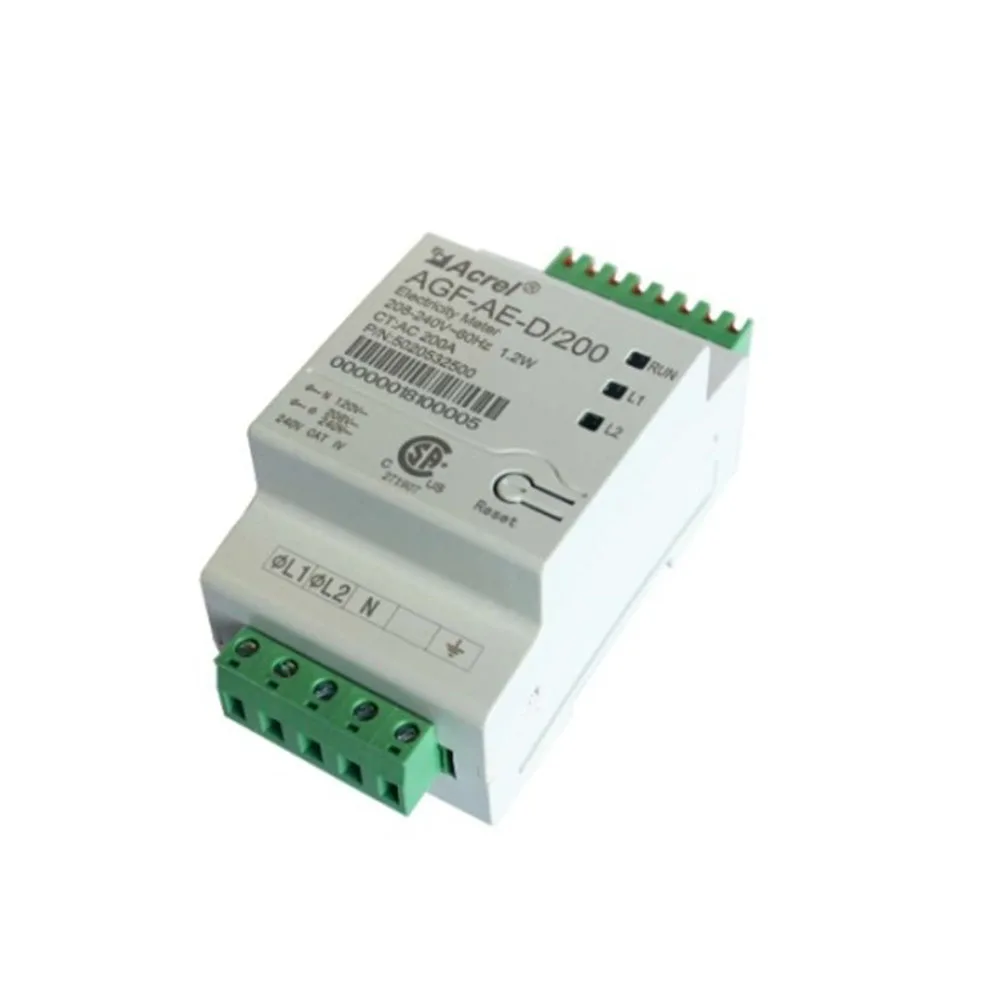

Acrel AGF AE D/200 solar system 2 phase 3 wire AC energy meter solar power monitoring

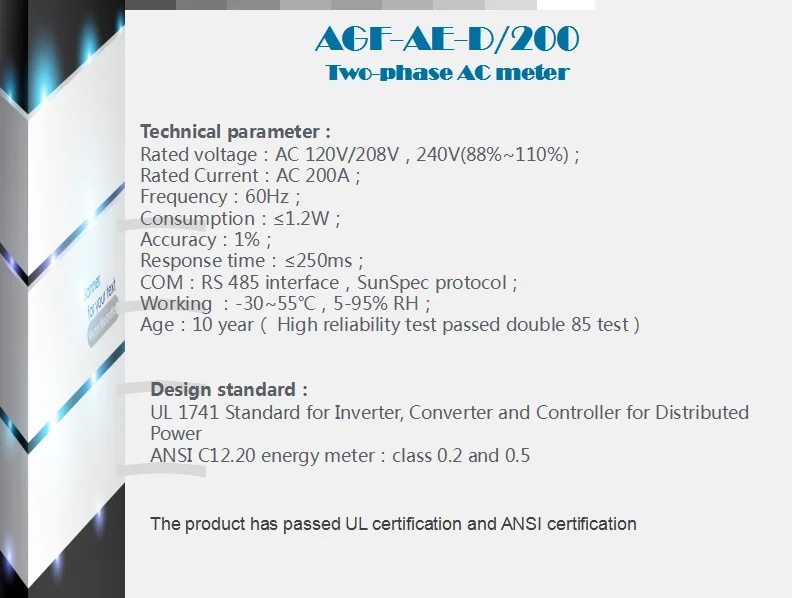

AGF-AE-D Series Two-phase AC meter

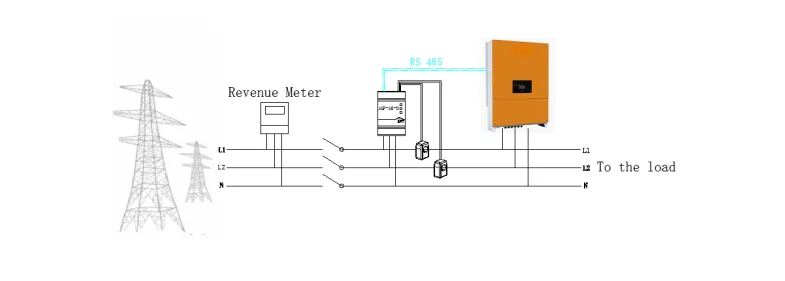

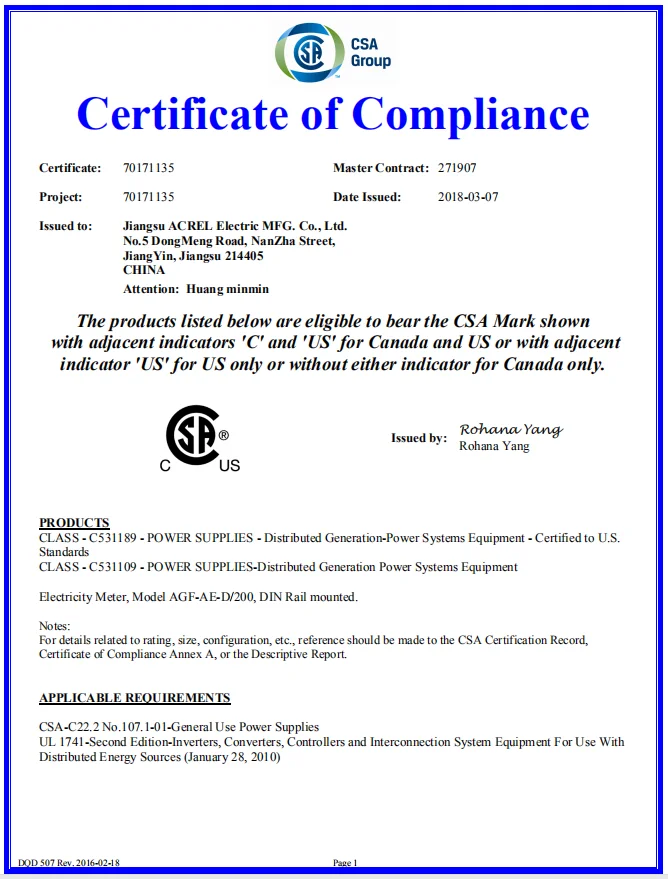

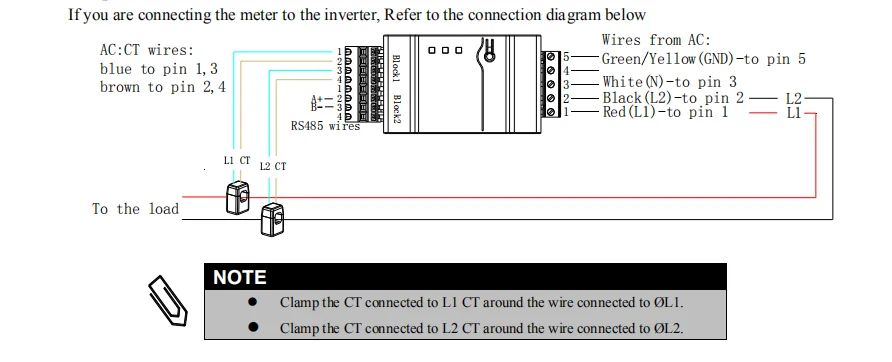

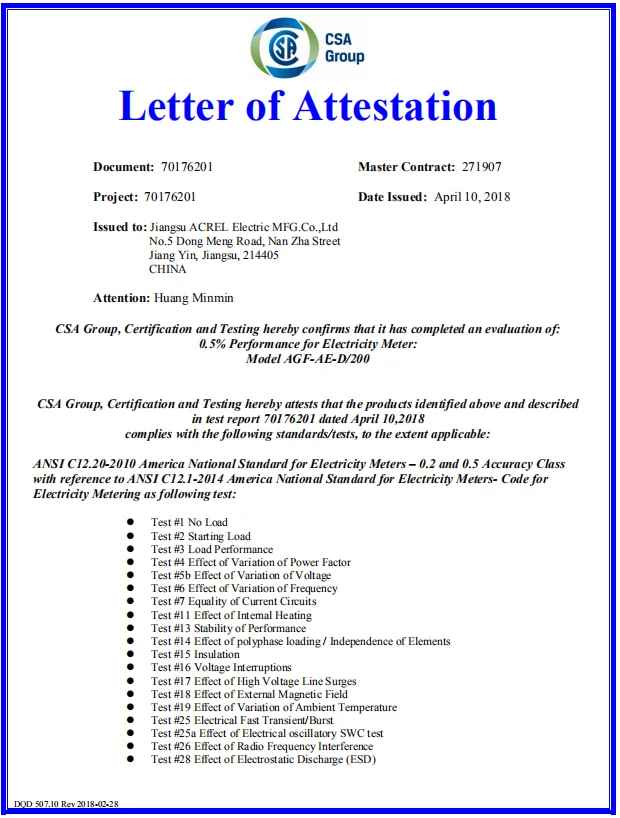

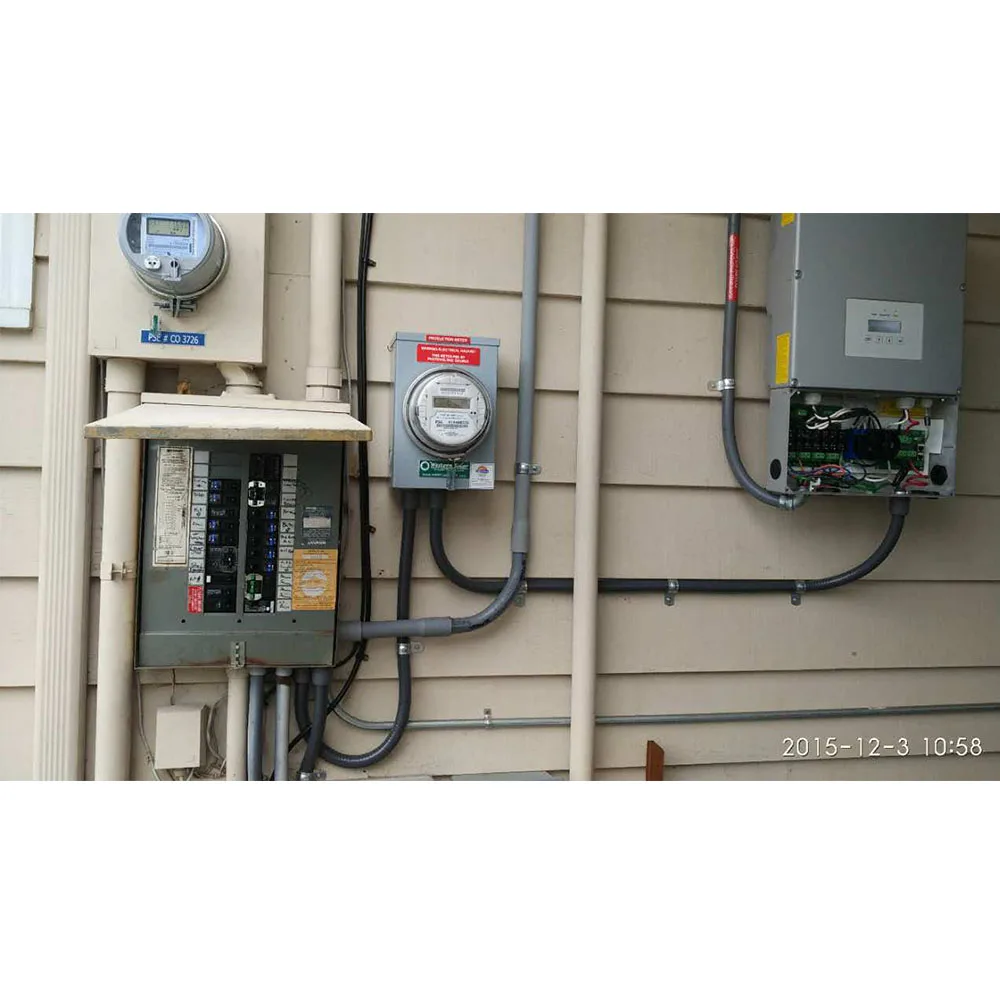

In a single inverter system, the meter is connected directly to the inverter . If your inverter has a built-in revenue grade meter (RGM; the inverter is referred to a revenue grade inverter), you can connect an external meter on the same bus on the RGM. This single phase 2 channel energy meter mainly used in inverters applied in Australia, Europe, North America and other areas with single phase 3 wire system. It is with RS485,SunSpec protocol.



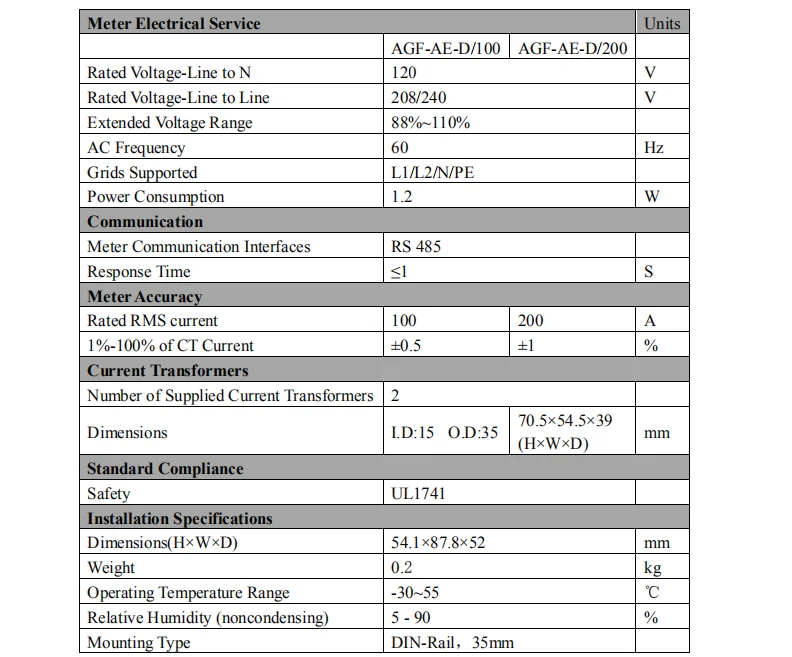

Type	Description

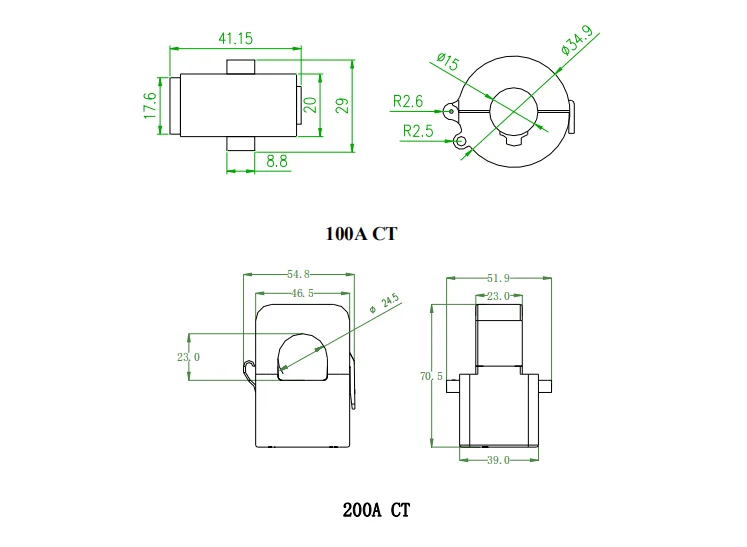

AGF-AE-D/100	1. power control for photovoltaic / energy storage system 2. full power measurement, like U, I, P, Q, S, kWh, kvarh, etc 3. high speed data refresh 4. din rail 35mm installed 5. easy install by 2 external split core current transformers 0-100A

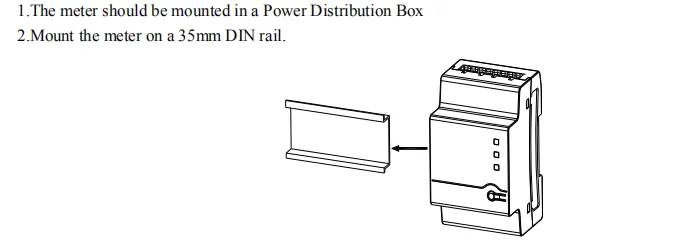

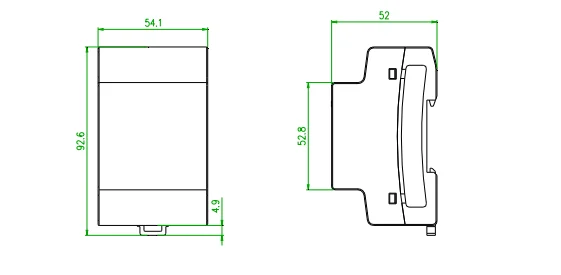

AGF-AE-D/200	1. power control for photovoltaic / energy storage system 2. full power measurement, like U, I, P, Q, S, kWh, kvarh, etc 3. high speed data refresh 4. din rail 35mm installed



Power Status LED

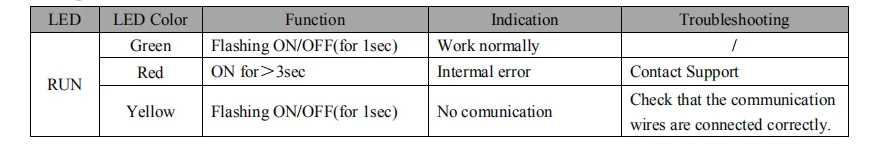

Phase Status LED
