Two way PA pendant speaker
- Category: >>>
- Supplier: Zhejiang Haoyuan Electronic Technology Co. Ltd.
Share on (62595538083):
Product Overview
Description
Product Description
Product Description ---- Pendant Speaker
This pendant speaker for ceiling mounted, we has two size, 5.25 inch and 6.5 inch.Their output power are 40W and 50W.
It is very suitable for public address system. Like hall, office, meeting room...etc.
And its 8 ohms version also very suitale for background music system.
This pendant speaker for ceiling mounted, we has two size, 5.25 inch and 6.5 inch.Their output power are 40W and 50W.
It is very suitable for public address system. Like hall, office, meeting room...etc.
And its 8 ohms version also very suitale for background music system.
Woofer | 6.5 inch (165 mm) Kevlar® R/ring mode decoupled cloth surround & steel basket |
Tweeter | 0.98 inch (25 mm) titanium dome, horn loaded |
Crossover Frequency | 2.5 kHz |
Impedance | 8 Ohms nominal with transformer set to “LoZ” |
Transformer Taps | 3.75W/7.5W/15W/30W/60W at 70V |
7.5W/15W/30W/60W at 100V | |
Frequency Response | 50 Hz to 20 kHz (±3 dB) |
Frequency Range | 40 Hz to 20 kHz (-10 dB) |
Power Handling | 125 Watts program (8 Ohms) |
Sensitivity | 88.5 dB @ 1W/1m |
Coverage | 100° conical (nominal) |
Connections | Maximum Wire Size: 12 AWG Speaker input with parallel pass-thru; 4-Pin Phoenix-Style Plug-In Connector; Maximum Wire Size: 12 AWG |
Controls | Used to select 70/100V tap or 8 Ohms (bypass) Transformer Tap: Recessed screwdriver-adjustable rotary switch on baffle; Used to select 70/100V tap or 8 Ohms (bypass) |
Environmental | Humidity: 5% to 95% RH (non-condensing) Temperature :-2° to 120°F (-19° to 49°C) |
Dimensions | Width: 9.92 in (252 mm) diameter Height: 9.53 in (242mm) |
Weight | 9.8 lb (4.5 kg) |
COMPANY
Our Products including: Amplifier, Ceiling Speaker, Horn speaker, Wall Speaker, Horn speaker, Driver Unit, Active speaker......such for Public Address System. And we also has other speaker for Background music system, like WIFI & BLUTOOTH ceiling speaker, wall speaker, wall mounting amplifer....
Pre-Sales Service
1. Inquiry and Consulting Support
2. Sample Testing support
- 3. View our Factory
- 4. Exhibition Every Year
After-Sale Service
- 1. Feedback From Our Customer
- 2. Fine The Problem
- 3. Find Soloution
Staff Details
Production Staff: | 150 |
QC Staff: | 9 |
R&D Engineer Staff: | 5 |
Site Advantages/Description

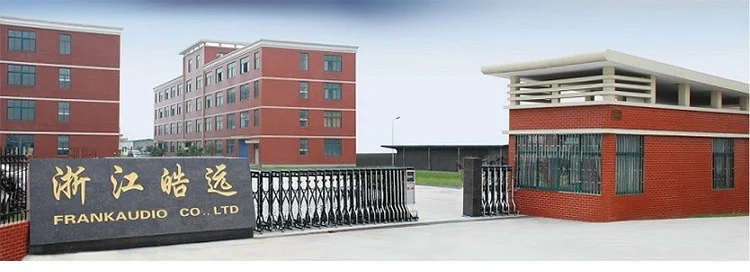

Our factory is conveniently located two to three hours from both the Ningbo And Shanghai ports, 30 minutes from the rail station, and one hour from the airport.
Factory OEM/ODM Capabilities
We accept OEM orders for all products and product lines, including design and manufacture of new models, logos and labels.
Factory production capable for per month :
Normal we produce for loudspeaker over 10k pcs for each month
Years of OEM Experience
18
Design Services Offered
yes
Details of Buyer Labels Offered
yes
Our Factory Was Established in 1999, we are a leading manufacturer of consumer electronic products in China. Using advanced equipment and technology, we specialized in the production of audio systems ,P.A Systems . We provide a full range of products such as speakers, megaphones, sirens, driver units, horn speakers, column speakers. And various of public address system In-ceiling in-wall speaker.
In currently, Our company products range have supply to EU.US and South-America Market.
And we have producing the all models with CE. RoHs compliant.

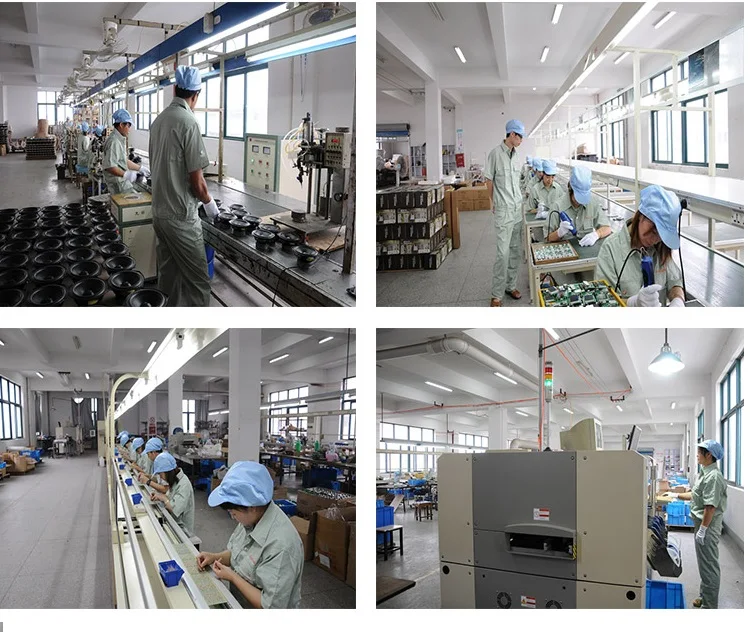

We guarantee delivery of your products within one month, although we can either expedite or delay your delivery upon request. Our services include production, shipping and all logistics. Our 10,000 square meter factory is equipped with advanced equipment. Our 150 experienced staff members work together seamlessly to bring you quality products.
We place a firm emphasis on continual innovation, excellence in production and dedication to customer service. Please do not hesitate to contact us with any inquires that you may have.
