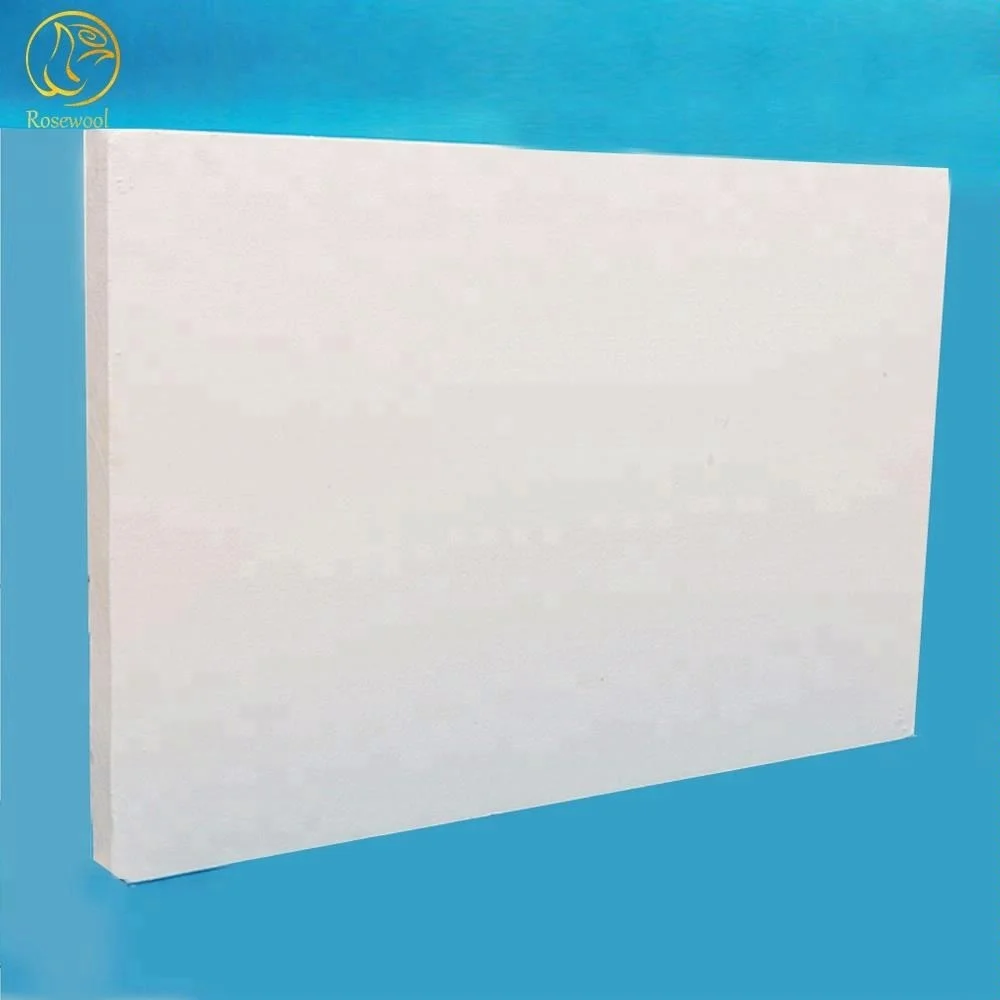

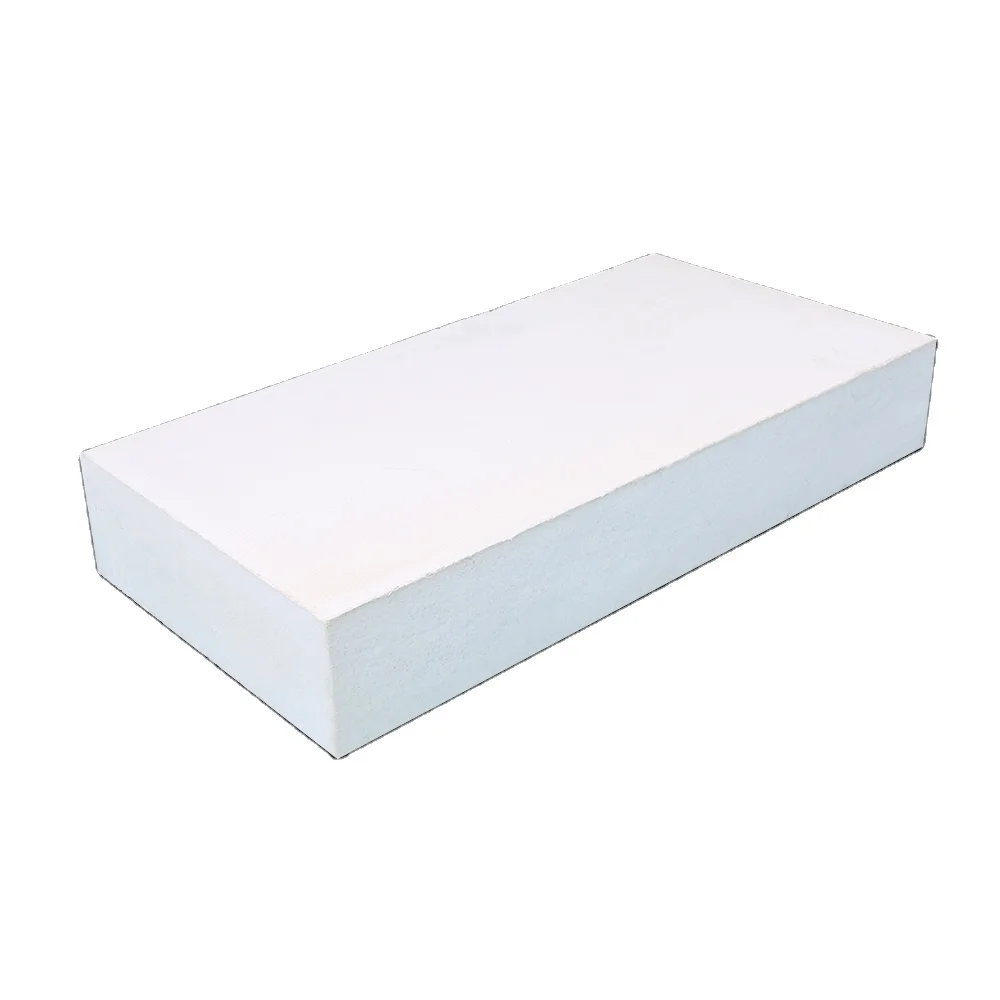

Самая дешевая звукоизоляция, керамическая волоконная плита для наружных стен, огнестойкая теплостойкая изоляция

Product Overview

Description

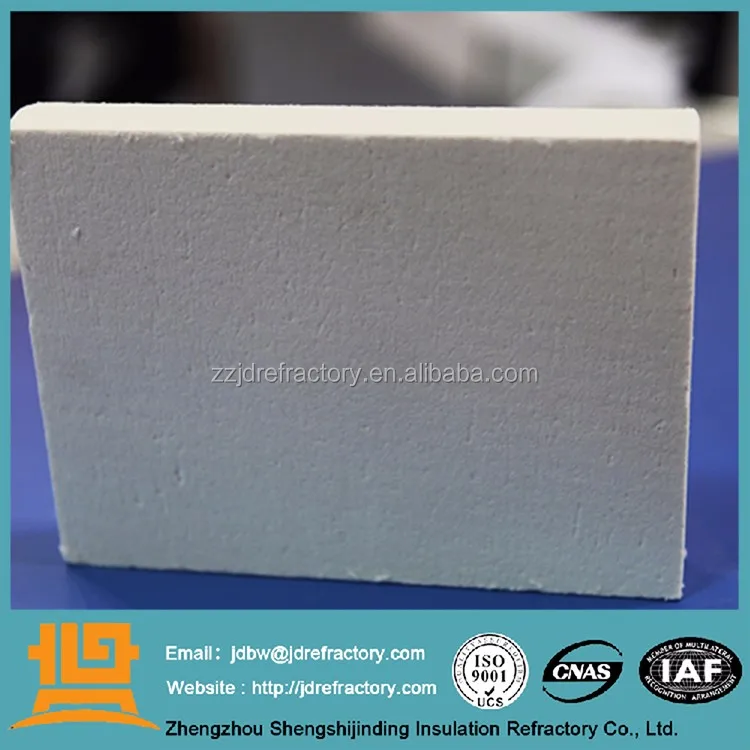

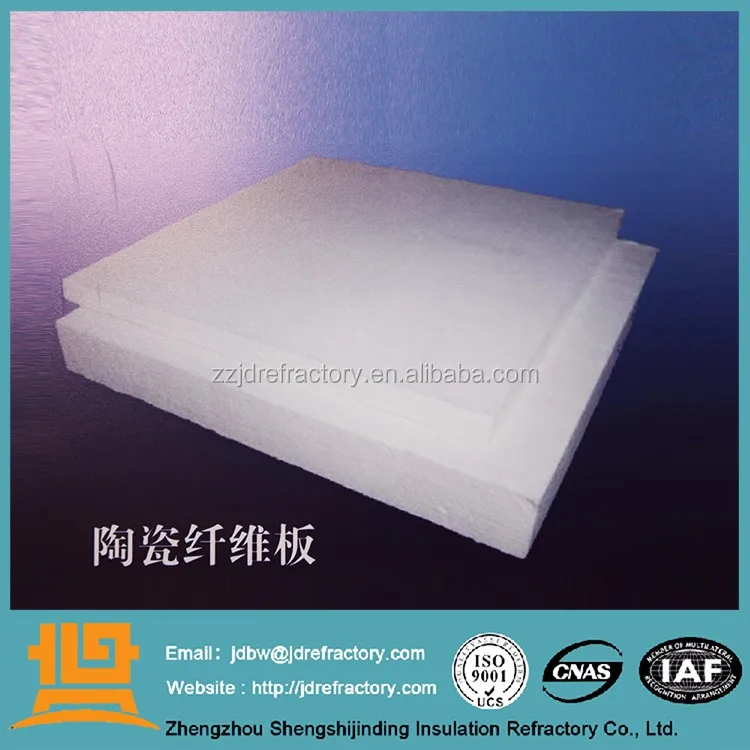

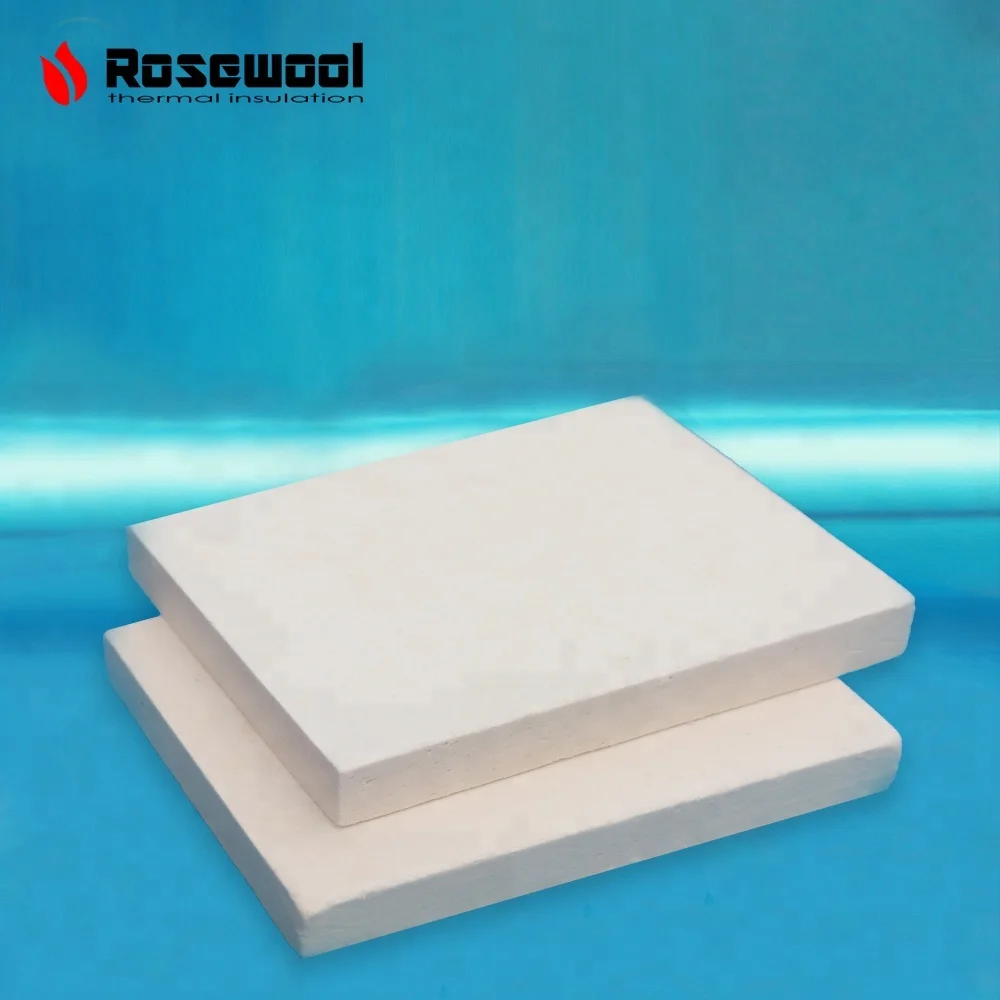

 Insulation material ceramic fiber board are high performance insulation products manufactured from ceramic fiber (or with alumina fiber) and binders, with unique shot removing and vacuum forming process, the ceramic fiber board ,also named aluminum silicate board , it has the excellent specialty of heavy intensity, non-expansion ,rigidity.The thermal insulation board is a practical efficient material to thermal insulation ,such as furnace ,pipe, ceramic fiber kiln and so on .









1. Good High temperature stability, Low thermal conductivity.



2. Good thermal shock resistance, Corrosion resistance



3. Easy to be machined and cut.  Precise thickness and sizes.



4. Good resistance of fire and high temperature gases.



5. Easy to installed.

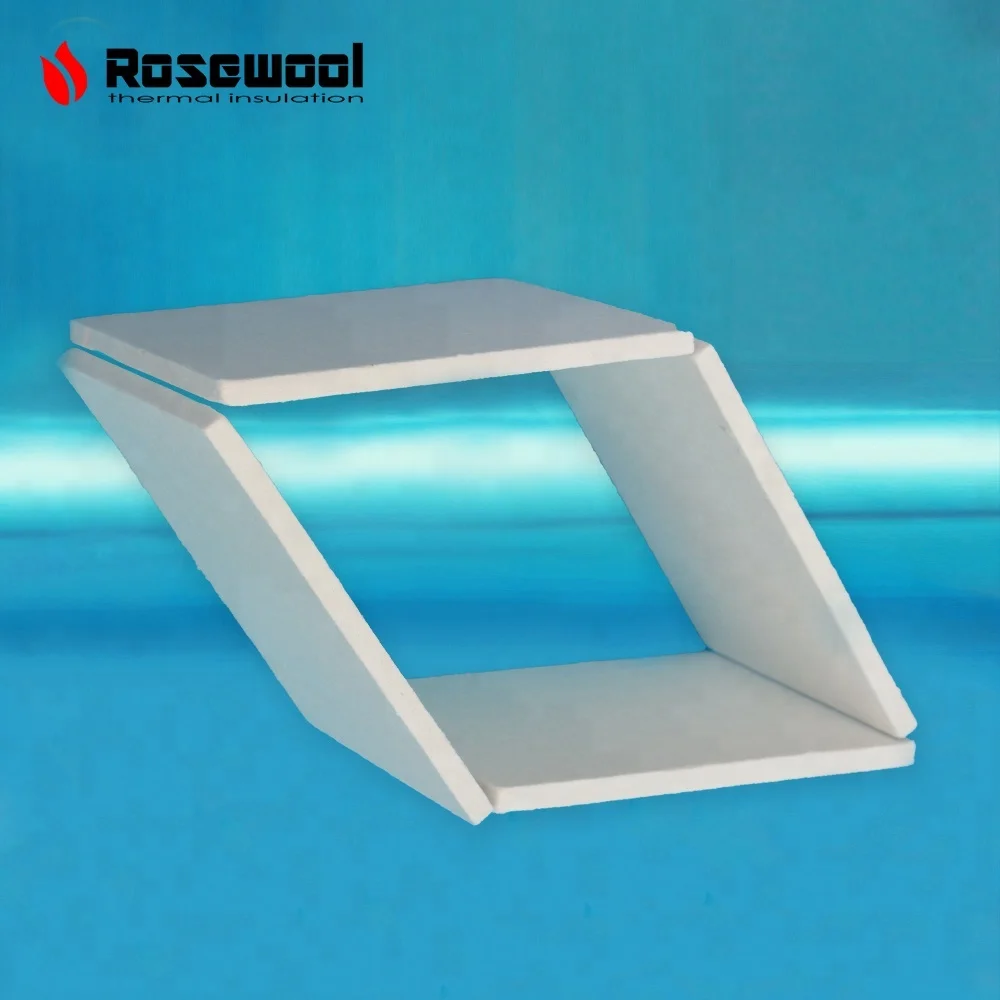

6. Special shapes can be made.



7,  non-brittle material, good elasticity



8.lowthermal conductivity good obstructing voice.



Application of the ceramic fiber board :



♦   Cement building industry, kiln back lining-thermal insulation;



♦   Ceramic industry-lining of various kilns for thermal insulation;



♦   Petrochemical and metallurgy industries- back linings, wall linings, and ling thermal

      insulation;



♦   Glass kiln lining and back lining thermal insulation;



♦   Heat treatment furnace kiln back lining thermal insulation;



♦  Aluminum factories-reduction cell firebricks back linings;



♦  High temperature reaction, heating device-wall lining and back linings





Physical Properties

Specification	Common Grade	Standard Grade	High pure Grade	High alumina Grade	Zirconium Grade
Color	White	Pure White	Pure White	Pure White	Pure White
Classification temperature (℃)	1100	1260	1260	1400	1430
Use temperature (℃)	950	1000	1100	1200	1350
Theoretical density (kg/m3)	64/96/128	64/96/128	64/96/128	96/128/160	96/128/160
Shrinkage on heating (%)	950°Cx24h≤-3	1000°Cx24h≤-3	1100°Cx24h≤-3	1200°Cx24h≤-3	1350x24h≤-3
Tensile Strength (MPa)	0.04	0.04	0.04	0.04	0.04
Thermal conductivity ( w/ m.k) (Physical Volume Density 128 Kgs/ m3)	0.09(400℃) 0.16(800℃)	0.09(400℃) 0.16(800℃)	0.09(400℃) 0.16(800℃) 0.20(1000℃)	0.12(600℃) 0.20(1000℃)	0.16(800℃) 0.20(1000℃)

Chemical properties

Chemical Content	Common Grade	Standard Grade	High pure Grade	High alumina Grade	Zirconium Grade
AL2O3	44%	46%	47-49%	52-55%	39-40%
AL2O3+SiO2	96%	97%	99%	99%	82-84%
ZrO2	-	-	-	-	15-17%
AL2O3+SiO2+ZrO2	-	-	-	-	99%
Fe2O3	≤1.2%	≤1.0%	≤0.2%	≤0.2%	≤0.2%
Na2O+K2O	≤0.5%	≤0.5%	≤0.2%	≤0.2%	≤0.2%

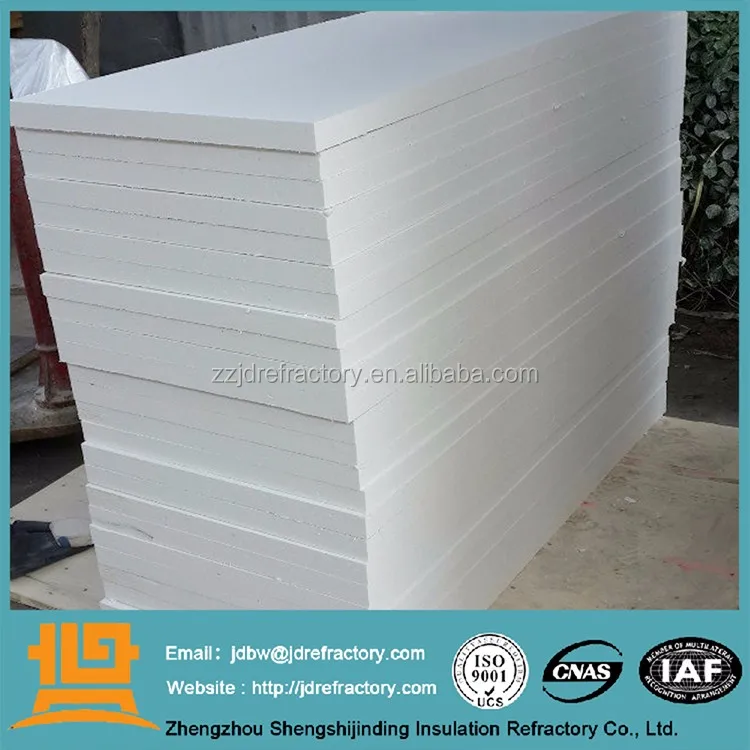

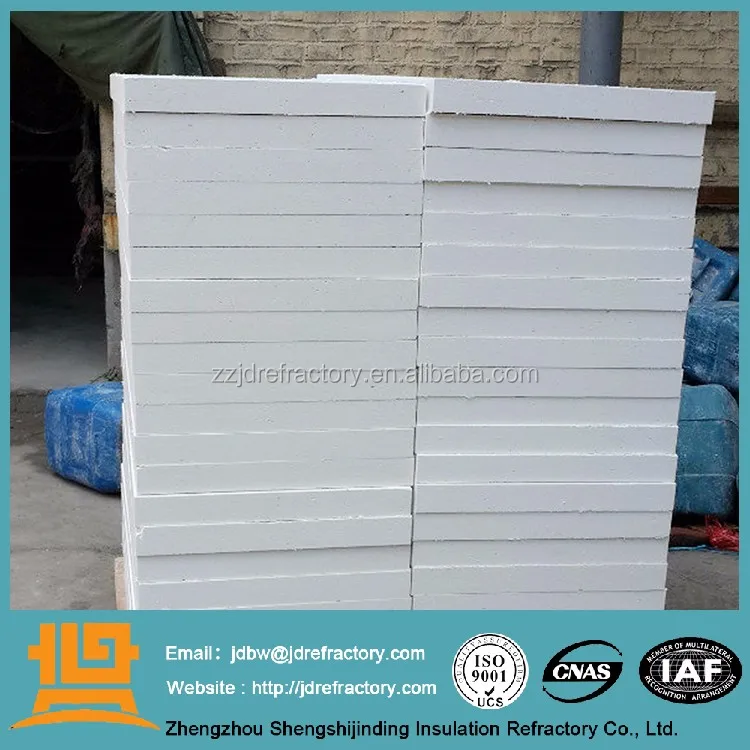

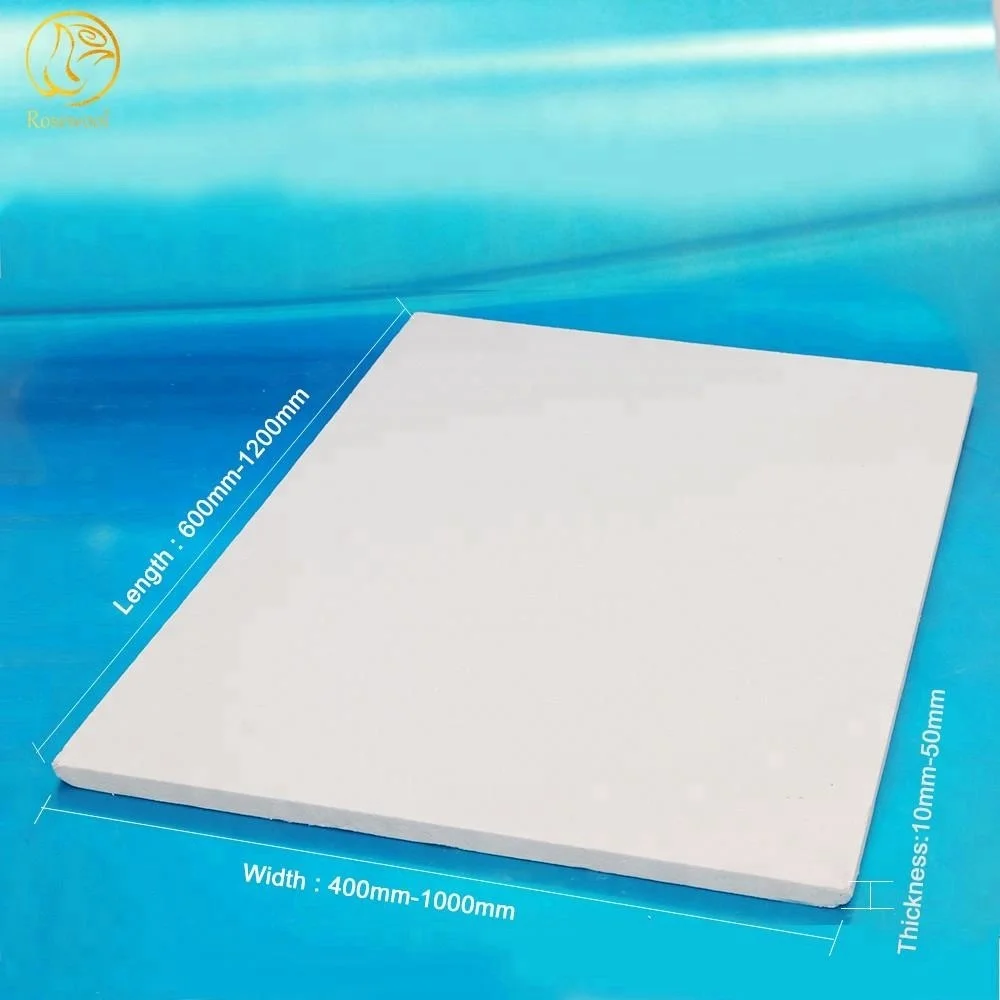

The size of fireproof insulation board :



Length : 600mm-1200mm

Width : 400mm-1000mm

Thickness:10mm-50mm

Commonly used specifications:

                                                                        1200mm*1200mm*10-50mm

                                                                        1200mm*1000mm*10-50mm

                                                                        1200mm*600mm*10-50mm

                                                                        1000mm*1000mm*10-50mm

                                                                         600mm*300mm*10-50mm



Other sizes can be customized as customer's request.

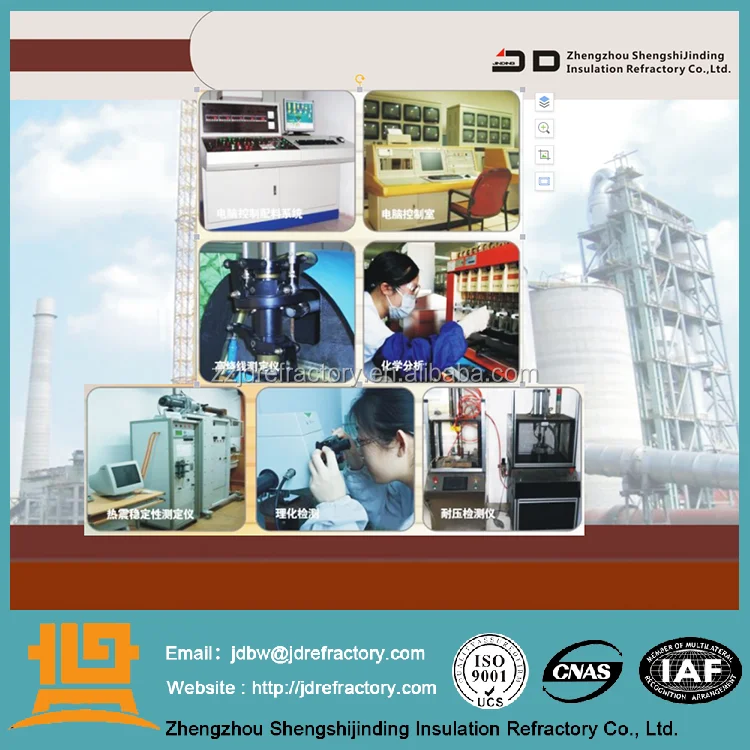

We have weight inspection before packing, to make sure actual weight >= theoretical weight.
Also have size inspection to guarantee precise size.

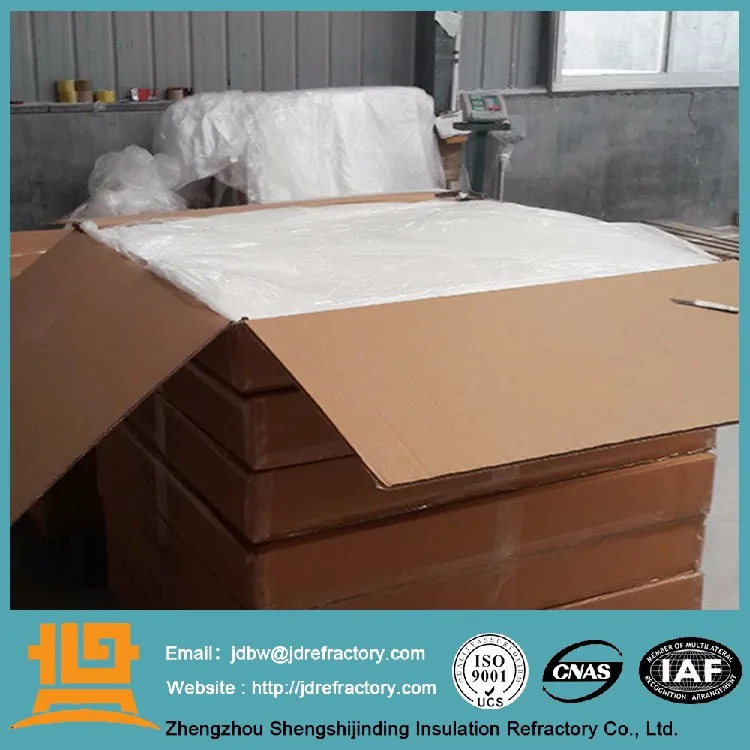

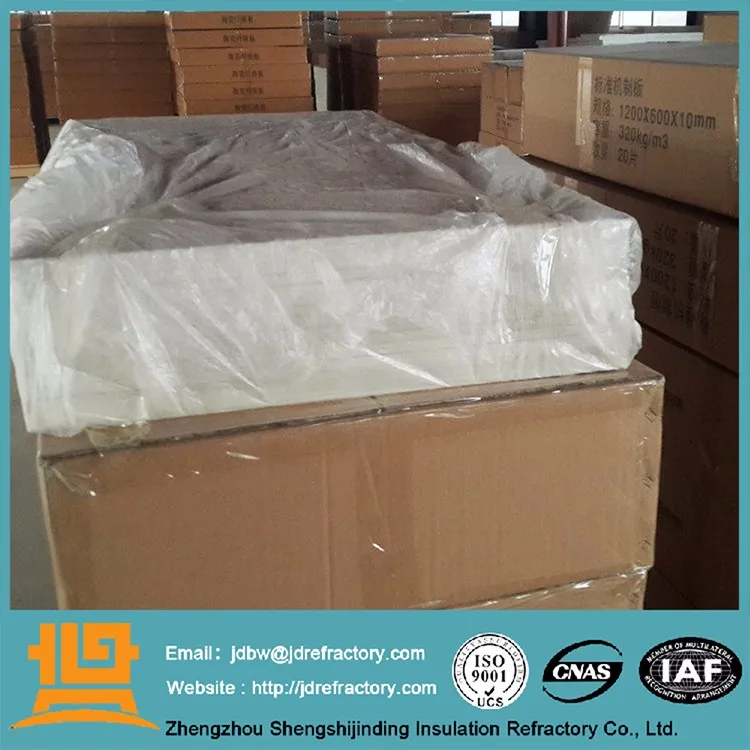

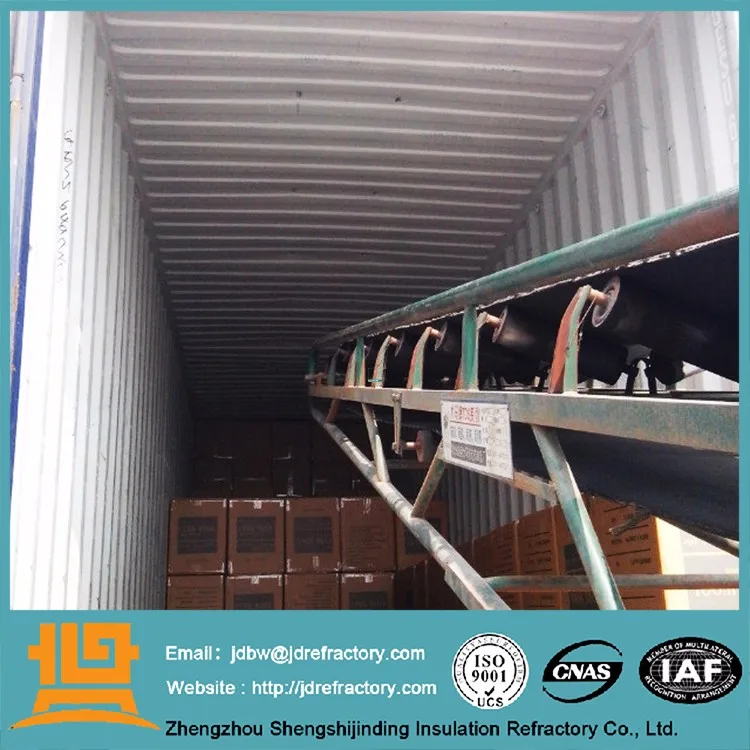

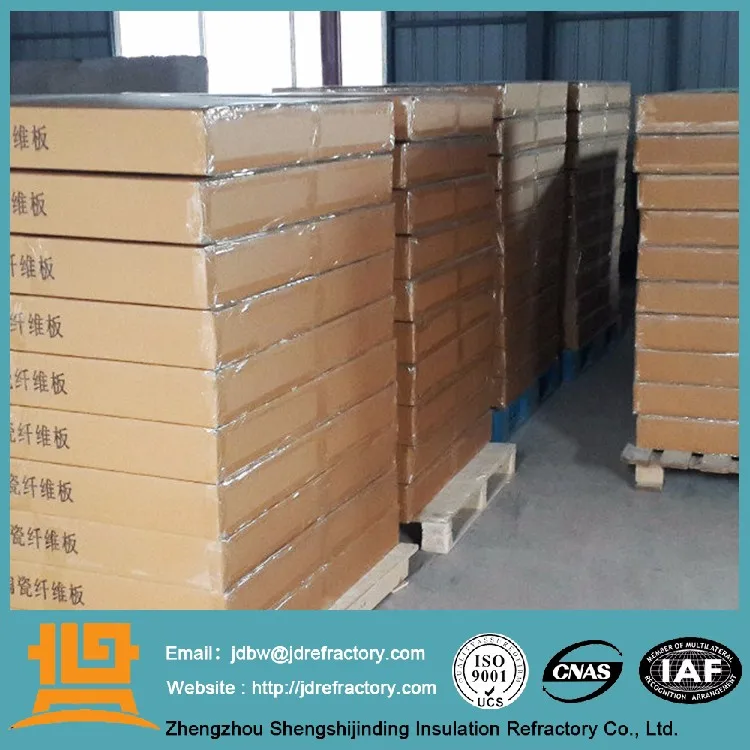

Inner: plastic bags,outside carton box or pallet, or according to customer's requirement















1. Prompt reply within 24 hours without delay by our specialized after-sale service sector.



2. Provide high temperature solutions and professionals construction services for different fields for our customers.



3 . Provide the most reasonable logistics for customers to save every penny.



4. Production of goods are finished, thoughtful provide products and packaging photos for our customers.



5. sample free supply
