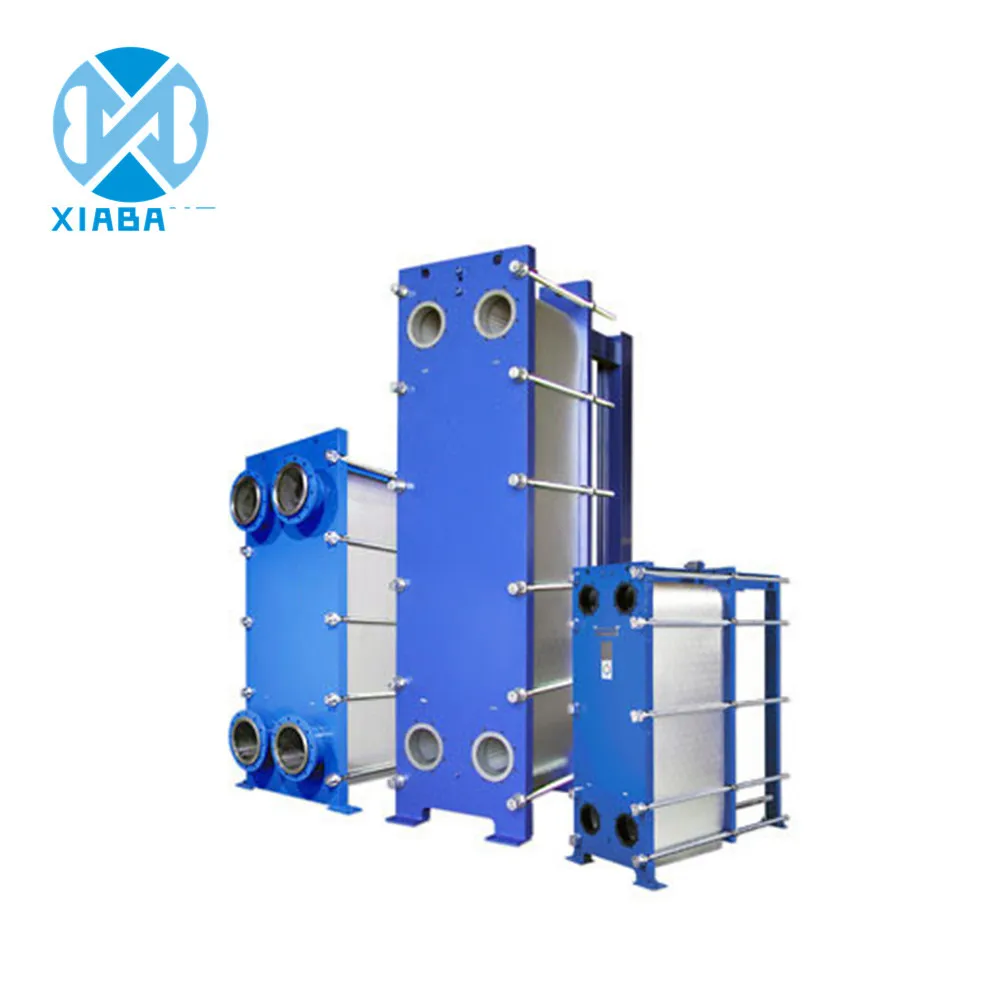

Model and technical parameters of detachable plate heat exchanger
model
caliber mm
Max Flow m3/h
length mm
width mm
volume L
design pressure bar
test pressure bar
max heat transfer area m2
DP3
32
14
480
180
0.09
16
21
37
DP6 B
50
45
920
320
0.29
16
21
37
DP6 M
50
45
920
320
0.43
16
21
35
DP11 B
100
190
1084
470
0.66
16
21
100
DP10 M
100
190
1084
470
1
16
21
60
DP15 B
150
390
1815
650
1.55
16
21
370
DP15 M
150
390
1815
650
2.5
16
21
230
DP25 B
200/250
900
2595
920
3.62
16
21
1000
DP25 M
200/250
900
2595
920
5.58
16
21
1000
DP 30
300/350
1400
2882
1170
8.51
16
21
1400
model
DB14
DB24
DB29
DB61
DB112
DB200
DB23-X
DB61-X
DB112-X
A (mm)
77
77
111
111
191
324
90
111
191
B (mm)
206
312
310
525
616
742
320
525
616
C (mm)
42
42
50
50
92
205
39
50
92
D (mm)
172
282
250
466
519
624
268
466
519
E (mm)
8.8 + (2.3 * n)
9+(2.25 * n)
10+(2.35 * n)
10+(2.35 * n)
16+(2.07 * n)
11 + (2.7 * n)
9+(1.6 * n)
10+(2.35 * n)
16+(2.07 * n)
weight(Kg)
0.6+0.06*n
0.9+0.09*n
1.2+0.12*n
2.5+0.19*n
5.7+0.41*n
12+0.6*n
1.1+0.09*n
2.5+0.19*n
5.7+0.41*n
Stagnant fluid volume(L)
0.027* (N-2)
0.038* (N-2)
0.054* (N-2)
0.094* (N-2)
0.18* (N-2)
0.51* (N-3)
0.028* (N-2)
0.084* (N-2)
0.16* (N-2)
design pressure(Mpa)
3 / 4.5
3 / 4.5
3 / 4.5
3 / 4.5
3 / 4.5
2.1
3 / 4.5
3 / 4.5
3 / 4.5
test pressure(Mpa)
4.5 / 6.8
4.5 / 6.8
4.5 / 6.8
4.5 / 6.8
4.5 / 6.8
3.2
4.5 / 6.8
4.5 / 6.8
4.5 / 6.8
Max Flow (m3/h)
4.1
4.1
14
12
51
128
8.8
12
51
Plate material
304 / 316L
304 / 316L
304 / 316L
304 / 316L
304 / 316L
304 / 316L
304 / 316L
304 / 316L
304 / 316L
Veneer heat transfer area(m2)
0.014
0.024
0.029
0.061
0.112
0.2
0.023
0.061
0.112
Max no. of plates
60
60
150
160
300
300
120
160
300
Advantages: the surface has been processed by many times baking processes, beautiful and corrosion-resistant, and the maintenance space is reserved for easy disassembly and maintenance
Q1: Can we do our OEM logo?
A1: Yes, we can do OEM logo with your requirements.
Q2: Is sample available?
A2: Yes, but the sample and freight should be at your charge.
Q3: Are you a manufacturer or trading company?
A3: We are manufacturer.
Q4: What is your warranty?
A4: We can assure you 12 months against delivery from our factory.
Remarks: In order to provide a suitable solution and quotation for your application, please just contact our sales directly!
