AS RIL 02 пульт дистанционного управления светодиодным индикатором для детектор дыма
- Category: Fire Alarm >>>
- Supplier: Shenzhen Ansorl Technology Co. Ltd.
Share on (62595806818):
Product Overview
Description
Description

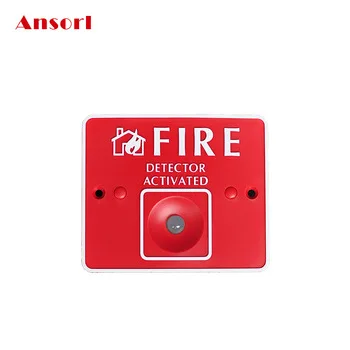

AS-RIL-02 Remote LED Indicator for Smoke Detector
The device is remote LED uses a state of-the-art designs. This LED is designed to be used with detectors.
One 8mm LED provide local 360° visible alarm indication. They flash with the same as detector that be connected.
One 8mm LED provide local 360° visible alarm indication. They flash with the same as detector that be connected.
Features
* Compatible with all the conventional fire alarm control panel .
* 8mm Big Size LED .
* Outside two holes provide 83mm(USA) .
* Inner two holes provide 59mm(Europe) .
* Wiring Terminals provided on the PCB board.
Parameters
Product Name | Remote LED Indicator | ||||
Model No. | AS-RIL-02 | ||||
System Voltage (nominal) | 3VDC | ||||
Alarm Current | 20mA@24VDC | ||||
Indicator | Red | ||||
Alarm | No | ||||
Dimension | 102 x 86 x 32 mm | ||||
Net Weight | 50g | ||||
Operation Temperature | -10℃ to 50℃ | ||||
Operation Humidity | 10% to 93% RH | ||||
Application | Office, factory, warehouse, apartment, hotel, bank, supermarket, shopping mall, school, hospital etc. | ||||
Pictures

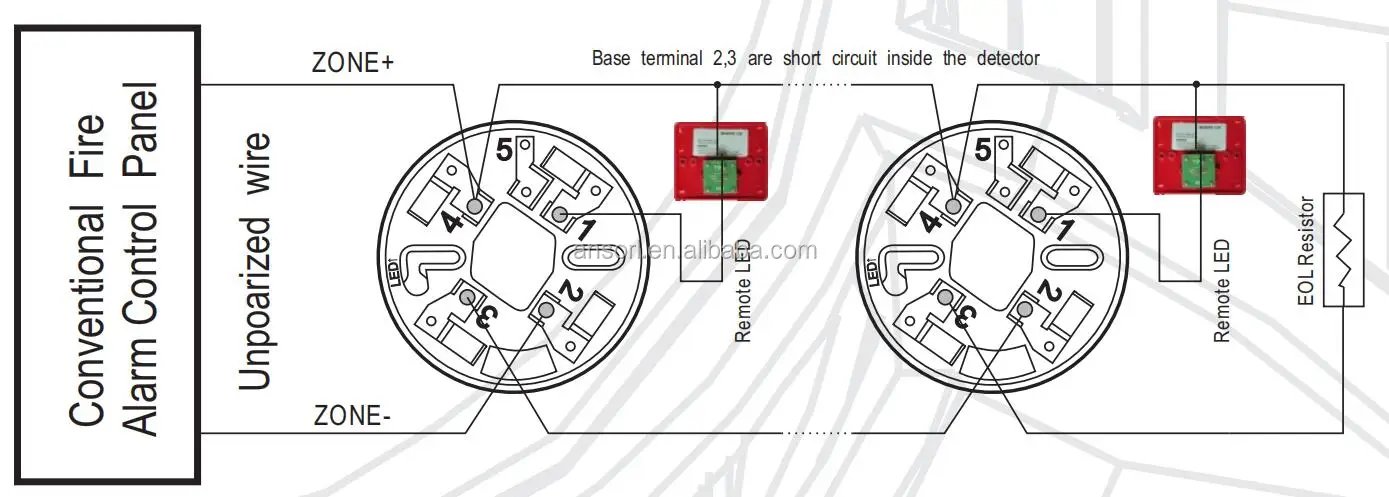

Wiring Diagram：
Related Products
ANSORL TECHNOLOGY LIMITED: fire alarm detector series | ||
AS-SD102 | 24V 2 Wires Conventional Smoke Detector | |
AS-HD102 | 24V 2 Wires Conventional Heat Detector | |
AS-SHD109 | 24V 2 Wires Conventional Smoke and Heat Detector | |
AS-SD202-4L | 24V 4 Wires Conventional Smoke Detector | |
AS-SD820-4L | 48V 4 Wires Conventional Smoke Detector | |
AS-CGD501-4L | Conventional Combustible Gas Detector | |
AS-UFD | Conventional Ultraviolet Flame Detector | |
AS-IRBD | Conventional Infrared Beam Smoke Detector | |
AS-RIL-06 | Remote LED Indicator | |
AS-MCP-2D | Conventional Manual call point (Resettable) | |
AS-BELL-6 | Conventional Fire Alarm Bell | |
AS-SSG-03 | Conventional Strobe Sounder | |
AS-CRT | Fire Repeater Panel | |
Welcome to contact us for your inquiry ! | ||
