Semi Automatic Pizza Carton Box Paper Cardboard Die Cutting Machine Cardboard Die cutting Machine Die Cutter Machine
- Category: >>>
- Supplier: Weifang Swan Machinery Co. Ltd.
Share on (62595814151):
Product Overview
Description
Product Description

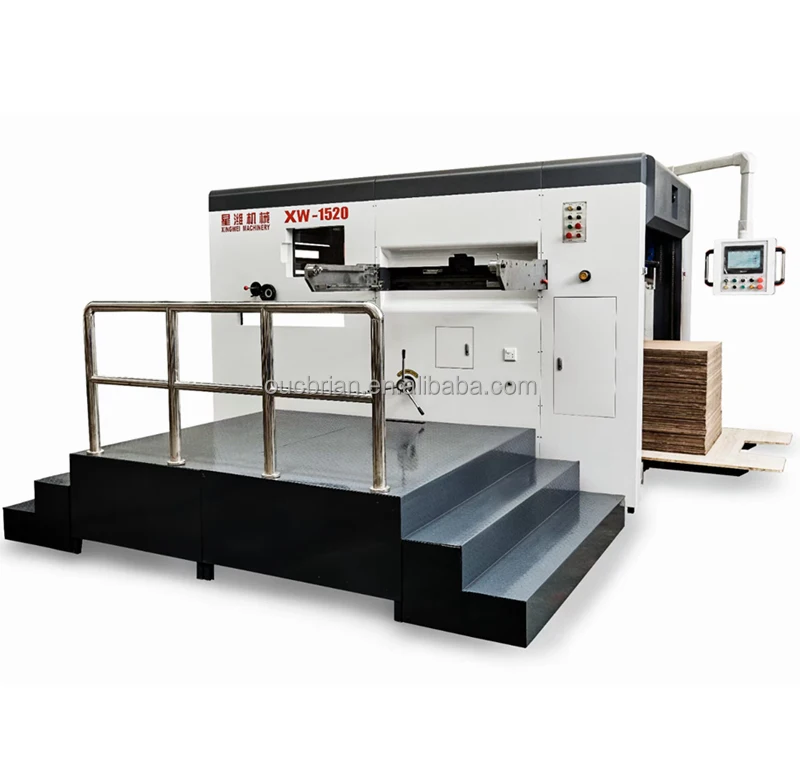

Semi Automatic Pizza Carton Box Paper Cardboard Die Cutting Machine Cardboard Die-cutting Machine Die Cutter Machine
big packaging postpress semi automatic carton box die cutter
1. Adopt programmable controller,and it is incorporated with fully automatic feeding, diecutting, delivery, obstacle indicating, checking and measuring.
2. Using unique cam intermittent construction designed by computer, which ensuring diecutting precision and gripper bar's processing stability.
3. The driving chain for gripper bar is imported from IWIS, Germany, ensuring precision and life. Adopting electromagnetic clutch, long life and low noise.
4. The main motor is controlled by transducer, which achieves stepless speed regulation and smooth operation.
5. PLC, Transducer and all kinds of electric switch are imported from FUJI, YASKAWA, and OMRON, JAPAN.
Technical details for 1300mm semi automatic die cutting machine | 1520 semi automatic die cutting machine | ||
Max. sheet size | 1300×940mm | 1520X1100mm | |
Min. sheet size | 500×450mm | 550x450mm | |
Max. die cutting size | 1280×920mm | 1500x1080mm | |
Max. mechanical speed | 4500 sheets/hr | 4500 sheets/hr | |
Paper processable | A. Paper/cardboard: 250g-2000gsm B. Corrugated board: 1-10mm | A. Paper/cardboard: 250-2000gsm B. Corrugated board: 1-10mm | |
Voltage | 380V 3Phase 50Hz | 380V 3Phase 50Hz | |
Total weight | Approx 13 tons | Approx.18 tons | |
Full load power | 15KW | 16KW | |
Overall dimensions approx: | 6600mmx24000mmx2500mm | 7200mmx26000mmx2300mm | |
Application

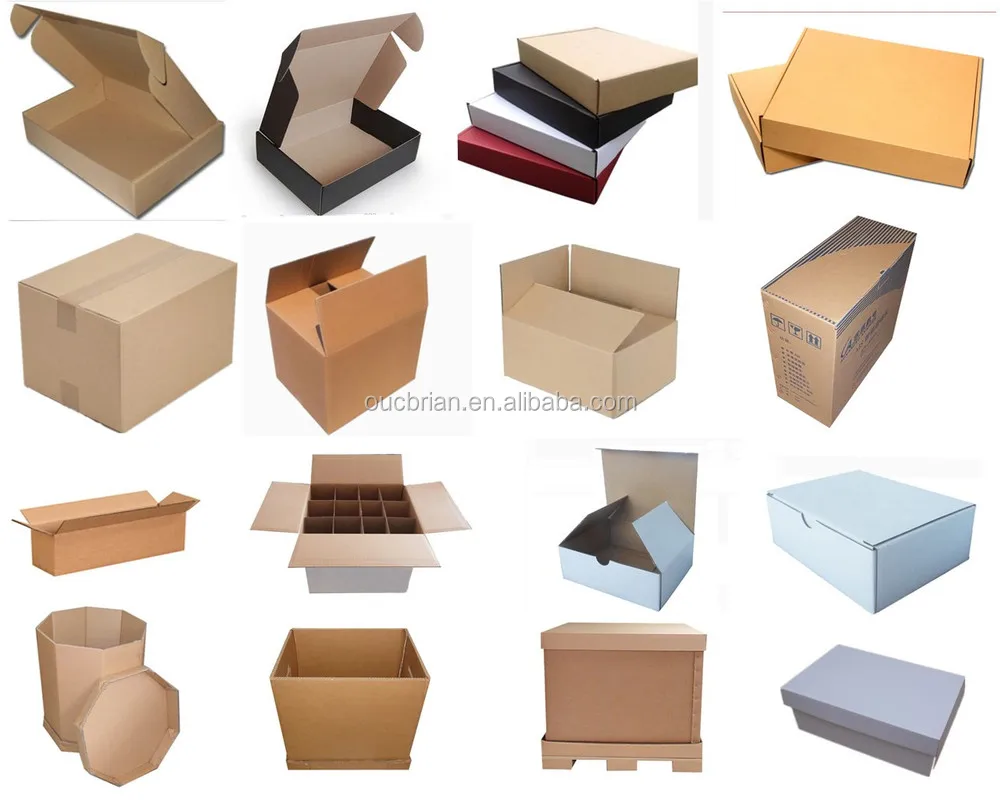

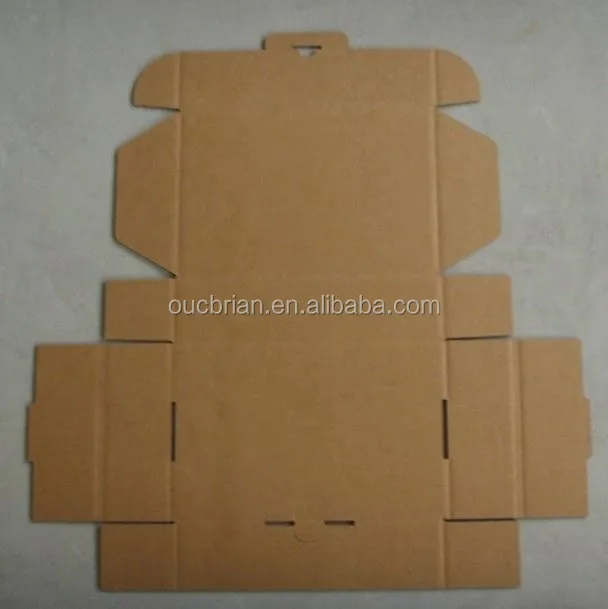

automatic die cutting & creasing machine is used for die cutting and creasing pizza box, corrugated box, gift box, medicine box, cigarette box, gift paper box, etc.
Detailed Images

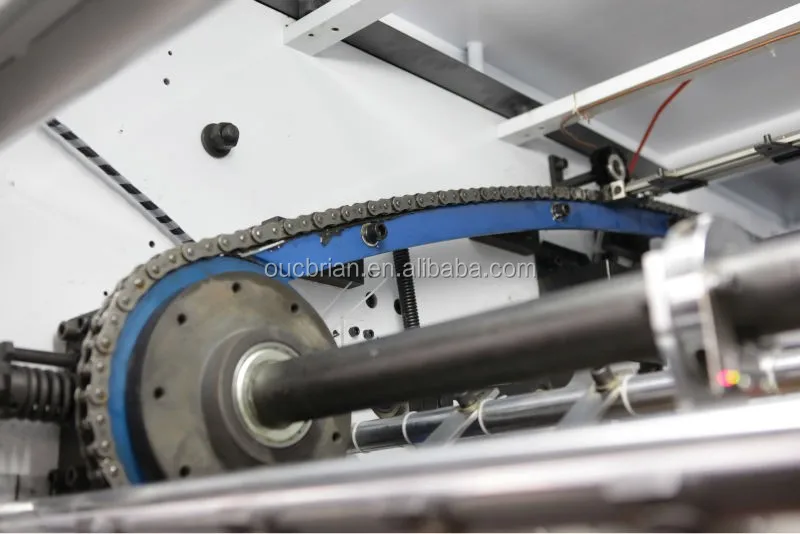

Main Chain drive
Adopt from UK Renold to ensure the precision
Die cutting section
1.\tAccurate positioning of diecutting chase controlled by precision photocell sensors with automatic check lock device.
2.\tPneumatic lock-up system on diecutting chase to increase efficiency.
3.\tWith air floating device ensures easy slide in and out of diecutting plate

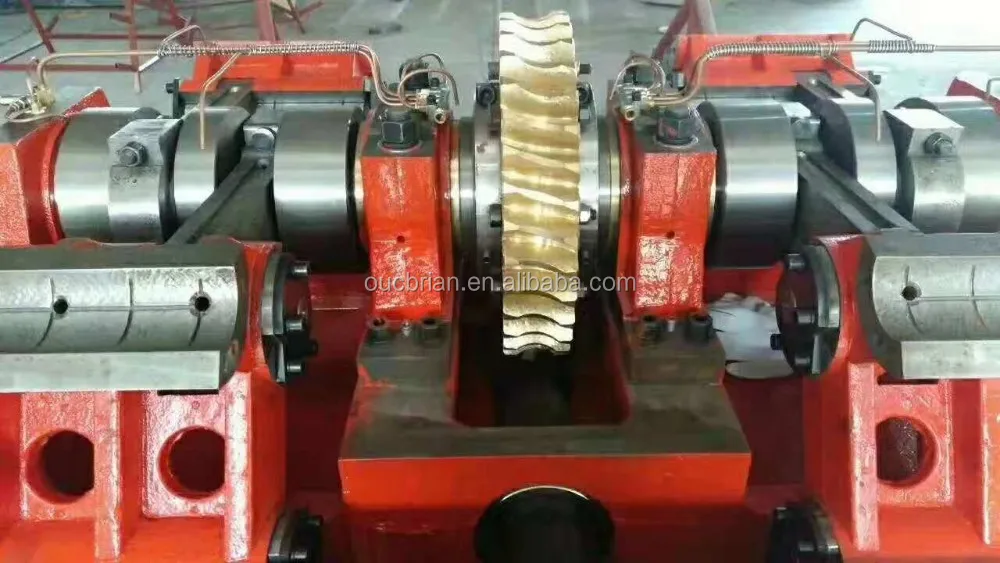

Main transimission
1.\tBearing connection makes running more stable
2.\tMain transmission adopts worm gears and the special design of the crankshaft connecting rod mechanism, the bearing connection, reducing motion space, avoid worm impact, stable operation, die-cutting pressure

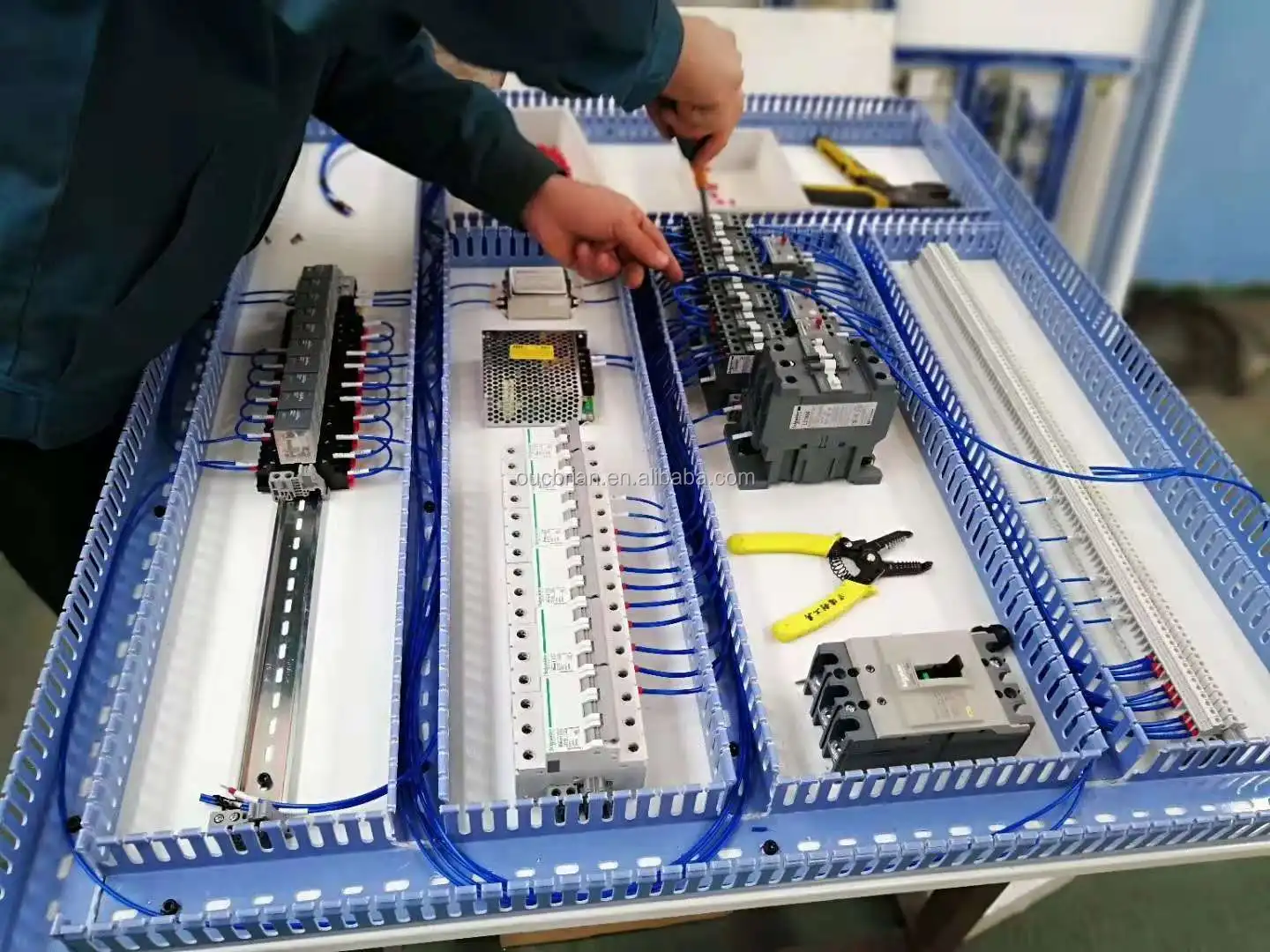

Electronicl contrl system
1.\tPLC program control, safe and reliable
2.\tElectronic controlled system adopts PLC program control. With various safety devices to guarantee machine and human safety.
Our Service

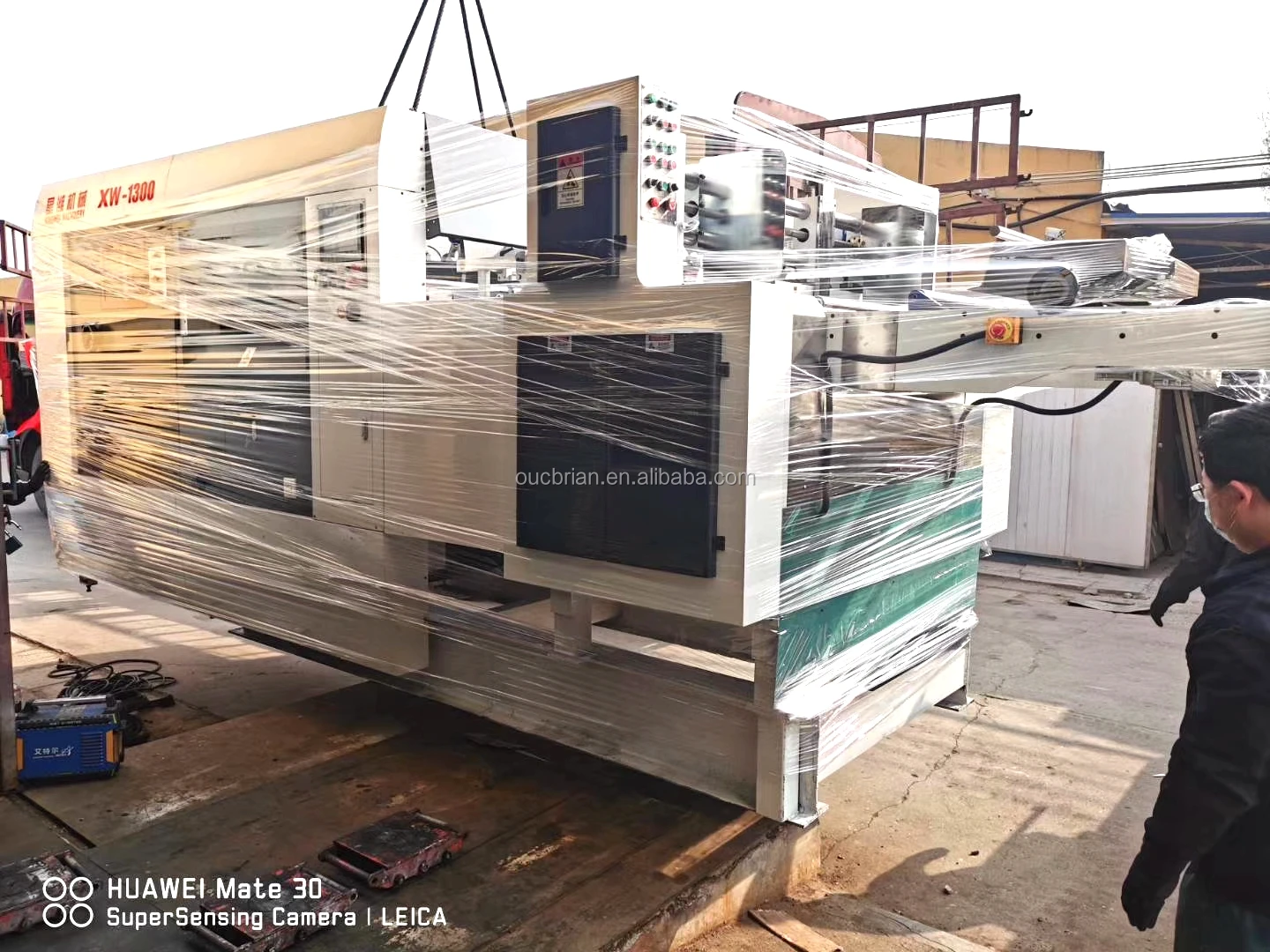

Packing & Delivery
Packaging | ||
Size | 7200 (L) * 2600 (W) * 2300 (D) | |
Weight | 18 Tons | |
Packaging Details | Use the PE film to protect the machine well firstly, then put the goods into the export seaworthy steel case. | |
