Product Overview
Description
Product Description

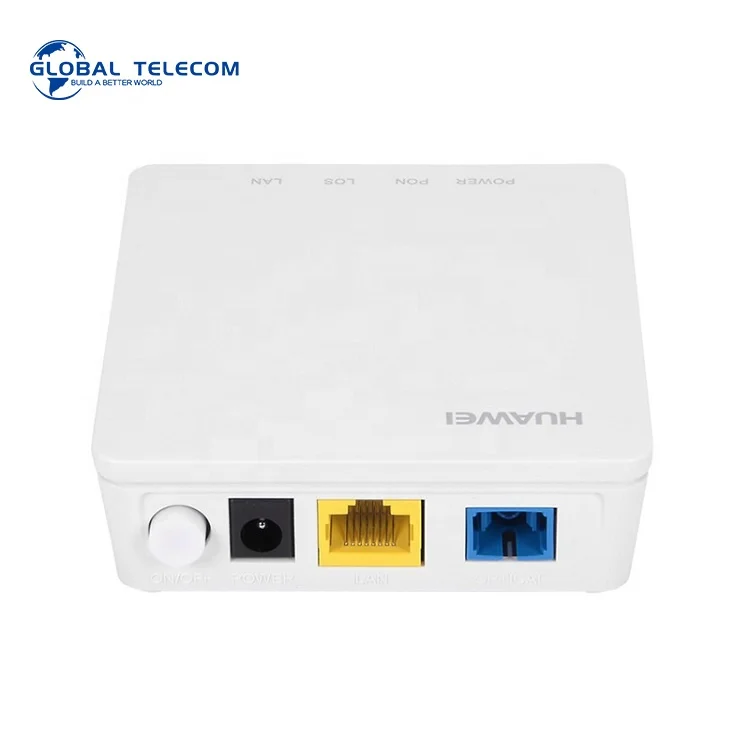

1.Product description of HG8310M
The Huawei HG8310M subscriber terminal is used as a client device for the construction of FTTH networks and is designed to provide
broadband access services based on GPON technology in residential buildings and small offices. This terminal supports one PON

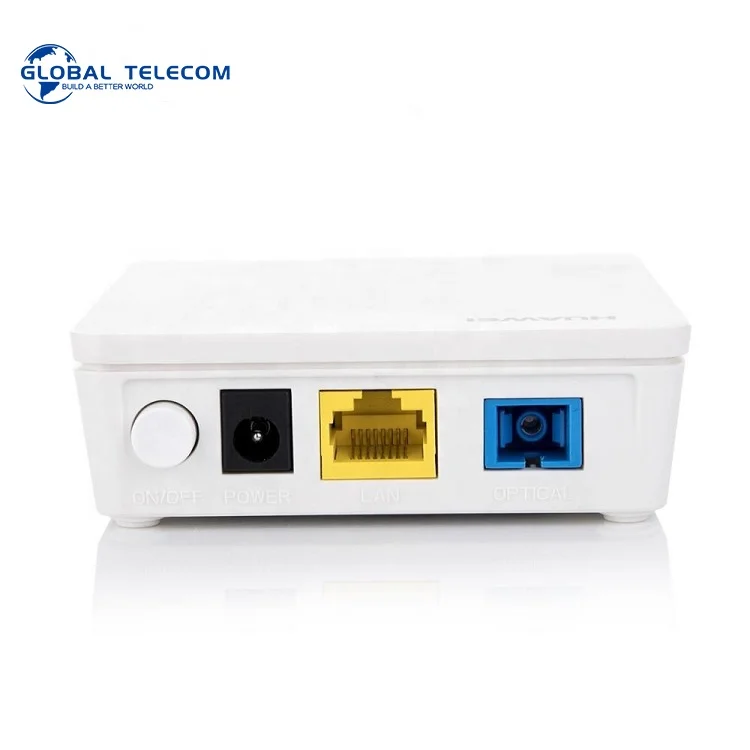

connection at a distance of up to 20 km. Terminal EchoLife HG8310M is equipped with PON and Ethernet GE ports with
auto-negotiation for high-speed forwarding.
Parameters
Dimensions (H x W x D) | (115 x 94 x 27)mm (V300R015C00 and earlier) (82 x 90 x 27)mm (V300R015C10) | |
Weight | about :500g | |
Operating humidity | 5% RH to 95% RH (non-condensing) | |
Power adapter input | 100-240 V AC, 50-60 Hz | |
System power supply | 11-14 V DC, 1A | |
Static power consumption | 3W | |
Maximum power consumption | 3.5W | |
Ports | 1GE | |

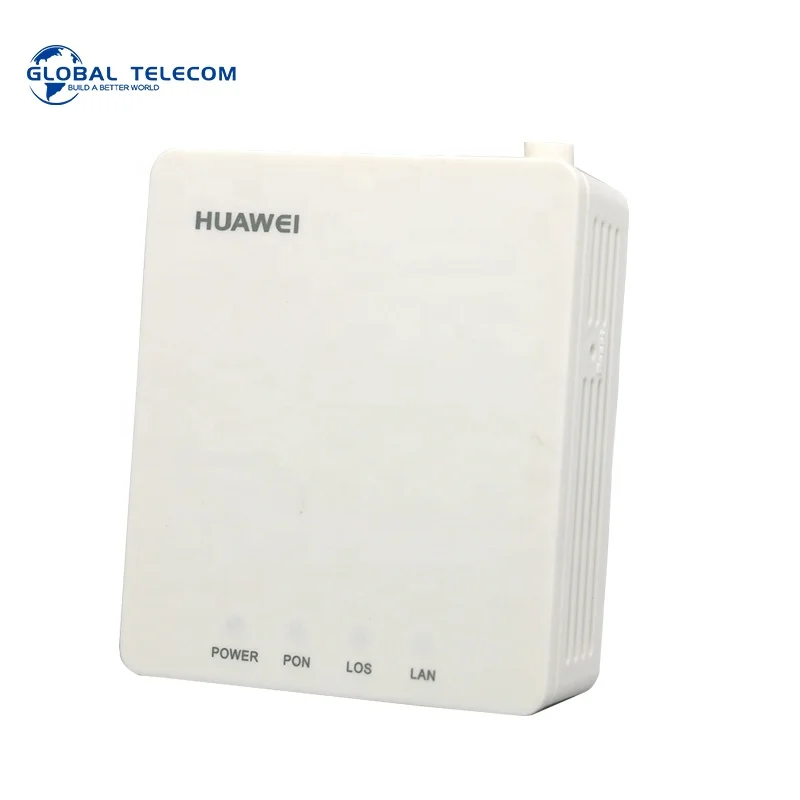

Indicators | POWER/PON/LOS/LAN | |
Interface Parameters | 20 seconds | |
Ethernet Port | • Ethernet port-based VLAN tags and tag removal • 1:1 VLAN, N:1 VLAN, or VLAN transparent transmission • QinQ VLAN • Limit on the number of learned MAC addresses • MAC address learning • Transparent transmission of IPv6 packets at Layer 2 | |
GPON Port | • Class B+ • Receiver sensitivity: -27dBm • Wavelengths: US 1310nm, DS 1490nm • WBF • Flexible mapping between GEM Port and TCONT • GPON: consistent with the SN or password authentication defined in G.984.3 • Bi-directional FEC • SR-DBA and NSR-DBA | |
Products feature and application of HG8310M | Dual high sensitivity camera, 5 inch 800*480 LCD Monitor | |
Smart O&M | • Variable-length OMCI messages • Active/Passive rogue ONT detection and isolation • PPPoE/DHCP simulation testing | |
QoS | • Ethernet port rate limitation • 802.1p priority • SP/WRR/SP+WRR • Broadcast packet rate limitation • Flow mapping based on the VLAN ID, port ID, or/and 802.1p | |
Security Common O&M | • MAC addresses • OMCI/Web UI • Dual-system software backup and rollback • 802.1ag Ethernet OAM • Optical link measurement and diagnosis • Loopback check | |
Multicast | • IGMP v2/v3 snooping • MLD v1/v2 snooping • Fast leave • VLAN tag translation, transparent transmission, and removal for downstream multicast packets • IGMP/MLD protocol packet rate limitation | |
Power saving | • Indicator power saving • Power consumption reduction of idle componets in power-saving state • COCV4 | |
Detailed Images
Removable metal holder
easy to operate
Inductive heater
without fiber not heating
Anti-shock, water-proof
and dustproof
and dustproof
