YF брендовая Высококачественная Автоматическая пружинная формовочная машина, Высококачественная пружинная машина с ЧПУ, усовершенствованная пружинная машина

Product Overview

Description

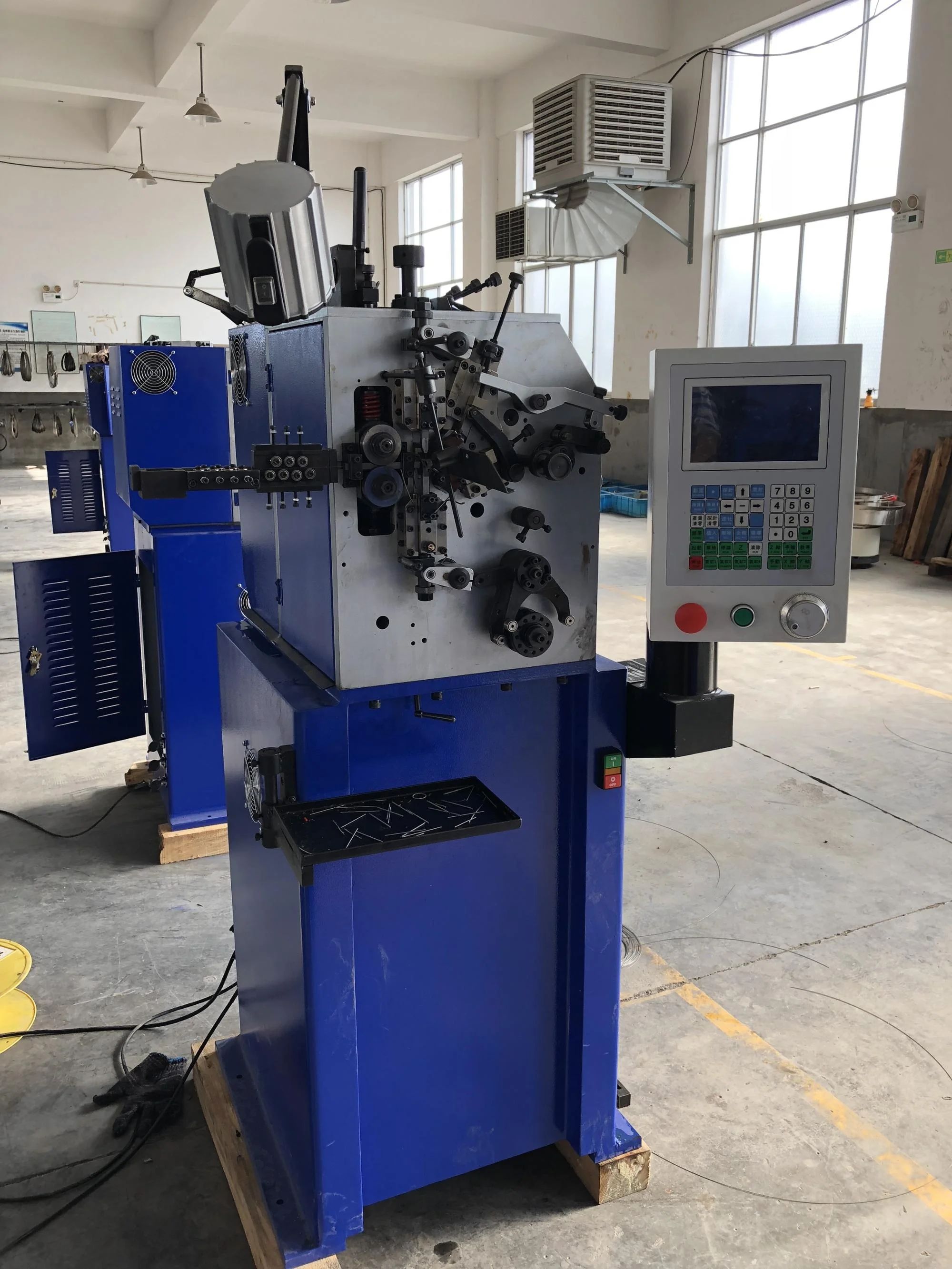

Automation Spring Molding Machine,  Advanced CNC Spring Coiling Machine



I. Inroduction of Automation Spring Molding Machine,  CNC Spring Coiling Machine:



CNC spring coiling machine used to produce kinds of coiling springs fully automatically. It improves the dimension, shape and precision of the feeding framework, reducer structure and variable-pitch framework. This series of Spring Coiling Molding Machine are most suitable for machining springs with high demand of coils number and free height. This series of products are most suitable for machining springs with high demand of coils number and free height.



II. Features of Automation Spring Molding Machine,  CNC Spring Coiling Machine



1. CNC Spring Coiling Molding Machine adopts the integrated control of single chip microcomputer, arbitrary adjustment of parameters, multiple parameter storage functions, digital display, time saving, convenient management, and improved production efficiency (the spiral bar forming machine adopts the microcomputer full-automatic PLC coding numerical control system, and the user only needs to input the spiral bar spacing and meter number on the numerical control coding display ).



2. The key part of the machine adopts imported devices to ensure the service life of the machine. The meter counting error of the encoder is very small and the positioning is accurate.



3. CNC Spring Coiling Molding Machine is stable, fast and accurate, and can be fast. The characteristics of slow speed and backward material.
Stable: all with hydraulic drive, cycloid motor, no need for gear assistance, can reduce gear clearance, speed: 20-40 meters per minute, accuracy: rounding error ± 0.50mm.

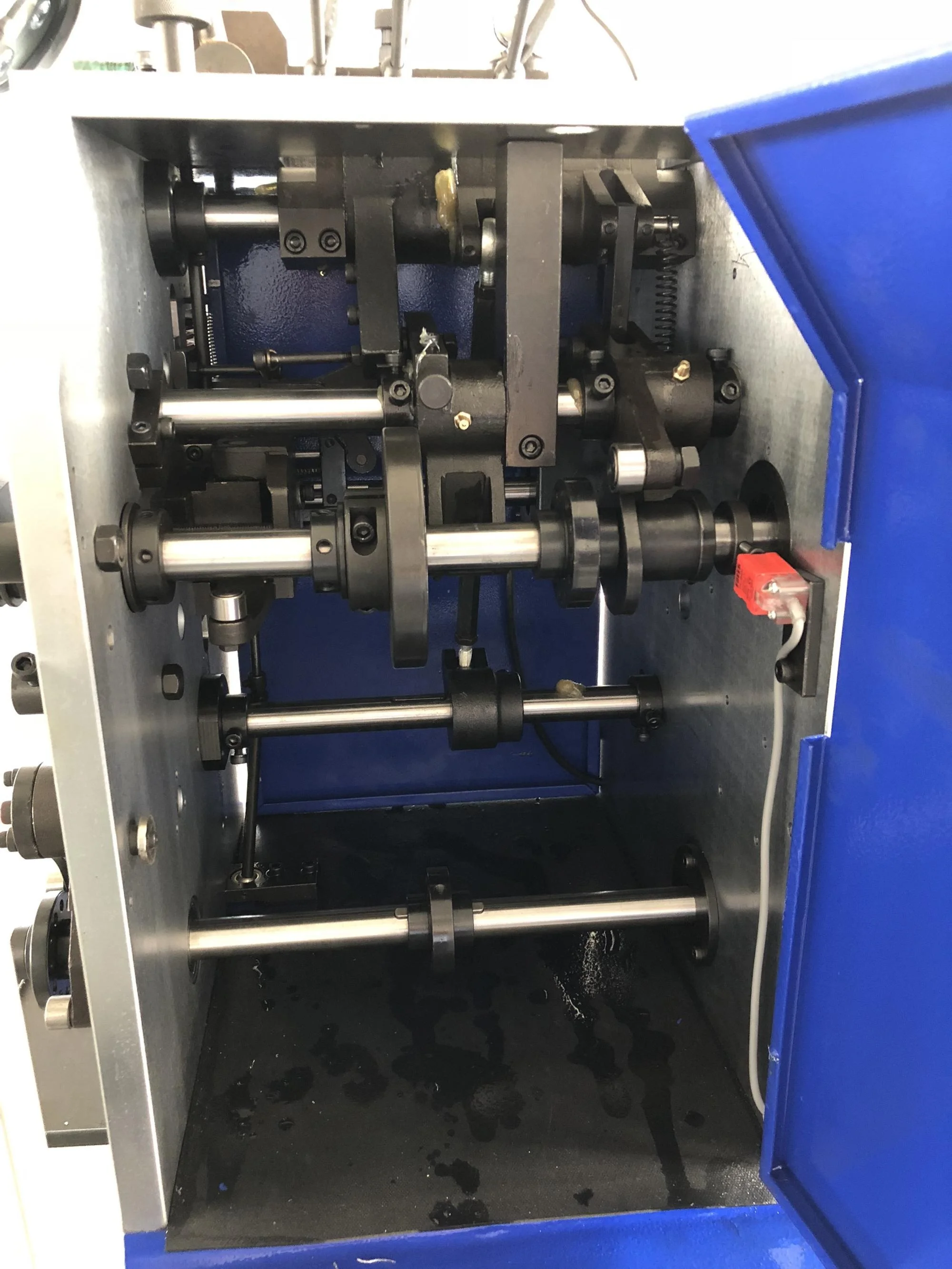

4. CNC Spring Coiling Molding Machine is of box structure, with good rigidity and flexible and reliable hydraulic transmission. The control box has the following functions: fast feeding, automatic cutting, manual cutting, automatic stop, on start, etc

5. This machine is used for steel wire, iron wire, aluminum wire, copper wire, stainless steel wire manufacturing different shapes, such as packing clasp, tack, square buckle, Mountaineering hook, bolt, S and D buckle etc. various product only by changing mould. And widely apply for hardware industry, toy industry, stationery industry, garment industry, lighting industry, jewelry industry etc.



Spec and performance of Automation Spring Molding Machine,  CNC Spring Coiling Machine



Model	CNC-YF-8208	CNC-YF-8212
Diameter of coiled material	0.15mm-0.8mm	0.2mm-1.2mm
Max external diameter of coiled spring	20mm	25mm
Wire Feeding Speed	Max . 100m/min	Max . 100m/min
Wire feed instruction value	± 0.01-- ± 9999.99	± 0.01-- ± 9999.99
Cam instruction value	± 0.1°-- ± 359.9°	± 0.1°-- ± 359.9°
Wire feed servo motor	1KW	1.5KW
Cam servo motor	1KW	1KW
Power supply	220V ±10%V50HZ	220V ±10%V50HZ
Spring coiling molding machine size	660x800x1500mm	660x920x1500mm
Machine weight	350kg	450kg
