Industrial adhesive tape production line

Hot melt adhesive coating lamination machine, slot die coating & rotary bar coating two kinds technology, could customized semi-automatic or full-automatic for unwinder & rewinder.

This type equipment is for normal kind adhesive tape coating, like paper tape, cleaning tape, medical tape, masking tape etc.

BOPP tape use full automatic rotary bar coating machine. This kind technology is new technology, we have more than 6 years in development. Own most this technology market in China mainland.

Equipment configuration could be advisec according customer different request.

Advantage

Equipment only use hotmelt PSA,couldn't use water based adhesive or solvent adhesive, hotmelt PSA use enlargely now, friendly environment, energy consumption less than the others, dimension smaller, cost less.

Technical parameters

1.      Slot die coating technology

2.      Coating weight adjust, Min. 15g/m².

3.      Unwinder device use constant tension brake.

4.      Rewinder device use constant tension frequency rewind.

5.      Adhesive weight synchronize with speed, or adjust manual independently.

6.      Coating head use import hard special steel die, hardness(93)

7.      Coating precision 5%.

8.      Control method: PLC touch screen concentrate control.

9.      Adhesive: hot melt PSA.

10.  Max. temperature: 230℃.

11.  coating die head temperature be controled independently.

12.  Could do strip coating/full coating.

13.  Generator structure steel board thickness 25-30mm, will adjust thickness according configuration request.

14.  Generator roller use import silica gel roller. Some transfer roller will use anti-stick roller(according product request).

15.  Single position unwinder/rewinder. Diameter about 800-1200mm.

16.  Install with guiding device.

17.  Melt adhesive system inside wall use telflon anti-stick alyer.

18.  PID control heating, double overtemperature alarm outage system.

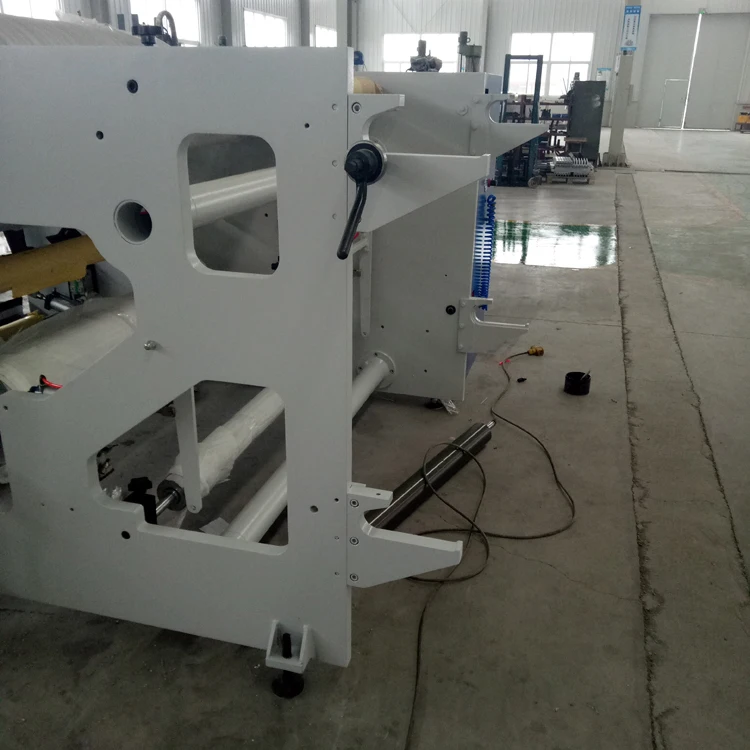

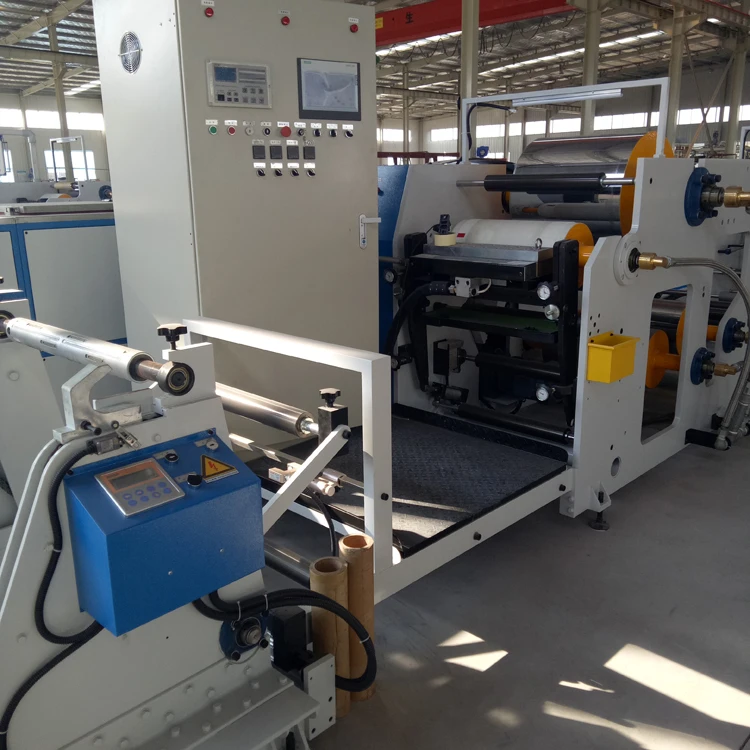

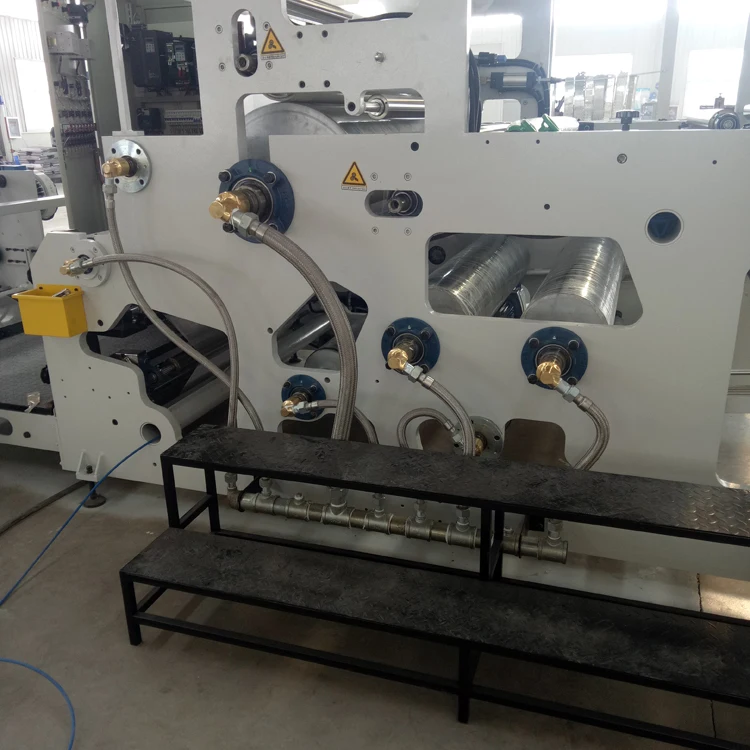

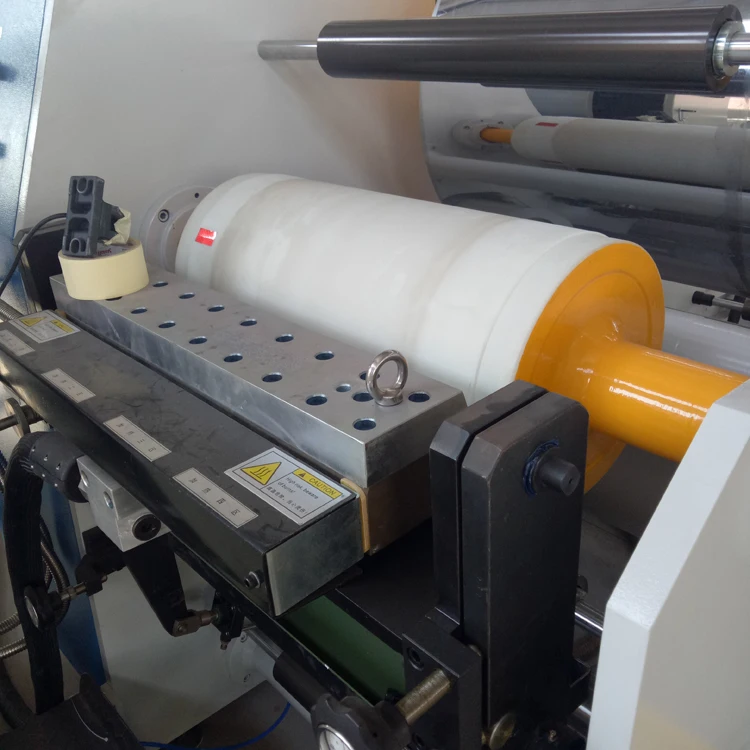

Equipment pictures

1.Reply within 24 hours

2.Welcome to contact us whenever you have a doubt or a question. Our strong technician and engineer team  will work out the solution for you within 24 hours.

3.Warranty period: 12 m

About Us

Qingdao SanRenXing Machinery Co., Ltd is a leading manufacture for producing hot melt adhesive coating machine for adhesive label, adhesive tape, TPU/EVA hot melt adhesive film making machine, waterproof coil production line etc., located in Qingdao. Equipment mainly use in adhesive tape, industry tape, shoes & clothes accessories, and other industry etc.

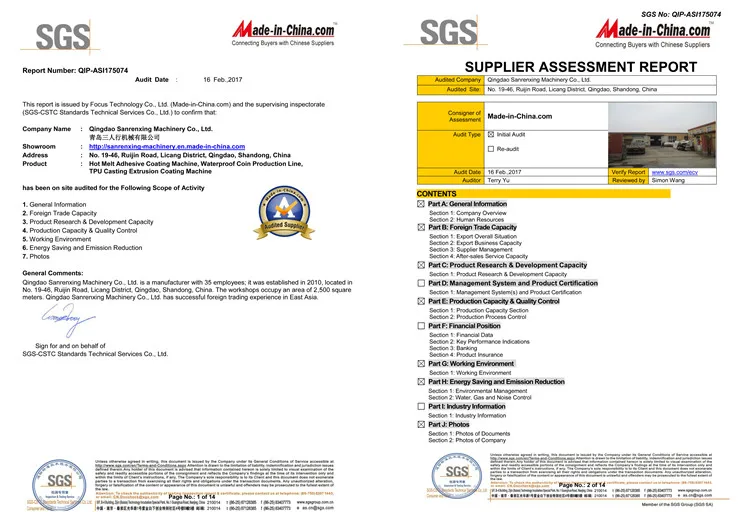

Certification

Exhibition

1.Are you a trading company or a manufacturer?

We are a manufacturer with strong produce capability.

2.Where is your factory?

We are in Chengyang city, only 5 minutes from the Qingdao airport.

3.Do you have individual research and development department?

Yes, we have. We believes in technology and market oriented research. Every year, we will work out a number of solutions to actual onsite application problems and develop brand new machines for our customers.

Should you have any new ideas about our machines, please fell free to contact us! We are sure to make your ideas into designs. Our goal is to work together with our customers to solve every onsite problems, to realize better material finishing/processing effect and to be our customers’ think tank.

4.What are your main products?

Our main products are adhesive laminating coating machine, hot melt glue film coating machine, industry tape coating machine, medical sheet coating lamination machine, medical health material coating lamination machine, shoes, fabric material coating laminating machine, specific hot melt glue coating laminating machine.

5.Which industries can use your machines?

Adhesive, label, medical industry, fabric, building.

6.How to control the quality in your factory?

Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE and ISO certifications.

7.How can I trust your quality?

We have quality certification. It enhance quality control through out the manufacturing of our machines.

We have more than 15 years production experience, more than half market in China.

8.How to operate the machine? We have not used such a machine before. Just want to expand our business and start a new process.

Don’t worry! We could go for your city for service, our engineer have many years experience, will solve your problem.

9.What’s the payment term?

Payment term: T/T before shipment

10. Please confirm these question before ?

Coating width, coating quantity, coating speed, what material the equipment produce.
