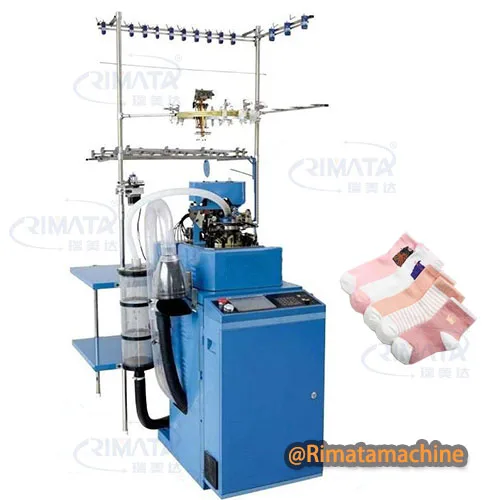

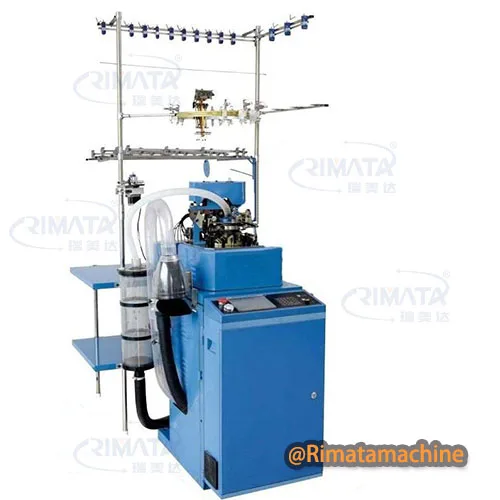

Full Automatic Computerized Socks Knitting Machine
- Category: >>>
- Supplier: Fujian Roterdon Technology Co. Ltd.
Share on (62596476311):
Product Overview
Description
Product Description
Machine's Features
1. Electronic Jacquard socks knitting machines with fully computerized control system(drum less).
2. Needle system adopt the Japanese producing technology which own high stability and resistance to wear.
3. LCD screen operation interface,with language inter convertible,easy for check speed,programs,any alarm,production situation etc.
4. Same horizontal line with 1 main feeder and 5 auxiliary feeders,total can knit for 16 colors per piece sock.
5. Step motor control the density of knitting and yarn tension.
6. Designed with double up pickers and double down pickers, for raising the production and is suitable to knit Y heel.
7. Having "SUP" Function.
8. Automatic alarm system for needle broken, yarn broken,errors etc.to avoid further damages.
9.Equipped the UPS,machine can keep the memory of programs and knitting process caused by power off or power on suddenly.
10.Weaving process can be edited through the machine's keyboard. Computer control system can be set as two different patterns working at the same time. Left & Right sock can be inter-change automatic.
11.The computer can regulate score according to body constitution for more comfortable products.
12.Standard Parameter machine can be knit socks with plain ,rib , mesh, tuck, elastic jacquard, Arcturus heel, anti-socks head, heel change the yarn,multilevel rib top,foot-reinforcement,around patterned socks. Upgrade parameter machine can be 3D socks、stealth boat socks、once-molded ankle socks、five toes socks etc.
2. Needle system adopt the Japanese producing technology which own high stability and resistance to wear.
3. LCD screen operation interface,with language inter convertible,easy for check speed,programs,any alarm,production situation etc.
4. Same horizontal line with 1 main feeder and 5 auxiliary feeders,total can knit for 16 colors per piece sock.
5. Step motor control the density of knitting and yarn tension.
6. Designed with double up pickers and double down pickers, for raising the production and is suitable to knit Y heel.
7. Having "SUP" Function.
8. Automatic alarm system for needle broken, yarn broken,errors etc.to avoid further damages.
9.Equipped the UPS,machine can keep the memory of programs and knitting process caused by power off or power on suddenly.
10.Weaving process can be edited through the machine's keyboard. Computer control system can be set as two different patterns working at the same time. Left & Right sock can be inter-change automatic.
11.The computer can regulate score according to body constitution for more comfortable products.
12.Standard Parameter machine can be knit socks with plain ,rib , mesh, tuck, elastic jacquard, Arcturus heel, anti-socks head, heel change the yarn,multilevel rib top,foot-reinforcement,around patterned socks. Upgrade parameter machine can be 3D socks、stealth boat socks、once-molded ankle socks、five toes socks etc.
Specification
Model NO. | Plain & Terry RT202 / RT204/ RT208 | |||||||||||||||||
Cylinder Diameter | 3 1/2'' 3 3/4'' , 4'' 5'' etc | |||||||||||||||||
Needle Range | 56 - 168N | |||||||||||||||||
Running Speed | Max about 380 R.P.M | |||||||||||||||||
Drive Motor Power | 0.8 - 1KW | |||||||||||||||||
Fan Motor | 0.75KW | |||||||||||||||||
Control Box | 0.8KW | |||||||||||||||||
Floor Space | 1500*1100*2300MM(L*W*H) | |||||||||||||||||
Net Weight | 300kg | |||||||||||||||||
Gross Weight | 350kg | |||||||||||||||||
FAQ
1. We’ll teach you to install and debugging the machine in your factory.
2.Main parts and electrical parts are guaranteed for oneyear after the machine leaves factory.
3.Quick reply with professional knowlege and language.
2.Main parts and electrical parts are guaranteed for oneyear after the machine leaves factory.
3.Quick reply with professional knowlege and language.
