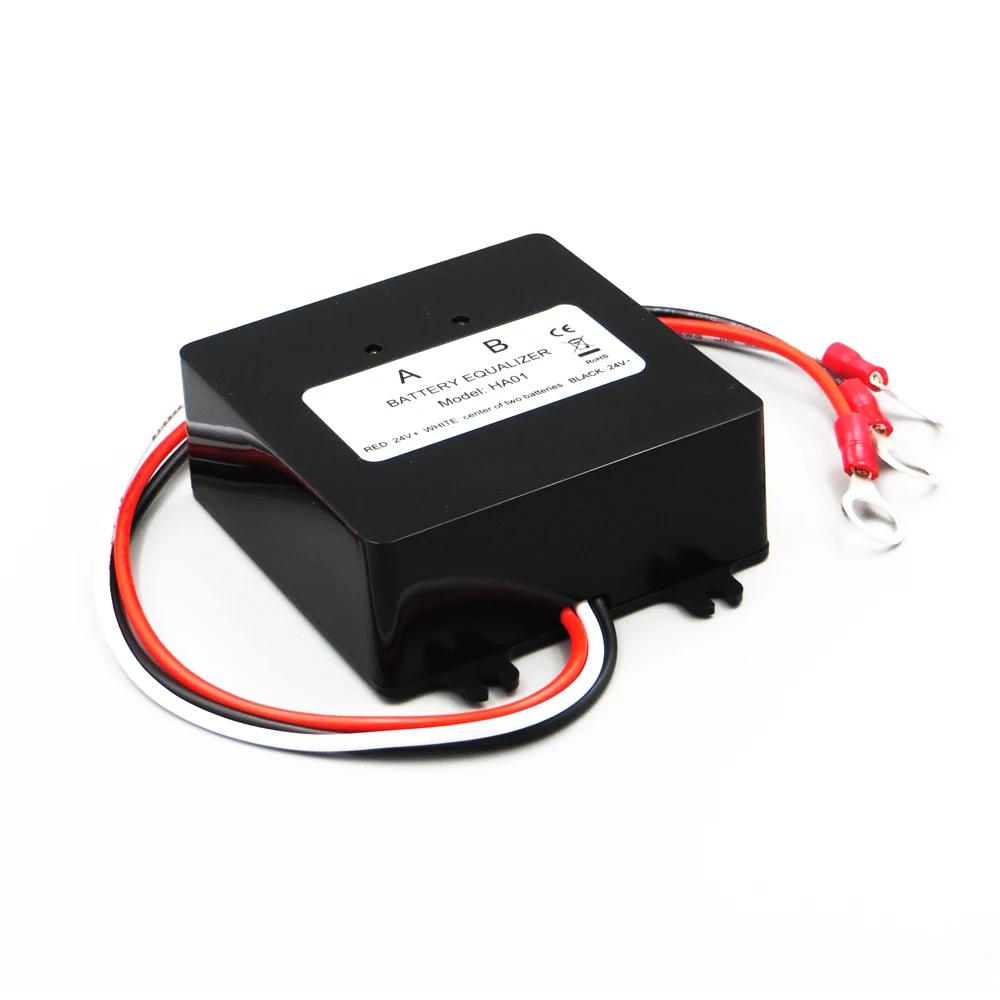

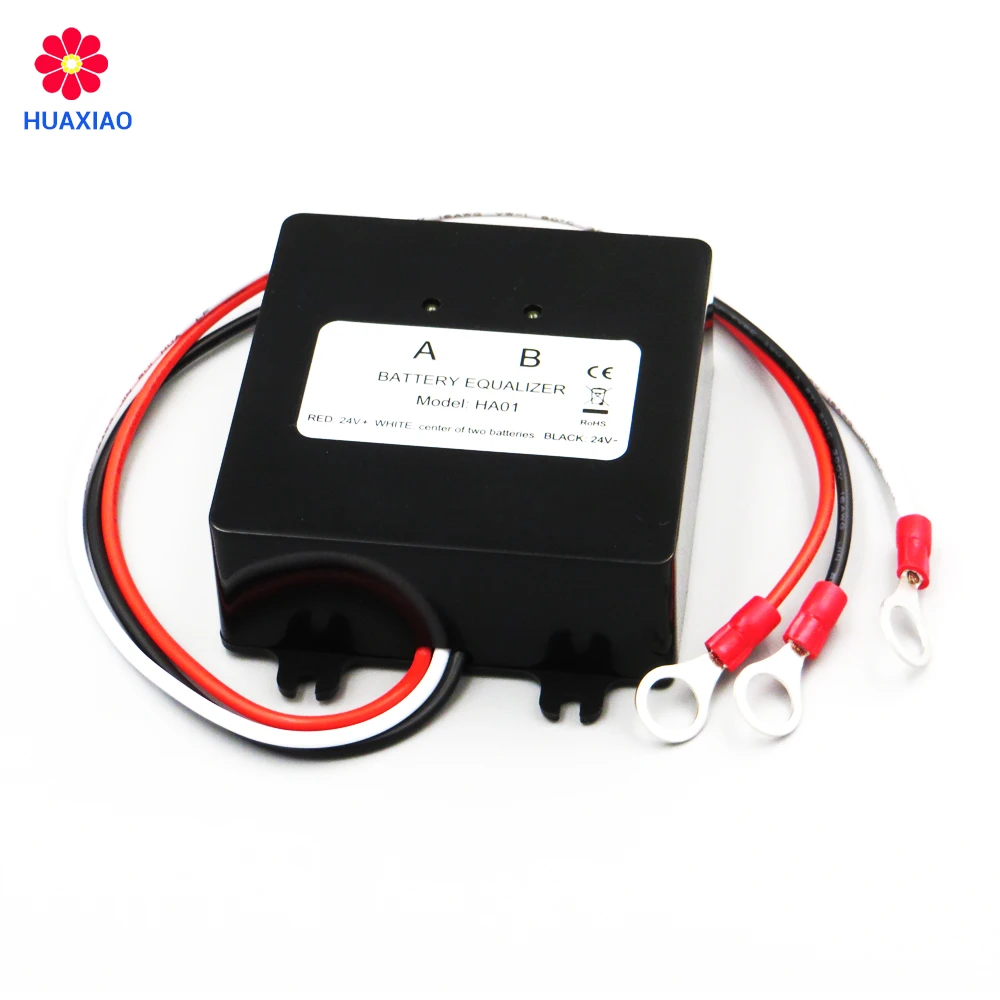

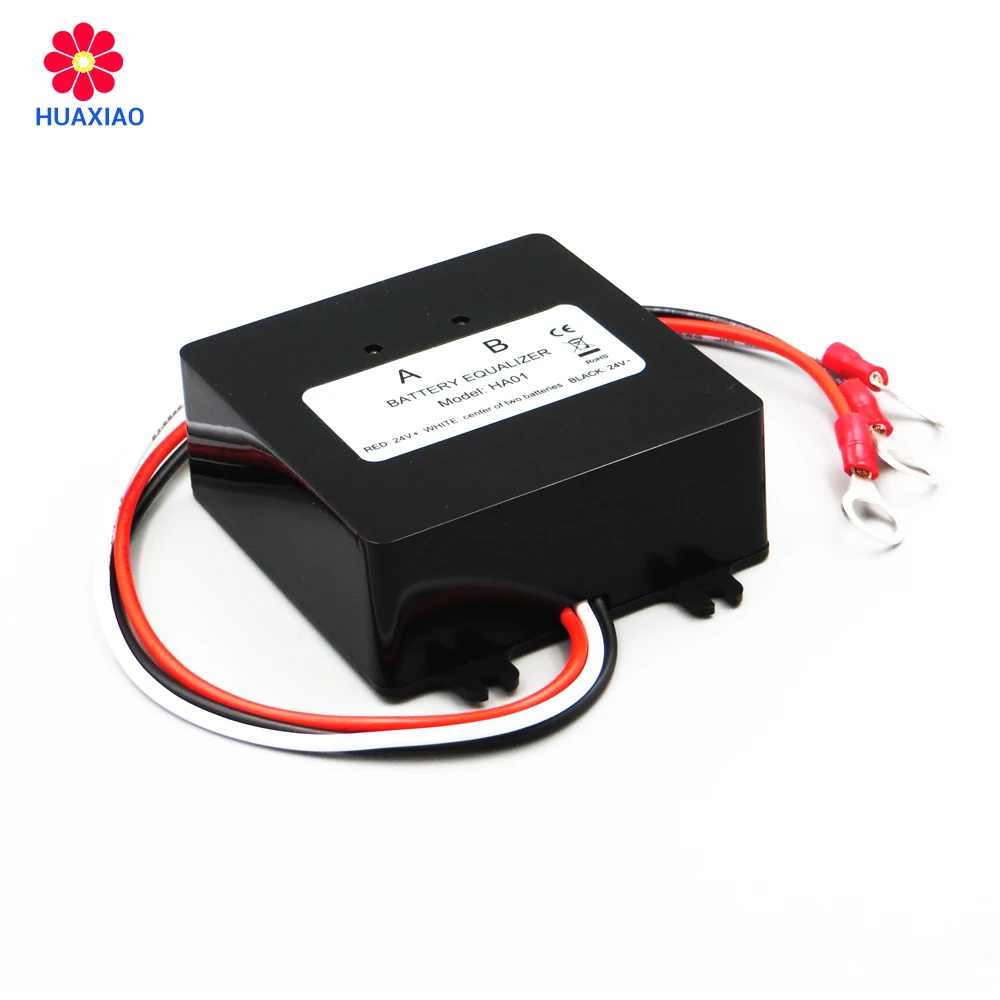

HA01 Battery Equalizer 12V 24V Equalizer Balancer For 2*12V Lead Acid /AGM/Gel/Lithum/LiFePO4 Solar Battery Bank
- Category: >>>
- Supplier: Shenzhen Huaxiao Technology Co. Ltd.
Share on (62596653863):
Product Overview
Description
Rechargeable battery balancer, battery equalizer
Product Description

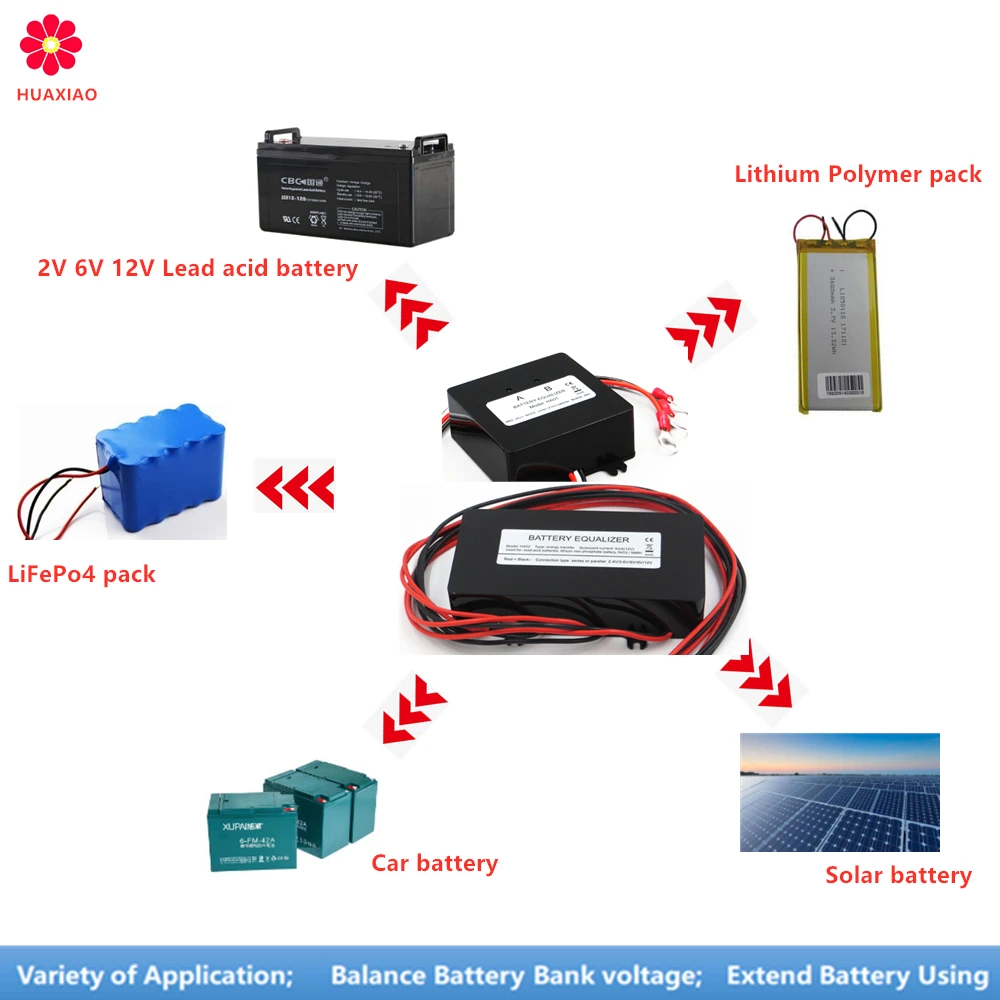

Application
TECHNICAL DATA
Battery nominal voltage | 2*12V |
Optimizing current | 0-5A |
Quiescent current | <3mA |
Dimensions | 70*70*27 mm |
Protection | Reverse polarity protection |
Low Voltage Disconnect | 10V |
LED INDICATOR
| LED A | LED B |
U(A)=U(B) | Off | Off |
U(A)>U(B) | Flash | Off |
U(A)<U(B) | Off | Flash |
U(A)<10V | On | Off |
U(B)<10V | Off | On |
U(A/B)<10V | On | On |
Feedback of HA01/02
![UG%URVR]]9OJ}LJT$7]4S.png](http://sc01.alicdn.com/kf/HTB1j868NFzqK1RjSZFC762bxVXaJ/200394721/HTB1j868NFzqK1RjSZFC762bxVXaJ.png)
![5B3C[]9_T3IWM2YL9N8V2U.png](http://sc02.alicdn.com/kf/HTB14EH7NMHqK1RjSZFE763GMXXaf/200394721/HTB14EH7NMHqK1RjSZFE763GMXXaf.png)

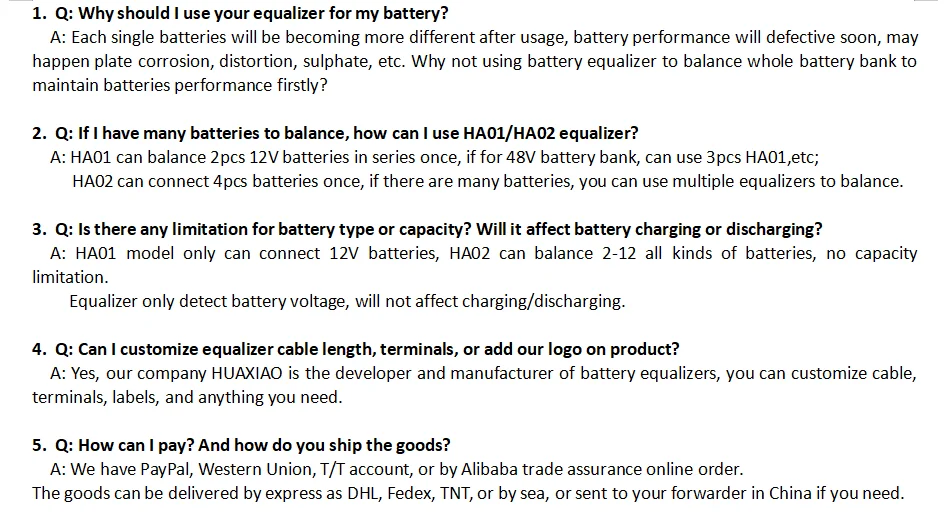

FAQ
![4_DQM]9Y~8I40IJIIO`W6L4.png](http://sc02.alicdn.com/kf/HTB1PEusN6TpK1RjSZKP7613UpXaX/200394721/HTB1PEusN6TpK1RjSZKP7613UpXaX.png)
