mobile mini mix wet concrete batching plant with silo 60 ton
US $48000-$50000
0.5M3 двухвальный бетоносмеситель 500 миксера с заполнителем порошок весы весовой дозатор
- Category: Concrete Batching Plant >>>
- Supplier: Zhengzhou Jianxin Machinery Co. Ltd.
Share on (62596803027):
Product Overview
Description

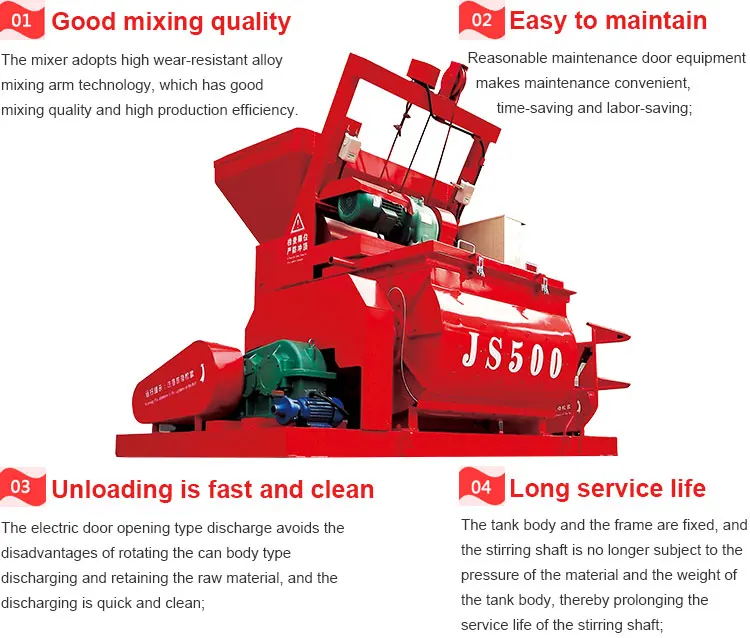

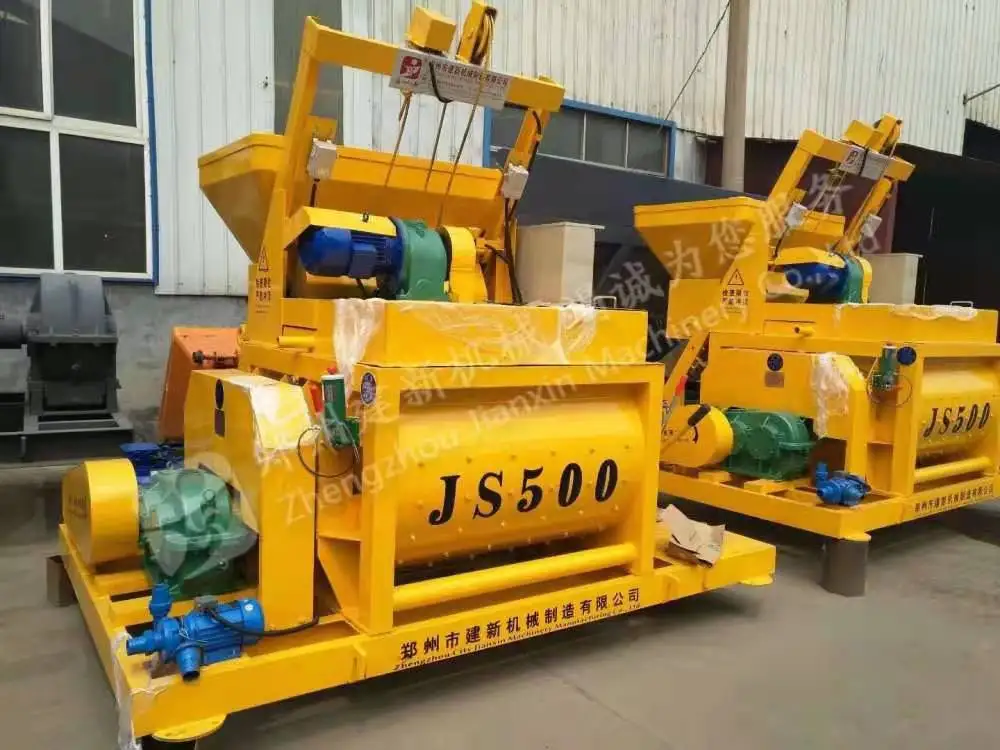

JS500 0.5M3 twin shaft concrete mixer 500Liter mixer
Concrete mixer Electrical System
The electric control circuit of JS500 small concrete mixer is equipped with an air switch, a fuse, and a thermal relay, and has the functions of short circuit protection and overload protection. All control buttons and air switch handles and indicators are placed on the distribution box door with a door lock.The electrical components in the distribution box are mounted on a single edge plate, which is safe and reliable, and easy to operate and maintain.
Concrete mixer technical parameters | ||||
Parameter Model | JS500 | JS750 | JS1000 | JS1500 |
Item | ||||
Discharge volume | 500L | 750L | 1000L | 1500L |
Charging volume | 800L | 1200L | 1600L | 2400L |
Theoretical Capacity | ≥25m³ | ≥35m³ | ≥50m³ | ≥75m³ |
Aggregate Sizes | ≤60/80mm | ≤60/80mm | ≤60/80mm | ≤60/80mm |
Working Circle | 60s | 60s | 60s | 60s |
Mixing Blade(Speed) | 35r/min | 30.5r/min | 25.5r/min | 23r/min |
Mixing Blade(Quality) | 2×7 | 2×8 | 2×8 | 2×9 |
Mixing Motor(Model) | Y180M-4 | Y200L-4 | Y225S-4 | Y225M-4 |
Mixing Motor(Power) | 18.5kw | 30kw | 37kw | 45kw |
Lifting Motor(Model) | YEZ132S-4 | YEZ132M-4 | YEZ160L-4 | YEZ180M-4 |
Lifting Motor(Power) | 5.5kw | 7.5kw | 11kw | 18.5kw |
Pump Motor(Power) | 0.75kw | 1.1kw | 3kw | 3kw |
Weight | 1500kg | 6150kg | 9880kg | 10960kg |
Dimension(L*W*H)mm | 3030×2300×2680 | 4550×2250×2450 | 4650×2250×2250 | 5058×2250×2440 |
Concrete mixer Packaging and Shipping
