monitor PCBA eDP lcd screen 4K lcd controller board for HD 4K LCD monitor with VGA Type c audio
- Category: >>>
- Supplier: Shenzhen Wu He Tian Cheng Technology Co. Ltd.
Share on (62597169803):
Product Overview
Description
monitor PCBA eDP lcd screen 4K lcd controller board for HD 4K LCD monitor with VGA Type-c audio
*With good picture quality, many functions, rich interfaces, mature system, etc., it supports 2K/4K EDP screen, mainly for 32”
And the following size monitoring / portable product design.
*4 Quad screen function, the same screen, display 4 channels of video signals at the same time.
*Support 3 channels of HDMI2.0
*DP input.
*8lane edp output.
*Analog audio amplifier: Maximum output power 2X1W (8 ohms).
*Support screen resolution, 1920x1080@144MHZ, 3840x2160@60MHZ, EDP signal output driver screen.
*Multi-national OSD menu language.
Product Paramenters

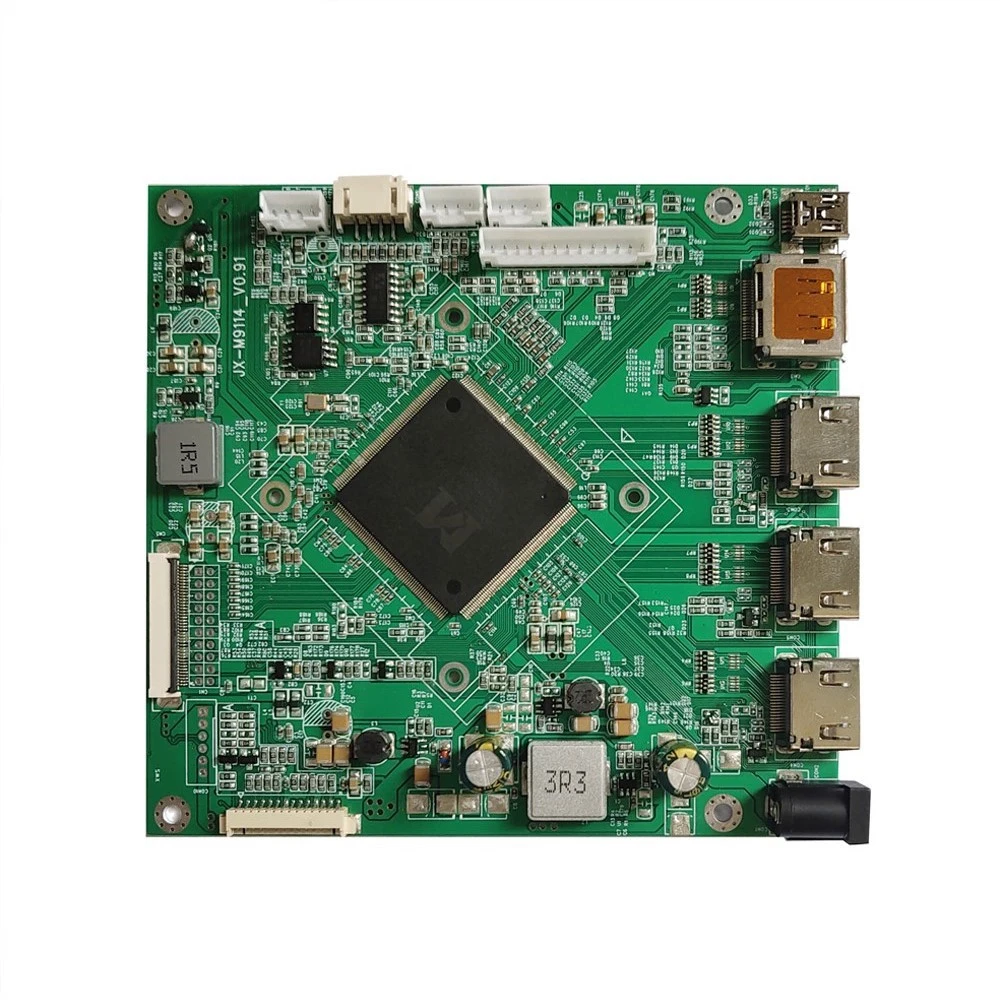

monitor PCBA eDP lcd screen 4K lcd controller board for HD 4K LCD monitor with VGA Type-c audio
No. | Describtion | No. | Describtion |
1 | Power DC12V input | 2 | HDMI 1 input |
3 | HDMI 2 input | 4 | HDMI 3 input |
5 | DP input connector | 6 | Mini USB-B |
7 | VGA input connector | 8 | Audio input connector |
9 | Headphone output | 10 | Speaker output connector |
11 | UART connector | 12 | EDP output |
13 | Key board connector |
Details Images

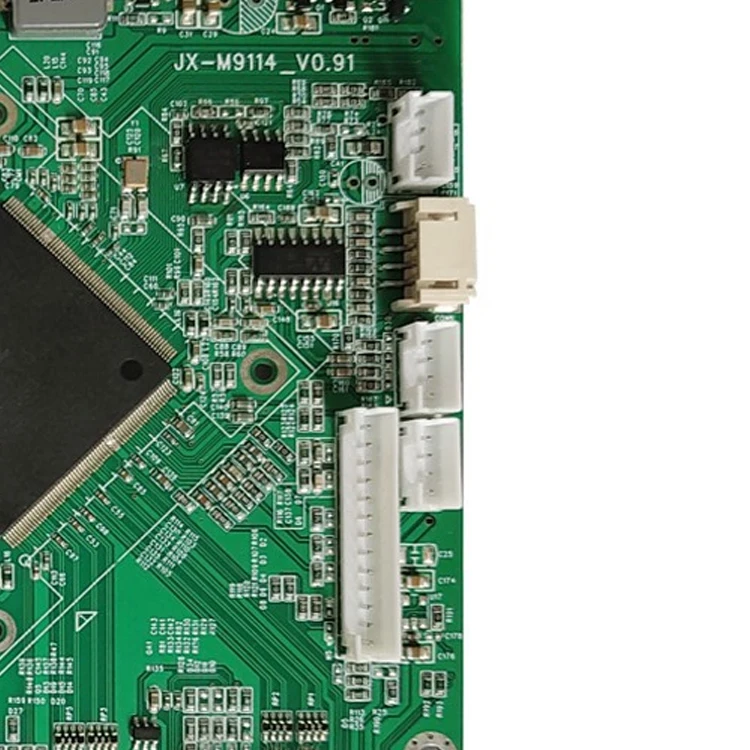

monitor PCBA eDP lcd screen 4K lcd controller board for HD 4K LCD monitor with VGA Type-c audio
monitor PCBA eDP lcd screen 4K lcd controller board for HD 4K LCD monitor with VGA Type-c audio

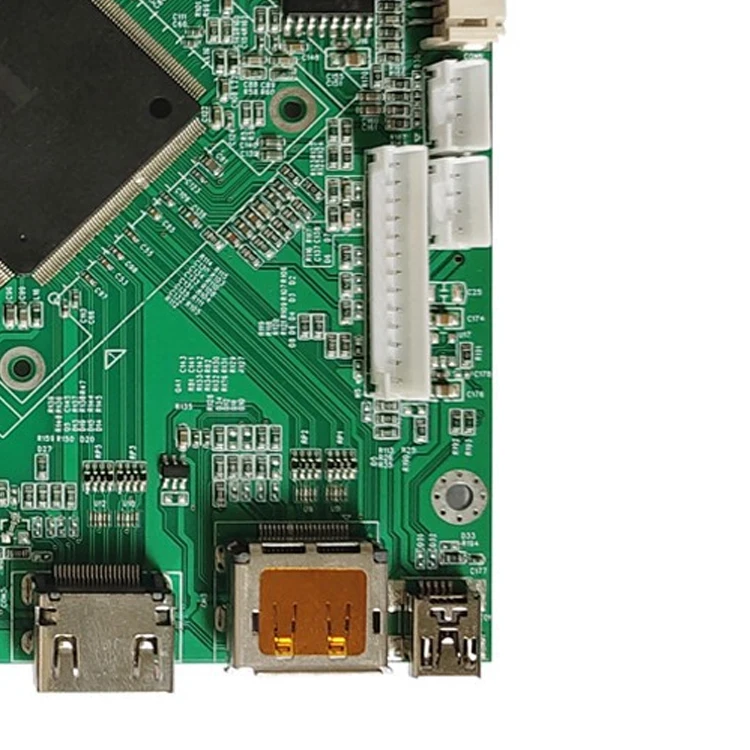

HD DP and HDMI access at the same time
Realize the display of 4 ch port video signals in 4 Quad on the same screen.

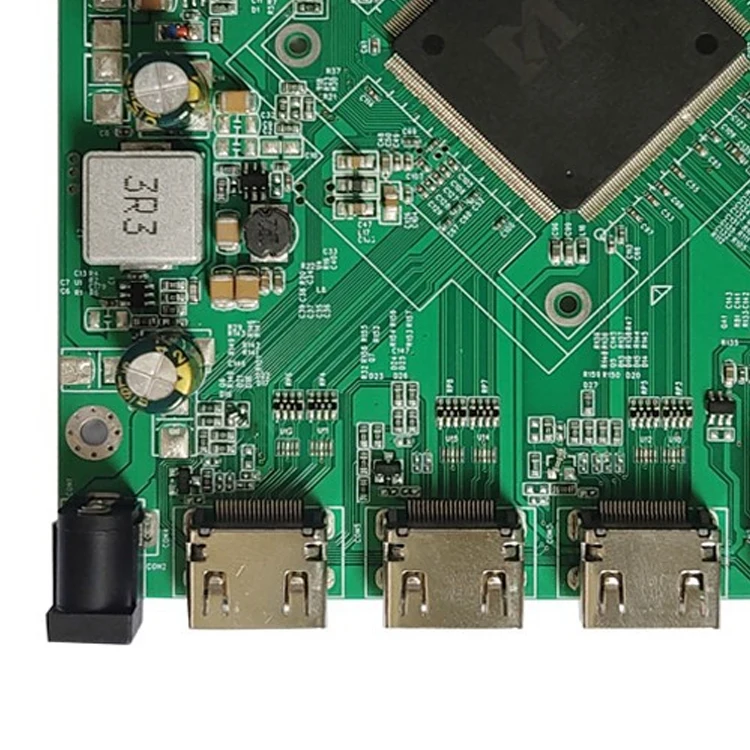

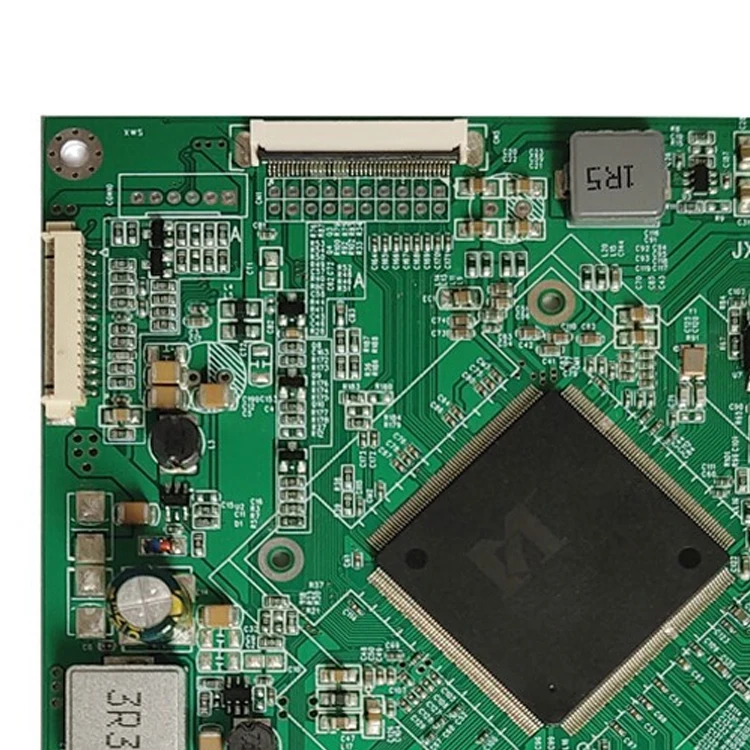

monitor PCBA eDP lcd screen 4K lcd controller board for HD 4K LCD monitor with VGA Type-c audio

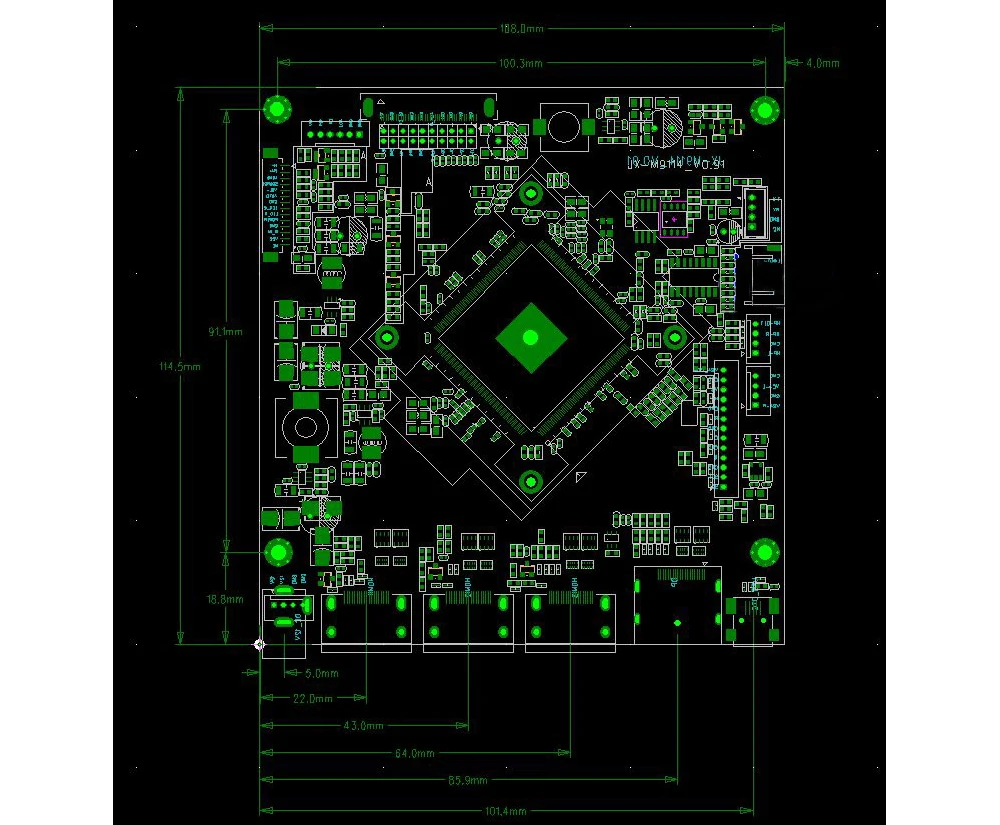

Size
Product packaging
Packing Details for volume production order:
(1) Packed the Monitor into air bubble bag/film
(2) Put the above together into box
(3) Packed the box into a carton box to protect the Driver Board during transportation.
(4) Seal the carton by tape
(1) Packed the Monitor into air bubble bag/film
(2) Put the above together into box
(3) Packed the box into a carton box to protect the Driver Board during transportation.
(4) Seal the carton by tape
