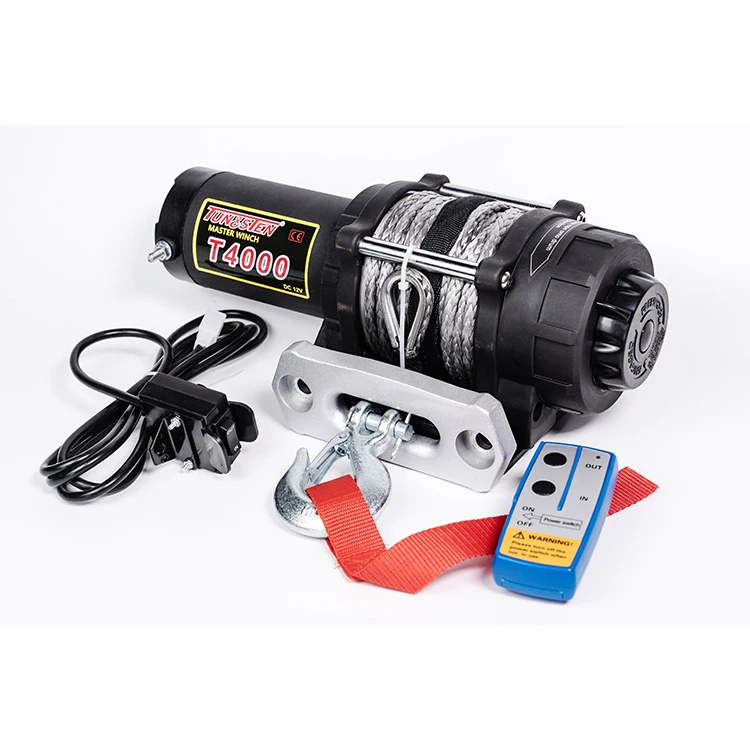

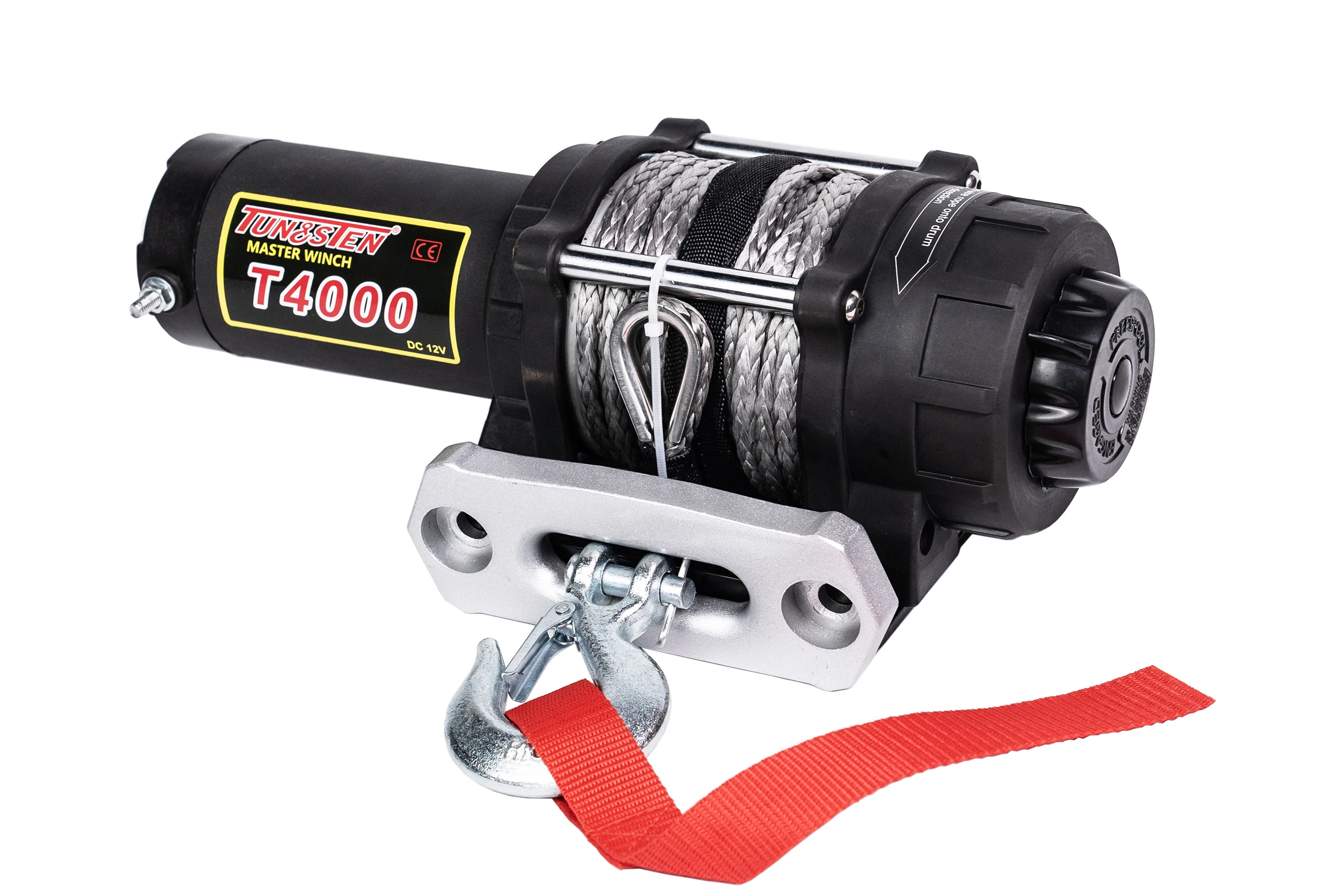

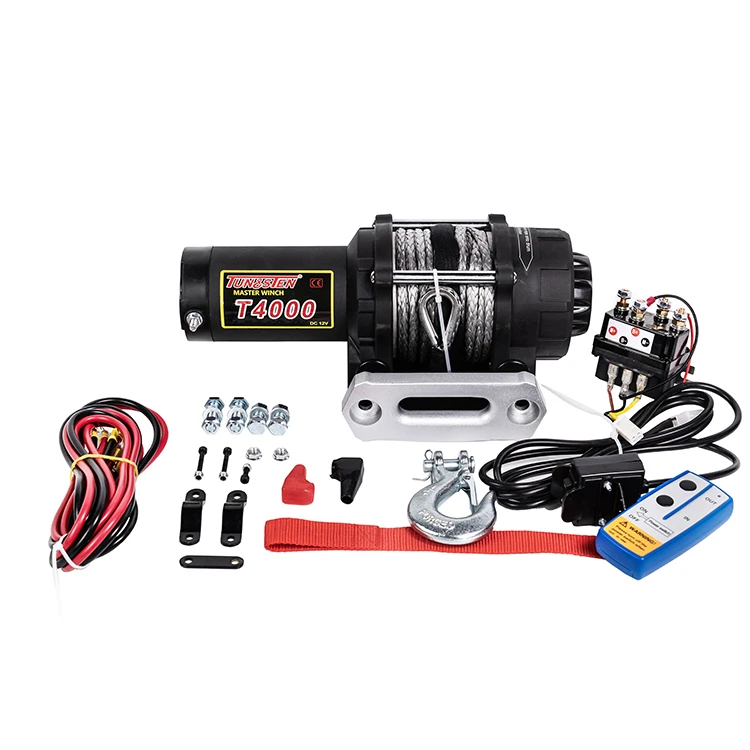

4000lbs pulling 12v/24v mini electric winch with synthetic rope
- Category: >>>
- Supplier: Ningbo Yinzhou Armor Import And Export Co. Ltd.
Share on (62597186920):
Product Overview
Description
4000lbs pull waterproof small 4wd winch with synthetic rope
Winch Application
Specifications
| Specification | |
| Item: | X4000S |
| Rated Line Pull: | 4000lbs(1818kgs) single line |
| Motor: | Permanent magnetic motor 1.9hp/1.4kw DC 12V |
| Gear Train: | 3 Stage planetary gear |
| Gear Ratio: | 138:1 |
| Clutch: | Sliding ring gear |
| Brake Action: | Dynamic |
| Synthetic Rope Size: | 6.0mm x 13m |

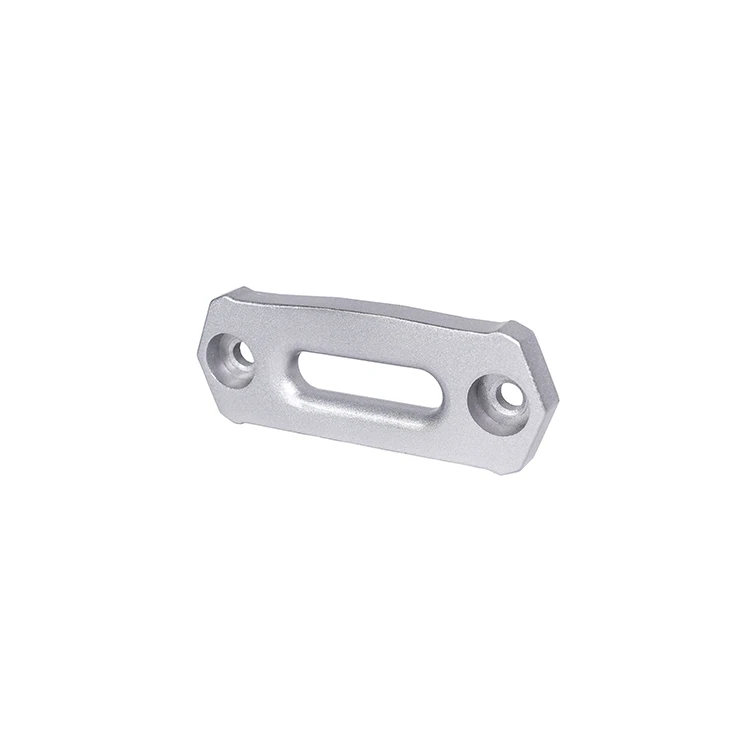

| Fairlead: | Aluminum fairlead |
| Drum Size: | 50mm x 76.5m |
| Dimensions: | 348mm x 114mm x 120mm |
| Mounting Bolt Pattern: | 124mm x 76mm |
| N.W.: | 10kgs |
| Packing: | 350mm x 140mm x 210mm |
Warranty
We supply Max 2years Warranty for the winch!
2 Years Warranty for mechanical parts including Gear Train, Gear Box, Clutch, Supports, Drum, Brake, Tie Rod, Fairlead.
1 Years Warranty for Electrical parts including Motor, Solenoid.
Packaging & Shipping
Company Information
Production Ability:
Testing Ability:
Why Choose Us
1. Professional: We have our own factory making electric winch for 20years.
2. Service: Professional sales team, after-sale service team and technology department.
3. Production Ability: Full range production machines and testing facilities operated by 150 workers, Max. 10 000 winches production per month.
4. OEM: We make winches for many famous winch brand companies.
5. Warranty: We supply Warranty for each winch.
