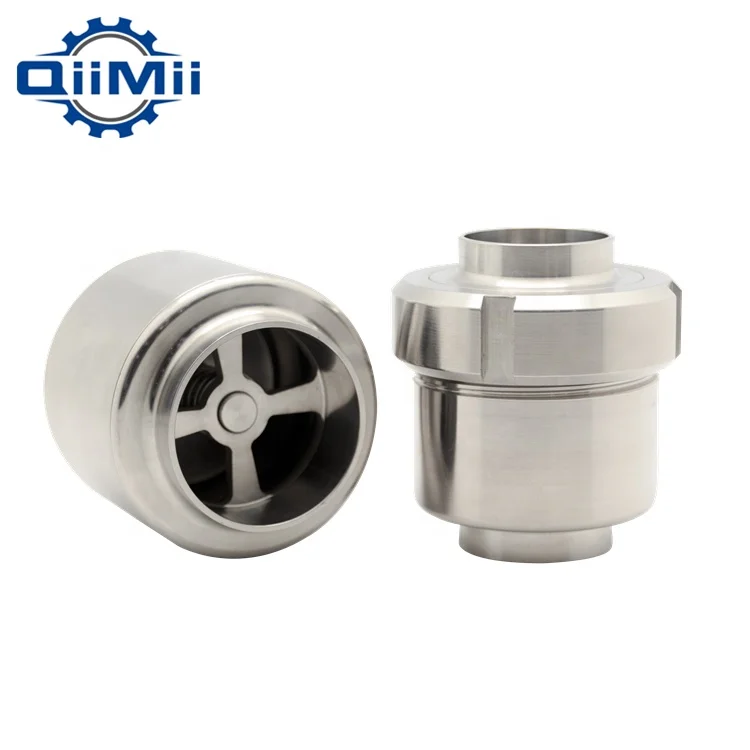

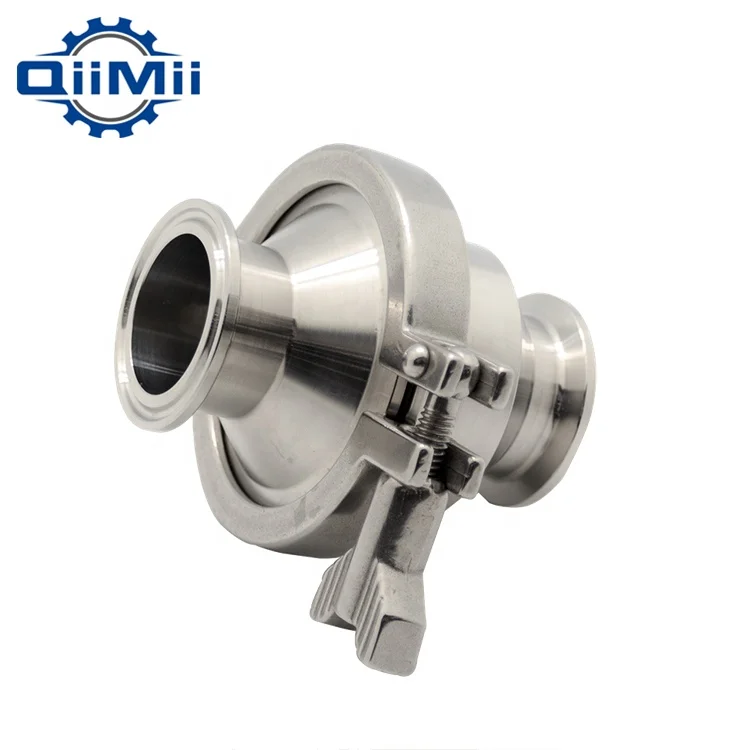

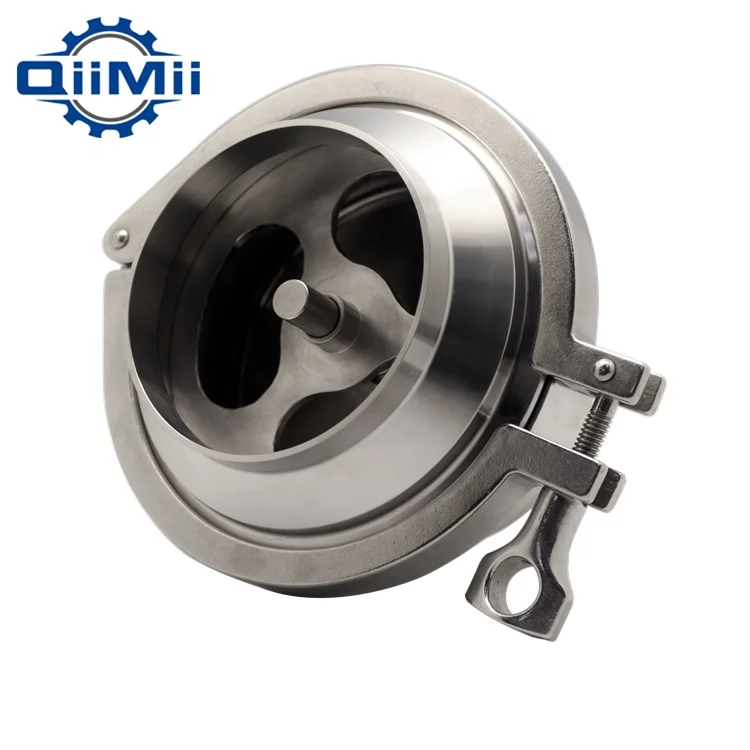

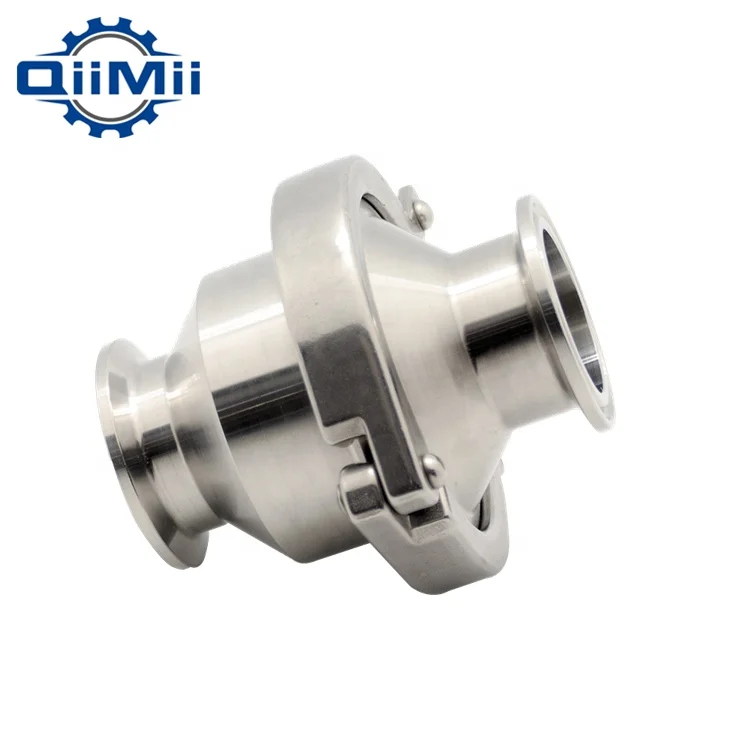

Санитарный одноходовой клапан из нержавеющей стали SS304 SS316L
- Category: Check Valves >>>
- Supplier: Wenzhou Qiming Stainless Co. Ltd.
Share on (62597227643):
Product Overview
Description
Product Description
Product Name | Stainless Steel 304 316L Sanitary Check Valve |
Material | SS304 or SS316L |
Connection Way | Weld, Clamp, Thread, Union |
Standard | 3A DIN SMS DS ISO RJT |
Size | 1/2" - 4" or DN10 - DN100 |
Pressure of work | 0~10bar |
Working temperature | VMQ:(-50~+180℃) EPDM：(-20~+135℃) FPM: (-30~+230℃) |
Sterilization temperature | 150℃(MAX 20min) |
Inside surface treatment | Ra≥0.4-0.8μm |
Surface treatment | Ra≥0.8-1.6μm |
Seal Material | EPDM, Silicon, FPM |
Packing Details | Usually bubble pack for each valve within carton box or plywood case, or special packaging upon customer requirements. |
CONCEPT

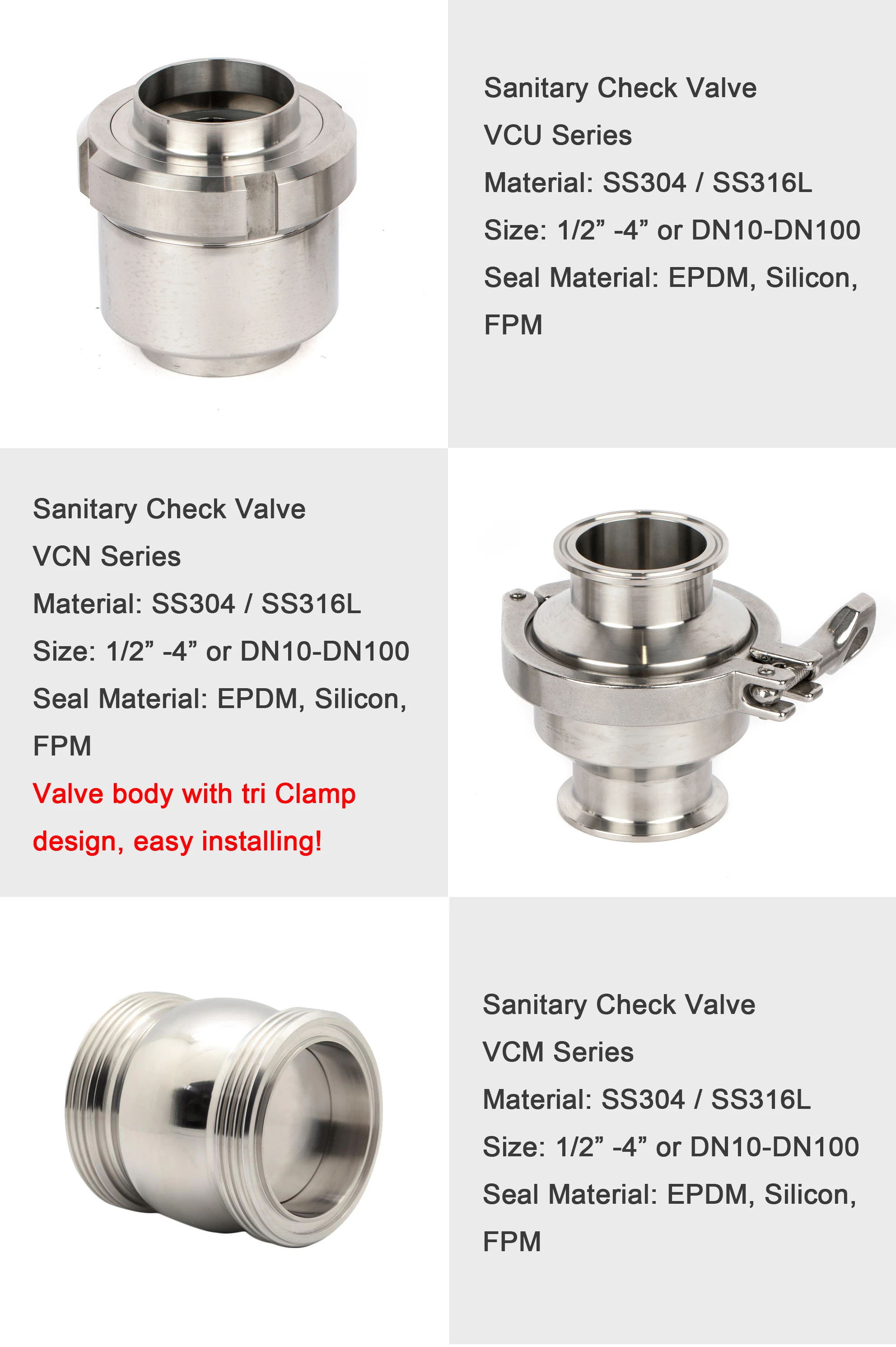

Sanitary check valve, also known as "non-return valve", is designed for use in process piping installations to prevent reverse flow. VCN series is a spring check valve with different connection ends.
WORKING PRINCIPLE
A check valve opens when the pressure below the valve plug exceeds the pressure above the valve plug and the spring force. The valve close when pressure equalization has been achieved.
Products Show
Recommend Products
Our Service
Our Company
Shipping details
Packing Details : Packing, solid bicycle saddle, 50pcs/carton
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Delivery Details : 3-30 days after order of Solid bicycle tire tubes
Our Certifications
Quality is our corporate culture
QM stainless has been audited and certified as meeting the full requirements of ISO 9001, including design, manufacture, inspection, customer service, and distribution functions.
Exhibition show
FAQ
Q: Why would I choose you?
Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou QiMing Stainless Co., Ltd has been engaging in manufacturing sanitary valves, fittings, tank components and pumps for over 15 years, outstanding in production capacity, effective management, accurate lead time, on-time shipments and problems-solvingrate after sales.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.
For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.
Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
