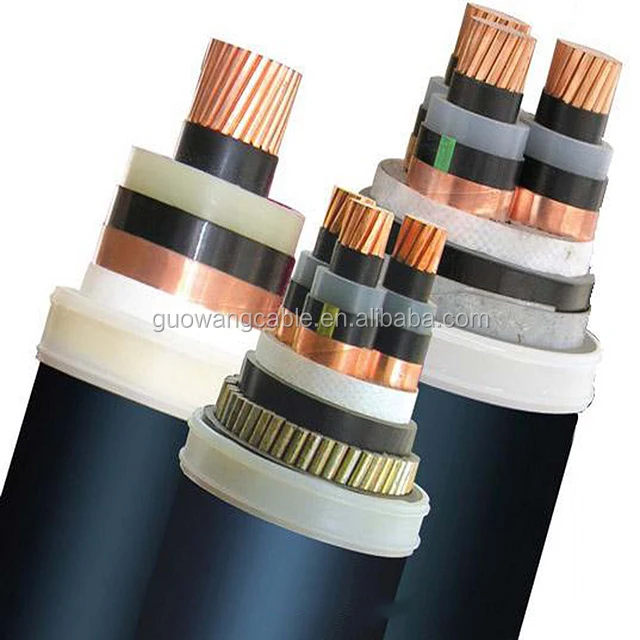

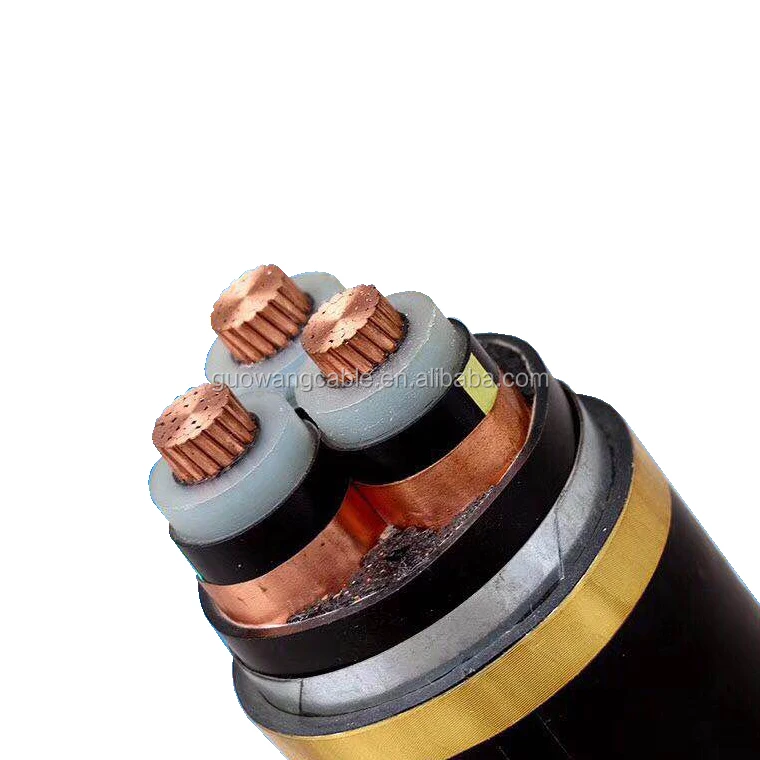

Power Hot Sales Medium Voltage Copper Conductor XLPE Insulation PVC Sheath Power Cable
- Category: >>>
- Supplier: Henan Guowang Cable Co. Ltd.
Share on (62597333059):
Product Overview
Description
Product Description

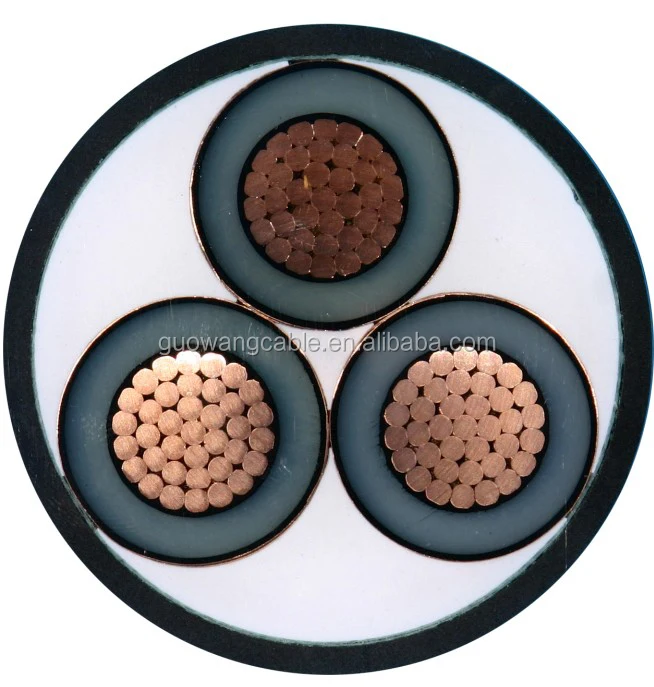

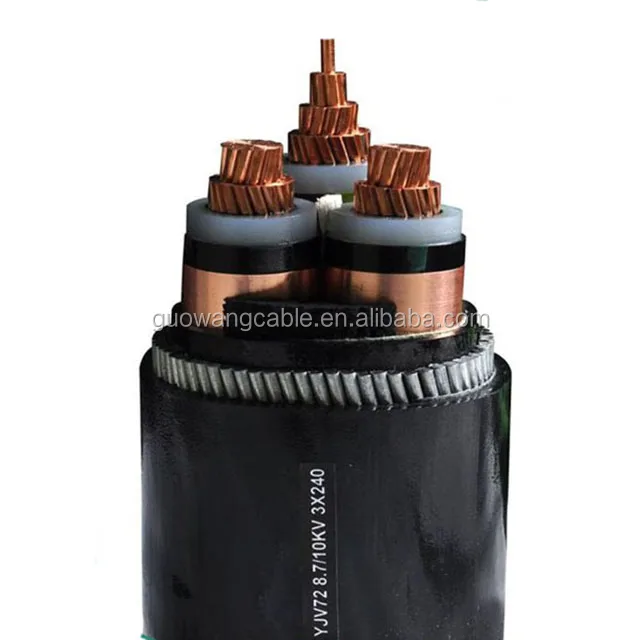

China Manufacture 500mm2 Copper xlpe cable

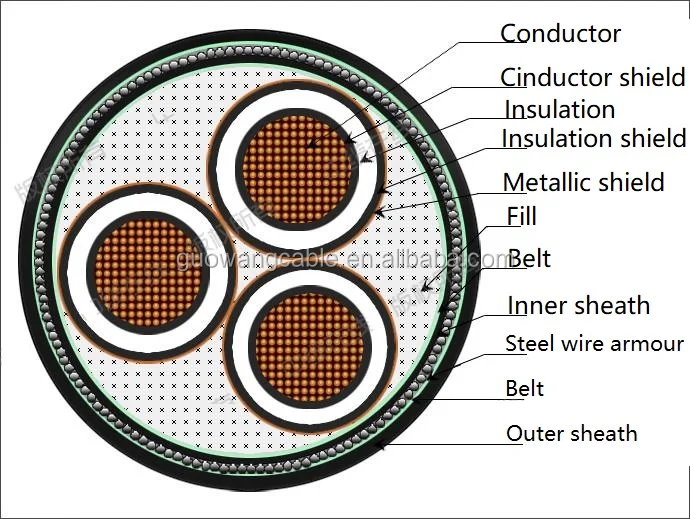

item | Construction |
Conductor | Annesled copper |
Insulated | XLPE |
shielding | Semi-conductive tape |
Metal shielding | Copper tape |
Jacket | PVC |
Reted voltage | 26/35 KV |
Conductor size | 3X240 mm2 |
A. Direction for use
1.1.Used for AC 50Hz, Power distribution network of rated voltage 26/35KV or industrial. Mainly used for undergroun grid of the bulding,
3. Rated voltage 26/35KV, outled line of power station and substatio, serivce for transmission and distribution lines.
4. Max voltage of AC system shall not high than 40.5KV.

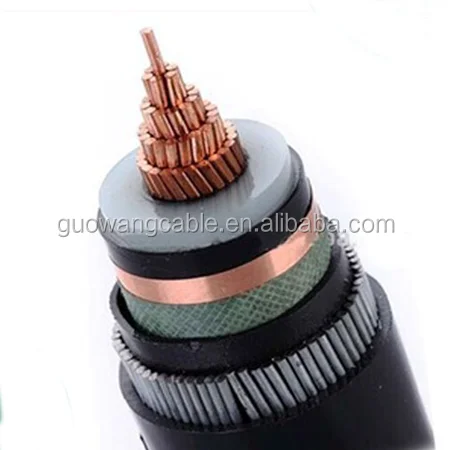

500mm2 Copper xlpe cable
B. Install Caution
cable conductor long-term allowed to work temperature is 90℃；cable conductor not over than 250℃ ，time of duration less than 5s at shout circuit.
The cable should to stock in the invirement 0℃~40℃，and humidity less of 85%, direct-sun exposure、 rain ,dry place with good ventilation . Cable working life more than 25 yars if strickly comply all request above.
The cable should to stock in the invirement 0℃~40℃，and humidity less of 85%, direct-sun exposure、 rain ,dry place with good ventilation . Cable working life more than 25 yars if strickly comply all request above.
The installation temperature shall not lower than 0℃.

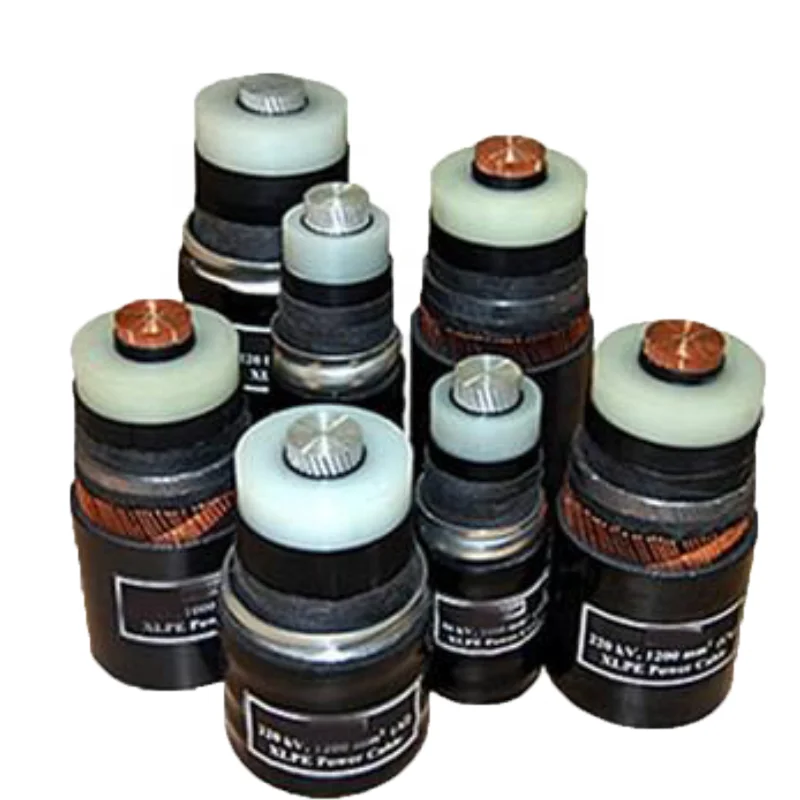

500mm2 Copper xlpe cable

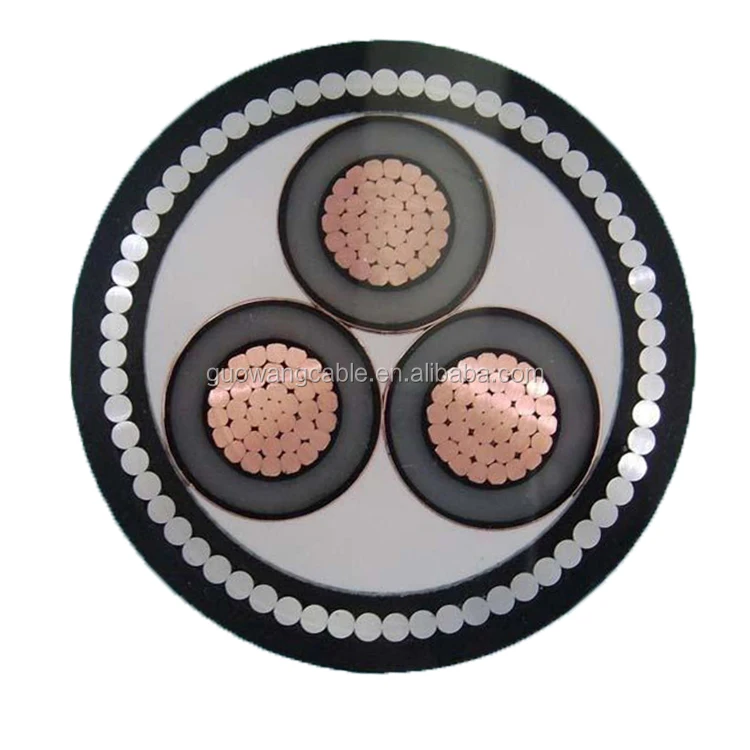

Detailed Images
Ordering of power cable: Please mark the correct cable type 、specification、 length 、package request、delivery time and delivery twem ...etc
Size Information
Cross section area | Insulated thickness | Metal shield thickness | Inner jacket | Armoured | Outer jacket | OD | Weight(kg/km) |
3x50 mm2 | 10.5 mm | 40x0.10 mm | 2.0 | 74x3.15 | 3.8 | 89.5 | 11609.8 |
3x70 mm2 | 10.5mm | 40x0.10 mm | 2.1 | 77x3.15 | 3.9 | 93.4 | 12767.1 |
3x95 mm2 | 10.5 mm | 40x0.10 mm | 2.1 | 80x3.15 | 4.1 | 97.2 | 14114.4 |
3x120 mm2 | 10.5mm | 40x0.10 mm | 2.2 | 84x3.15 | 4.2 | 100.6 | 15448.2 |
3x150 mm2 | 10.5 mm | 40x0.10 mm | 2.3 | 87x3.15 | 4.3 | 104.5 | 16909.7 |
3x185 mm2 | 10.5 mm | 40x0.10 mm | 2.3 | 90x3.15 | 4.4 | 108.1 | 18463.6 |
3x240 mm2 | 10.5 mm | 40x0.10 mm | 2.4 | 95x3.15 | 4.6 | 113.7 | 20958.2 |
3x300 mm2 | 10.5 mm | 40x0.10 mm | 2.5 | 100x3.15 | 4.7 | 118.6 | 23497.6 |
3x400 mm2 | 10.5 mm | 40x0.10 mm | 2.6 | 106x3.15 | 5.0 | 126.3 | 27416.0 |
Related Products
Mindium voltage cable three cores
YJV- 3x120mm2
Mindium voltage cable single core with copper wire screen-YJV-1x95mm2
Mindium vlotage cable single core with steel wire armoured- YJV-32--120mm2
26/35KV-YJV-22-3x50mm2
Cu conductor XLPE insulated with Steel tape armoured PVC jacket
8.7/15KV-YJLV-22-3x120mm2
AL Conductor XLPE insulated steel tape armoured with PVC jacket
Mindium voltage cable Aluminum conductor-8.7/15KV-YJLV-1X185mm2
Low voltage copper cable- 600/1000V
YJV-4x120mm2
Low voltage Aluminum cable-600/1000V--YJLV- 4x70mm2
600V THHN Cable according to UL 83
3/0 AWG
450/750V-H07RN-F -4X16mm2
Environment- Protection rubber cable used for submersible pump
Welding cable- YH- 1x95mm2
ABC-0.6/1KV-JKLV-3+1
AAAC-2/0 AWG
ACSR-Dove
CU/PVC-Electric soild housing wire -BV-IEC60227 01

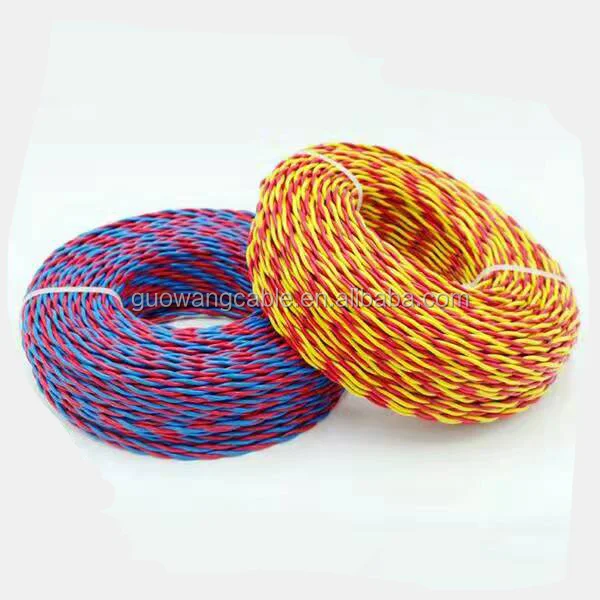

CU/PVC-Twist wire-RVS

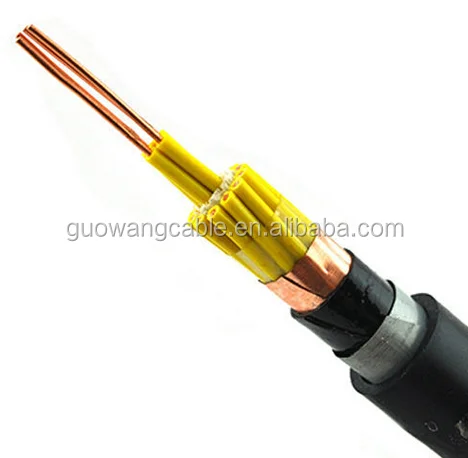

Control cable CU/PVC/CTS/PVC--KVVP2 .

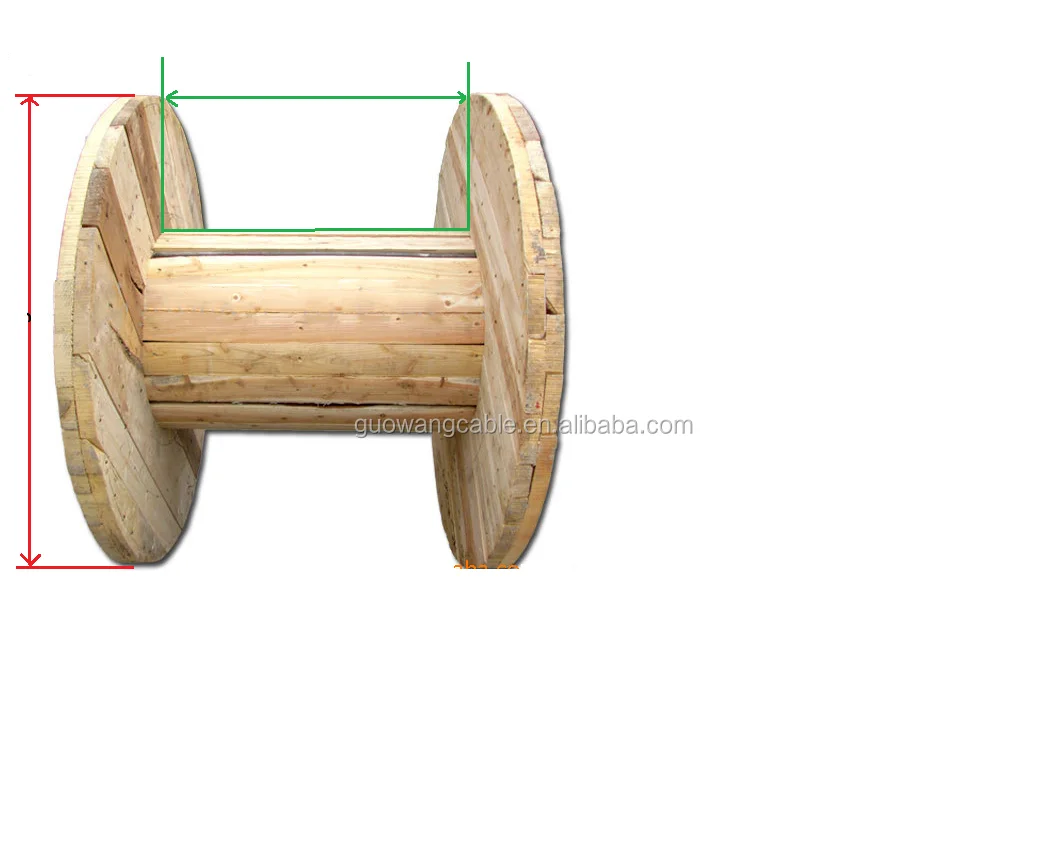

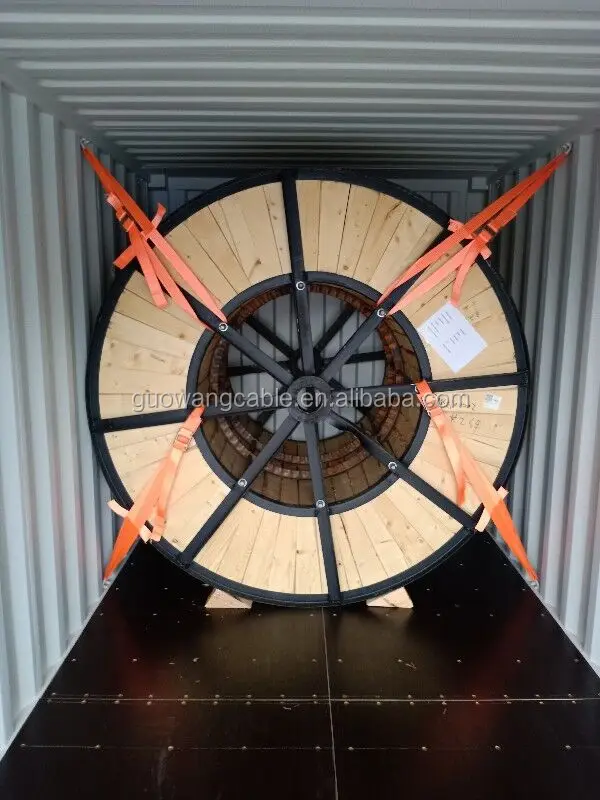

Packing&Shipping
copper wire armoured cable price
Business Card

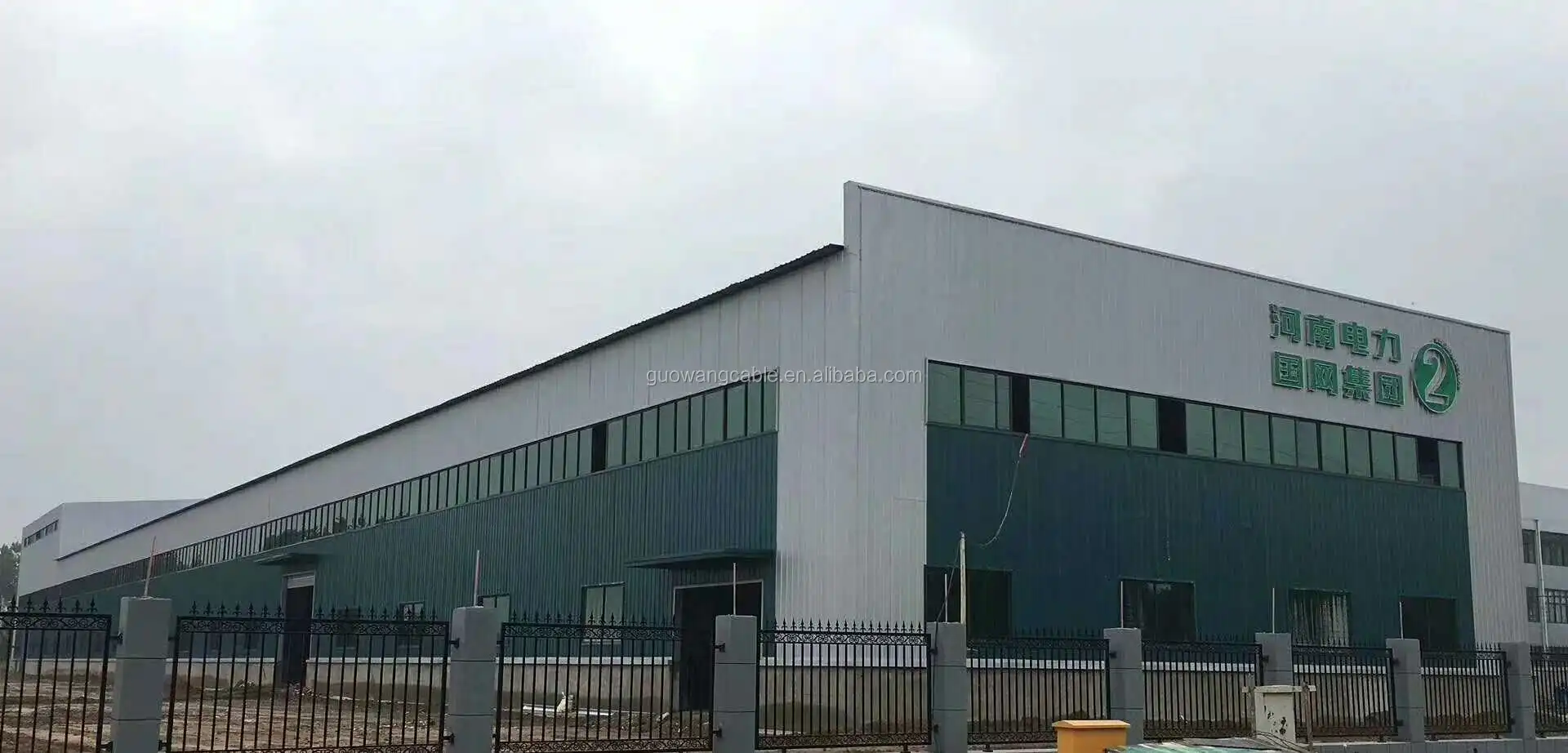

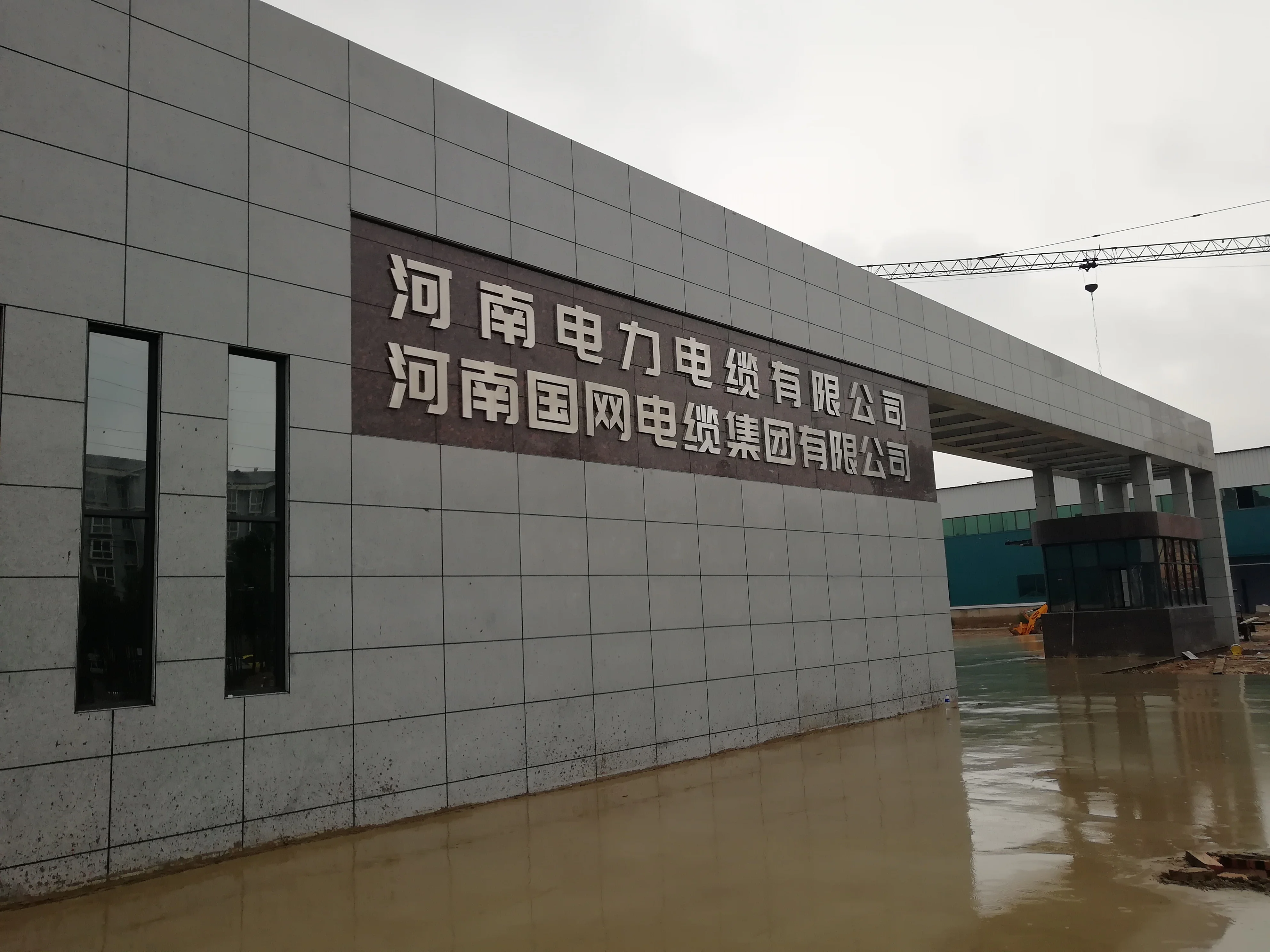

Company Introduction
The company is specialized in producing 35KV and XLPE insulated power cable(including flame retardant and fire-proof power cables), 0.6/1 KV polyvinyl chloride (XLPE) insulated power cable (including flame retardant and fire-proof power cables), aerial insulated cable of rated voltages 1KV-35KV, steel tape and wire armoured cables, parallel assembled distribution lines, halogen free and low smoke cable, low halogen and low smoke cable, polyvinyl choride insulated copper wires, ready-made branch cable, all aluminum conductor, aluminum conductor steel reinforced , all aluminum alloy conductor cable, colliery insulated cable, heat and cold resistant cables, photovoltaic cable as well as various types and specifications. The products of our company have served widely in projects of airport construction, real state development .power transmission and transformation, city net and agricultural network transformation, electric powerplant and enterprises reconstruction and extension as well as every sector of the national economy such as petroleum, chemical engineering, municipal administration .civil building, etc.
Our company has got International Quality System Authentication of IS09001:2008 and Environmental Management System Authentication of ISO14001 -2004, OHSAS 18001:2007, CE.ROSH, BU, SGS, UL certificates . The products of wires and cables has all awarded China compulsory certification (CCC) and National Industrial Production Permit, "Henan High Quality Product",€'Henan Inspection-free Product","Henan Famous Trademark"et
Our company has got International Quality System Authentication of IS09001:2008 and Environmental Management System Authentication of ISO14001 -2004, OHSAS 18001:2007, CE.ROSH, BU, SGS, UL certificates . The products of wires and cables has all awarded China compulsory certification (CCC) and National Industrial Production Permit, "Henan High Quality Product",€'Henan Inspection-free Product","Henan Famous Trademark"et
copper wire armoured cable price

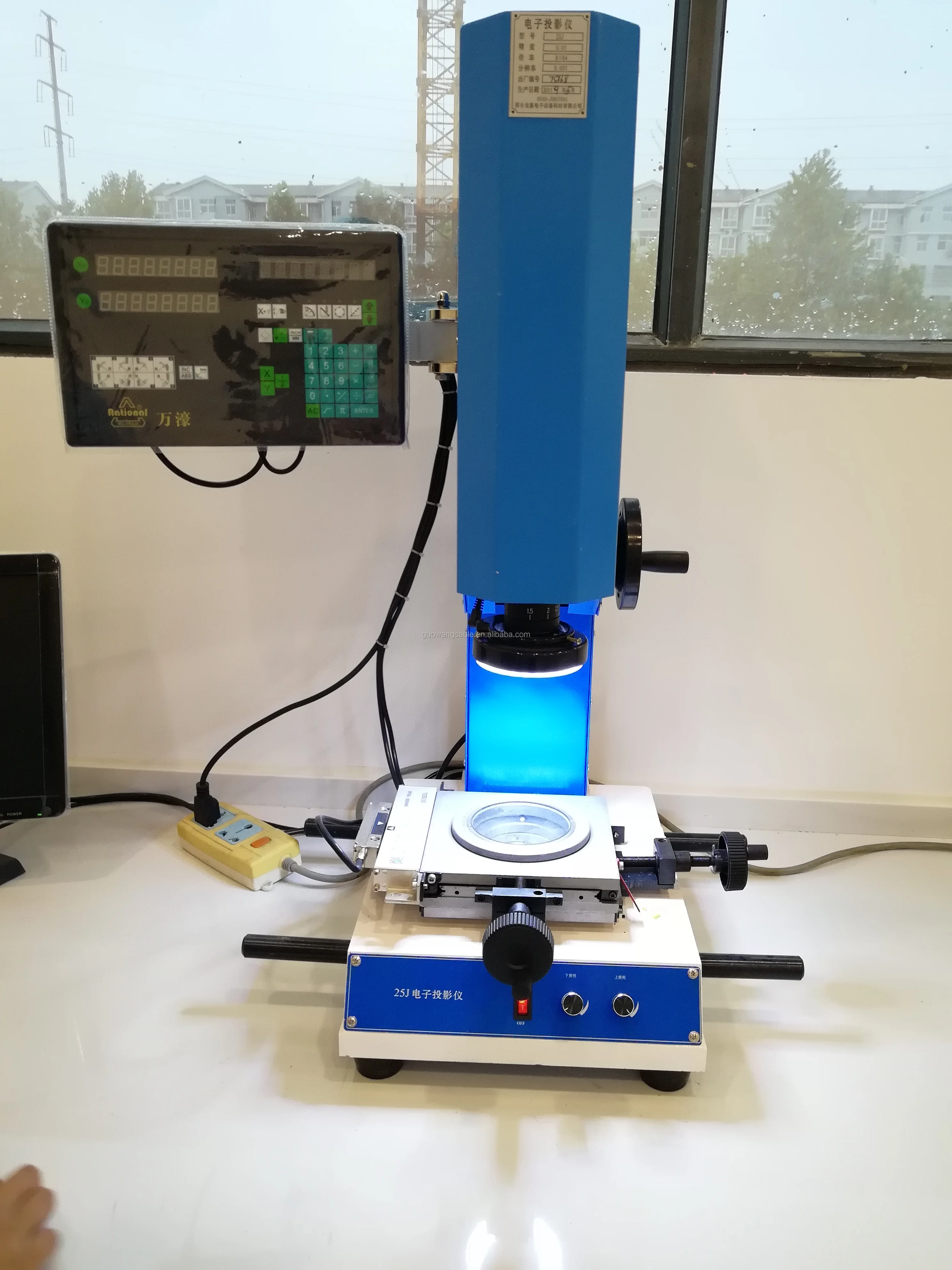

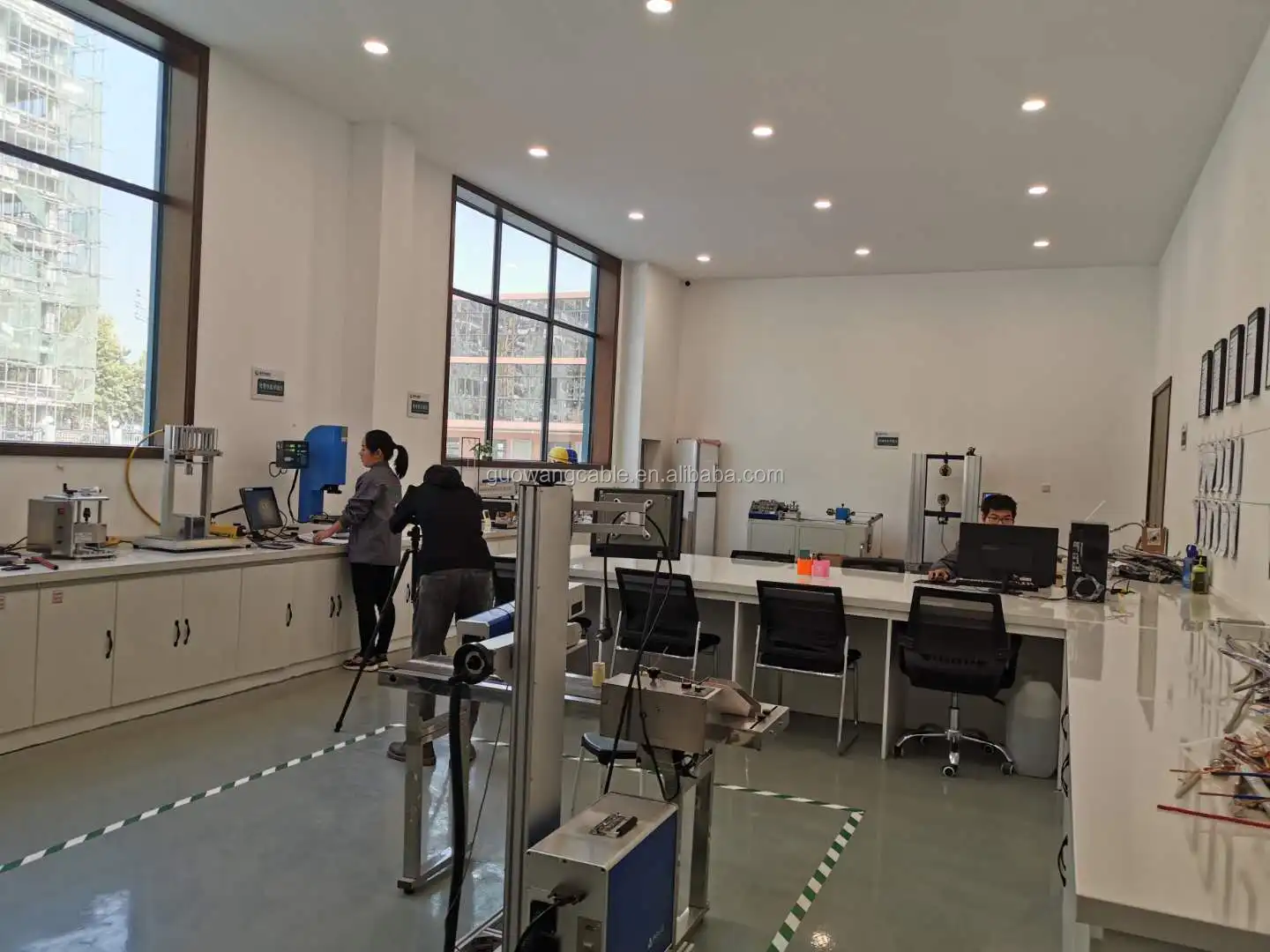

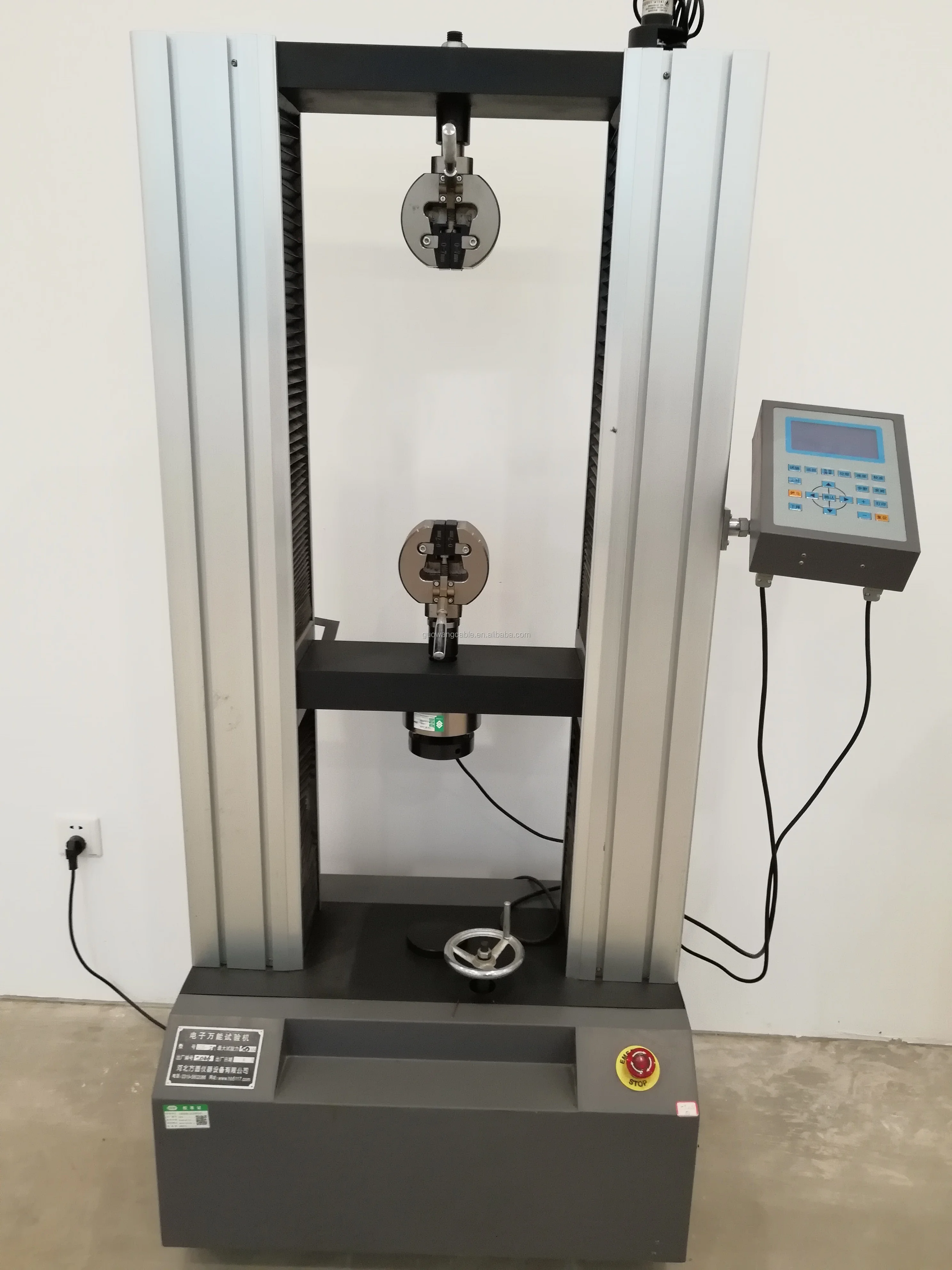

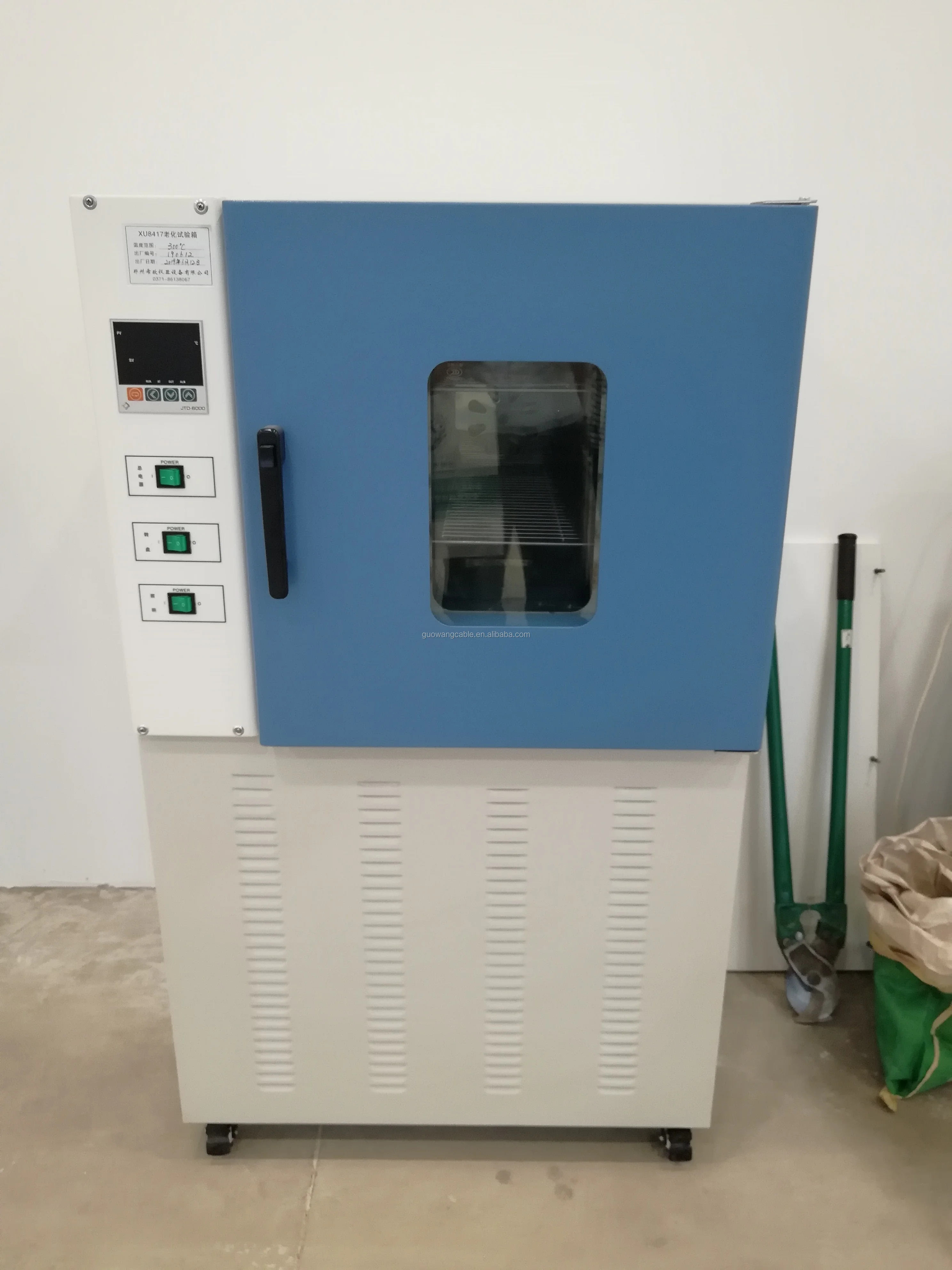

Quailty Control
