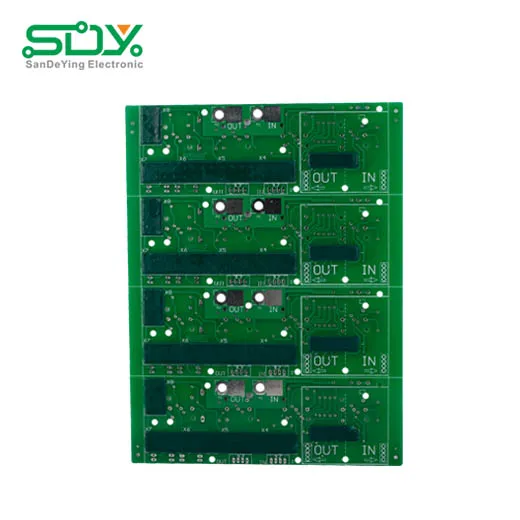

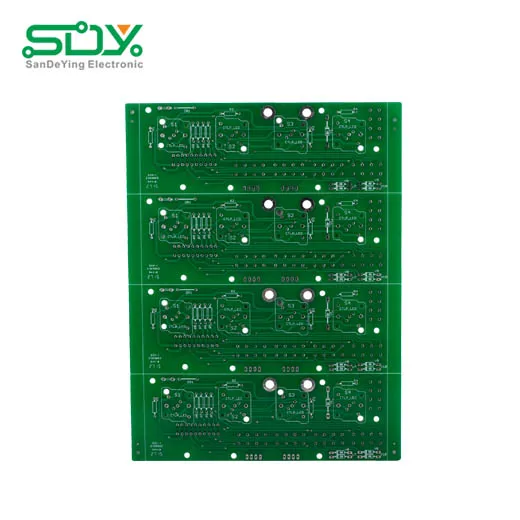

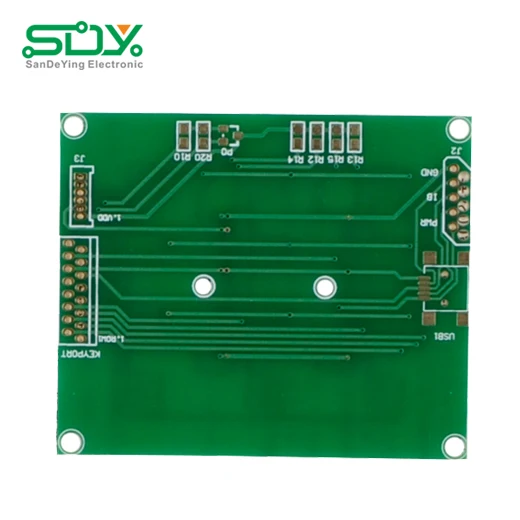

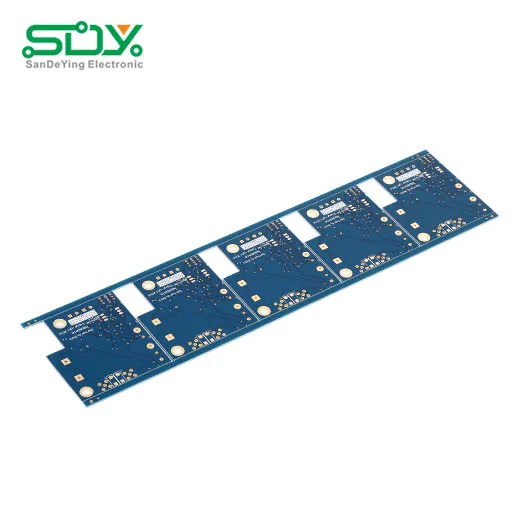

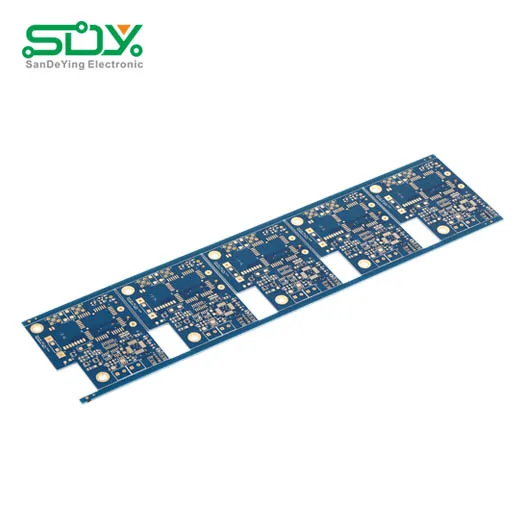

Производство печатных плат и сборка печатных плат, включая услуги OEM и EMS PCBA

Product Overview

Description

Welcome to SDY

PCB Manufacturing and PCBA Assembling,including OEM and EMS PCBA Service

SanDeYing Electronic is a one-stop PCB supplier, founded in 2006, located in Shenzhen, a city famous for its electronic industry. It has ISO and UL certificate, and honored as HI-TECH enterprise by Shenzhen government.



RELIABLE PCB PARTNER



HIGH QUALITY PCB MANUFACTURER

CAPABILITIES

PCB Capabilities
Item	Capabilities
Layer	1-14 Layers
Board material	FR-4 Tg130 / FR-4 tg140 / FR-4 Tg150 / FR-4 Tg170 / FR-4 Tg180 / FR-4 CTI175 / FR-4 CTI300
Tolerance	Board thickness tolerance / Board thickness≤1.0mm: +/-0.1mm / Board thickness 1.0-2.0mm: +/-10% / Board thickness >2.0mm: +/-8%
	PTH diameter tolerance: +/-0.075mm / NPTH diameter tolerance: +/-0.05mm / Hole location tolerance: +/-0.075mm
	Outline tolerance / Length≤100mm: +/-0.1mm / Length 100-300mm: +/-0.15mm / Length >300mm: +/-0.2mm
	V-cut dept tolerance: +/-0.1mm
Technical Specification	Min line width/space: 0.075/0.075mm
	Min PTH copper thickness: 20um
	Min hole diameter: 0.2mm
	Min pad ring: 0.1mm
	UL certified max copper thickness: 6oz(including Multilayer, double layers and single layer boards)
	Max board size: 560*410mm
	Board thickness / Double-sided board: 0.2-7.0mm / Multilayer board: 0.4-7.0mm
	Solder mask bridge: ≥0.08mm
	Aspect ratio: 8:1
	Via plugging capacity: 0.2-0.6mm
	Board bow and twist: ≤0.75%
	Au, Ni, HASL thickness: 1, Immersion gold: Au 1-4u” / 2, Gold fingers: Au 1-50u” / 3, Plating gold: Au 1-5u” / 4, Ni thickness: 100-200u” / 5, HASL thickness: 1-50um / 6, OSP thickness: 0.3-0.5um





PRODUCTION EQUIPMENT & PRODUCTS

SanDeYing Electronic manufactures various kinds of PCBs, including single layer PCBs, double layer PCBs, multilayer PCBs, high TG FR-4 PCBs, heavy copper PCBs, impedance controlled PCBs,gold finger PCBs, plating gold PCBs, and some other PCBs according to customers’ requirements. All of the PCBs are RoHS compliant and environmental friendly.



CERTIFICATE





FAQ

Q1:What is need about data required for quotation?

A1:SDY manufactures PCB products according to PCB gerber files and requirements from customers,please provide gerber files and requirements.



Q2:What are the common freight terms or international commercial terms or incoterms?

A2:Usually we offer EXW,FCA,FOB,CIF and DDU terms,and the default term on quotation is FCA Shenzhen if no special requirement provided.Kindly please mention the terms when you have any requirements.



Q3:What are the shipping modes?

A3:Usually it includes courier,air shipment,rail shipment,and ocean shipment.For samples and small quantity orders,usually shipped by courier.For medium quantity orders,usually shipped by air shipment or rail shipment.



Q4:Which courier companies do you work with?

A4:We worked with courier companies including DHL,FedEx,UPS,TNT and EMS.



Q5:What is the lead time or production time?

A5:For sample orders,it is 5-7days.For small quantity orders,it is 7-10days.For medium quantity orders,it is 10-15days.For large quantity orders,it is 15-30 days.



Q6:Do you offer quick turn or expedite service?

A6:Yes,we offer quick turn or expedite or short lead timer production service.But the main business is medium to large quantities orders.Quick turn service production is a small part of our business.





Please send your spec. or gerber files so that we are able to provide a quotation asap.
Looking forward to your inquiry!
