This KF40 braided metal hose is made of SUS316L.It is used for vacuum systems like vacuum oven. It has a braid outside the bellow.So it is explosion-proof and could bear high pressure. It has 2 KF40 flanges on both end. You can use standard vacuum clamps and centering rings to combine it with other fittings that have KF40 flanges.

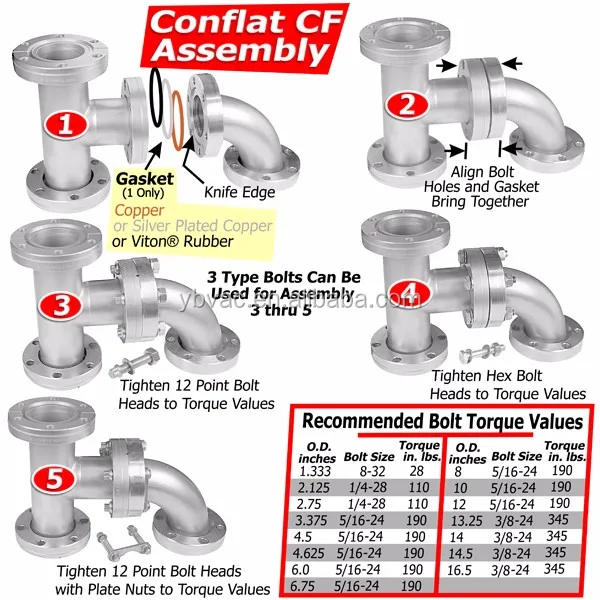

Direction for use

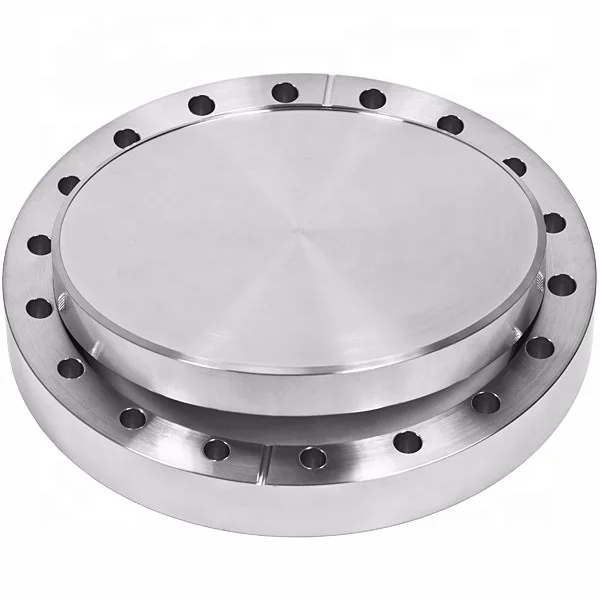

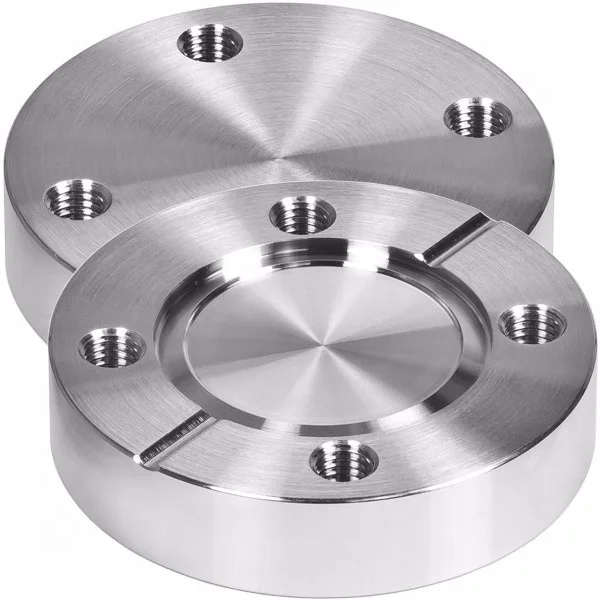

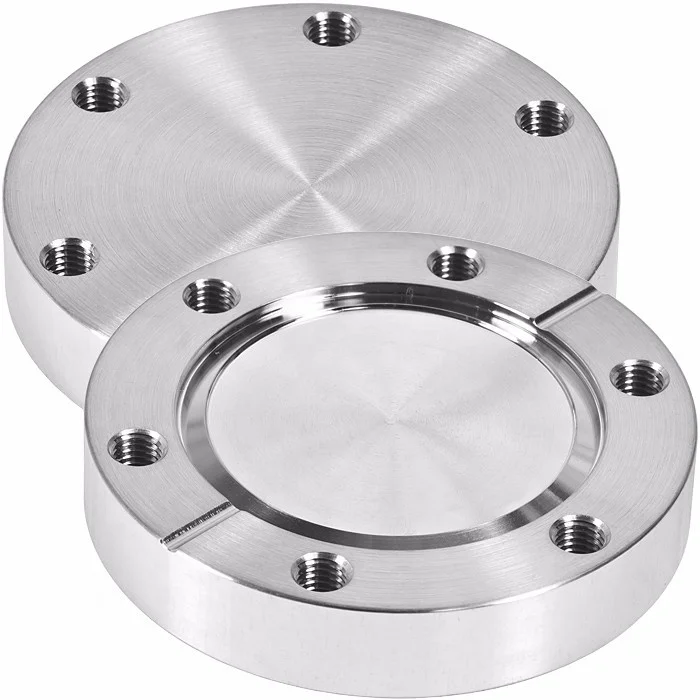

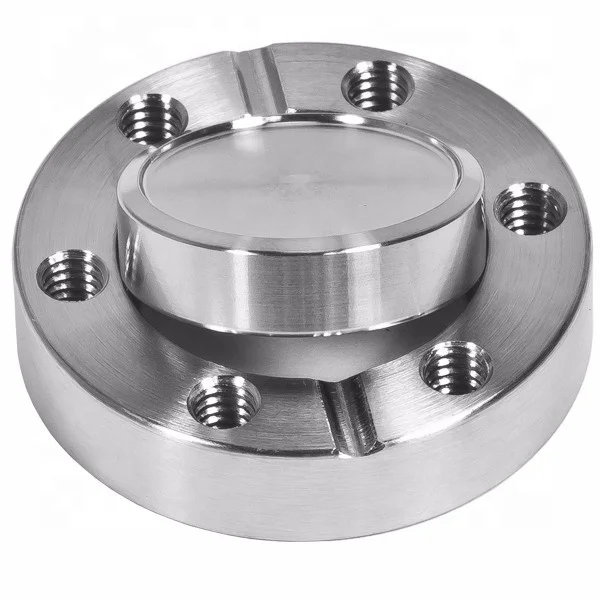

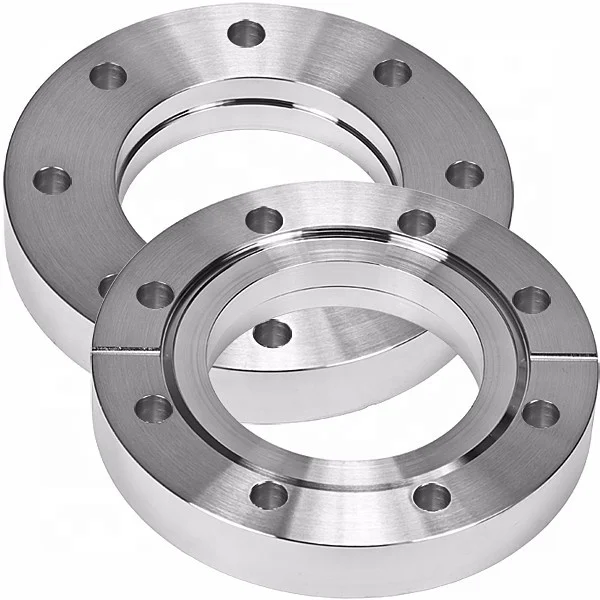

Conflat flanges (CF) are used for ultra- high vacuum pressure applications. These fittings use a gasket and CFConflat flanges (CF) are used for ultra- high vacuum pressure applications. These fittings use a gasket and CF knife-edge flange. When the gasket is compressed with the required torque (see following pages) between the knife edges of the CF flanges, its material flows to fill surface blemishes. An ultra high vacuum pressure seal with proper bake-out (450°C) can be achieved down to 10-13 torr. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2-1/8, 2-3/4, 3-3/8, 4-1/2, 4-5/8, 6, 6-3/4, 8, 10, 12, 13-1/4, 14, 14-1/2 and 16-1/2.
Good for UHV applications to 10-13 Torr

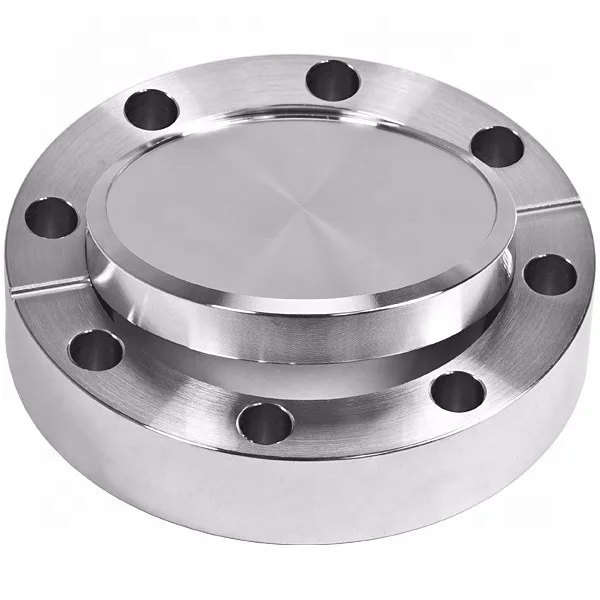

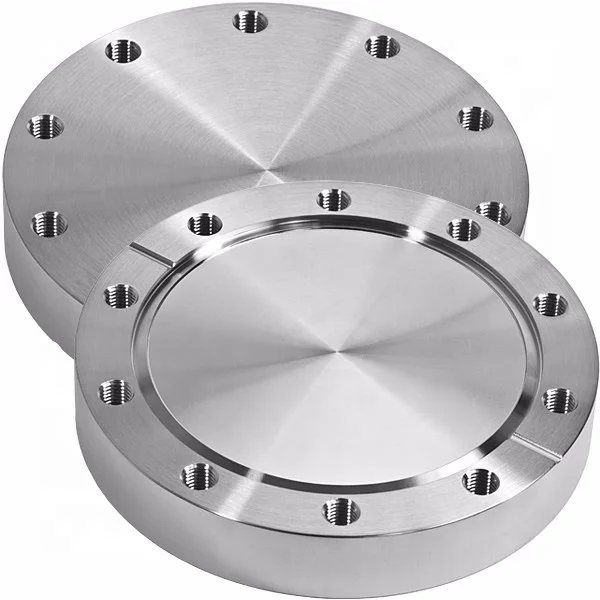

Conflat fittings come in rotatable or non-rotatable versions with through bolt holes or tapped bolt holes. All fittings with two or more flanges come with at least one rotatable flange. Gaskets for conflat flanges CF are made of Copper (most widely used), Silver Plated Copper (for frequent high temperature bake out), or Viton elastomer (for frequent assembly and disassembly).Conflat flange CF fittings come in reducers, adapters and standard components. These vacuum fittings are made of corrosive resistant 304 stainless steel. Type 304 stainless steel is suitable for tungsten inert gas (TIG) welding: simple fusing welding without filler metal is desirable.
Detailed Images
We make braided hose with top grade sus316L bellows. The welded positions are polished to mirror surface.Every piece of bellow goes through Helium Leak Detector.
Related Products
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
After Sales Service
After-sale Service Warranty within and after Guarantee Period
Basic requirements of our after-sale service
1) If any quality problems such as design, manufacture, function or procedure occur within the guarantee period, YBVAC shall take full responsibility and bear all the economic losses incurred. 2) If any big quality problems occurs out of the guarantee period, YBVAC will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.

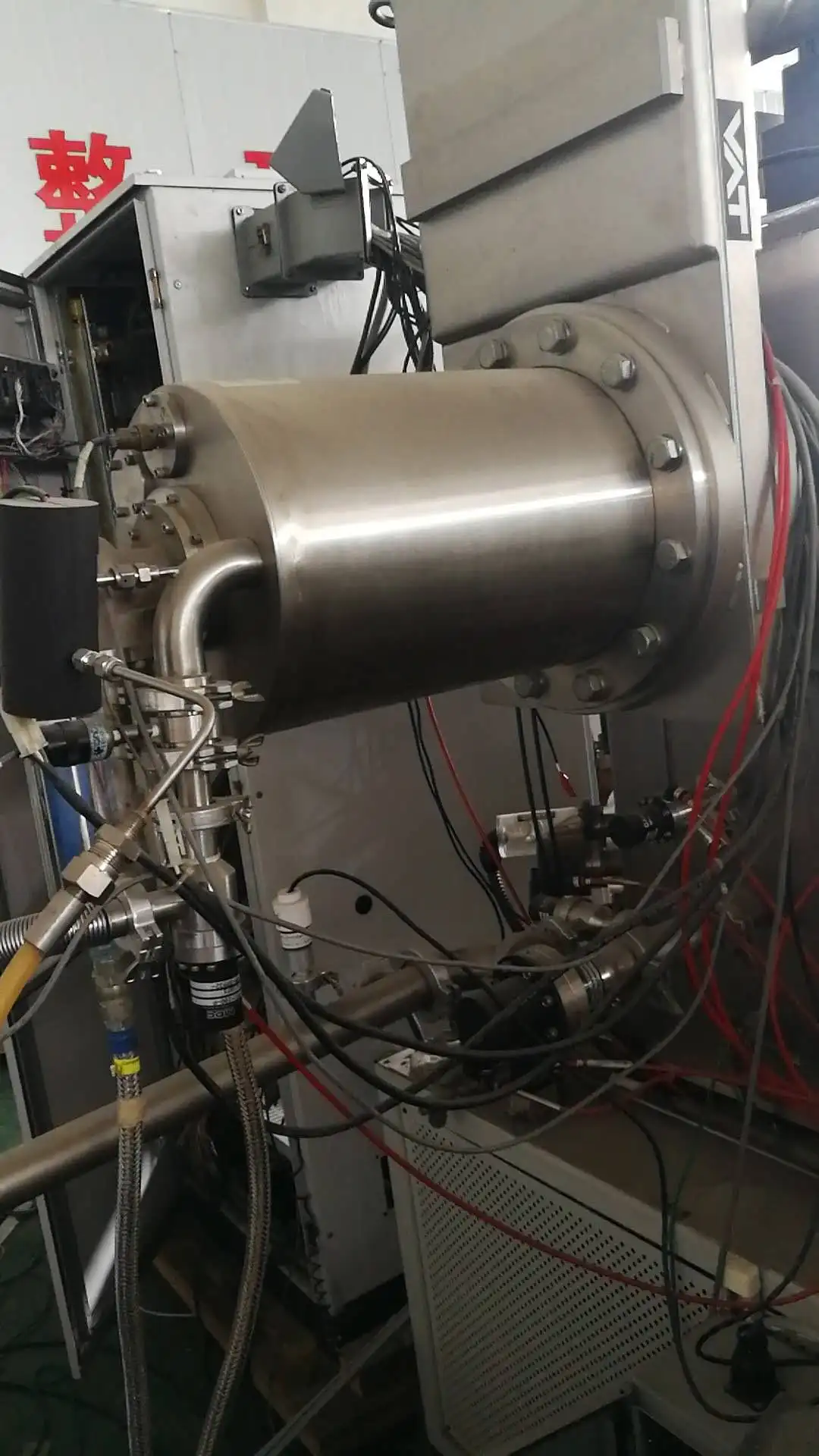

Exhibition
Every Piece of Bellows will be detected

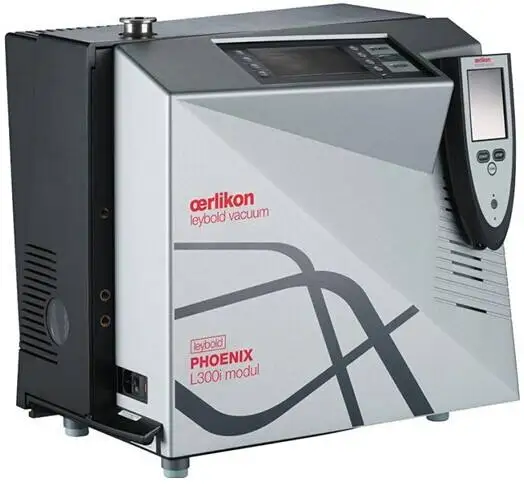

We use arlikon leybold vacuum helium detector to test every piece of bellows.
To make sure it can be used in high vacuum c systems.
Company Introduction

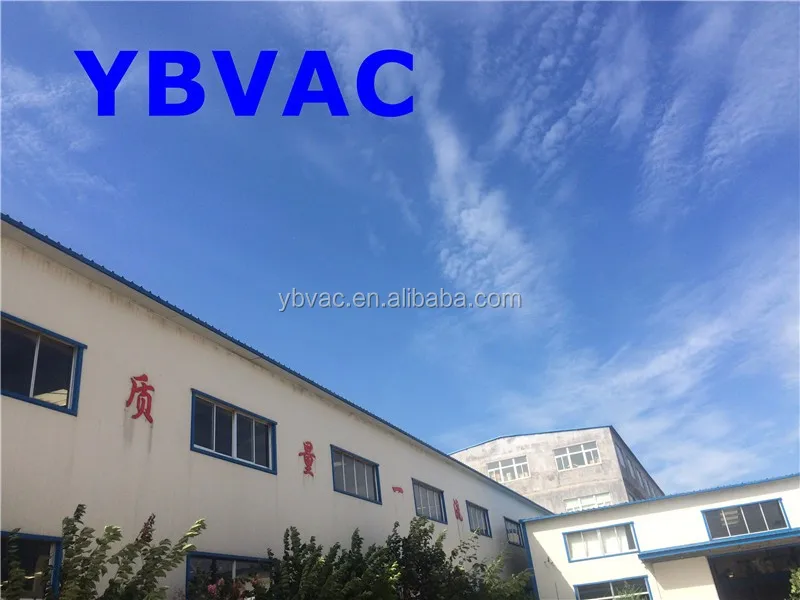

Zhucheng Yongbang Pipe Co., LTD. is located in Zhucheng,Shandong,China.YBVAC is a professional manufacturer of high quality stainless steel vacuum bellows,corrugated hoses and other standard vacuum components.We make vacuum bellows range from 6mm to 300 mm.Our products are widely used in college laboratories, semiconductor industry,vacuum coating engineering, LED Industry, solar energy, nuclear and other scientific and industrial markets.
