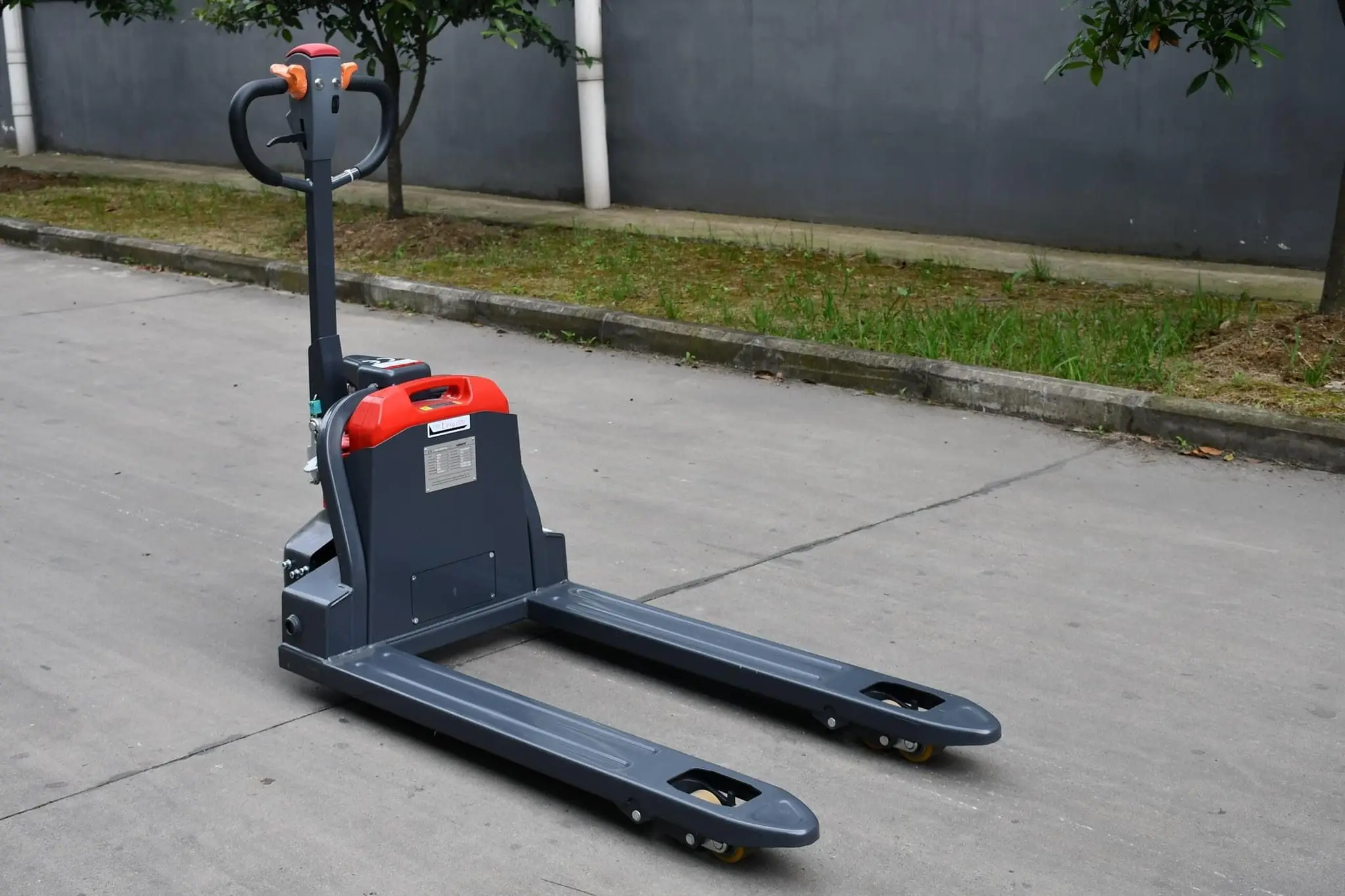

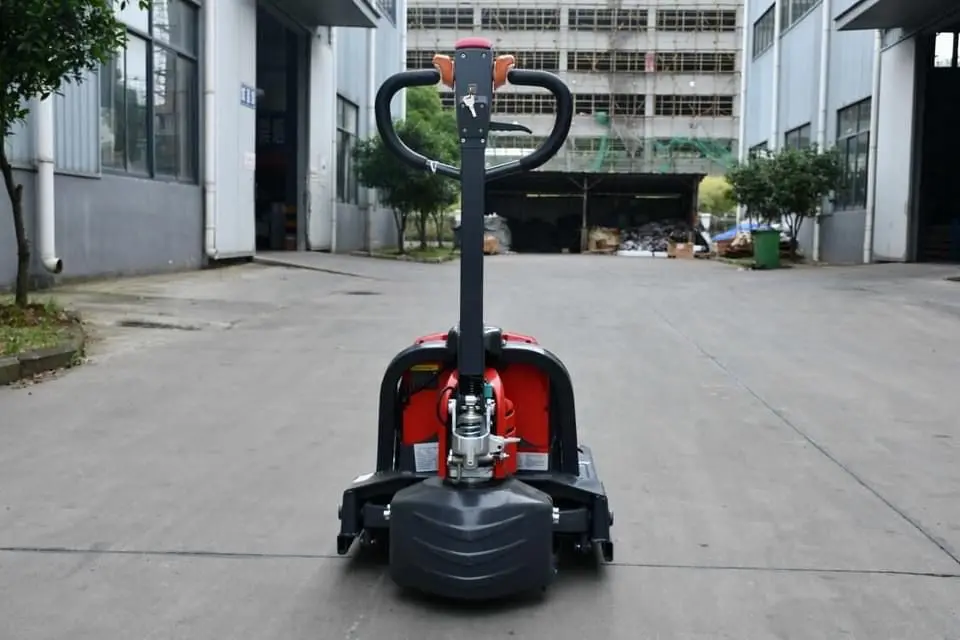

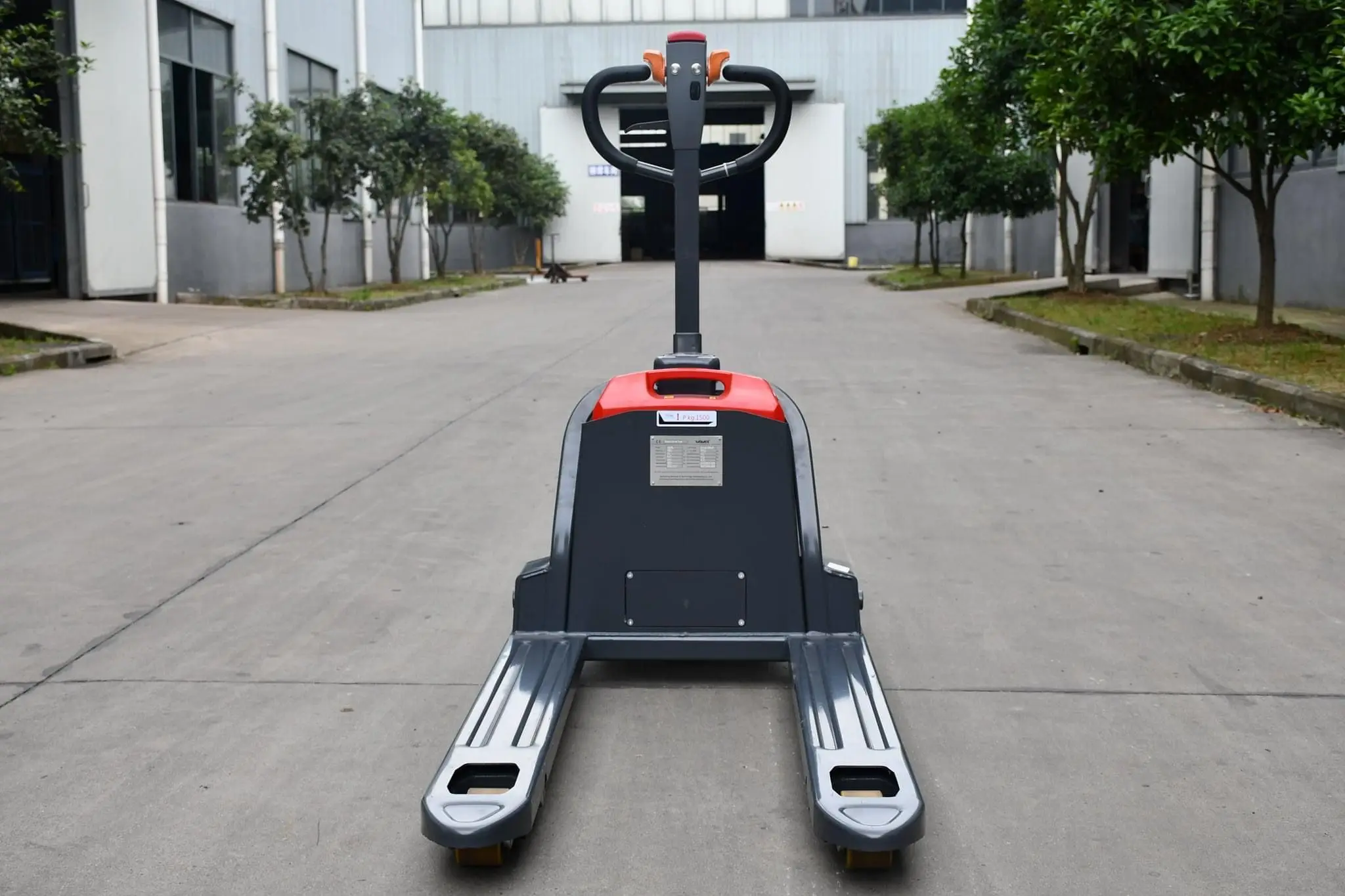

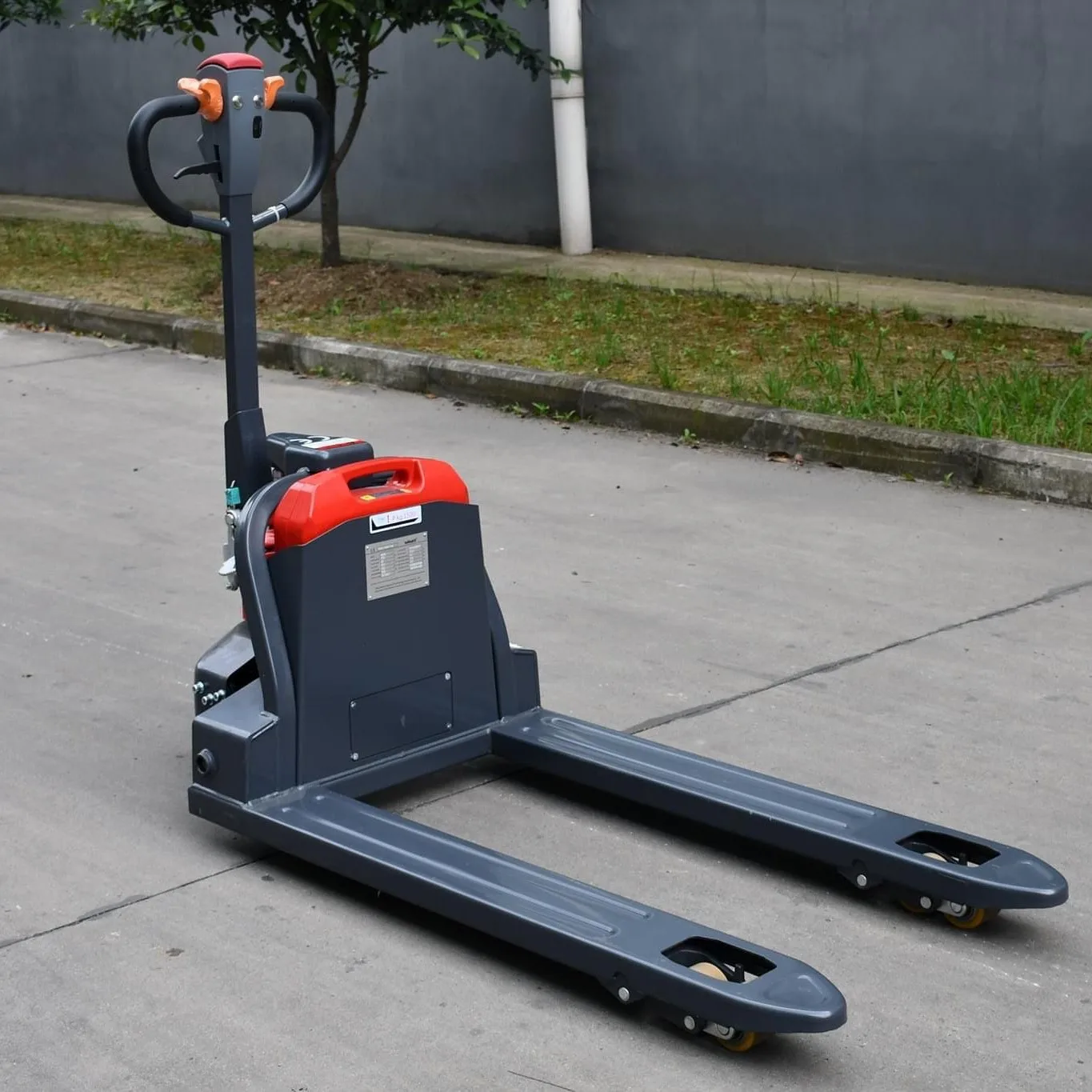

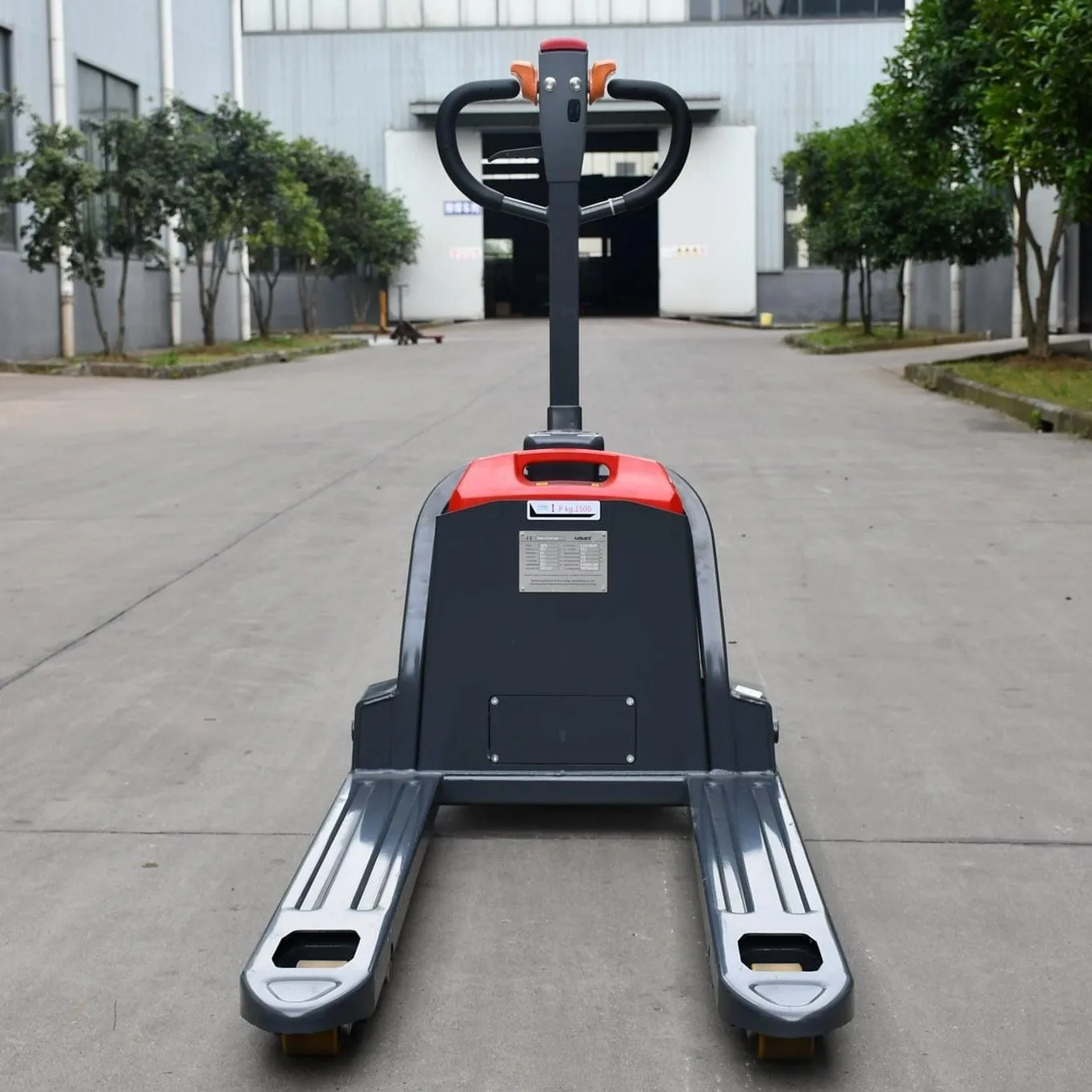

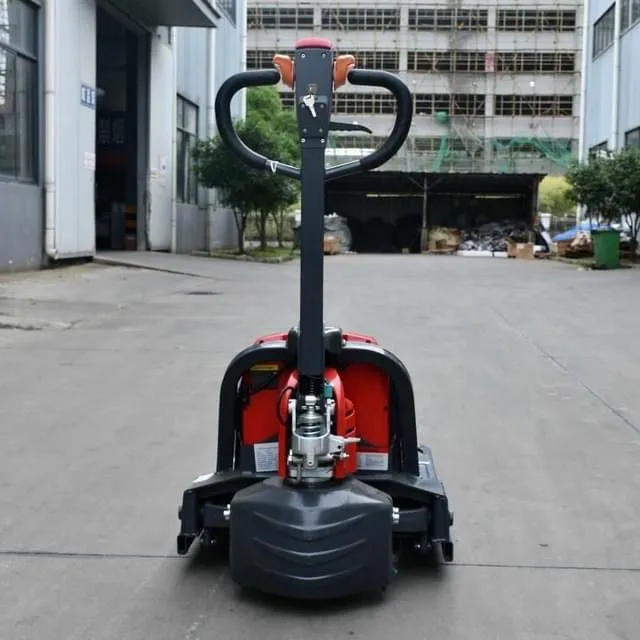

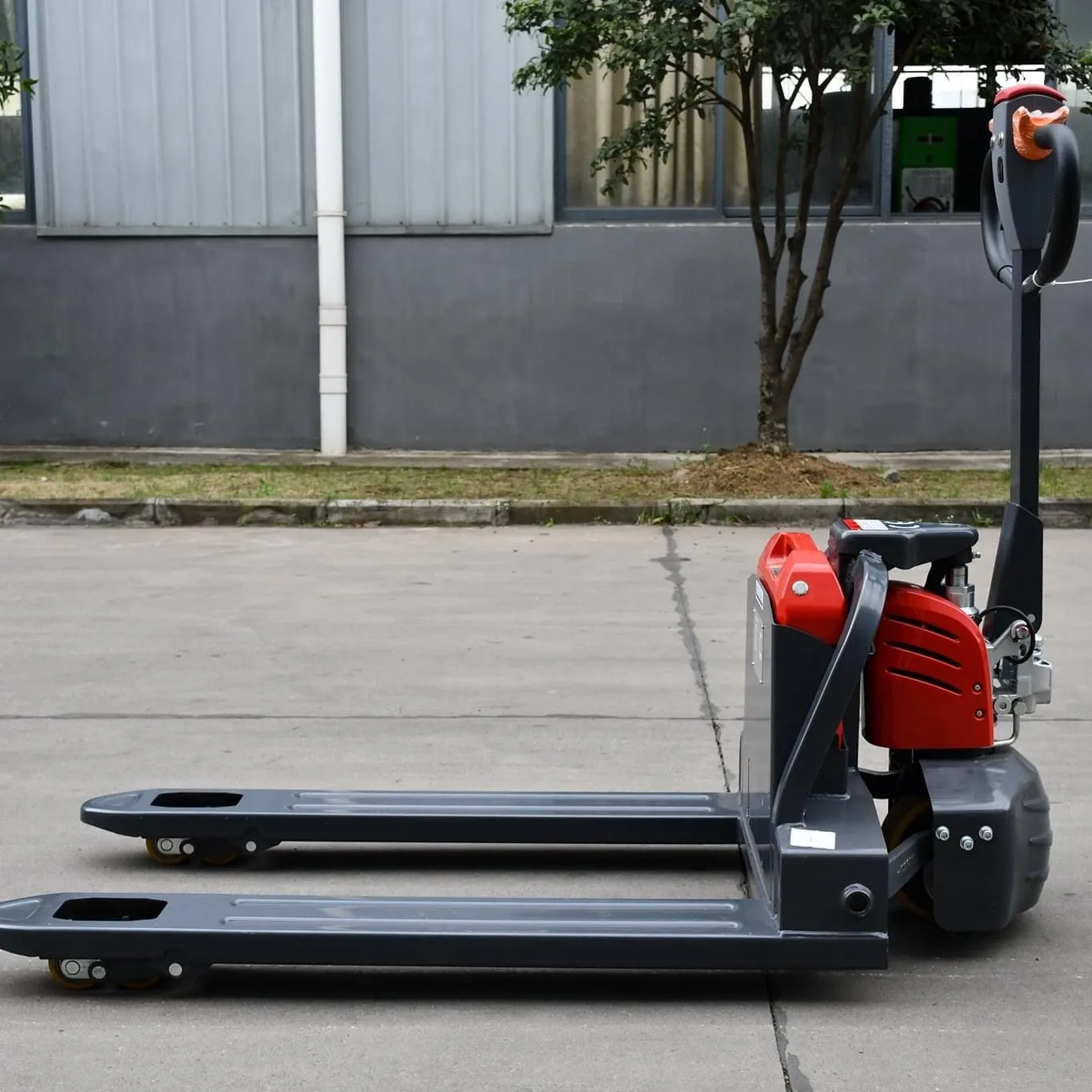

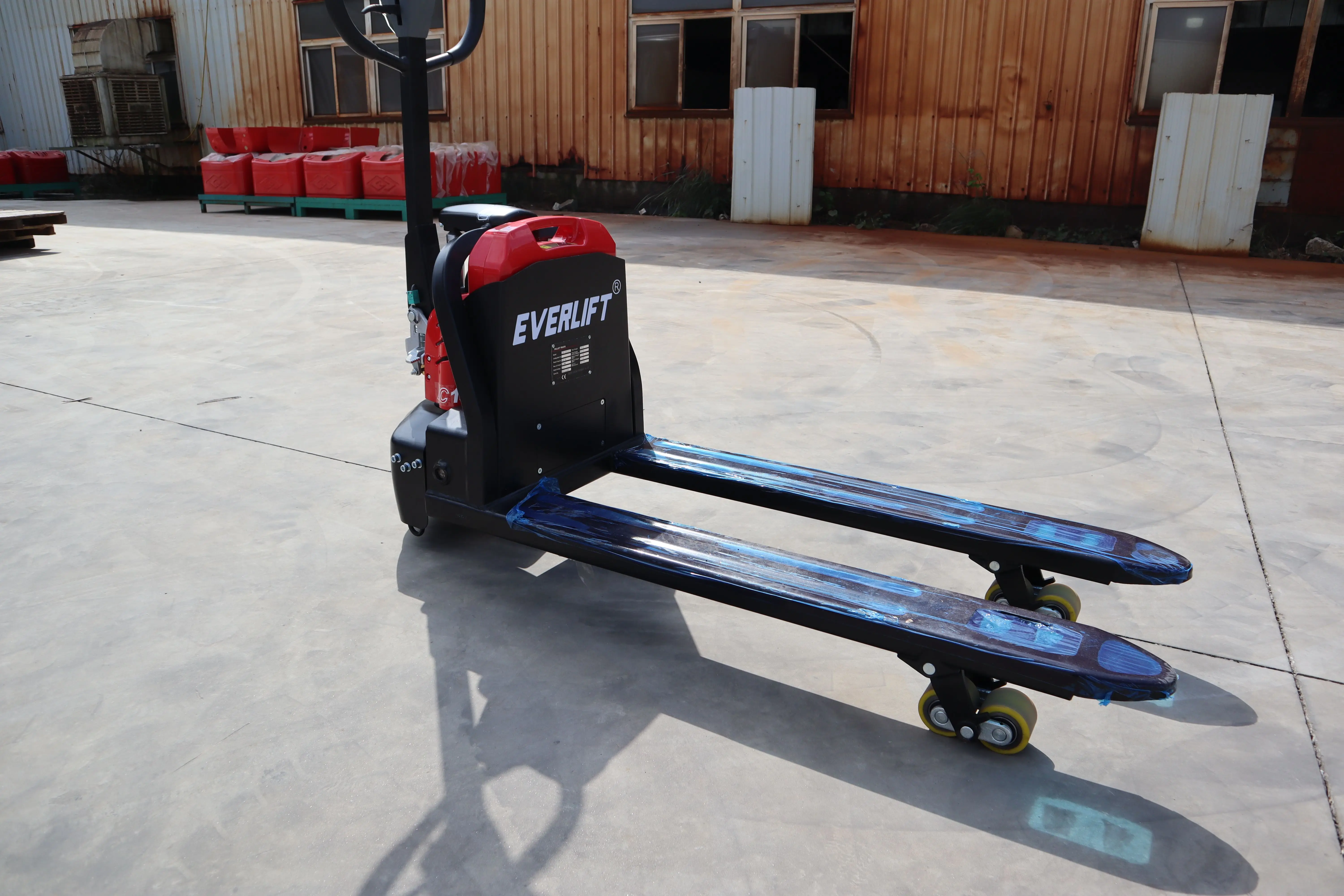

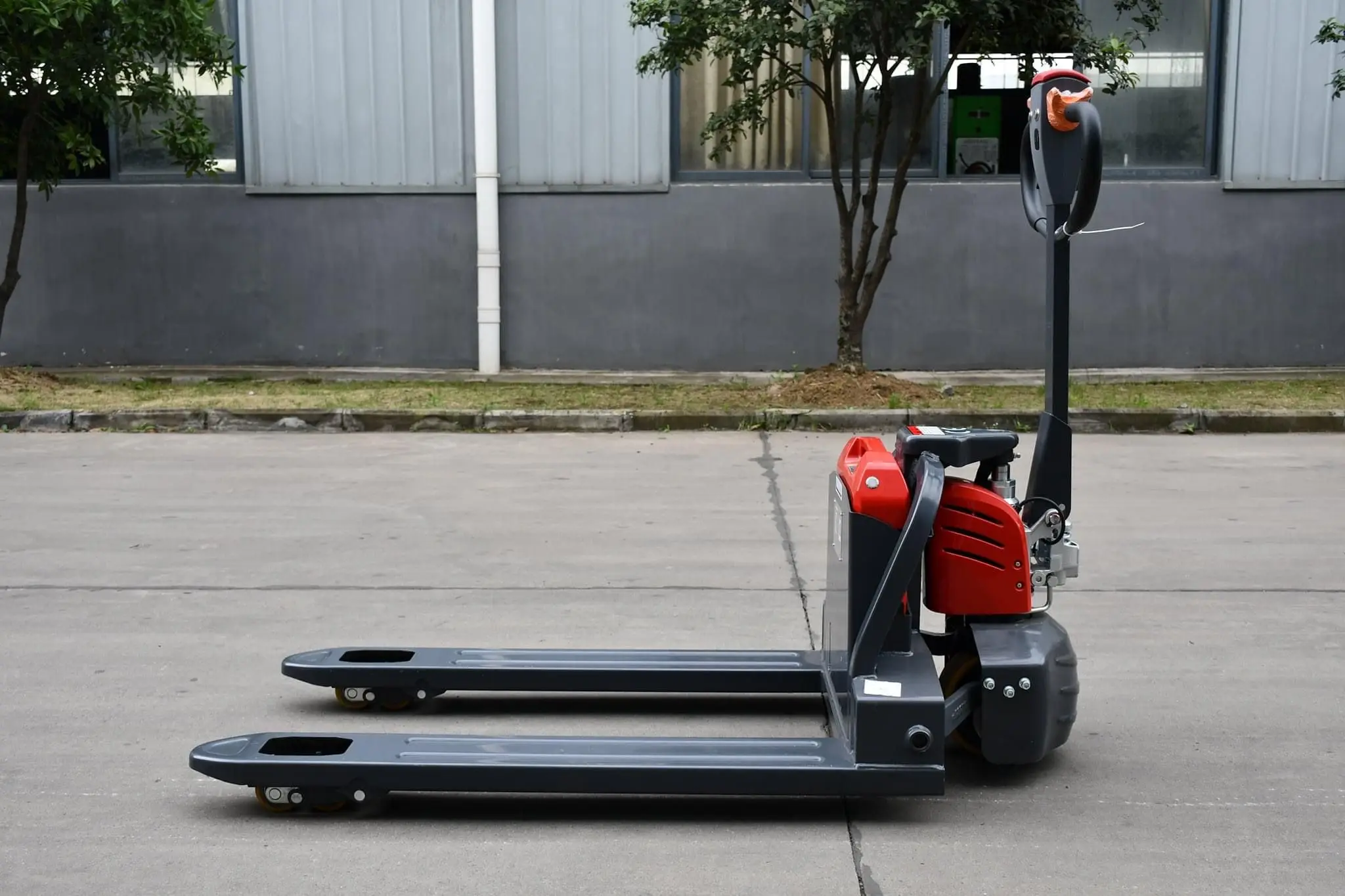

HELI BRAND 1.5TON 1500kg Electric Pallet Jack Full electric pallet truck Lithium battery heli forklift
- Category: >>>
- Supplier: Ningbo Everlift Machinery Co. Ltd.
Share on (62597961812):
Product Overview
Description
Product Description
ELECTRIC PALLET JACK 1500KG 2000KG
1.2 | Mode |
| ELEP-15A | ||
1.3 | Drive type |
| Electric | ||
1.4 | Manner of operation |
| Walkie | ||
1.5 | Load Capacity | Q (t) | 1.5 | ||
1.6 | Load Centre | c (mm) | 600 | ||
1.8 | Distance between fork backrest and front wheel | x (mm) | 944 | ||
1.9 | Wheel Base | y (mm) | 1243 | ||
2.1 | Service Weight(with battery) | kg | 142 | ||
3.1 | Tire material |
| PU | ||
3.7 | Tread | b11 (mm) | 400/535 | ||
4.4 | Lifting Height | h3 (mm) | 200 | ||
4.9 | The height of handle in the operation position | h14 (mm) | 740/1160 | ||
4.15 | Lowered fork height | h13 (mm) | 85 | ||
4.19 | Overall Length | l1 (mm) | 1603 | ||
4.20 | Body Length | l2 (mm) | 453 | ||
4.21 | Overall Width | b1/ b2 (mm) | 550/685 | ||
4.22 | Fork Size | s/e/l (mm) | 50/150/1150 | ||
4.25 | Fork Width | b5 (mm) | 550/685 | ||
4.32 | Ground clearance under mast | m2 (mm) | 35 | ||
4.33 | Aisle width for pallets 1000*1200 crossways | Ast (mm) | 1804 | ||
4.34 | Aisle width for pallets 1000*1200 lengthways | Ast (mm) | 1854 | ||
4.35 | Turing Radius | Wa (mm) | 1398 | ||
5.1 | Driving Speed,load/unload | (km/h) | 4.2/4.5 | ||
5.8 | Maximum gradeability load/unload | (%) | 5/10 | ||
5.10 | Brake Type |
| Electromagnetic brake | ||
6.1 | Drive Motor | (kW) | 0.75 | ||
6.2 | Lift Motor | (kW) | 0.8 | ||
6.3 | Battery,according to DIN 43531/35/36 A,B,C,no |
| no | ||
6.4 | Battery voltage/rate capacity | (V/Ah) | 24/20 | 24/40 | 24/60 |
6.5 | Battery Weight(±5%) | (kg) | 6 | 10.2 | 13.2 |
8.1 | Type of drive control |
| DC | ||
10.5 | Steering type |
| Manual steering system | ||
Company Information
Packaging & Shipping
FAQ
Q1: How long is the Warranty for EVERLIFT product?
A1: EverLIFT provides 12 months or 1000 hours for the whole machine from on board time.
Q2: How about the delivery time?
A2: Usually EverLIFT producing time is 15- 20 days after we receive the advanced payment. For some standard products, we may have stock and could delivery immediately.
Q3: How about the continuous working time for the electric series forklifts ? And How long time to charge the battery full ?
A3: EverLIFT battery continuous working time is around 3-6 hours (working time depend on battery volume).It needs usually 8 - 12 hours to charge the battery, EverLIFT's charger is automatic, after the battery is full, it will stop working automatically.
Q4: Can EverLIFT provide customized products? OEM products or ODM products?
A4: Yes, EverLIFT can provide customized products per your request, both OEM and ODM are acceptable. We do a lots of non-standard products, welcome your special reqeust.
Q5: What’s the specification of the chargers?
A5: Our chargers voltage could be 110V 220V 240 380V 415V ( 1 phase or 3 phases, 50/60HZ). Power plug could be USA/UK/AUSTRALIA/EUPROPEAN standard.
Q6: Could we request our own color for the products?
A6: Yes, of course, you just need to offer us the RAL code.
